Acer FA100 256GB NVMe PCIe Gen3 M.2 2280 SSD
MPN AC-FA100-256GB · Brand ACER · M.2 2280
The Acer FA100 256GB NVMe M.2 2280 SSD delivers sequential reads up to 1950 MB/s and writes up to 1300 MB/s via PCIe Gen3, with 4K LDPC error correction, 150 TBW endurance, and a 5-year warranty
Inclusive of GST · GST invoice available
Overview
The Acer FA100 256GB NVMe SSD is a compact, high-performance M.2 2280 drive built on 3D NAND flash technology and designed to bring a meaningful speed upgrade to both laptops and desktops. Using a PCIe Gen3 x4 interface with NVMe protocol, it delivers sequential read speeds of up to 1950 MB/s and sequential write speeds of up to 1300 MB/s, enabling noticeably faster boot times, quicker application launches, and smoother file transfers compared to traditional SATA drives. Data integrity is a central design priority for the FA100. The drive supports 4K LDPC (Low-Density Parity-Check) error correction alongside S.M.A.R.T. monitoring, providing robust protection against data errors that can accumulate during intensive read and write cycles. HMB (Host Memory Buffer) support allows the drive to borrow a portion of the host system's DRAM to simulate an SLC cache, reducing latency and improving sustained performance without the cost of an onboard DRAM chip. The FA100 also implements TRIM support, which helps the controller manage free space efficiently, reducing write amplification and helping preserve drive longevity over time. The 256GB variant carries a Total Bytes Written (TBW) rating of 150 TB and is backed by a 5-year manufacturer warranty, offering reassurance for everyday productivity and light creative workloads. With a single-sided PCB and slim 2.3 mm profile, the FA100 fits easily into space-constrained notebooks and small-form-factor desktops. It supports modern standby and is rated for a maximum power draw of 3.96 W at the 256GB capacity, making it a sensible choice for battery-powered systems. Each unit is bundled with Acronis True Image backup software. Verified Specifications: - Capacity: 256 GB - Form Factor: M.2 2280 - Interface: PCIe Gen3 x4, NVMe - Sequential Read: Up to 1950 MB/s - Sequential Write: Up to 1300 MB/s - Random Read: Up to 202,000 IOPS - Random Write: Up to 280,000 IOPS - TBW: 150 TB - Dimensions: 80 × 22 × 2.3 mm - Operating Temperature: 0°C to 70°C - Storage Temperature: -40°C to 85°C - Max Power Consumption (256GB): 3.96 W - Warranty: 5 Years - Bundled Software: Acronis True Image

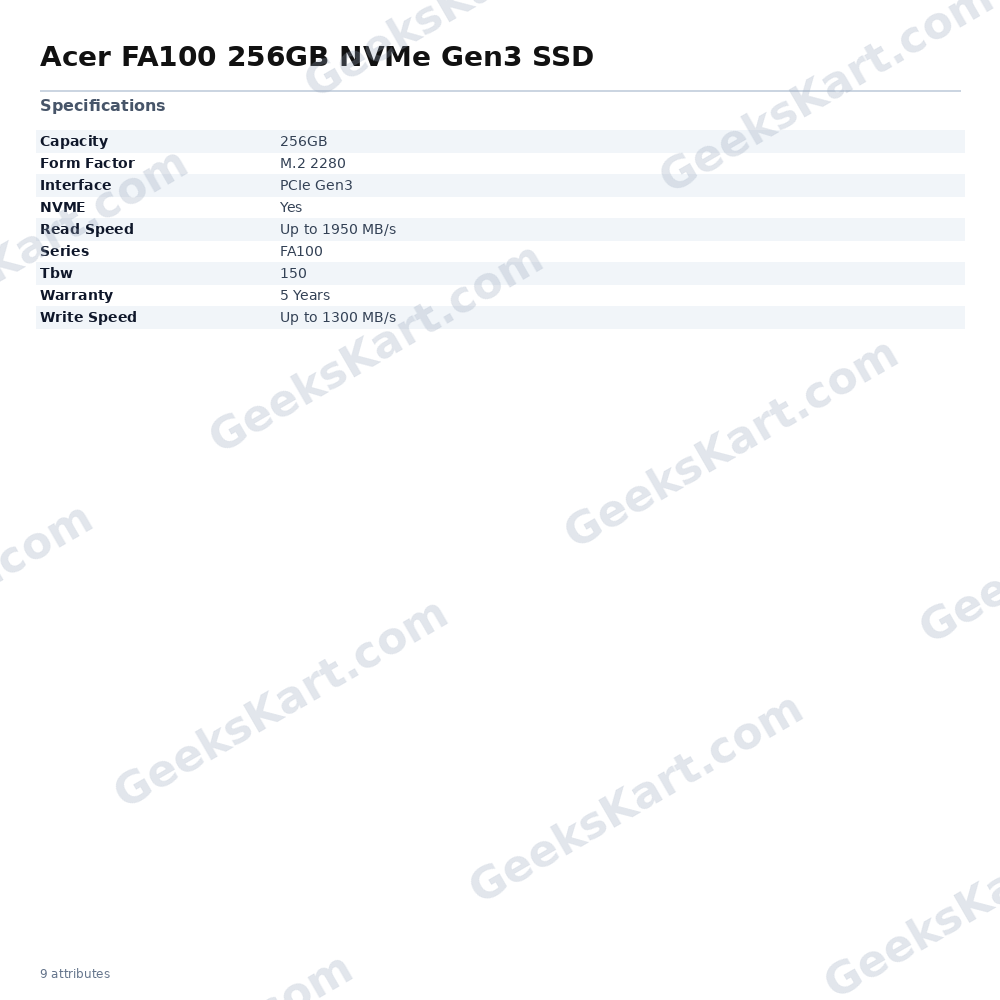

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 256GB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3 |
| Tbw | 150 |
| NVME | Yes |
| Series | FA100 |
| Read Speed | Up to 1950 MB/s |
| Write Speed | Up to 1300 MB/s |
