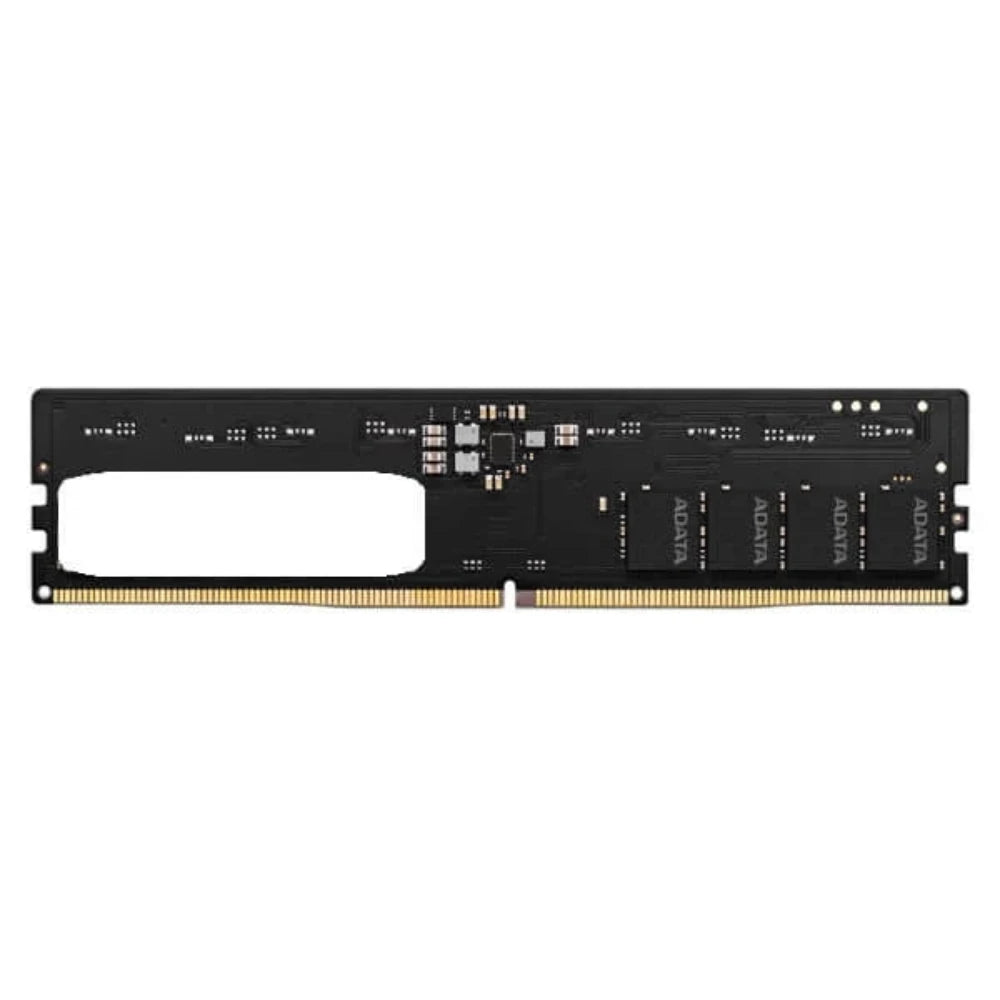

ADATA 16GB ( 16GBx1 ) 5600MHz DDR5 RAM ( CL46 )
MPN AD5U560016G-S · Brand ADATA · UDIMM
Features of ADATA 16GB ( 16GBx1 ) 5600MHz DDR5 RAM ( CL46 ) Adata DDR5 16GB 5600MHz U-DIMM memory module ensuring enhanced efficiency and stability for modern computing. Featuring a built-in Power Management IC and Die Error Correcting Code, this module works with the latest AMD and Intel platforms. The DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz). This next-gen memory module operates on just 1.1V, making it 8
Inclusive of GST · GST invoice available
Overview
Features of ADATA 16GB ( 16GBx1 ) 5600MHz DDR5 RAM ( CL46 )
Adata DDR5 16GB 5600MHz U-DIMM memory module ensuring enhanced efficiency and stability for modern computing. Featuring a built-in Power Management IC and Die Error Correcting Code, this module works with the latest AMD and Intel platforms.
The DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).
This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.
This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.
With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.
DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.
DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.
The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.

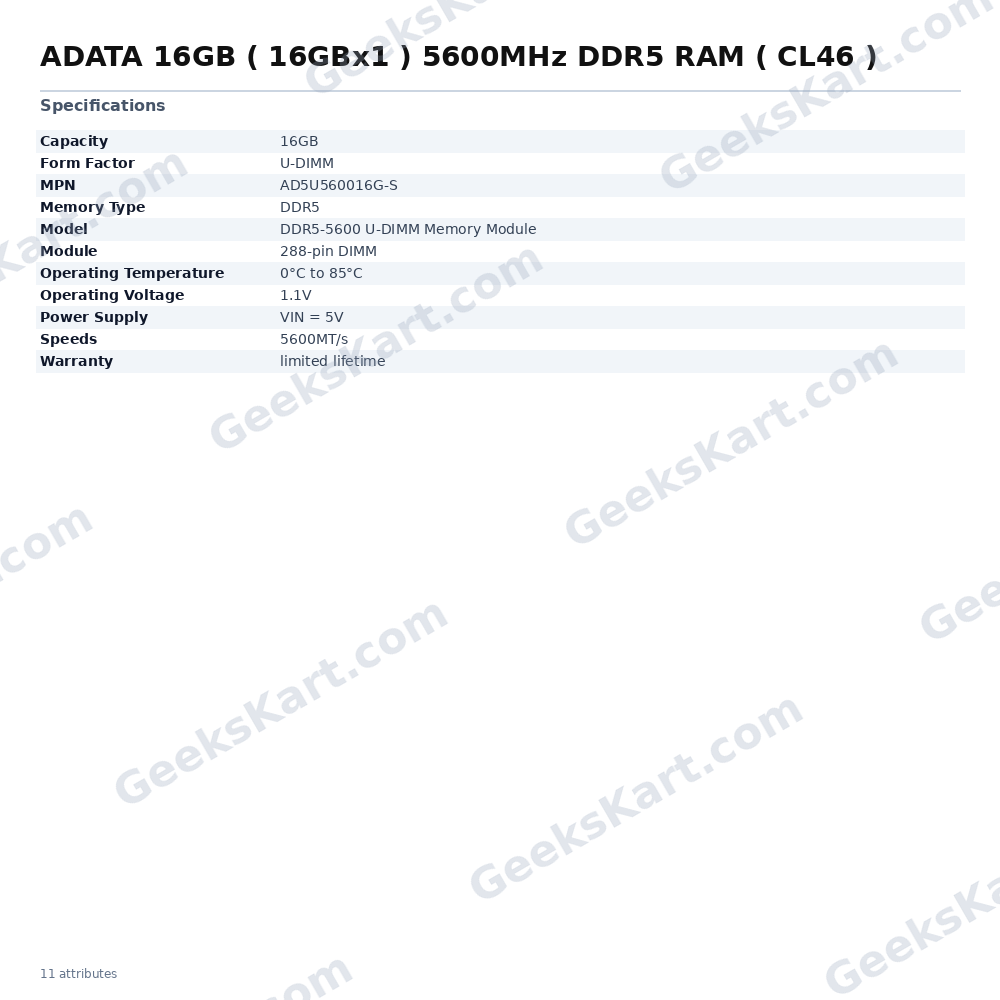

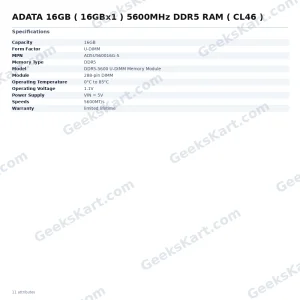

Specification of ADATA 16GB ( 16GBx1 ) 5600MHz DDR5 RAM ( CL46 )
| Model Name | DDR5-5600 U-DIMM Memory Module |
| Model Part Number | AD5U560016G-S |
| Memory Type | DDR5 |
| Form Factor | U-DIMM |
| Capacity | 16GB |
| Speeds | 5600MT/s |
| Operating Voltage | 1.1V |
| Operating temperature | 0°C to 85°C |
| Module | 288-pin DIMM |
| Power supply | VIN = 5V |
| Warranty | limited lifetime |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | Lifetime |
| Capacity | 16GB |
| Form Factor | UDIMM |
| Module | 288-pin DIMM |
| Speeds | 5600MT/s |
| Model | DDR5-5600 U-DIMM Memory Module |
| Power Supply | VIN = 5V |
| Operating Voltage | 1.1V |
| Operating Temperature | 0°C to 85°C |
