Adata Legend 850 512GB M.2 Gen4 NVMe Internal SSD
MPN ALEG-850-512GCS · Brand Adata · M.2 2280
The Adata Legend 850 512GB M.2 2280 PCIe Gen4 NVMe SSD delivers sequential reads up to 5,000 MB/s and writes up to 2,700 MB/s, with a bundled heatsink and 5-year warranty — compatible with Intel, AMD, and PS5 platforms
Inclusive of GST · GST invoice available
Overview
The Adata Legend 850 512GB (model ALEG-850-512GCS) is an M.2 2280 form-factor internal solid-state drive built on the PCIe Gen4 x4 interface and compliant with the NVMe 1.4 standard. It is designed for users who demand high-throughput storage in a compact footprint — whether upgrading a desktop, a thin-and-light notebook, or a PlayStation 5 console. At the heart of the Legend 850 is a 3D NAND flash array paired with SLC Caching and Host Memory Buffer (HMB) technology. SLC Caching accelerates burst writes by temporarily using a portion of the NAND as single-level-cell memory, while HMB allows the drive to leverage a small slice of system RAM as a translation-layer cache, reducing latency without requiring dedicated onboard DRAM. The drive ships with an integrated black heatsink featuring a bronzed trim and sandblasted surface finish. This heatsink dissipates operating heat passively, keeping the controller and NAND within their rated operating temperature range of 0 °C to 70 °C, which is important for sustaining peak throughput during extended workloads such as large file transfers or game installations. Data integrity is protected by LDPC (Low-Density Parity-Check) error-correction coding, which detects and corrects bit errors in the NAND cells. AES 256-bit hardware encryption is also supported, allowing users to secure data at rest without a software performance penalty. The Legend 850 is backward compatible with PCIe 3.0 slots, making it a viable upgrade path for systems that do not yet support the Gen4 standard — though peak speeds will be reduced on Gen3 hosts. Verified Specifications: • Model: ALEG-850-512GCS • Capacity: 512 GB • Form Factor: M.2 2280 • Interface: PCIe Gen4 x4 • Protocol: NVMe 1.4 • NAND Type: 3D NAND • Sequential Read (Max): 5,000 MB/s • Sequential Write (Max): 2,700 MB/s • 4K Random Read IOPS (Max): 380,000 • 4K Random Write IOPS (Max): 530,000 • MTBF: 2,000,000 hours • Operating Temperature: 0 °C – 70 °C • Storage Temperature: −40 °C – 85 °C • Dimensions (with heatsink): 80 × 22 × 3.13 mm • Dimensions (without heatsink): 80 × 22 × 2.15 mm • GTIN: 4711085936981 • Warranty: 5 years limited • PS5 Compatibility: Yes (expanded storage) • Platform Support: Intel and AMD desktop and notebook platforms

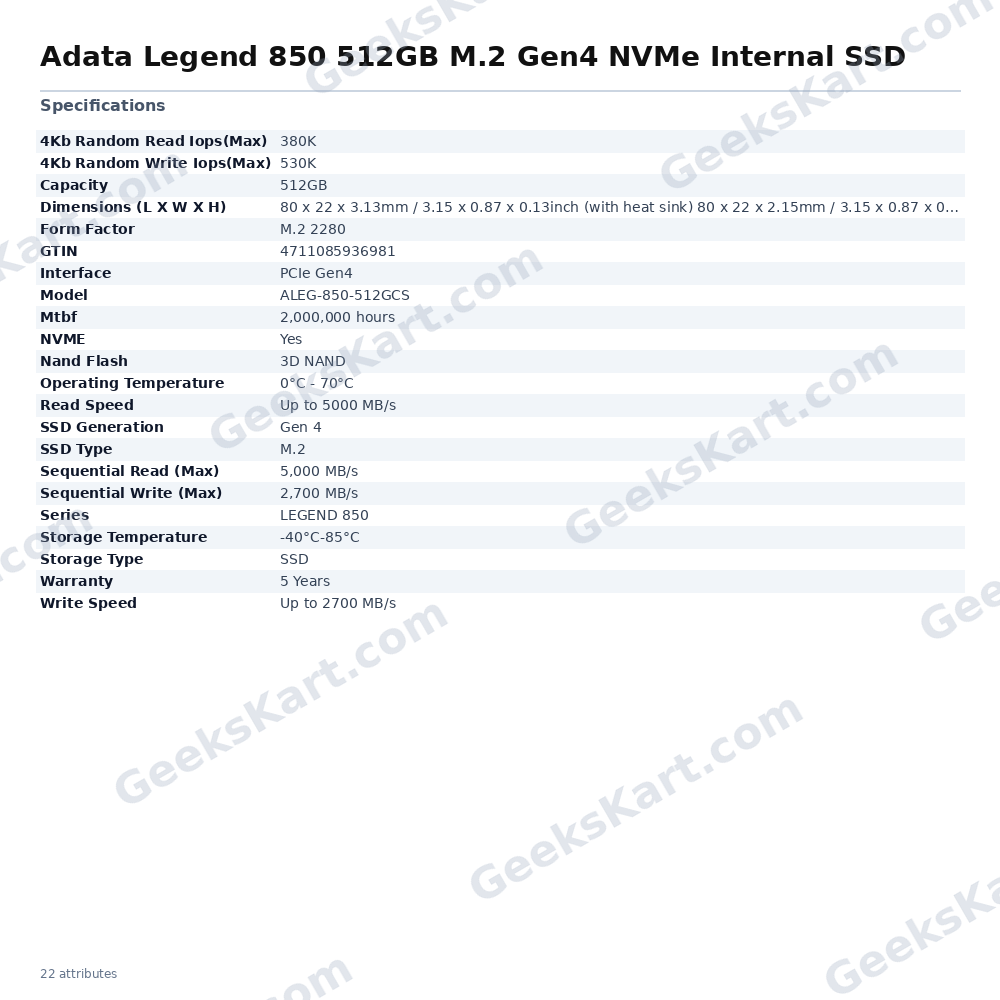

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 512GB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4 |
| SSD Type | M.2 |
| Storage Type | SSD |
| SSD Generation | Gen 4 |
| Mtbf | 2,000,000 hours |
| NVME | Yes |
| Series | LEGEND 850 |
| Nand Flash | 3D NAND |
| Read Speed | Up to 5000 MB/s |
| Write Speed | Up to 2700 MB/s |
| Model | ALEG-850-512GCS |
| Storage Temperature | -40°C-85°C |
| Operating Temperature | 0°C – 70°C |
| Sequential Read (Max) | 5,000 MB/s |
| Dimensions (L X W X H) | 80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink) 80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink) |
| Sequential Write (Max) | 2,700 MB/s |
| 4Kb Random Read Iops(Max) | 380K |
| 4Kb Random Write Iops(Max) | 530K |
