ADATA Premier 8GB ( 8GBx1 ) 3200MHz DDR4 Laptop RAM ( CL22 )
MPN AD4S32008G22-SGN · Brand ADATA · standard 1.18" height
Features of ADATA Premier 8GB ( 8GBx1 ) 3200MHz DDR4 Laptop RAM ( CL22 ) Extra Fast and Ultra Efficient ADATA DDR4 modules for notebooks realize new generation advantages in highly reliable and cost-effective products. DDR4 brings higher performance thanks to faster frequencies compared to DDR3, going up to 2666MHz. It does this while operating at a low 1.2V, which is 20% less than DDR3 in terms of energy consumption. Meets Demanding Standards for New-Generation Platforms ● Complies with JEDEC s
Inclusive of GST · GST invoice available
Overview
Features of ADATA Premier 8GB ( 8GBx1 ) 3200MHz DDR4 Laptop RAM ( CL22 )
Extra Fast and Ultra Efficient
ADATA DDR4 modules for notebooks realize new generation advantages in highly reliable and cost-effective products. DDR4 brings higher performance thanks to faster frequencies compared to DDR3, going up to 2666MHz. It does this while operating at a low 1.2V, which is 20% less than DDR3 in terms of energy consumption.
Meets Demanding Standards for New-Generation Platforms
● Complies with JEDEC standards
● RoHS compliant
● Supports Intel Skylake and Coffee Lake platforms, future-proof for Kaby Lake & Cannon Lake platforms
Lifetime Warranty
All ADATA memory modules are produced and tested using a rigorous quality control process for rapid computing and stable operation. In addition, ADATA memory modules provide customers a lifetime warranty for maximum assurance with excellent service.

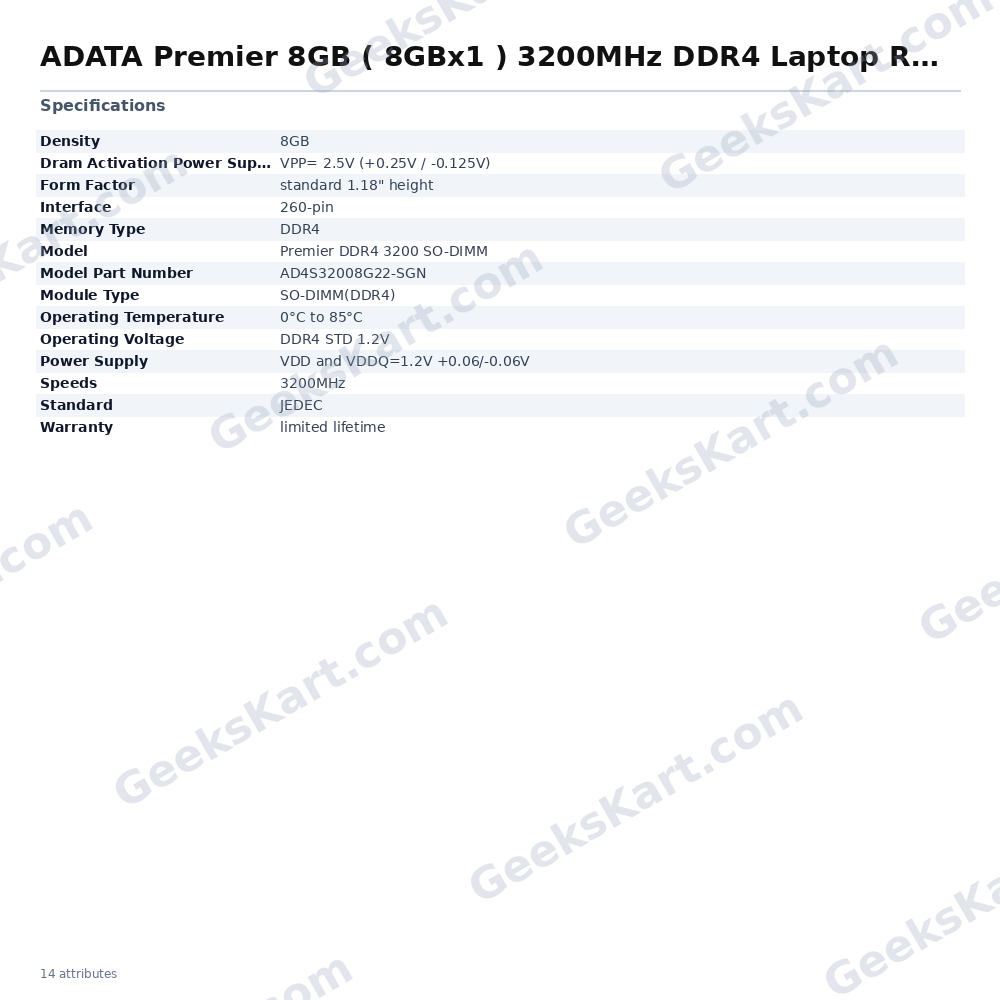

Specifications of ADATA Premier 8GB ( 8GBx1 ) 3200MHz DDR4 Laptop RAM ( CL22 )
| Model Name | Premier DDR4 3200 SO-DIMM |
| Model Part Number | AD4S32008G22-SGN |
| Module Type | SO-DIMM(DDR4) |
| Form Factor | standard 1.18" height |
| Memory Type | DDR4 |
| Standard | JEDEC |
| Interface | 260-pin |
| Density | 8GB |
| Power supply | VDD and VDDQ=1.2V +0.06/-0.06V |
| DRAM activation power supply | VPP= 2.5V (+0.25V / -0.125V) |
| Operating temperature | 0°C to 85°C |
| Speeds | 3200MHz |
| Operating Voltage | DDR4 STD 1.2V |
| Warranty | limited lifetime |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Speeds | 3200MHz |
|---|---|
| Density | 8GB |
| Standard | JEDEC |
| Model | Premier DDR4 3200 SO-DIMM |
| Module Type | SO-DIMM(DDR4) |
| Power Supply | VDD and VDDQ=1.2V +0.06/-0.06V |
| Model Part Number | AD4S32008G22-SGN |
| Operating Voltage | DDR4 STD 1.2V |
| Operating Temperature | 0°C to 85°C |
| Dram Activation Power Supply | VPP= 2.5V (+0.25V / -0.125V) |
| Memory Type | DDR4 |
| Warranty | Lifetime |
| Interface | 260-pin |
| Form Factor | standard 1.18" height |
