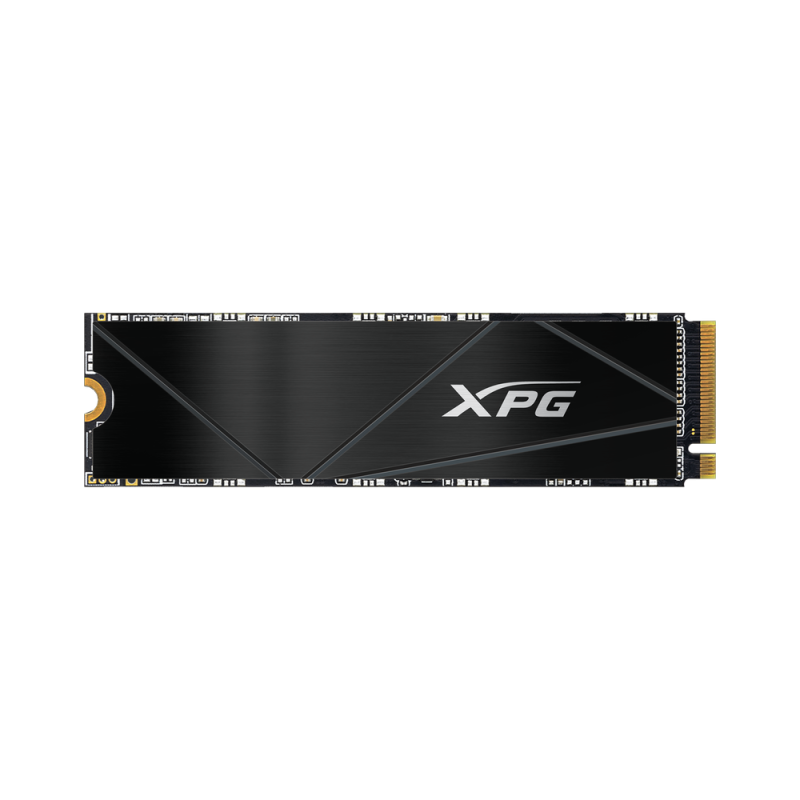

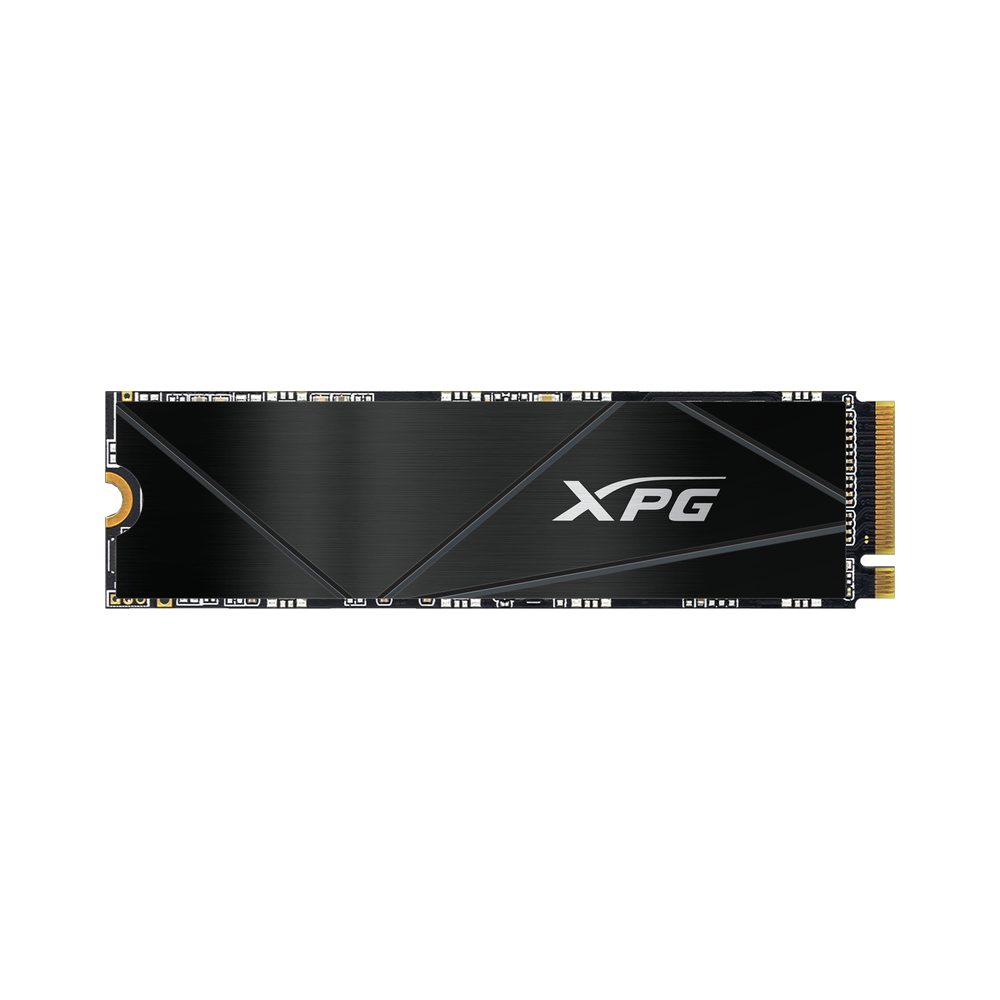

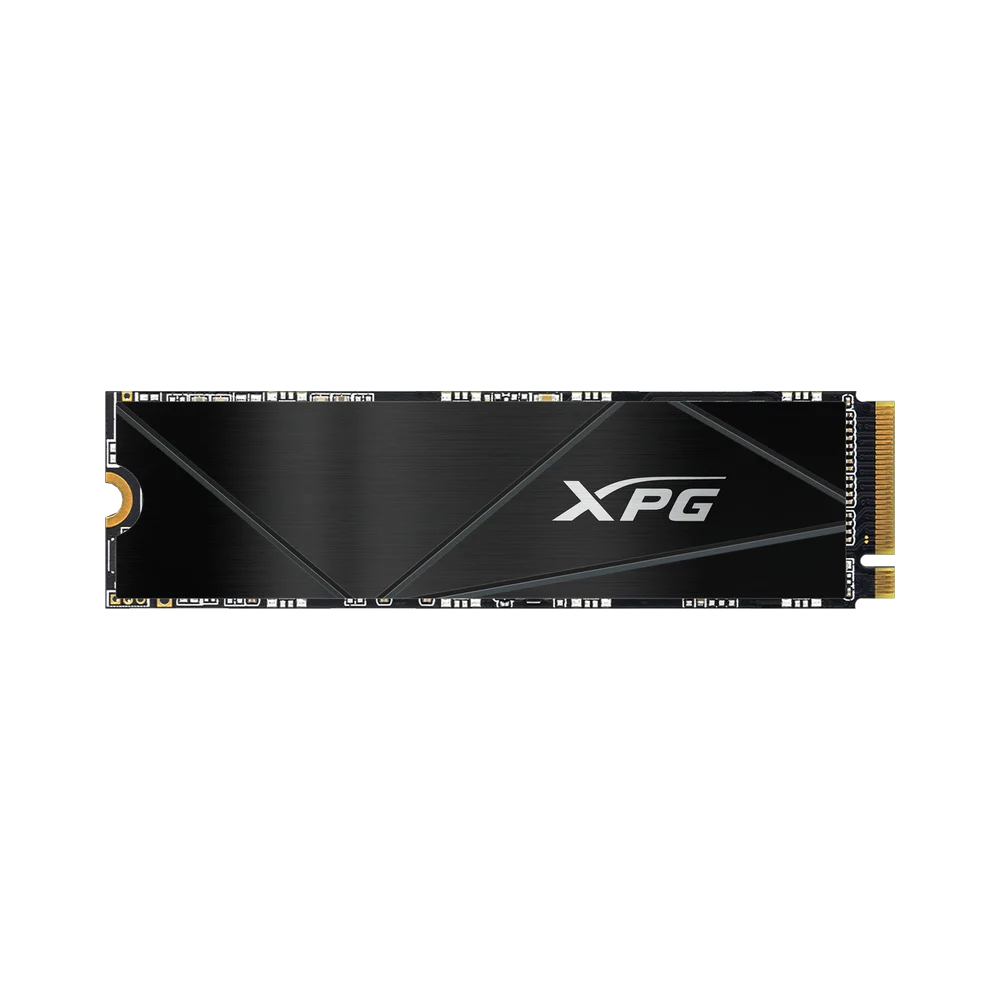

ADATA XPG GAMMIX S50 CORE 2TB M.2 NVME Gen4 Solid State Drive (SSD)
MPN ADATA-XPG-GAMMIX-S50-CORE-2TB-SSD · Brand ADATA · M.2 2280
The ADATA XPG GAMMIX S50 CORE 2TB NVMe SSD uses a PCIe Gen4 x4 interface to deliver up to 3,500/2,800 MB/s sequential read/write speeds, 1,200 TBW endurance, and a 3-year limited warranty in the compact M.2 2280 form factor
Inclusive of GST · GST invoice available
Overview
The ADATA XPG GAMMIX S50 CORE is a 2TB M.2 2280 NVMe solid state drive built on the PCIe Gen4 x4 interface, delivering sequential read speeds of up to 3,500 MB/s and sequential write speeds of up to 2,800 MB/s. These figures represent a substantial throughput increase over PCIe Gen3 NVMe drives and an even greater step up from SATA-based SSDs, translating into noticeably faster game load times, quicker large-file transfers, and more responsive system performance overall. Designed with gamers and power users in mind, the GAMMIX S50 CORE integrates an SLC caching algorithm alongside HMB (Host Memory Buffer) technology to optimise multi-file processing efficiency. Data integrity is handled by an LDPC (Low Density Parity Check) error-correction mechanism, while AES-based encryption protects data in transit and at rest. The drive is backward compatible with PCIe 3.0 motherboards, so it can be adopted without a platform upgrade. At 2000 GB of usable capacity (model SGAMMIXS50C-2000G-CS), there is ample room for large game libraries and creative project files. The 3D NAND flash and associated data-protection technologies contribute to a rated endurance of 1,200 TBW (Terabytes Written), giving it strong long-term durability for everyday gaming and content workloads. The drive is also monitored via ADATA SSD Toolbox software, which exposes S.M.A.R.T. attributes, operating temperature, remaining life, and firmware version. Verified Specifications: — Capacity: 2,000 GB (SGAMMIXS50C-2000G-CS) — Form Factor: M.2 2280 — Interface: PCIe Gen4 x4 — NAND Flash: 3D NAND — Sequential Read (max): 3,500 MB/s — Sequential Write (max): 2,800 MB/s — TBW: 1,200 TB — MTBF: 1,500,000 hours — Shock Resistance: 1,500G / 0.5 ms — Operating Temperature: 0°C – 70°C — Storage Temperature: −40°C – 85°C — Dimensions (with heatsink): 80 × 22 × 2.65 mm — Dimensions (without heatsink): 80 × 22 × 2.15 mm — Weight (with heatsink): 10.3 g — Weight (without heatsink): 6.3 g — Warranty: 3-year limited
Datasheet
| Warranty | 3 Years |
|---|---|
| Capacity | 2000GB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4 x4 |
| Mtbf | 1,500,000 hours |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 10.3g / 0.36oz (with heatsink) |
| Nand Flash | 3D NAND |
| Shock Resistance | 1,500G/0.5ms |
| Dimensions (Lxwxh) | 80 x 22 x 2.65mm / 3.15 x 0.87 x 0.1inch (with heatsink) |
| Storage Temperature | -40°C-85°C |
| Operating Temperature | 0°C – 70°C |
| Sequential Read (Max) | Up to 3,500MB/s (PC/Laptop) |
| Sequential Write (Max) | Up to 2,800MB/s |
| Terabytes Written (Tbw)(Max Capacity*) | 1200TB** |
