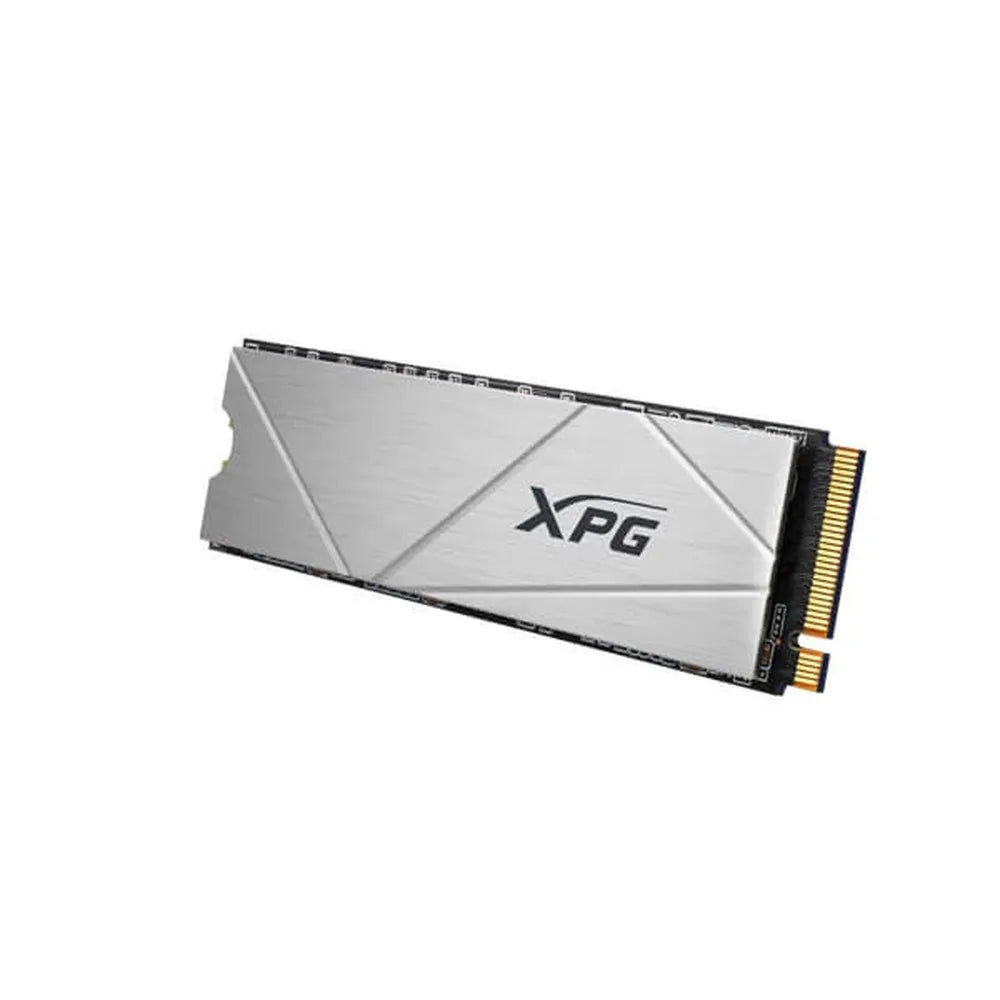

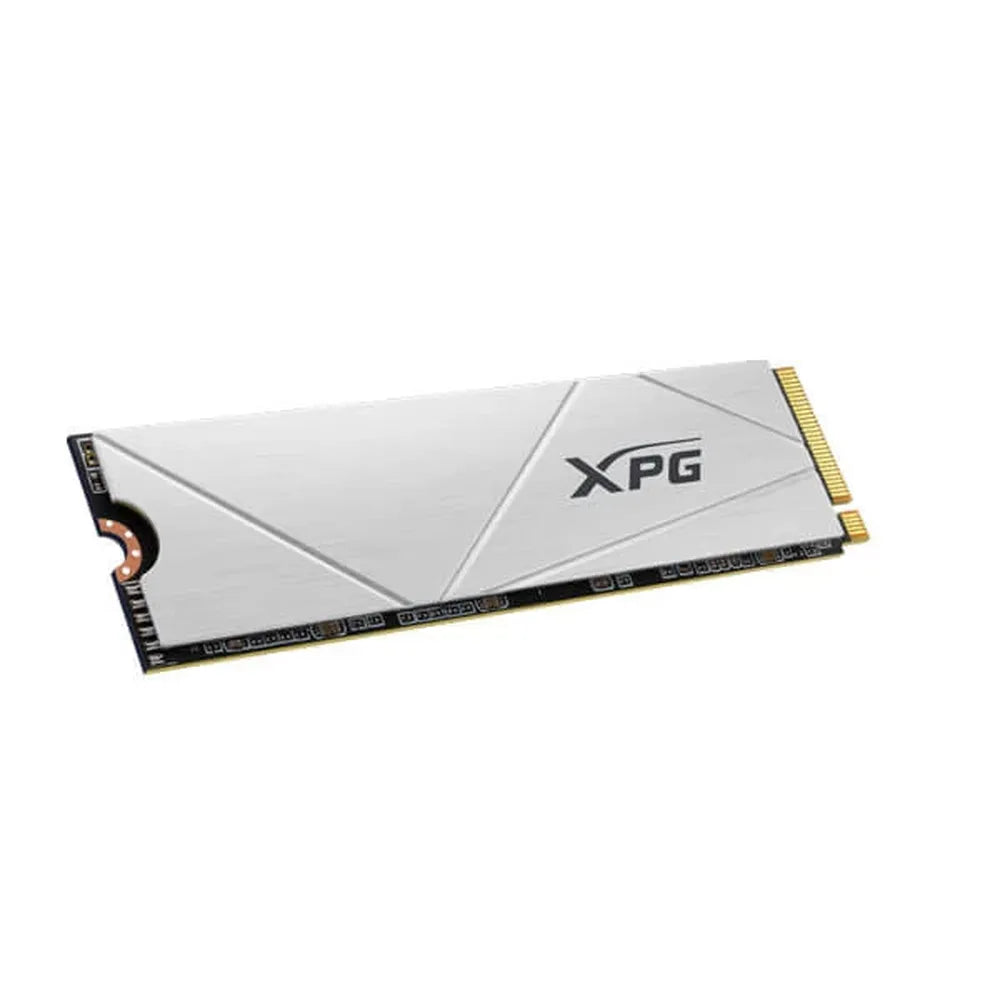

ADATA XPG Gammix S60 512GB M.2 NVME Gen4 Internal Solid State Drive ( SSD )

The ADATA XPG Gammix S60 512GB is a high-performance M.2 2280 NVMe internal solid-state drive built on the PCIe Gen4 x4 interface. Designed for gaming PCs and compatible with the PS5 storage expansion slot, it delivers sequential read speeds of up to 5,000 MB/s on PC and up to 4,600 MB/s on PS5, with sequential write speeds reaching up to 4,200 MB/s. These figures place it firmly in the upper tier of Gen4 consumer drives and represent a substantial throughput advantage over PCIe Gen3 and SATA-based alternatives. To maintain consistent write performance across varied workloads, the Gammix S60 employs an SLC caching algorithm alongside HMB (Host Memory Buffer) technology, which allows the drive to leverage a portion of system DRAM as a cache without requiring dedicated drive DRAM. Data integrity is protected by an LDPC (Low Density Parity Check) error-correction engine, which identifies and corrects bit errors before they can affect stored data. The drive is available with or without the included aluminium heatsink. When fitted with the heatsink, dimensions are 80 × 22 × 3.13 mm and weight is 8 g; without the heatsink, the profile slims to 80 × 22 × 2.15 mm at 7 g — both configurations fitting the standard M.2 2280 slot. Operating temperature range is 0 °C to 70 °C, with storage temperature tolerance between −40 °C and 85 °C. Shock resistance is rated at 1,500 G / 0.5 ms, and mean time between failures (MTBF) is specified at 1,500,000 hours. Endurance for the 512 GB capacity is rated at 450 TB written (TBW), making it a reliable choice for both everyday productivity and demanding gaming sessions. The drive carries a 5-year limited warranty for added purchase confidence. Key Specifications: — Capacity: 512 GB — Form Factor: M.2 2280 — Interface: PCIe Gen4 x4 (NVMe) — Sequential Read: Up to 5,000 MB/s (PC); up to 4,600 MB/s (PS5) — Sequential Write: Up to 4,200 MB/s — NAND Type: 3D NAND — HMB: Yes — Error Correction: LDPC — TBW: 450 TB — MTBF: 1,500,000 hours — Shock Resistance: 1,500 G / 0.5 ms — Operating Temperature: 0 °C – 70 °C — Storage Temperature: −40 °C – 85 °C — Dimensions (with heatsink): 80 × 22 × 3.13 mm — Dimensions (without heatsink): 80 × 22 × 2.15 mm — Weight: 8 g (with heatsink); 7 g (without heatsink) — Warranty: 5 Years Limited — Product Code: AGAMMIXS60-512G-CS
