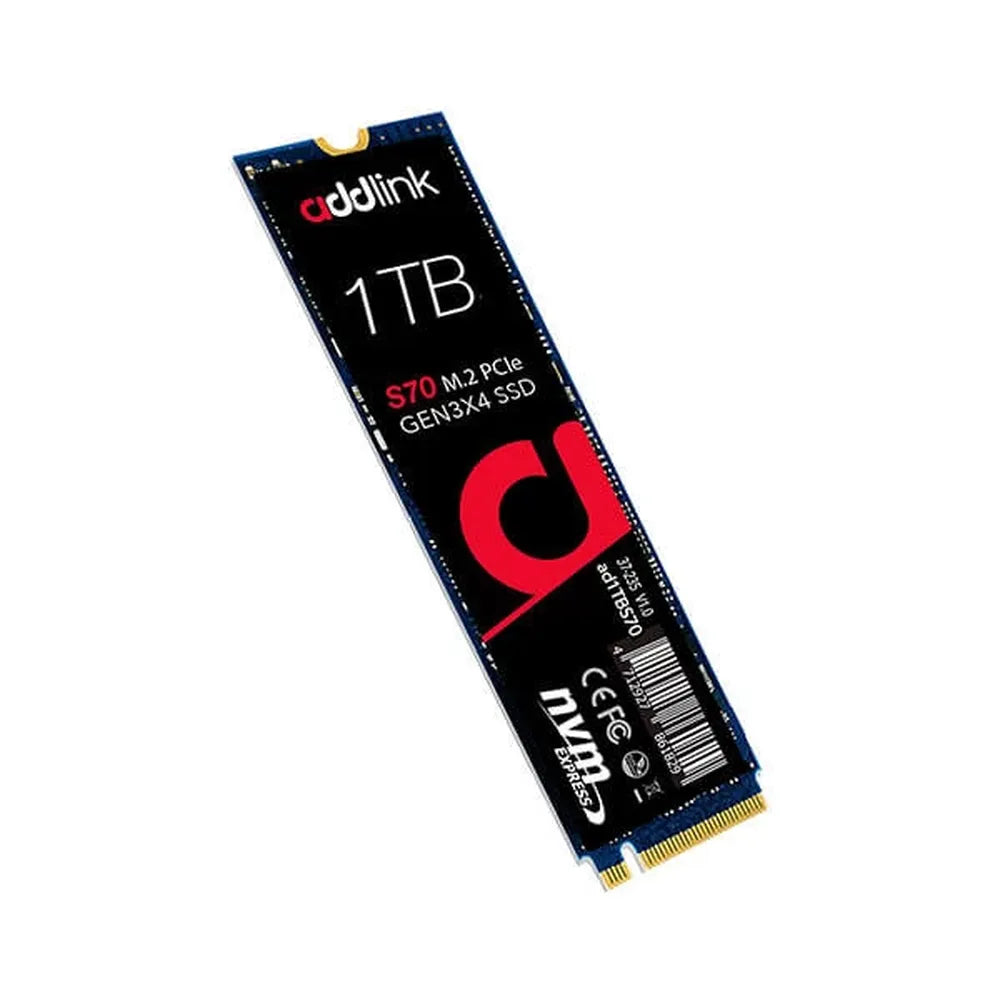

ADDLINK S70 1TB M.2 NVME Gen3 Internal Solid State Drive ( SSD )

The Addlink S70 1TB M.2 NVMe Gen3 internal SSD (model AD1TBS70M2P) is designed for users who demand consistent, high-throughput storage in a compact form factor. Built on a 3D NAND flash architecture and operating over a PCIe Gen3 x4 interface with NVMe 1.3 protocol, the S70 delivers sequential read speeds of up to 3,400 MB/s and sequential write speeds of up to 3,000 MB/s, as measured by Addlink using CrystalDiskMark. Actual speeds may vary based on system configuration, interface, and usage patterns. The drive features a DRAM cache (DDR3L or DDR4L depending on capacity configuration) that supports sustained workloads typical of digital content creation, software development, and gaming. A RAID engine paired with LDPC (Low-Density Parity Check) error-correction coding helps maintain data integrity under heavy use. Additional firmware-level functions including SLC caching, wear levelling, bad-block management, over-provisioning, TRIM, DEVSLP, garbage collection, and S.M.A.R.T monitoring contribute to long-term drive health and efficiency. With a rated endurance of 1,600 TBW (terabytes written) and an MTBF of 1.8 million hours, the S70 is positioned for sustained, demanding workloads. The M.2 2280 form factor (80 mm × 22 mm × 3.5 mm max height, weighing 8.2 g) makes it compatible with most modern laptops and desktops that feature an M.2 slot. Power consumption is rated at 4.6 W during reads and 4.5 W during writes. The drive operates within a temperature range of 0°C to 70°C and can be stored between -40°C and 85°C. Addlink includes its SSD Toolbox software, which allows users to view drive information, monitor S.M.A.R.T status, run diagnostics, check firmware version, and perform secure erase operations. The drive is compatible with Windows 10 natively, Windows 7 and 8 with additional drivers, and Linux Kernel 2.6.31 or later. Verified Specifications: – Model: AD1TBS70M2P – Capacity: 1 TB – Form Factor: M.2 2280 – Interface: NVMe GEN3x4, NVMe 1.3 – Sequential Read/Write: 3,400 / 3,000 MB/s (internal test, CrystalDiskMark) – 4K Random Read/Write: 500K / 680K IOPS – DRAM Cache: DDR3L / DDR4L (High Capacity) – TBW: 1,600 TBW – MTBF: 1.8 Million Hours – Power Consumption (R/W): 4.6 W / 4.5 W – Operating Temp.: 0°C – 70°C – Storage Temp.: -40°C – 85°C – Dimensions: 80 × 22 × 3.5 mm, 8.2 g – Warranty: 5 Years
