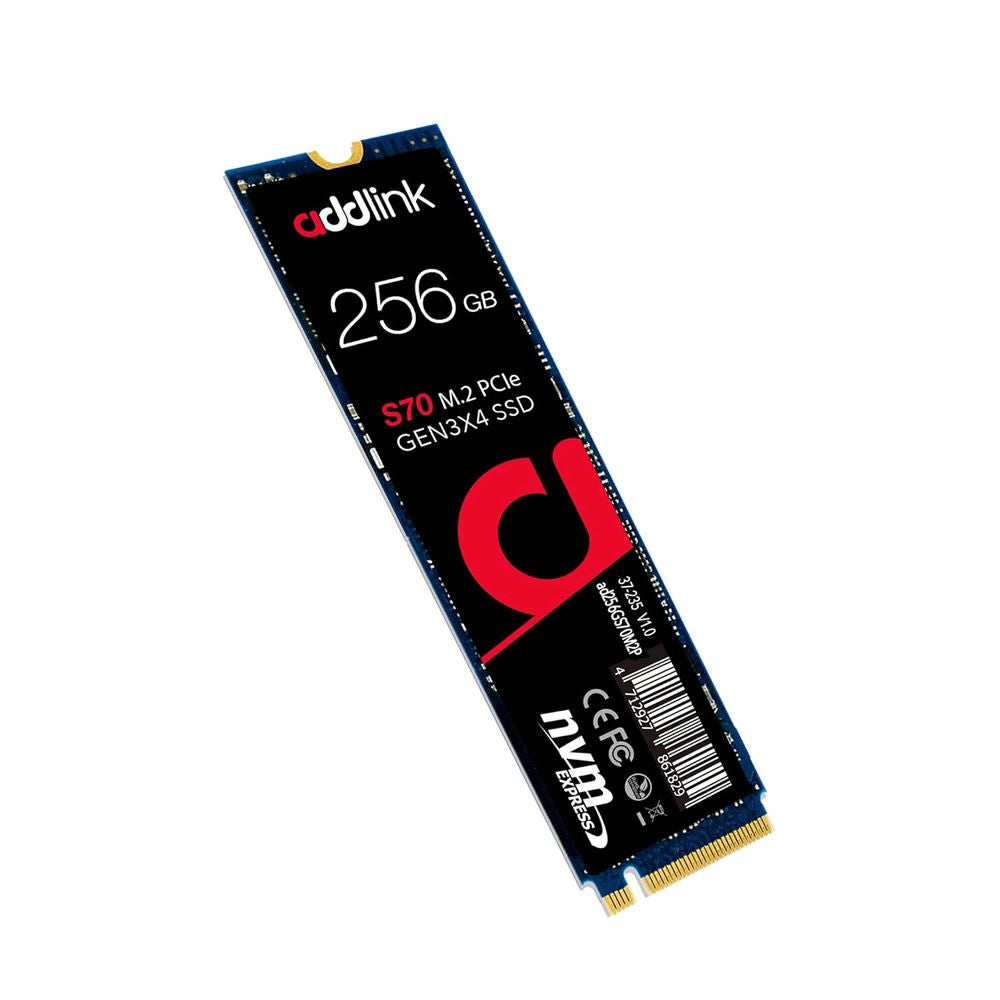

ADDLINK S70 256GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
MPN ADDLINK-S70-256GB · Brand Addlink · M.2 2280
The Addlink S70 256GB M.2 NVMe Gen3 SSD (AD256GBS70M2P) delivers sequential reads up to 3,000 MB/s, 400 TBW endurance, and a 5-year warranty in a compact M.2 2280 form factor
Inclusive of GST · GST invoice available
Overview
The Addlink S70 256GB M.2 NVMe Gen3 Internal SSD (model AD256GBS70M2P) is a compact, high-performance storage upgrade designed for laptops, ultrabooks, desktops, and compatible Chromebooks. Operating over a PCIe Gen3x4 NVMe 1.3 interface, it delivers sequential read speeds of up to 3,000 MB/s and sequential write speeds of up to 1,000 MB/s, measured via CrystalDiskMark internal testing — actual speeds vary by device, interface, and workload. For randomised workloads, the drive achieves 4K random read/write performance of 220K/320K IOPS, making it well-suited for multitasking, game loading, and data-intensive creative applications. The S70 256GB uses 3D NAND flash memory paired with DDR3L/DDR4L DRAM cache, providing a dependable combination of speed and data integrity over the drive's lifetime. A comprehensive suite of firmware-level data protection features is built in, including SLC caching, LDPC ECC, Wear Leveling, Bad Block Management, Over-Provisioning, Garbage Collection, TRIM, DEVSLP, S.M.A.R.T monitoring, and RAID Protection — all working together to maintain consistent performance and prolong drive lifespan. At 80 × 22 × 3.5 mm and weighing just 8.2 g, this M.2 2280 form-factor drive fits the standard slot found in most modern laptops and desktop motherboards. Power consumption during read and write operations is rated at 5.1 W and 3.1 W respectively, helping to preserve battery life in portable systems. The operating temperature range is 0 °C to 70 °C, with storage rated between −40 °C and 85 °C. Endurance is rated at 400 TBW (terabytes written) with an MTBF of 1.8 million hours, and the drive is backed by a 5-year warranty (or 400 TBW, whichever comes first). It is compatible with Intel and AMD platforms running Windows 7 (additional driver required), Windows 8 (additional driver required), Windows 10, and Linux Kernel 2.6.31 or later. Key Specifications: - Model: AD256GBS70M2P - Capacity: 256 GB - Form Factor: M.2 2280 - Interface: NVMe PCIe Gen3x4 1.3 - DRAM Cache: DDR3L / DDR4L - Sequential Read/Write: up to 3,000 / 1,000 MB/s - 4K Random Read/Write: 220K / 320K IOPS - TBW: 400 TBW - MTBF: 1.8 million hours - Dimensions: 80 × 22 × 3.5 mm, 8.2 g - Operating Temp.: 0 °C – 70 °C - Power Consumption (R/W): 5.1 W / 3.1 W - Warranty: 5 years or 400 TBW

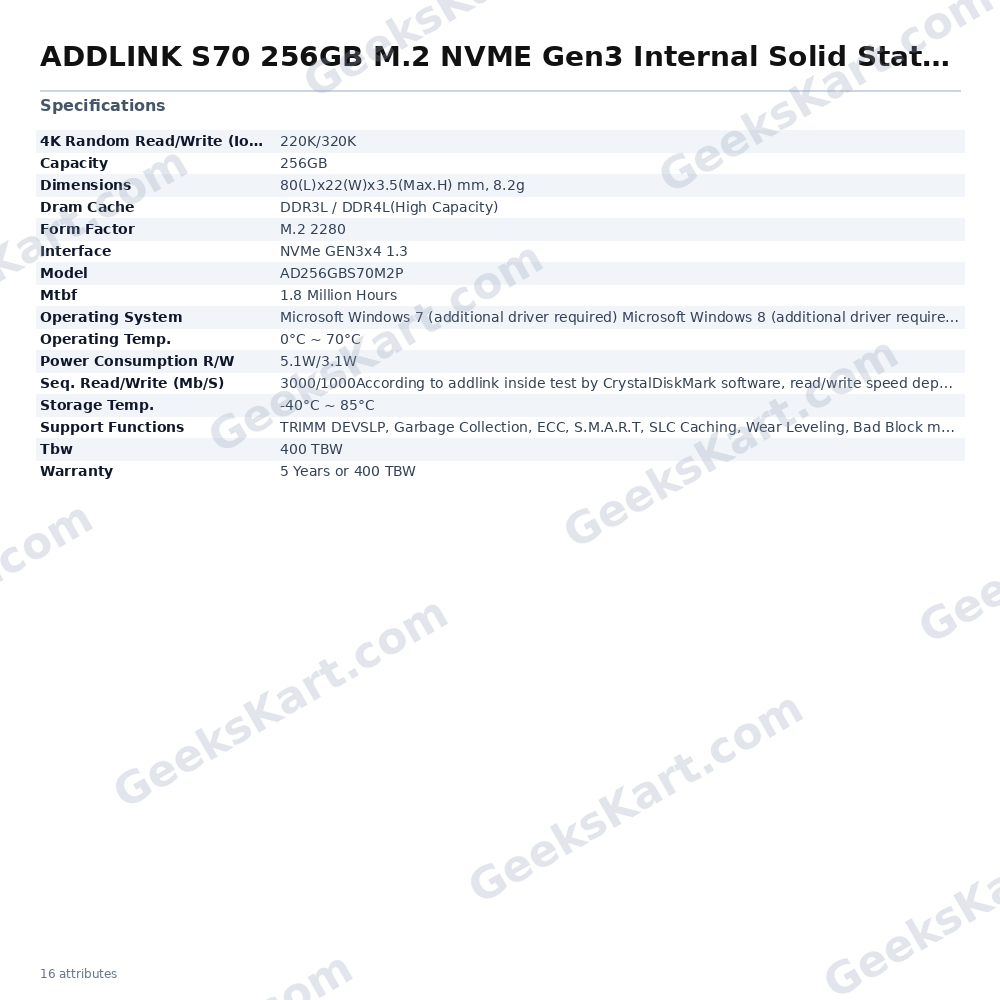

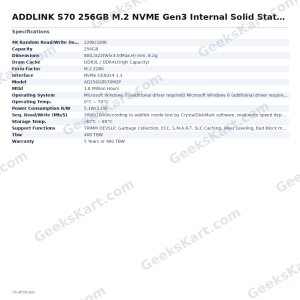

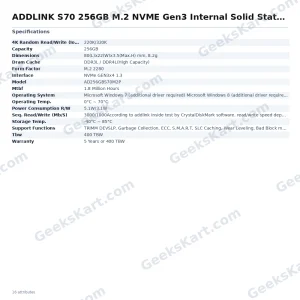

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 256GB |
| Form Factor | M.2 2280 |
| Interface | NVMe GEN3x4 1.3 |
| Tbw | 400 TBW |
| Mtbf | 1.8 Million Hours |
| Model | AD256GBS70M2P |
| Dram Cache | DDR3L / DDR4L(High Capacity) |
| Dimensions | 80(L)x22(W)x3.5(Max.H) mm, 8.2g |
| Storage Temp. | -40°C ~ 85°C |
| Operating Temp. | 0°C ~ 70°C |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10, Linux Kernel 2.6.31 or later |
| Support Functions | TRIMM DEVSLP, Garbage Collection, ECC, S.M.A.R.T, SLC Caching, Wear Leveling, Bad Block management, Over-Provision, RAID Protection |
| Power Consumption R/W | 5.1W/3.1W |
| Seq. Read/Write (Mb/S) | 3000/1000According to addlink inside test by CrystalDiskMark software, read/write speed depend on the device, interface, usage and other factors so that actual performance may be lower |
| 4K Random Read/Write (Iops) | 220K/320K |
