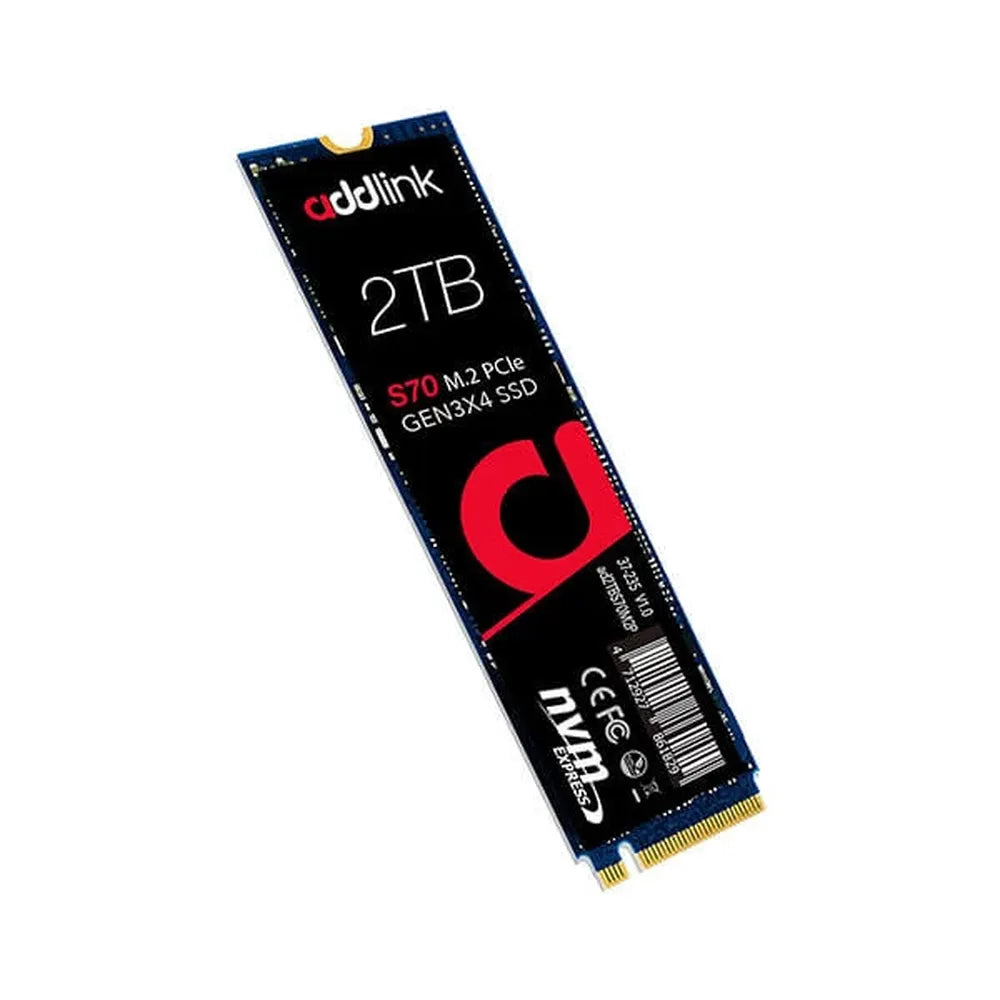

Features of ADDLINK S70 2TB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
ADDLINK SSD aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the S70 gives you not only fast transfer speeds but unmatched reliability.
Exceptional Performance with 3D
NAND 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance. addlink’s S70 M.2 PCIe follows NVMe and utilizes the PCIe Gen3 x 4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance.
Better endurance, aim at high-end applications
Experience the unprecedented performance for heavy workloads and engineering applications with the highly reliable S70 SSD. The S70 boasts a cutting-edge 3D NAND-based architecture that delivers the next-generation performance in a compact M.2 form factor.
Higher reliability with NVMe1.3 & PCIe certified
addlink S70 NVMe SSD is engineered with a RAID engine and LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality flash chips, and engineered dynamic thermal throttling mechanism, the S70 guarantees superior endurance and stability for high-end applications.
Includes SSD ToolBox Software
addlink M.2 PCIe SSD Toolbox is a software offer an easy way to analyze and manage your drive. With addlink M.2 SSD Toolbox you will be able to:
- View drive information exp: general SPEC, firmware version
- Scan and diagnostic drive Health
- Check drive identify device command
- Monitor SMART Status
- Run secure erase
Great Compatibility
S70 builds in M.2 2280 form factor and is the ideal for thin, light notebooks & in systems with limited space. Multi-purpose SFF connector replaces small mSATA & mini-PCIe slots.
Discover the perfect balance of performance and affordability with our unbeatable 2TB SSD price.

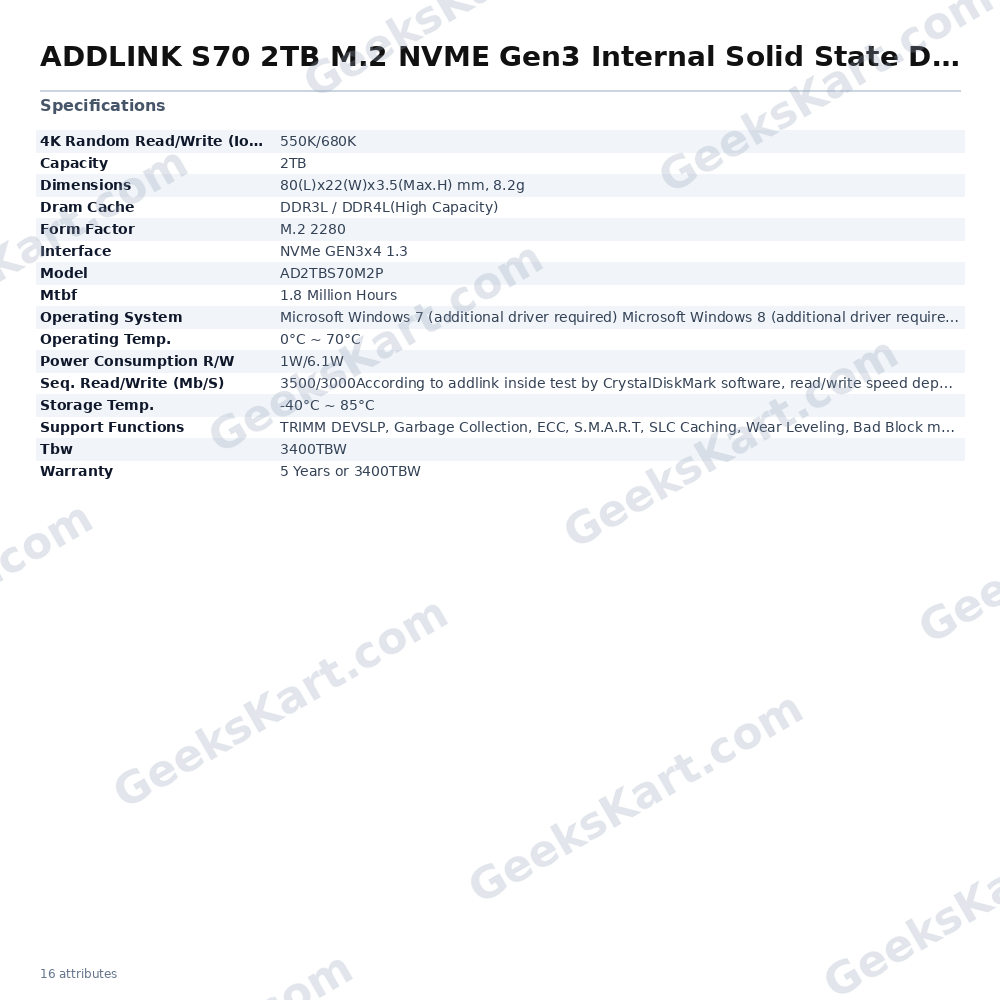

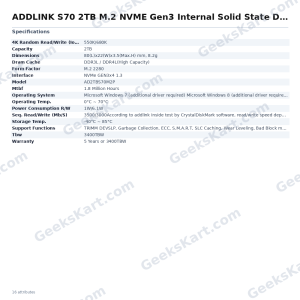

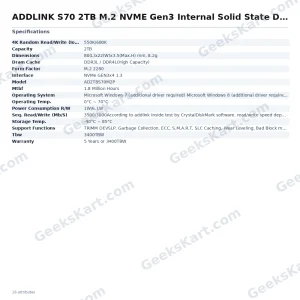

Specifications of ADDLINK S70 2TB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
| Model | AD2TBS70M2P |
| Capacity | 2TB |
| DRAM Cache | DDR3L / DDR4L(High Capacity) |
| Dimensions | 80(L)x22(W)x3.5(Max.H) mm, 8.2g |
| Interface | NVMe GEN3x4 1.3 |
| Form Factor | M.2 2280 |
| Seq. Read/Write (MB/s) | 3500/3000 According to addlink inside test by CrystalDiskMark software, read/write speed depend on the device, interface, usage and other factors so that actual performance may be lower. |
| 4K Random Read/Write (IOPS) | 550K/680K |
| Operating Temp. | 0°C ~ 70°C |
| Storage Temp. | -40°C ~ 85°C |
| Power Consumption R/W | 1W/6.1W |
| MTBF | 1.8 Million Hours |
| TBW | 3400TBW |
| Support Functions | TRIMM DEVSLP, Garbage Collection, ECC, S.M.A.R.T, SLC Caching, Wear Leveling, Bad Block management, Over-Provision, RAID Protection |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10, Linux Kernel 2.6.31 or later |
| Warranty | 5 Years or 3400TBW |
| NOTE | ***Features, Price and Specifications are subject to change without notice. |
