ADDLINK S72 1TB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
MPN ADDLINK-S72-1TB · Brand Addlink · M.2 2280
The Addlink S72 1TB M.2 NVMe Gen3 SSD (AD1TBS72M2P) delivers sequential reads up to 3,400 MB/s and 260 TBW endurance in a compact M.2 2280 form factor with 3D QLC NAND and a 5-year warranty
Inclusive of GST · GST invoice available
Overview

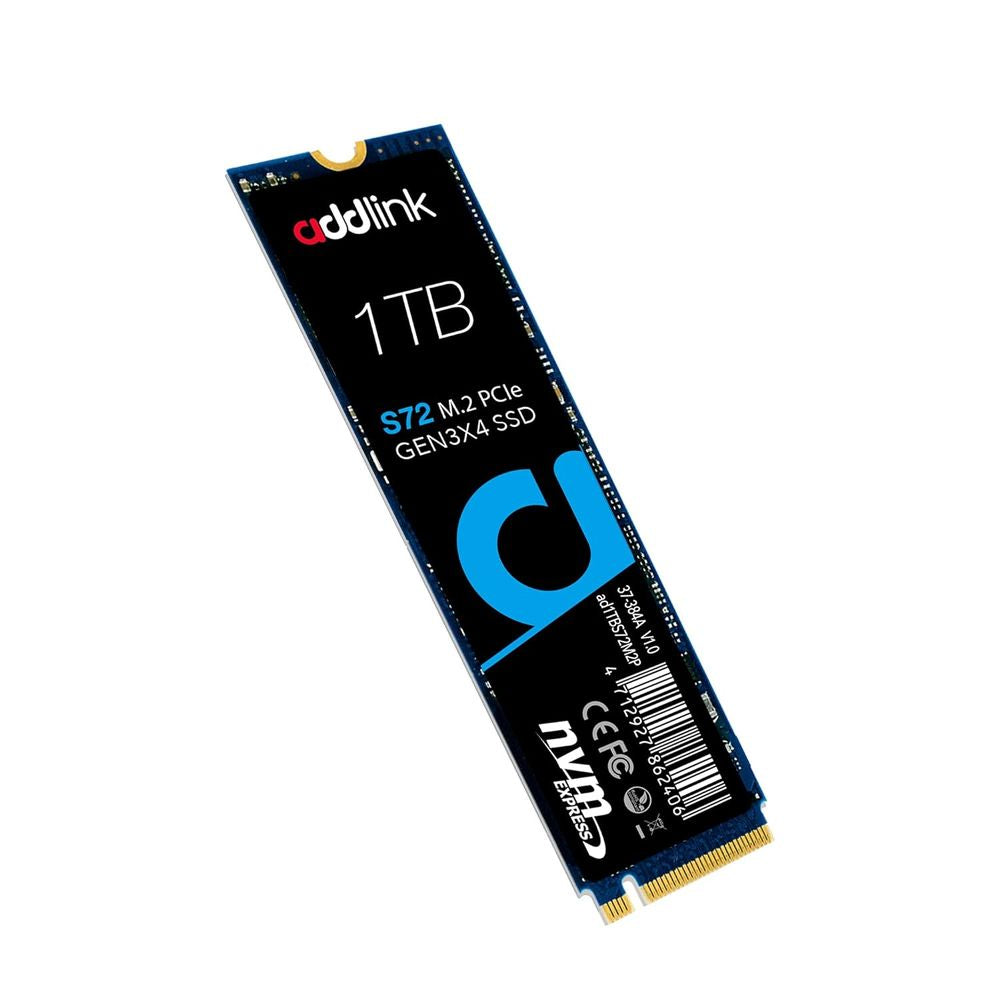

The Addlink S72 1TB (model AD1TBS72M2P) is an M.2 2280 NVMe internal solid state drive built on a PCIe Gen3 x4 interface with NVMe 1.3 protocol. It uses 3D QLC NAND flash to deliver a measured balance of capacity and performance suited to workloads such as gaming, digital audio and video production, and general-purpose system upgrades from 2.5-inch SATA drives. Sequential read performance reaches up to 3,400 MB/s and sequential write up to 2,000 MB/s under internal CrystalDiskMark testing; actual speeds will vary depending on the host system, interface, and workload. For random small-file operations, the S72 delivers up to 125,000 IOPS read and 500,000 IOPS write (4K random). The compact M.2 2280 form factor (80 mm × 22 mm × 3.5 mm max, 8.2 g) allows installation in slim notebooks and small-form-factor systems that support the M.2 slot, replacing legacy mSATA or mini-PCIe solutions. Drive management is supported through Addlink's SSD Toolbox software, which provides firmware information, SMART status monitoring, health diagnostics, secure erase, and drive identification features. Reliability features include Wear Leveling, Bad Block Management, TRIM, S.M.A.R.T., Over-Provisioning, End-to-End Path Protection, Thermal Throttling, ECC/Refresh, and TCG OPAL/Pyrite hardware encryption support. The rated MTBF is 1.8 million hours, and the endurance rating is 260 TBW. The drive operates between 0 °C and 70 °C and can be stored between -40 °C and 85 °C. OS compatibility covers Windows 7 (additional driver required), Windows 8 (additional driver required), Windows 10, and Linux Kernel 2.6.31 or later. The drive ships with a 5-year limited warranty subject to the 260 TBW endurance threshold, whichever comes first. Verified Specifications: - Model: AD1TBS72M2P - Capacity: 1 TB - NAND Flash: 3D QLC - Interface: NVMe GEN3x4 (NVMe 1.3) - Form Factor: M.2 2280 - Seq. Read / Write: up to 3,400 / 2,000 MB/s (internal test) - 4K Random Read / Write: 125K / 500K IOPS - Dimensions: 80 × 22 × 3.5 mm (max), 8.2 g - Operating Temp.: 0 °C – 70 °C - Storage Temp.: -40 °C – 85 °C - MTBF: 1.8 million hours - TBW: 260 TBW - Warranty: 5 years or 260 TBW

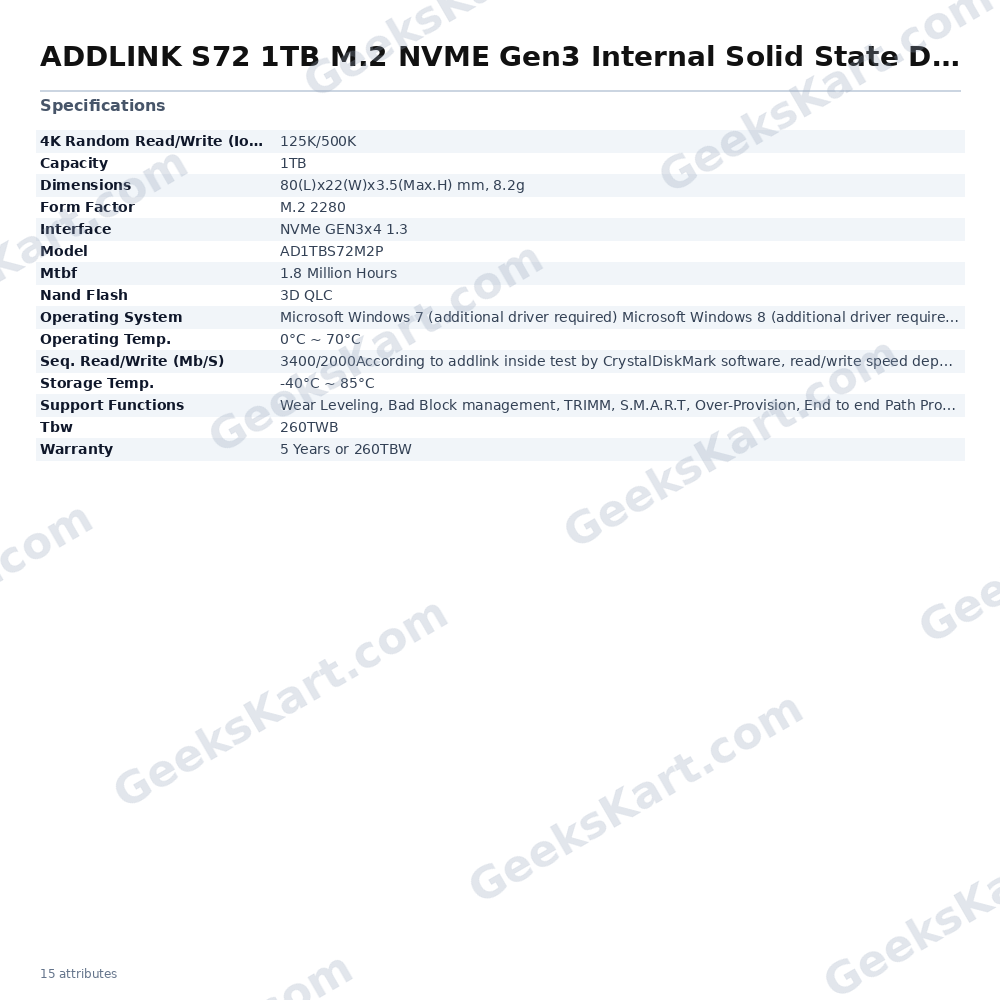

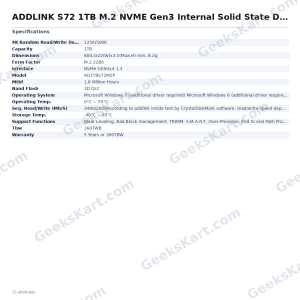

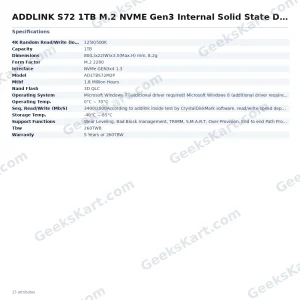

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 1TB |
| Form Factor | M.2 2280 |
| Interface | NVMe GEN3x4 1.3 |
| Tbw | 260TWB |
| Mtbf | 1.8 Million Hours |
| Model | AD1TBS72M2P |
| Dimensions | 80(L)x22(W)x3.5(Max.H) mm, 8.2g |
| Nand Flash | 3D QLC |
| Storage Temp. | -40°C ~ 85°C |
| Operating Temp. | 0°C ~ 70°C |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10, Linux Kernel 2.6.31 or later |
| Support Functions | Wear Leveling, Bad Block management, TRIMM, S.M.A.R.T, Over-Provision, End to end Path Protection Thermal Throttling, SMART ECC/ReFresh, Drive Log Support TCG OPAL/Pyrite |
| Seq. Read/Write (Mb/S) | 3400/2000According to addlink inside test by CrystalDiskMark software, read/write speed depend on the device, interface, usage and other factors so that actual performance may be lower |
| 4K Random Read/Write (Iops) | 125K/500K |
