Addlink S90 1TB M.2 NVMe Gen4 SSD
MPN AD1TBS90M2P · Brand ADDLINK · M.2 2280
The Addlink S90 1TB PCIe Gen4 NVMe M.2 SSD delivers sequential read speeds up to 5000 MB/s and write speeds up to 4400 MB/s, backed by 3D TLC NAND, DDR4 DRAM cache, 1800 TBW endurance, and a 5-year warranty
Inclusive of GST · GST invoice available
Overview
The Addlink S90 1TB M.2 NVMe SSD is a PCIe Gen4 x4 storage drive built for users who demand high throughput in a compact M.2 2280 form factor. Leveraging the PCIe 4.0 interface, the S90 achieves sequential read speeds of up to 5000 MB/s and sequential write speeds of up to 4400 MB/s, making it a capable upgrade for modern desktops and laptops equipped with a compatible M.2 slot. For workloads that depend on random access performance, the drive delivers up to 750K read IOPS and 700K write IOPS, supporting demanding applications and multitasking scenarios. The S90 uses 3D TLC NAND flash memory paired with an external DDR4 DRAM cache and SLC caching to help sustain performance under typical mixed workloads. Hardware-level features include ECC (Error Correction Code), Wear Leveling, Bad Block Management, Garbage Collection, Over-Provisioning, and RAID Protection, all of which contribute to the drive's rated endurance of 1800 TBW. TRIM and DEVSLP support are also included, helping the drive manage power consumption and long-term health over time. The S90 is backwards compatible with PCIe 3.0 platforms, so users on older motherboards can still benefit from the drive without being locked out by interface generation. The drive operates within a temperature range of 0°C to 70°C and carries an MTBF rating of 1.8 million hours. A 5-year warranty (up to 1800 TBW) is included, alongside the Addlink M.2 PCIe SSD Toolbox utility, which allows users to monitor SMART status, view firmware details, run diagnostics, and perform secure erase operations. Verified Specifications: - Capacity: 1TB - Interface: NVMe 1.3, PCIe Gen4 x4 - Form Factor: M.2 2280 - NAND Flash: 3D TLC - DRAM Cache: External DDR4 Cache x2 - Sequential Read: Up to 5000 MB/s - Sequential Write: Up to 4400 MB/s - 4K Random Read: Up to 750K IOPS - 4K Random Write: Up to 700K IOPS - Endurance (TBW): 1800 TBW - MTBF: 1.8 Million Hours - Operating Temperature: 0°C – 70°C - Storage Temperature: -40°C – 85°C - Dimensions: 80 x 22 x 3.5 mm; 8.2 g - Warranty: 5 Years or 1800 TBW - OS Support: Windows 10, Linux Kernel 2.6.31+; Windows 7/8 require additional drivers

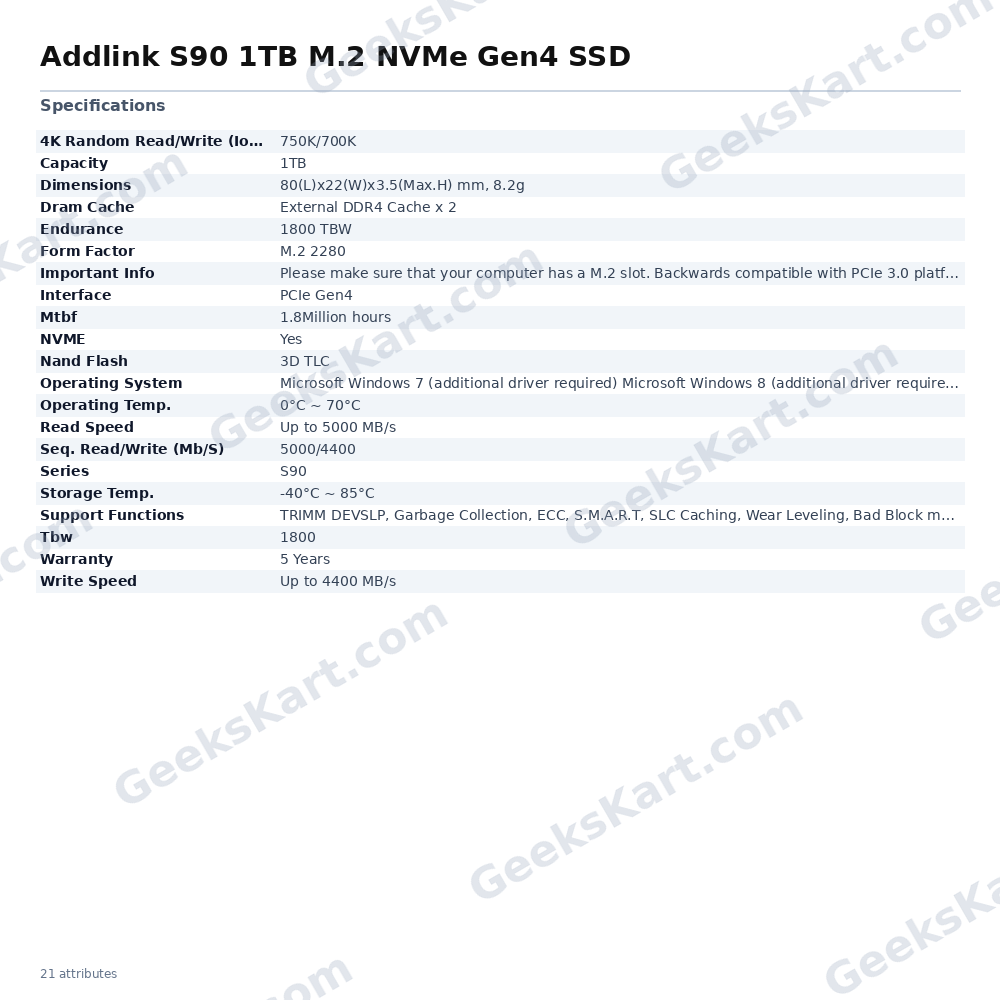

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 1TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4 |
| Tbw | 1800 |
| Mtbf | 1.8Million hours |
| NVME | Yes |
| Series | S90 |
| Endurance | 1800 TBW |
| Dram Cache | External DDR4 Cache x 2 |
| Dimensions | 80(L)x22(W)x3.5(Max.H) mm, 8.2g |
| Nand Flash | 3D TLC |
| Read Speed | Up to 5000 MB/s |
| Write Speed | Up to 4400 MB/s |
| Storage Temp. | -40°C ~ 85°C |
| Important Info | Please make sure that your computer has a M.2 slot. Backwards compatible with PCIe 3.0 platforms |
| Operating Temp. | 0°C ~ 70°C |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10, Linux Kernel 2.6.31 or later |
| Support Functions | TRIMM DEVSLP, Garbage Collection, ECC, S.M.A.R.T, SLC Caching, Wear Leveling, Bad Block management, Over-Provision, RAID Protection |
| Seq. Read/Write (Mb/S) | 5000/4400 |
| 4K Random Read/Write (Iops) | 750K/700K |
