Addlink S92 1TB M.2 NVMe SSD
MPN AD1TBS92M2P · Brand ADDLINK · M.2 2280
The Addlink S92 1TB M.2 2280 NVMe SSD leverages PCIe Gen4x4 to deliver sequential read speeds up to 4700 MB/s and 1850 MB/s write, with 200 TBW endurance and a 5-year warranty
Inclusive of GST · GST invoice available
Overview
The Addlink S92 1TB is a PCIe Gen4x4 NVMe M.2 2280 solid-state drive designed for users who need high sequential throughput in a compact form factor. Built on 3D QLC NAND flash, the S92 delivers verified sequential read speeds of up to 4700 MB/s and sequential write speeds of up to 1850 MB/s, making it a capable upgrade over Gen3 NVMe drives and a substantial leap beyond SATA SSDs for bandwidth-intensive tasks such as large file transfers, game loading, and creative media work. The drive uses the NVMe 1.3 protocol over a PCIe Gen4x4 interface and is backwards compatible with PCIe 3.0 motherboards, so it can be installed on a wide range of platforms including AMD Ryzen 3rd Gen and Intel 10th/11th Gen systems without sacrificing usability — though Gen4 speeds are only achieved on a Gen4-capable host. The M.2 2280 form factor fits standard M.2 slots found in most modern desktops and laptops. Reliability is underpinned by a rated MTBF of 1.8 million hours and an endurance rating of 200 TBW (terabytes written) for the 1TB capacity, backed by a 5-year warranty. The drive supports a comprehensive set of data integrity and efficiency features including ECC, S.M.A.R.T monitoring, SLC Caching, TRIM, DEVSLP power management, Garbage Collection, Wear Leveling, Bad Block Management, Over-Provisioning, and RAID Protection. Addlink includes the M.2 PCIe SSD Toolbox software, which allows users to view drive information and firmware version, run health diagnostics, monitor S.M.A.R.T status, and perform a secure erase — useful for both day-to-day monitoring and end-of-life data sanitisation. Verified Specifications: - Capacity: 1 TB - Form Factor: M.2 2280 - Interface: NVMe 1.3, PCIe Gen4x4 - NAND Type: 3D QLC - Sequential Read: Up to 4700 MB/s - Sequential Write: Up to 1850 MB/s - Endurance (TBW): 200 TBW - MTBF: 1.8 million hours - Operating Temperature: 0°C to 70°C - Storage Temperature: −40°C to 85°C - Dimensions: 80 × 22 × 3.5 mm (max); 8.2 g - Warranty: 5 years or 200 TBW - OS Support: Windows 10, Windows 8 (driver required), Windows 7 (driver required), Linux Kernel 2.6.31+ - SKU: AD1TBS92M2P

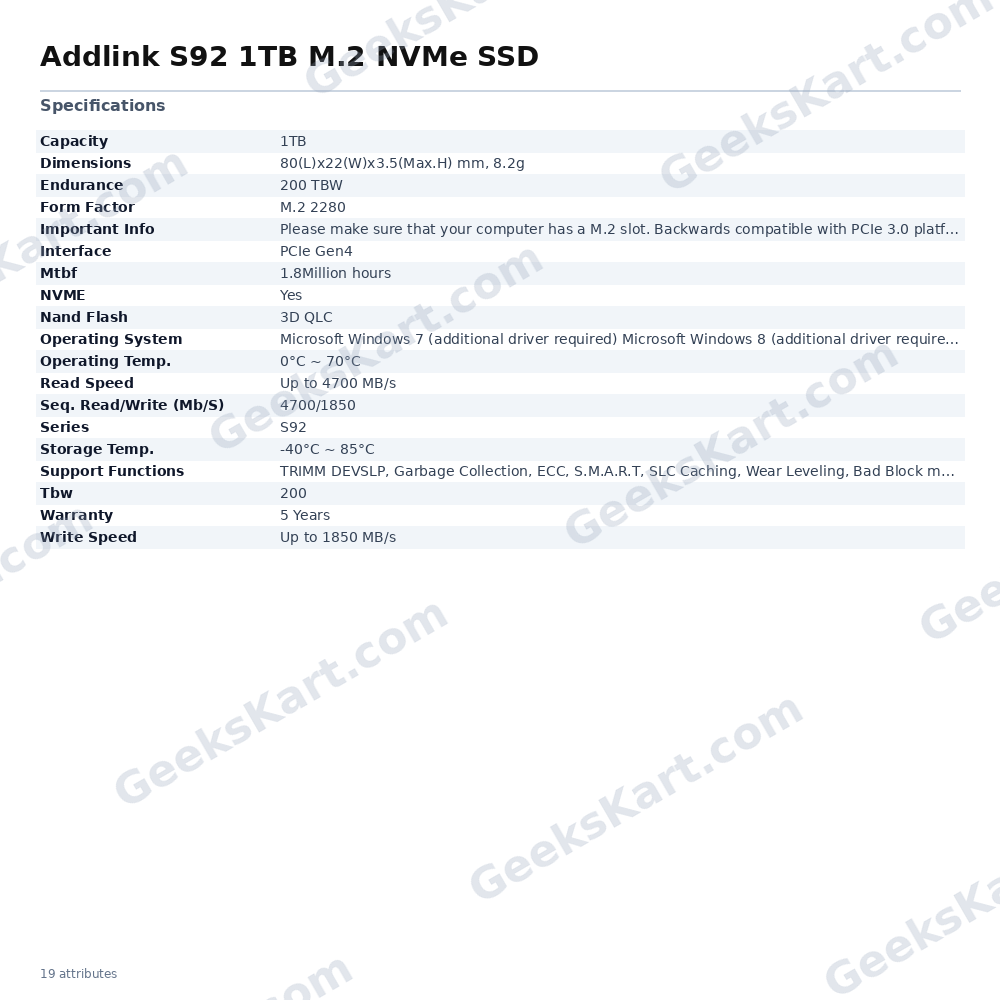

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 1TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4 |
| Tbw | 200 |
| Mtbf | 1.8Million hours |
| NVME | Yes |
| Series | S92 |
| Endurance | 200 TBW |
| Dimensions | 80(L)x22(W)x3.5(Max.H) mm, 8.2g |
| Nand Flash | 3D QLC |
| Read Speed | Up to 4700 MB/s |
| Write Speed | Up to 1850 MB/s |
| Storage Temp. | -40°C ~ 85°C |
| Important Info | Please make sure that your computer has a M.2 slot. Backwards compatible with PCIe 3.0 platforms |
| Operating Temp. | 0°C ~ 70°C |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10, Linux Kernel 2.6.31 or later |
| Support Functions | TRIMM DEVSLP, Garbage Collection, ECC, S.M.A.R.T, SLC Caching, Wear Leveling, Bad Block management, Over-Provision, RAID Protection |
| Seq. Read/Write (Mb/S) | 4700/1850 |
