AeroCool Mirage ARGB ATX Mid Tower Case
MPN MIRAGE-G-BK-V1 · Brand AEROCOOL · ATX, mATX, Mini-ITX
The AeroCool Mirage ARGB ATX Mid Tower Case features an infinity mirror ARGB front panel, full tempered glass hinged side panel, 360mm radiator support, and dual-chamber cooling design for ATX, Micro-ATX, and Mini-ITX builds
Inclusive of GST · GST invoice available
Overview
The AeroCool Mirage ARGB ATX Mid Tower Case (Model: Mirage, SKU: MIRAGE-G-BK-V1) is a feature-rich chassis designed for builders who want striking aesthetics alongside practical thermal performance. The defining characteristic is the infinity mirror ARGB front panel, which uses a glass mirror combined with ARGB LED strips to create a layered, repeating ring effect that gives the illusion of endless depth. This lighting display is fully addressable and compatible with ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion via a 5V 3-Pin ARGB header. For those without a compatible motherboard, a dedicated LED control button on the front I/O panel provides standalone control over the lighting. The side panel is full tempered glass and features a hinge mechanism with a built-in handle, making it easy to open and close without removing screws — a genuine convenience when tweaking your build. Inside, the dual-chamber design separates the PSU and cabling from the main component area, helping to direct heat away from critical components and keeping the interior looking clean. On cooling, the Mirage is generously equipped. It can accommodate up to three 120mm or two 140mm fans at the front, two 120mm or two 140mm fans on top, one 120mm fan at the rear, and two 120mm fans on the PSU shroud for dedicated GPU airflow. Liquid cooling is equally well supported: the front accepts radiators up to 360mm (with a length restriction of under 394mm for 360mm units), the top fits up to a 240mm radiator, and the rear takes a 120mm unit. An included 6-port ARGB control hub lets you connect up to six 6-pin AeroCool ARGB fans and up to two 3-pin ARGB accessories. The case accommodates ATX, Micro-ATX, and Mini-ITX motherboards, supports GPU lengths up to 356mm (without a front fan installed), and allows CPU coolers up to 162mm in height. Storage options are flexible with two 3.5-inch HDD bays (each also usable with 2.5-inch drives) and five dedicated 2.5-inch SSD mounts. Seven expansion slots, removable dust filters on the top and bottom, and 23.6mm of internal cable management depth round out a build-friendly interior. Front I/O includes two USB 3.0 ports, one USB 2.0 port, and HD Audio with microphone connections. Verified Specifications: - Form Factor: ATX / Micro-ATX / Mini-ITX - Dimensions (Overall): 216 x 499 x 417.5mm (W x H x D) - Dimensions (Internal): 210 x 465 x 360mm (W x H x D) - Body Material: SPCC steel (0.5mm thickness); Front: ABS + Tempered Glass - GPU Clearance: Up to 356mm (without front fan) - CPU Cooler Clearance: Up to 162mm - Max PSU Length: Up to 194mm (including cables) - Drive Bays: 2 x 3.5-inch (also 2.5-inch compatible); 5 x 2.5-inch SSD - Expansion Slots: 7 - Fan Support: Front 3x120mm or 2x140mm; Top 2x120mm or 2x140mm; Rear 1x120mm; PSU Shroud 2x120mm - Radiator Support: Front 120/240/280/360mm; Top 120/240mm; Rear 120mm - I/O: 2x USB 3.0, 1x USB 2.0, HD Audio & Mic - Cable Management Depth: 23.6mm - Warranty: 1 Year

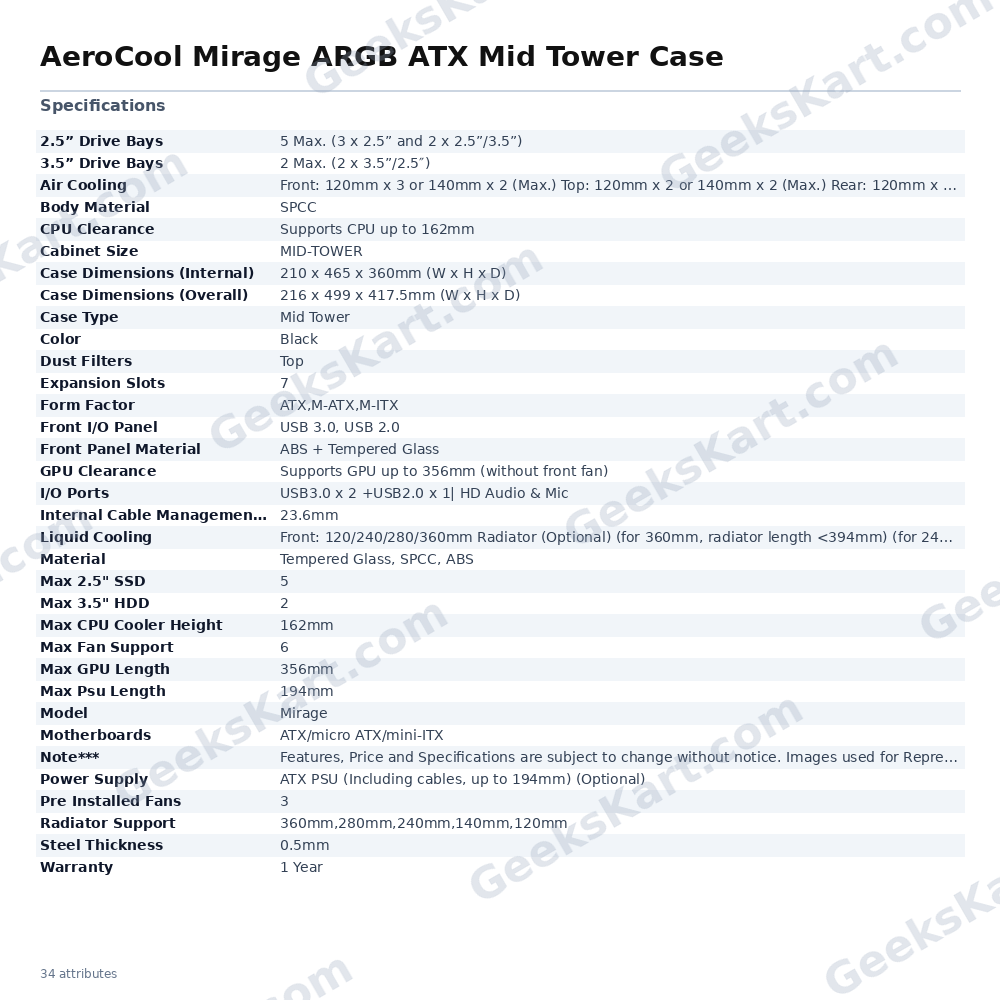

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | Black |
| Model | Mirage |
| Note*** | Features, Price and Specifications are subject to change without notice. Images used for Representation purposes only |
| Material | Tempered Glass, SPCC, ABS |
| Case Type | Mid Tower |
| I/O Ports | USB3.0 x 2 +USB2.0 x 1, HD Audio & Mic |
| Air Cooling | Front: 120mm x 3 or 140mm x 2 (Max.) Top: 120mm x 2 or 140mm x 2 (Max.) Rear: 120mm x 1 (Max.) PSU Shroud: 120mm x 2 (Max.) |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top |
| Max 2.5" SSD | 5 |
| Max 3.5" HDD | 2 |
| Motherboards | ATX/micro ATX/mini-ITX |
| Power Supply | ATX PSU (Including cables, up to 194mm) (Optional) |
| Body Material | SPCC |
| CPU Clearance | Supports CPU up to 162mm |
| GPU Clearance | Supports GPU up to 356mm (without front fan) |
| Liquid Cooling | Front: 120/240/280/360mm Radiator (Optional) (for 360mm, radiator length <394mm) (for 240/280/360mm, radiator plus fan total thickness <60mm) Top: 120/240mm Radiator (Optional) Rear: 120mm Radiator (Optional) |
| Max GPU Length | 356mm |
| Max Psu Length | 194mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.0, USB 2.0 |
| Max Fan Support | 6 |
| Steel Thickness | 0.5mm |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| 2.5” Drive Bays | 5 Max. (3 x 2.5” and 2 x 2.5”/3.5”) |
| 3.5” Drive Bays | 2 Max. (2 x 3.5”/2.5″) |
| Pre Installed Fans | 3 |
| Front Panel Material | ABS + Tempered Glass |
| Max CPU Cooler Height | 162mm |
| Case Dimensions (Overall) | 216 x 499 x 417.5mm (W x H x D) |
| Case Dimensions (Internal) | 210 x 465 x 360mm (W x H x D) |
| Internal Cable Management Depth | 23.6mm |
