AMD Ryzen 3 2200G APU 2nd Generation Processor ( 3.7GHz / 4 Cores / 8 Threads )
MPN AMD-RYZEN-3-2200G-APU · Brand AMD
Feature of AMD Ryzen 3 2200G APU 2nd Generation Processor 4 Cores & 4 Threads Base Clock: 3.5GHz, Max Boost Clock: up to 3.7GHz, 6MB Cache, TDP: 65W System Memory Specification: 2933MHz, System Memory Type: DDR4, Memory Channels: 2 Socket: AM4, Motherboard Compatibility: AMD 300, 400 serles chipset based motherboards Graphics: AMD Radeon Vega 8 Graphics, Heatsink Fan: Wraith Stealth, Warranty: 3 Years The amd ryzen 3 2200G is a desktop processor with 4 cores, launched in February 2018, at an
Inclusive of GST · GST invoice available
Overview
Feature of AMD Ryzen 3 2200G APU 2nd Generation Processor
- 4 Cores & 4 Threads
- Base Clock: 3.5GHz, Max Boost Clock: up to 3.7GHz, 6MB Cache, TDP: 65W
- System Memory Specification: 2933MHz, System Memory Type: DDR4, Memory Channels: 2
- Socket: AM4, Motherboard Compatibility: AMD 300, 400 serles chipset based motherboards
- Graphics: AMD Radeon Vega 8 Graphics, Heatsink Fan: Wraith Stealth, Warranty: 3 Years
The amd ryzen 3 2200G is a desktop processor with 4 cores, launched in February 2018, at an MSRP of $99. It is part of the Ryzen 3 lineup, using the Zen (Raven Ridge) architecture with Socket AM4. Ryzen 3 2200G has 4 MB of L3 cache and operates at 3.5 GHz by default, but can boost up to 3.7 GHz, depending on the workload. AMD is making the Ryzen 3 2200G on a 14 nm production node using 4,950 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of GlobalFoundries. You may freely adjust the unlocked multiplier on Ryzen 3 2200G, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
With a TDP of 65 W, the Ryzen 3 2200G consumes typical power levels for a modern PC. AMD's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 2933 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the system, Ryzen 3 2200G uses a PCI-Express Gen 3 connection. This processor features the Radeon Vega 8 integrated graphics solution.
Hardware virtualization is available on the Ryzen 3 2200G, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.
Specifications of AMD Ryzen 3 2200G APU 2nd Generation Processor
| CPU Cores | 4 |
| Threads | 4 |
| GPU Cores | 8 |
| Base Clock | 3.5GHz |
| Max Boost Clock | 3.7GHz |
| Total L2 Cache | 2MB |
| Total L3 Cache | 4MB |
| Default TDP / TDP | 65W |
| Ctdp | 46-65W |
| Graphics Frequency | 1100 MHz |
| Graphics Model | Radeon™ Vega 8 Processor Graphics |
| Graphics Core Count | 8 |
| Supported Technologies | AMD SenseMI Technology
AMD Ryzen™ Master Utility Enmotus FuzeDrive™ for AMD Ryzen™ Radeon™ Software |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 3 Processors with Radeon™ Vega Graphics |
| Platform | Desktop |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |

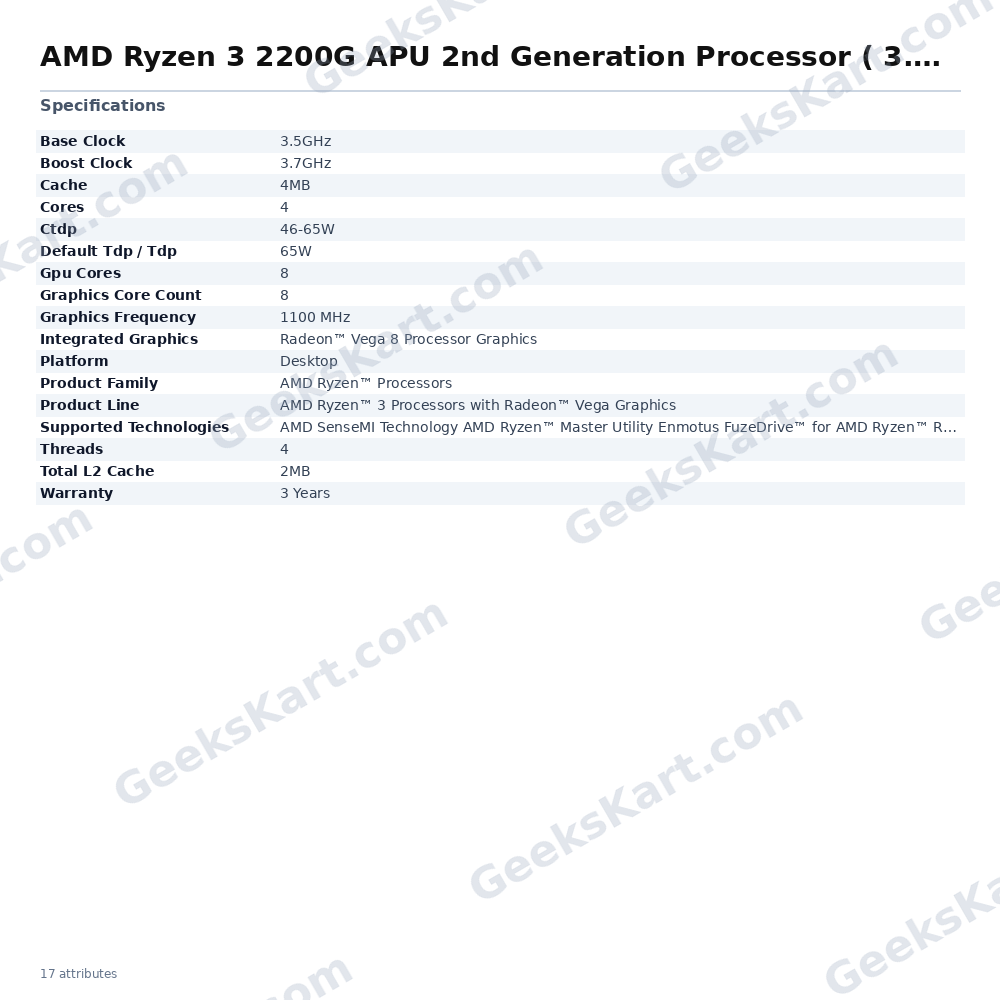

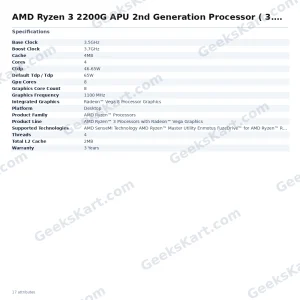

Datasheet
| Ctdp | 46-65W |
|---|---|
| Platform | Desktop |
| Gpu Cores | 8 |
| Base Clock | 3.5GHz |
| Product Line | AMD Ryzen™ 3 Processors with Radeon™ Vega Graphics |
| Integrated Graphics | Radeon™ Vega 8 Processor Graphics |
| Product Family | AMD Ryzen™ Processors |
| Total L2 Cache | 2MB |
| Boost Clock | 3.7GHz |
| Default Tdp / Tdp | 65W |
| Graphics Frequency | 1100 MHz |
| Graphics Core Count | 8 |
| Supported Technologies | AMD SenseMI Technology AMD Ryzen™ Master Utility Enmotus FuzeDrive™ for AMD Ryzen™ Radeon™ Software |
| Warranty | 3 Years |
| Cores | 4 |
| Threads | 4 |
| Cache | 4MB |
