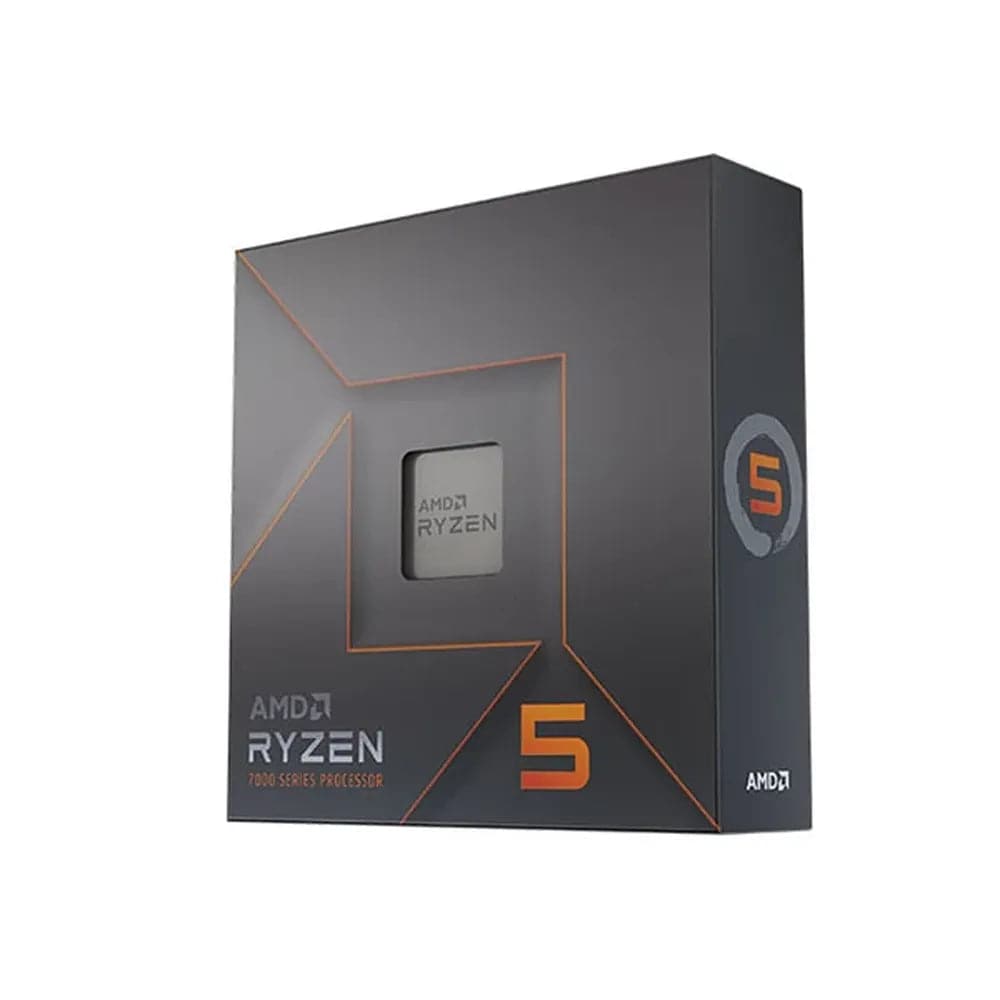

AMD Ryzen 5 7600X 7th Generation Processor ( 5.3 GHz / 6 Cores / 12 Threads )

The AMD Ryzen 5 7600X is a sixth-generation Zen 4 architecture desktop processor built on TSMC 5nm FinFET process technology for the CPU compute die and TSMC 6nm FinFET for the I/O die. Designed for the AM5 platform, it delivers a confident balance of gaming and content-creation performance within a compact 6-core, 12-thread configuration, making it a strong choice for enthusiast desktop builds that demand modern connectivity and memory support without unnecessary overhead. At its core, the Ryzen 5 7600X operates at a 4.7GHz base clock and can reach a maximum boost clock of up to 5.3GHz via AMD Precision Boost 2, which automatically raises frequencies under demanding workloads. The processor is fully unlocked for overclocking and supports AMD Precision Boost Overdrive, Curve Optimizer voltage offsets, and AMD EXPO memory overclocking technology — tools that let experienced builders extract additional headroom from compatible AM5 motherboards (X670E, X670, B650E, B650). The cache hierarchy consists of 384KB of L1 cache, 6MB of L2 cache, and 32MB of L3 cache, providing quick access to frequently used data in games and productivity applications. With a dual-channel DDR5 memory controller supporting up to 128GB of UDIMM RAM at up to 5200 MT/s (1x1R configuration), the platform is well-positioned for memory-intensive workloads. ECC memory is supported with a compatible motherboard. Connectivity is a flagship strength of the AM5 platform. The processor exposes 28 PCIe lanes (24 usable), including PCIe 5.0 support, alongside four native USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port. NVMe storage configurations cover Boot, RAID 0, RAID 1, and RAID 10. An integrated AMD Radeon Graphics unit (2 compute units, up to 2200MHz frequency) provides display output without a discrete GPU, useful for system setup or lightweight tasks. No CPU cooler is included in the box; a third-party AM5-compatible cooler is required. The processor carries a 3-year manufacturer warranty. Verified Specifications: Platform: Desktop (AM5) | Architecture: Zen 4 (Raphael) | Process: TSMC 5nm FinFET (CCD), 6nm FinFET (IOD) | Cores / Threads: 6 / 12 | Base Clock: 4.7GHz | Max Boost Clock: Up to 5.3GHz | L1 / L2 / L3 Cache: 384KB / 6MB / 32MB | TDP: 105W | Max Operating Temperature: 95°C | Socket: AM5 | Memory: DDR5 Dual-Channel, up to 128GB, up to 5200 MT/s | PCIe Lanes: 28 total / 24 usable | Integrated Graphics: AMD Radeon Graphics (2 CU, up to 2200MHz) | Overclocking: Unlocked | Cooler: Not included | Warranty: 3 Years | Product Code: 100-100000593WOF
