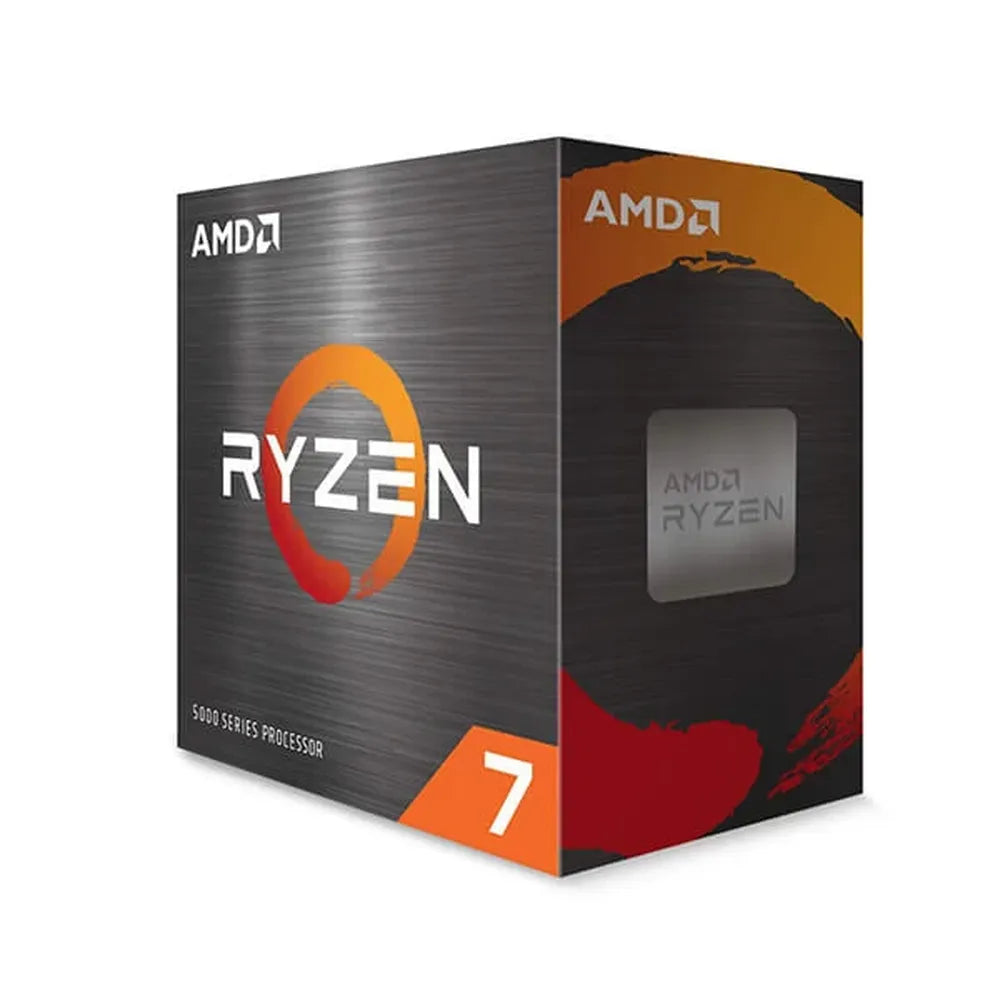

Features of AMD Ryzen 7 5700X3D 5th Generation Desktop Processor ( 4.1 GHz / 8 Cores / 16 Threads )
amd Ryzen 7 5700X3D is a desktop processor which is the fast gaming processor with 8 Cores and 16 processing threads with 100 MB cache. Cooler not included in this processor.
Precision Boost 2
AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you to overclock the processor at the touch of a button.
AMD StoreMI Technology
AMD ryzen Processor StoreMI technology helps to improve load times and overall system performance by combining solid-state drives and mechanical hard drives into a single hybrid storage drive. Frequently used files and programs are cached onto the fast SSD while other files are stored on the high-capacity HDD.
AMD Ryzen VR Ready Premium
Ryzen VR Ready Premium processors are designed to meet or exceed the recommended specifications from the top HMD manufacturers, including Oculus Rift, HTC Vive, and Windows Mixed Reality for smooth performance. AMD 5000 Series Processor deliver unrivaled technologies for exceptional performance
AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
Specifications of AMD Ryzen 7 5700X3D 5th Generation Desktop Processor ( 4.1 GHz / 8 Cores / 16 Threads )
| Model | AMD Ryzen 7 5700X3D |
| Platform | Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 7 Desktop Processors |
| Consumer Use | Yes |
| Commercial Use | No |
| Former Codename | “Vermeer” |
| Architecture | “Zen 3” |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.1GHz |
| Base Clock | 3.0GHz |
| L1 Cache | 512KB |
| L2 Cache | 4MB |
| L3 Cache | 96MB |
| Default TDP | 105W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 2 |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets | X570 X470 B550 B450 A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 90°C |
| *OS Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 4.0 |
| Native PCIe® Lanes (Total/Usable) | 24 / 20 |
| Additional Usable PCIe Lanes from Motherboard | AMD X570 16x Gen 4 AMD X470 2x Gen 3 8x Gen 2 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| Key Features | |
| Supported Technologies | AMD StoreMI Technology AMD “Zen 3” Core Architecture AMD Ryzen™ Master Utility AMD Ryzen™ VR-Ready Premium |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
