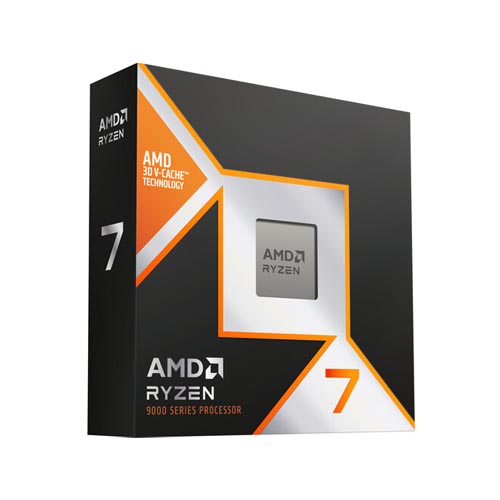

AMD Ryzen 7 9800X3D AM5 Desktop Processor (5.2 GHz / 8 Cores / 16 Threads)
MPN 100-100001084WOF · Brand AMD · Desktops , Boxed Processor
Integrated AMD Radeon Graphics Up to 5.2 GHz Zen 5 Cores 8, Threads 16 L3 Cache 96 MB L2
Inclusive of GST · GST invoice available
Overview
- Integrated AMD Radeon Graphics
- Up to 5.2 GHz
- Zen 5
- Cores 8, Threads 16
- L3 Cache 96 MB
- L2

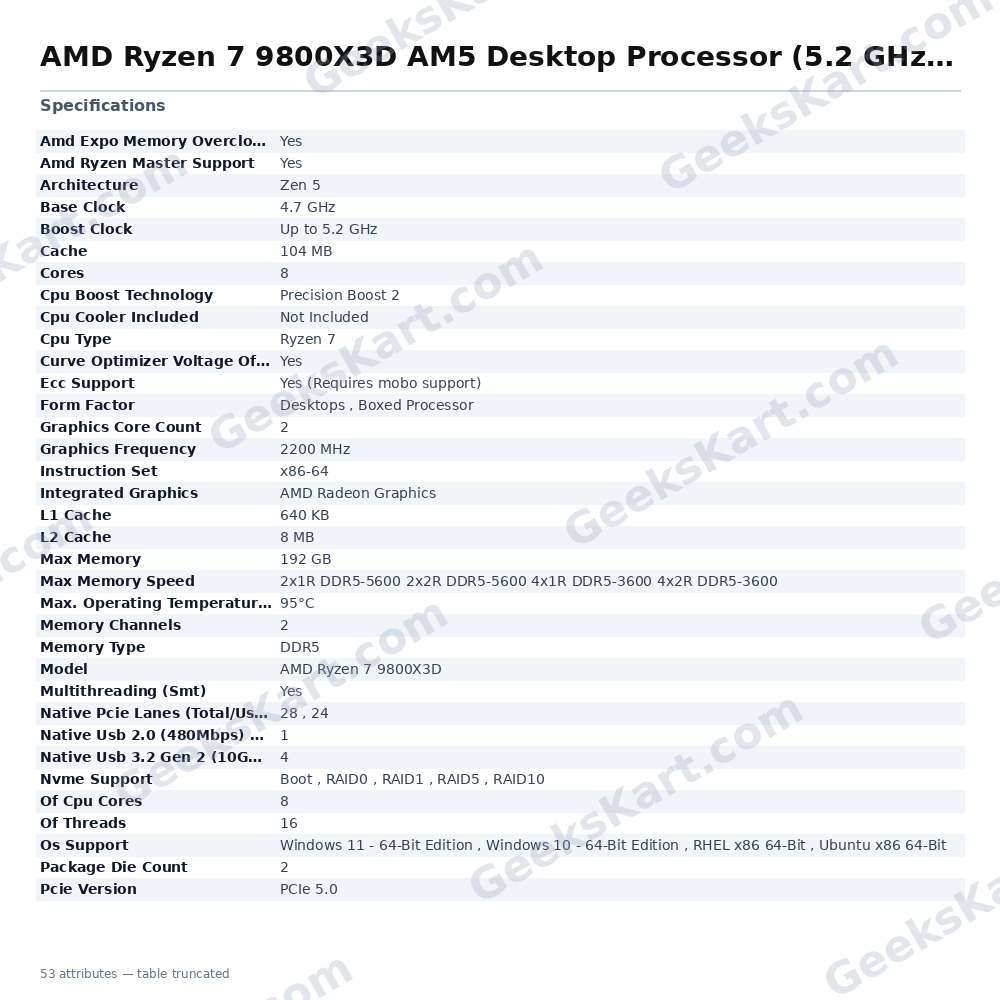

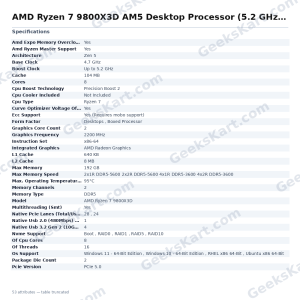

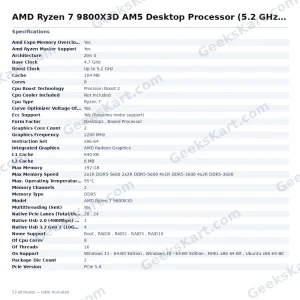

Datasheet
| Processor Series | Ryzen 7 |
|---|---|
| Model | AMD Ryzen 7 9800X3D |
| Speed | 4.7 GHz |
| Series | 9000 Series |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| Unlocked | Yes |
| Base Clock | 4.7 GHz |
| Os Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Of Threads | 16 |
| Ecc Support | Yes (Requires mobo support) |
| Architecture | Zen 5 |
| Nvme Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| Of Cpu Cores | 8 |
| Boost Clock | Up to 5.2 GHz |
| Integrated Graphics | AMD Radeon Graphics |
| Instruction Set | x86-64 |
| Memory Channels | 2 |
| Max Memory Speed | 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
| Package Die Count | 2 |
| Graphics Frequency | 2200 MHz |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Graphics Core Count | 2 |
| Cpu Cooler Included | Not Included |
| Pcie Version | PCIe 5.0 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| Cpu Boost Technology | Precision Boost 2 |
| Multithreading (Smt) | Yes |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| System Memory Subtype | UDIMM |
| Supported Technologies | AMD EXPO Technology , AMD Ryzen Technologies |
| Amd Ryzen Master Support | Yes |
| Precision Boost Overdrive | Yes |
| Unlocked For Overclocking | Yes |
| Native Usb 2.0 (480Mbps) Ports | 1 |
| Curve Optimizer Voltage Offsets | Yes |
| Native Pcie Lanes (Total/Usable) | 28 , 24 |
| Processor Technology For I/O Die | TSMC 6nm FinFET |
| Max. Operating Temperature (Tjmax) | 95°C |
| Processor Technology For Cpu Cores | TSMC 4nm FinFET |
| Native Usb 3.2 Gen 2 (10Gbps) Ports | 4 |
| Usb Type-C Displayport Alternate Mode | Yes |
| Amd Expo Memory Overclocking Technology | Yes |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Socket | AM5 |
| Cores | 8 |
| Threads | 16 |
| TDP | 120W |
| Cache | 104 MB |
| CPU Type | Ryzen 7 |
| Max Memory | 192 GB |
| Form Factor | Desktops , Boxed Processor |
