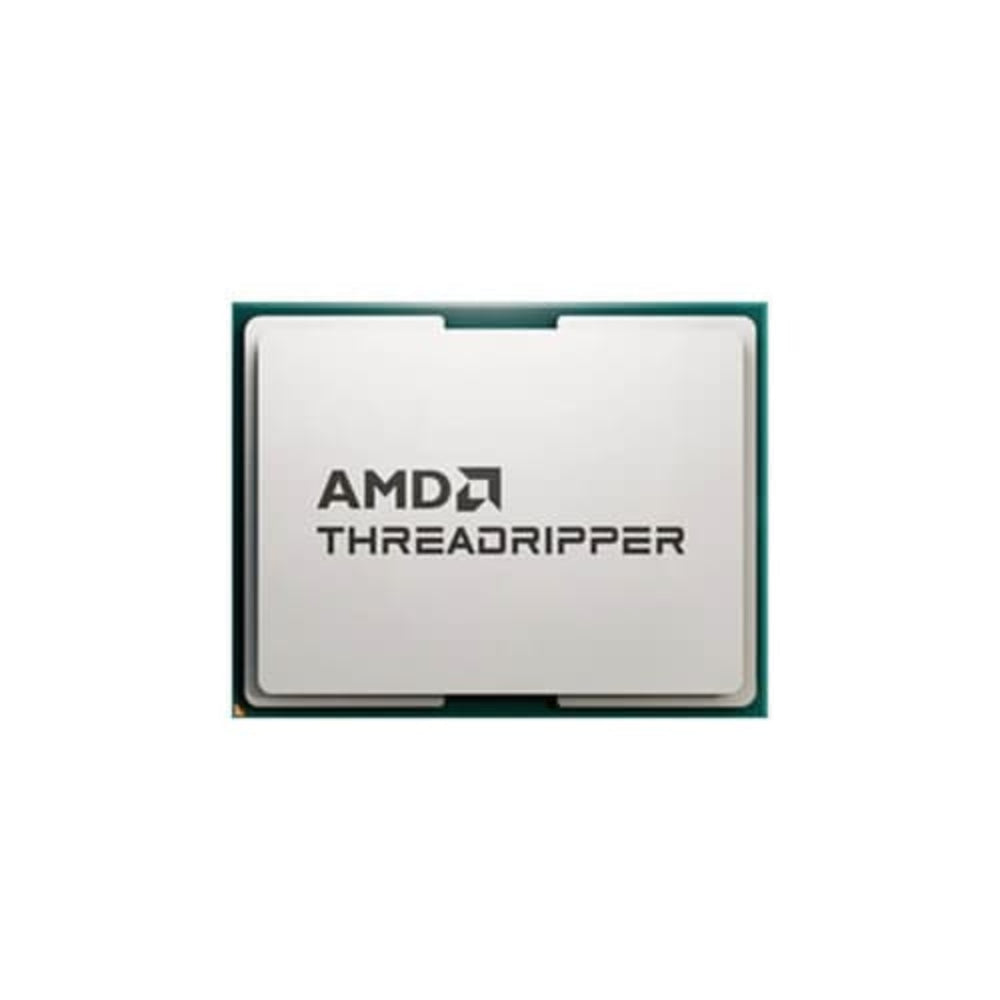

Features of AMD Ryzen Threadripper 7960X 7th Generation Processor ( 5.3GHz / 24 Cores / 48 Threads )
聽
It is part of the Ryzen Threadripper lineup, using the Zen 4 (Storm Peak) architecture with Socket sTR5. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 48 threads. Ryzen Threadripper 7960X has 128 MB of L3 cache and operates at 4.2 GHz by default, but can boost up to 5.3 GHz, depending on the workload. AMD is building the Ryzen Threadripper 7960X on a 5 nm production process using 26,280 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. You may freely adjust the unlocked multiplier on Ryzen Threadripper 7960X, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
With a TDP of 350 W, the Ryzen Threadripper 7960X is extremely power hungry, which means you need top-notch cooling. AMD’s processor supports DDR5 memory with a quad-channel interface. The highest officially supported memory speed is 5200 MT/s, but with overclocking (and the right memory modules) you can go even higher. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption. For communication with other components in the machine, Ryzen Threadripper 7960X uses a PCI-Express Gen 5 connection. This processor does not have integrated graphics, you will need a separate graphics card.
Hardware virtualization is available on the Ryzen Threadripper 7960X, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD has added support for the newer AVX2 and AVX-512 instructions, too.
聽
Specifications of AMD Ryzen Threadripper 7960X 7th Generation Processor ( 5.3GHz / 24 Cores / 48 Threads )
聽
| Product ID Tray | 100-000001352 |
| General Specifications | |
| Name | AMD Ryzen鈩?Threadripper鈩?7960X |
| Family | Ryzen Threadripper |
| Series | Ryzen Threadripper 7000 Series |
| Form Factor | Desktops |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Commercial Use | No |
| Regional Availability | Global |
| Former Codename | Storm Peak |
| Architecture | Zen 4 |
| # of CPU Cores | 24 |
| Multithreading (SMT) | Yes |
| # of Threads | 48 |
| Max. Boost Clock | Up to 5.3 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 1536 KB |
| L2 Cache | 24 MB |
| L3 Cache | 128 MB |
| Default TDP | 350W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm虏 |
| I/O Die (IOD) Size | 388mm虏 |
| Package Die Count | 5 |
| Unlocked for Overclocking | Yes |
| AMD EXPO鈩?Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Socket | sTR5 |
| Supporting Chipsets | TRX50 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 95掳C |
| *OS Support | Windows 11 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native SATA Ports | 2 |
| PCI Express庐 Version | PCIe庐 5.0 |
| Native PCIe庐 Lanes (Total/Usable) | 92, 88 |
| NVMe Support | Boot, RAID0, RAID1, RAID10, RAID5 |
| System Memory Type | DDR5 |
| Memory Channels | 4 |
| System Memory Subtype | RDIMM |
| System Memory Specification | Up to 5200 MT/s |
| ECC Support | Yes (Default Enabled) |
| Graphics Capabilities | |
| Graphics Model | Discrete Graphics Card Required |
| Security, Virtualization, and Manageability | |
| DASH support | Yes |
| AMD Memory Guard | Yes |
| AMD Secure Processor Support | Yes |
| Windows Secure Boot Support | Yes |
| UEFI Secure Boot Support | Yes |
| Windows Device Guard Support | Yes |
| Guest Mode Execution (GMET) Trap Support | Yes |
| Virtualization-Based Security (VBS) Support | Yes |
| Windows Secured-Core PC Support | Yes |
| Firmware TPM | Yes |
| AMD-V (SVM) Support | Yes |
| AMD-V Nested Paging (RVI) Support | Yes |
| AMD AVIC (Interrupt Virtualization) Support | Yes |
| AMD-Vi (I/O MMU Virtualization) Support | Yes |
| Second Level Address Translation (SLAT) Supported | Yes |
| Advanced Encryption Standard New Instructions (AES-NI) | Yes |
| AMD Enhanced Virus Protection (NX bit) | Yes |
| FIPS Certification | In Review |
| Key Features | |
| Supported Technologies | AMD EXPO鈩?Technology, AMD Ryzen鈩?Technologies |
| Warranty | 1 Year |
| Note | *** Images use for reference only *** Features, Price, Specifications are subject to change without notice. |
