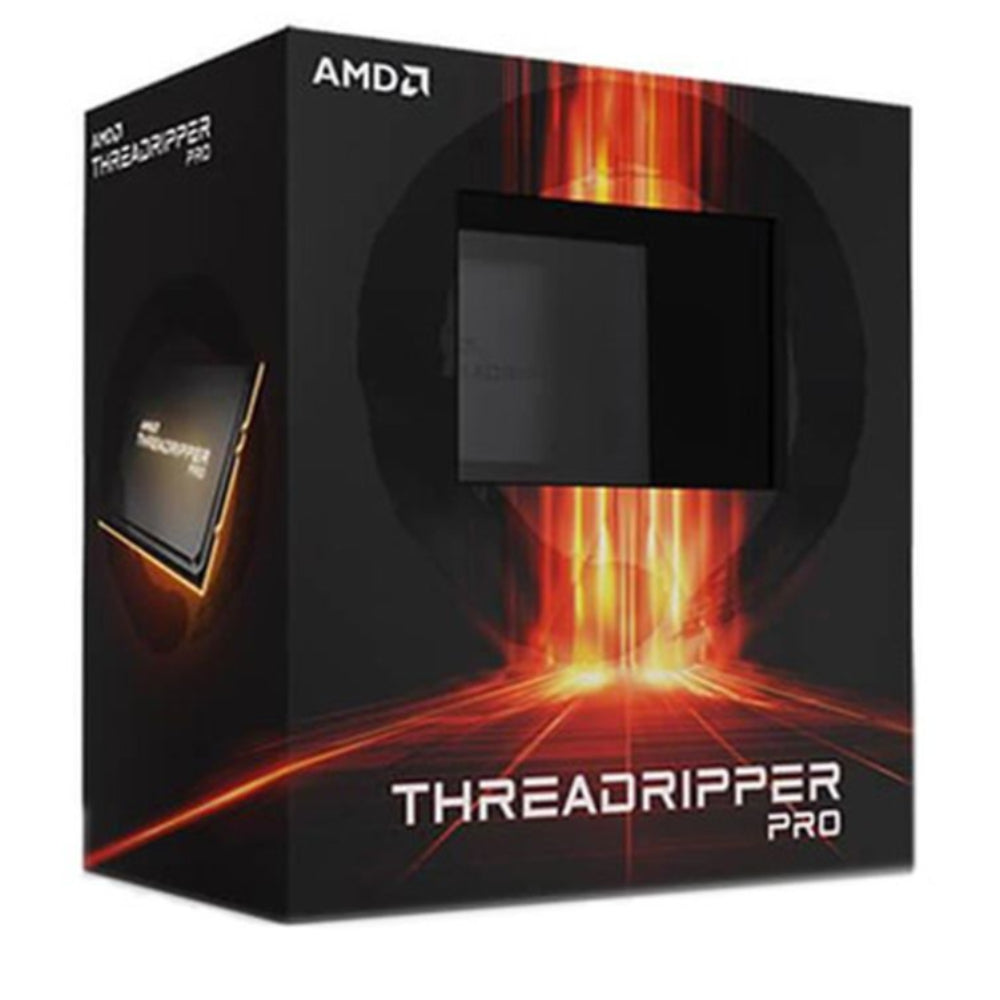

AMD Ryzen Threadripper PRO 5995WX Workstation 5th Generation Processor ( 4.5 GHz / 64 Cores / 128 Threads )

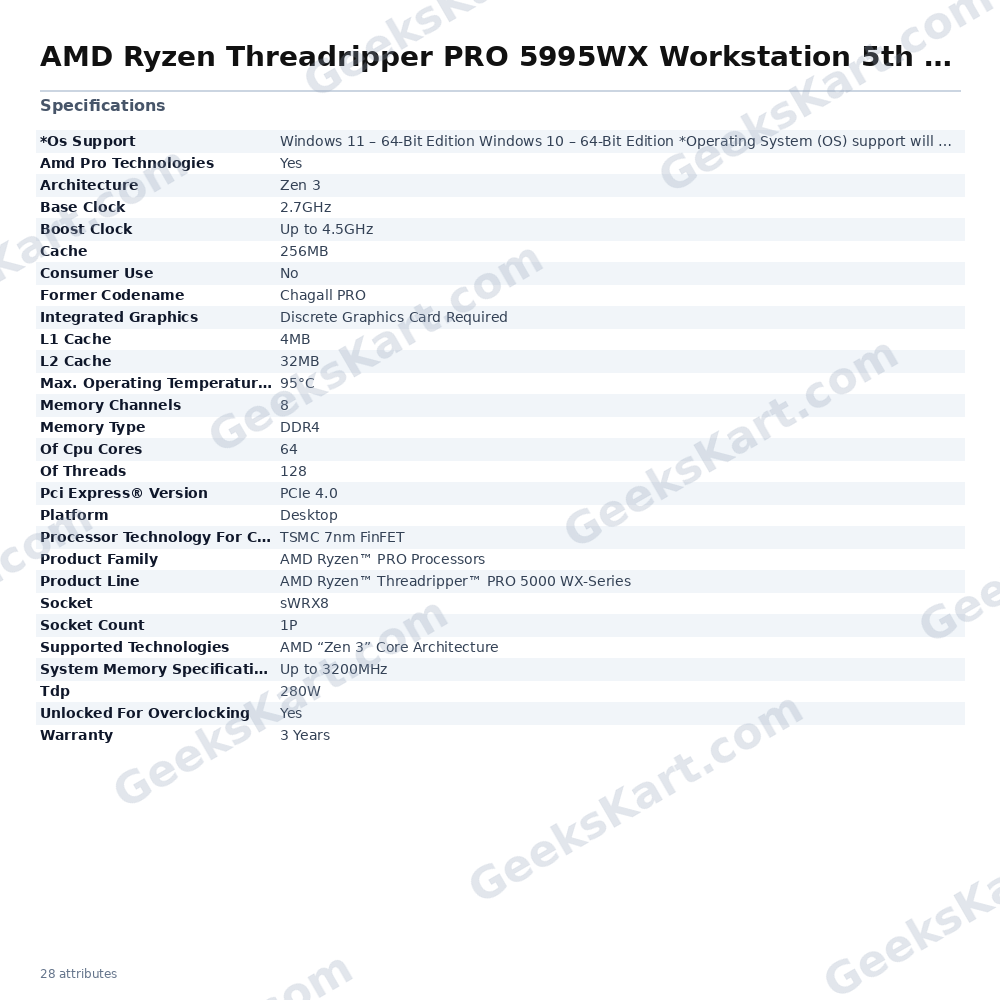

The AMD Ryzen Threadripper PRO 5995WX is a high-core-count workstation processor engineered for demanding professional workloads. Built on the Zen 3 core architecture using TSMC 7nm FinFET process technology, it fits the sWRX8 socket and belongs to the AMD Ryzen Threadripper PRO 5000 WX-Series (codename: Chagall PRO). With 64 physical cores and 128 threads, this processor is aimed at professionals in fields such as 3D rendering, architectural visualisation, engineering simulation, video production, and data science — workflows that benefit significantly from high thread counts and large cache hierarchies. The processor operates at a base clock of 2.7 GHz and can boost up to 4.5 GHz on a single core. It carries a substantial 256MB L3 cache alongside 32MB of L2 cache and 4MB of L1 cache, enabling large working datasets to remain closer to the compute cores and reducing memory latency for cache-friendly workloads. The default TDP is rated at 280W, reflecting the thermal demands of a 64-core design; note that a dedicated thermal solution is not included and must be purchased separately. Connectivity is a key strength of the platform. The 5995WX supports up to 128 PCIe 4.0 lanes, facilitating high-bandwidth connections to multiple GPUs, NVMe storage arrays, and specialised accelerator cards simultaneously. Memory subsystem support spans eight DDR4 channels at up to 3200 MHz, enabling very high aggregate memory bandwidth for memory-intensive workloads. No integrated graphics are present; a discrete graphics card is required for display output. The processor is unlocked for overclocking. It also includes AMD PRO Technologies, which encompass AMD Secure Processor — a dedicated hardware security subsystem designed to establish a hardware root of trust — and AMD Memory Guard, which provides real-time full system memory encryption to help protect data in the event of physical theft or loss. Enterprise manageability features support remote monitoring, system imaging, and out-of-band repair. Verified Specifications: • Architecture: Zen 3 (TSMC 7nm FinFET) • CPU Cores / Threads: 64 / 128 • Base Clock: 2.7 GHz | Max Boost Clock: Up to 4.5 GHz • L1 Cache: 4MB | L2 Cache: 32MB | L3 Cache: 256MB • TDP: 280W • Socket: sWRX8 (1P) • PCIe Version: PCIe 4.0 (up to 128 lanes) • Memory: 8-channel DDR4, up to 3200 MHz • Integrated Graphics: None (discrete GPU required) • Overclocking: Unlocked • Max Operating Temperature (Tjmax): 95°C • OS Support: Windows 11 64-bit, Windows 10 64-bit • Warranty: 3 years • Part Number: 100-000000446
