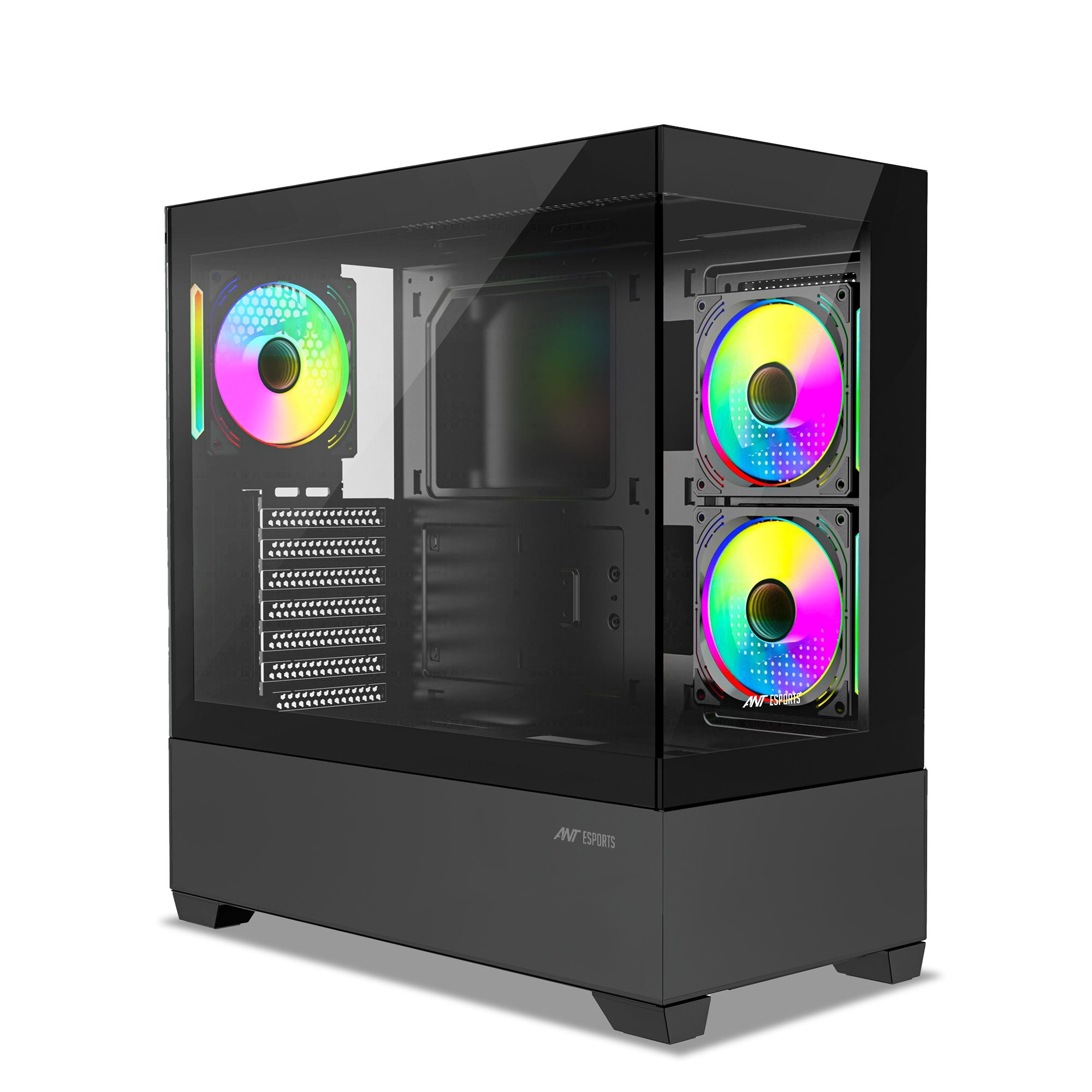

ANT ESPORTS Crystal Z3 ARGB ATX Mid Tower Cabinet ( Black )
MPN ANT-ESPORTS-CRYSTAL-Z3-BLACK · Brand Ant Esports
The Ant Esports Crystal Z3 ARGB ATX Mid Tower Cabinet (Black) features dual tempered glass panels, 3 pre-installed ARGB Infinity Mirror PWM fans, up to 360 mm AIO support, and a 415 mm GPU clearance — ideal for ATX, Micro-ATX, and Mini-ITX builds
Inclusive of GST · GST invoice available
Overview
The Ant Esports Crystal Z3 ARGB ATX Mid Tower Cabinet in Black is a feature-packed mid-tower enclosure designed to accommodate a wide range of gaming and workstation builds. Its dual tempered glass panels — one on the front and one on the side — let you showcase your components in full view, while the SPCC steel chassis provides a sturdy structural foundation. Three ARGB Infinity Mirror PWM fans come pre-installed, delivering vivid ambient lighting right out of the box without requiring additional purchases for an illuminated build. The case supports up to nine 120 mm fans in total across the top (3×), bottom (3×), rear (1×), and side (1×) positions, giving builders significant flexibility to tune airflow to their specific cooling requirements. For liquid cooling enthusiasts, the Crystal Z3 accommodates radiators up to 360 mm on the top mount, making it compatible with high-performance all-in-one coolers. Motherboard compatibility spans ATX, Micro-ATX, and Mini-ITX form factors, ensuring the cabinet suits a broad spectrum of platform choices. A GPU clearance of 415 mm handles most modern multi-slot graphics cards, and a CPU cooler height limit of 165 mm accommodates a wide range of tower air coolers. Seven expansion slots provide room for multi-GPU or high-slot-count add-in cards. Storage options include two 3.5-inch drive bays and one 2.5-inch bay, covering both traditional hard drives and solid-state drives. The front I/O panel features one USB 3.0 port, two USB ports, a 3.5 mm audio jack, a microphone jack, along with power and reset buttons for everyday convenience. Side panels are designed for tool-friendly removal to simplify hardware installation and cable management. Verified Specifications: • Dimensions (L × B × H): 435 × 218 × 454 mm • Motherboard Support: ATX, Micro-ATX, Mini-ITX • Materials: SPCC steel + Tempered Glass • Drive Bays: 2 × 3.5-inch, 1 × 2.5-inch • Fan Support: 3 × 120 mm (Top), 3 × 120 mm (Bottom), 1 × 120 mm (Rear), 1 × 120 mm (Side) • Max Radiator Support: 360 mm (Top) • Pre-Installed Fans: 3 × ARGB Infinity Mirror PWM Fans • GPU Clearance: 415 mm • CPU Cooler Height: 165 mm • I/O: 1 × USB 3.0, 2 × USB 2.0, Audio + Mic, Power & Reset • Expansion Slots: 7 • Warranty: 1 Year

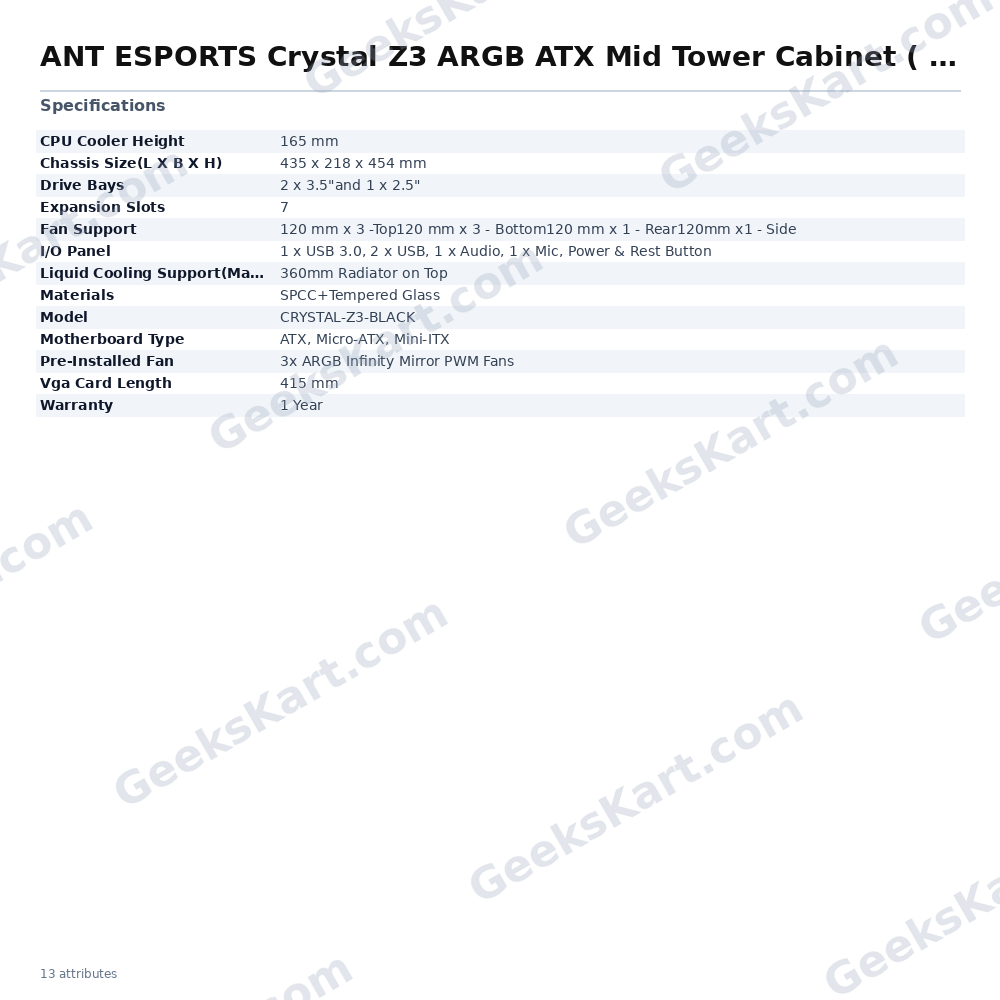

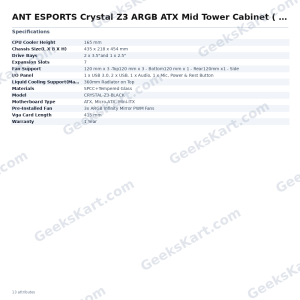

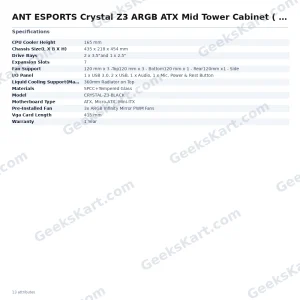

Datasheet
| Warranty | 1 Year |
|---|---|
| I/O Panel | 1 x USB 3.0, 2 x USB, 1 x Audio, 1 x Mic, Power & Rest Button |
| Materials | SPCC+Tempered Glass |
| Drive Bays | 2 x 3.5"and 1 x 2.5" |
| Model | CRYSTAL-Z3-BLACK |
| Fan Support | 120 mm x 3 -Top120 mm x 3 – Bottom120 mm x 1 – Rear120mm x1 – Side |
| Expansion Slots | 7 |
| Vga Card Length | 415 mm |
| Motherboard Type | ATX, Micro-ATX, Mini-ITX |
| CPU Cooler Height | 165 mm |
| Pre-Installed Fan | 3x ARGB Infinity Mirror PWM Fans |
| Chassis Size(L X B X H) | 435 x 218 x 454 mm |
| Liquid Cooling Support(Maximum) | 360mm Radiator on Top |
