ANT ESPORTS Eclipse ARGB ATX Mid Tower Cabinet ( White / Grey )
MPN ANT-ESPORTS-ECLIPSE-ARGB-ATX-WHITE-GREY · Brand Ant Esports

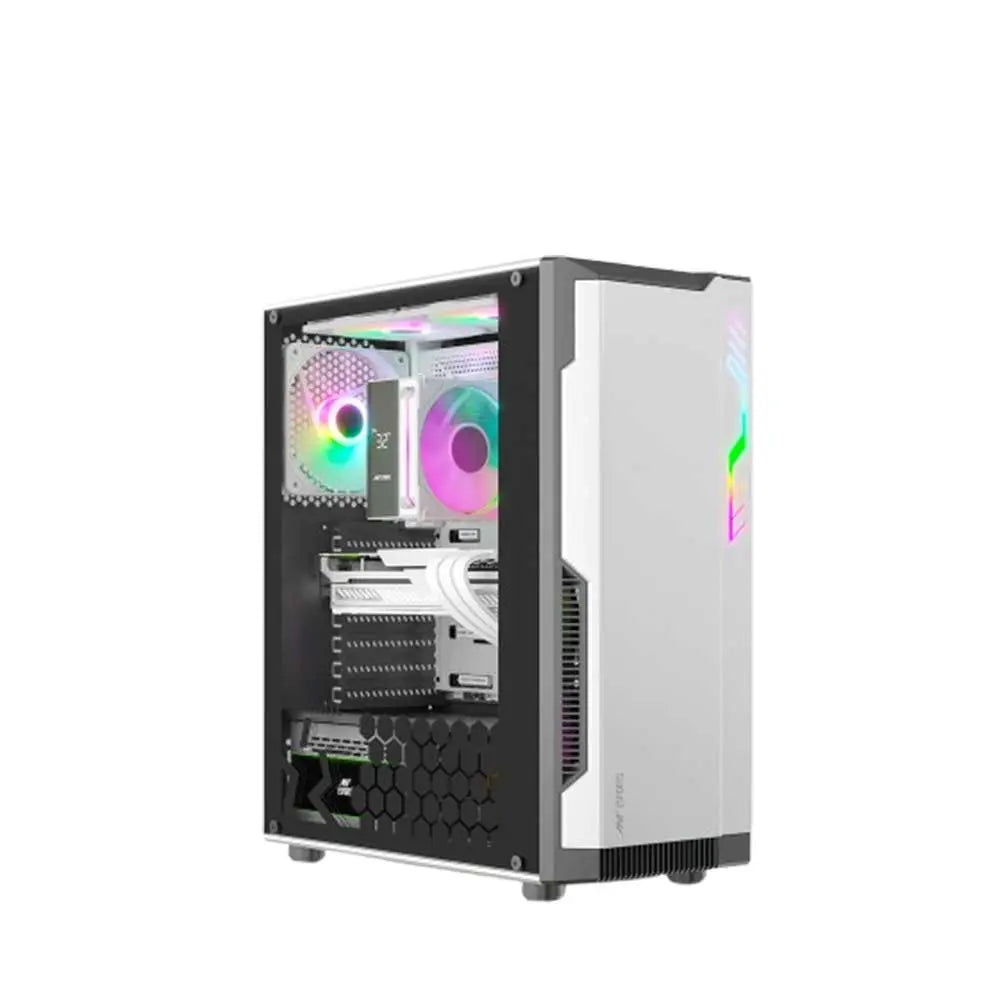

The Ant Esports Eclipse ARGB ATX Mid Tower Cabinet (White/Grey) features 4 pre-installed ARGB 120mm fans, dual tempered glass panels, 240mm front AIO support, and clearance for GPUs up to 290mm — a ready-to-build gaming chassis for ATX, Micro-ATX, and Mini-ITX motherboards
Inclusive of GST · GST invoice available
Overview
The Ant Esports Eclipse ARGB ATX Mid Tower Cabinet in White and Grey is a feature-packed gaming chassis designed for builders who want vibrant aesthetics and practical airflow in a compact mid-tower form factor. The case ships ready to use with four pre-installed ARGB 120mm fans — three at the front and one at the rear — delivering immediate airflow coverage straight out of the box, with no extra fan purchase required for a basic gaming build. The front and side panels are finished in tempered glass, letting your build's RGB lighting and components remain visible from multiple angles. The illuminated front panel adds a further layer of visual character to any gaming setup. Mother board compatibility covers ATX, Micro-ATX, and Mini-ITX form factors, making the Eclipse a versatile platform for a wide range of builds. Graphics card clearance extends to 290mm, accommodating a broad selection of mainstream discrete GPUs. CPU cooler height clearance of 160mm provides adequate room for tower air coolers and low-profile liquid cooling solutions alike. For liquid cooling enthusiasts, the front supports a 240mm radiator, enabling a straightforward AIO upgrade without case modification. Additional fan mounts are available at the top (2× 120mm) and rear (1× 120mm) for custom ventilation configurations. Storage is handled through two 3.5-inch drive bays and three 2.5-inch bays, supporting a combination of traditional HDDs and SSDs. There are no legacy 5.25-inch optical drive bays. Seven expansion slots accommodate multi-GPU or multi-card configurations. The front I/O panel includes one USB 3.0 port, two additional USB ports, HD audio and microphone jacks, two LED indicators, a dedicated LED control button, a power button, and a reset button — a comprehensive set of controls for day-to-day usability. **Verified Specifications:** - Form Factor: Mid Tower - Supported Motherboards: ATX / Micro-ATX / Mini-ITX - Chassis Dimensions: 365 × 190 × 428 mm - Materials: ABS, SPCC steel, Tempered Glass - Pre-Installed Fans: 3× front 120mm ARGB + 1× rear 120mm ARGB (4 total) - Fan Support: Front 3× 120mm, Top 2× 120mm, Rear 1× 120mm - Liquid Cooling Support: Front 240mm, Rear 120mm - Max GPU Length: 290mm - Max CPU Cooler Height: 160mm - Drive Bays: 2× 3.5-inch (HDD), 3× 2.5-inch (SSD) - Expansion Slots: 7 - Front I/O: 1× USB 3.0, 2× USB, HD Audio, Mic, LED button, Power, Reset

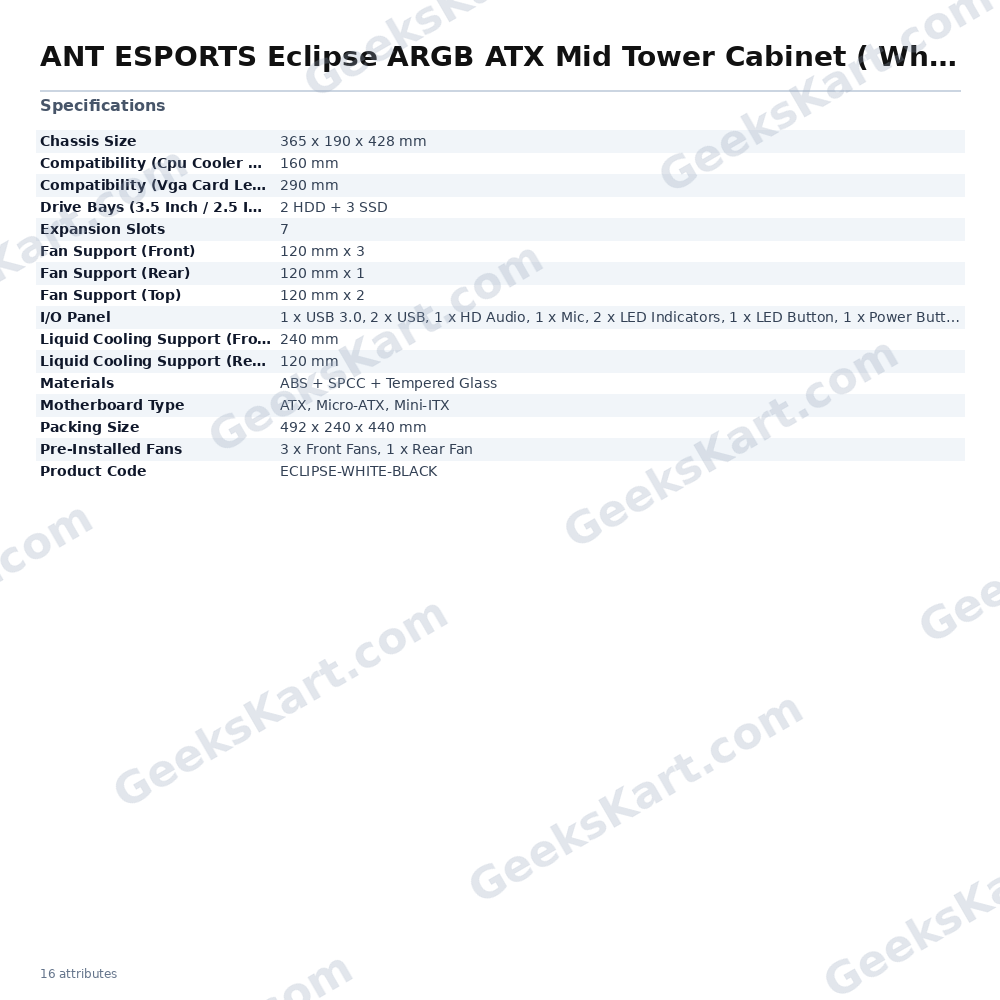

Datasheet
| I/O Panel | 1 x USB 3.0, 2 x USB, 1 x HD Audio, 1 x Mic, 2 x LED Indicators, 1 x LED Button, 1 x Power Button, 1 x Reset Button |
|---|---|
| Materials | ABS + SPCC + Tempered Glass |
| Chassis Size | 365 x 190 x 428 mm |
| Packing Size | 492 x 240 x 440 mm |
| Product Code | ECLIPSE-WHITE-BLACK |
| Expansion Slots | 7 |
| Motherboard Type | ATX, Micro-ATX, Mini-ITX |
| Fan Support (Top) | 120 mm x 2 |
| Fan Support (Rear) | 120 mm x 1 |
| Pre-Installed Fans | 3 x Front Fans, 1 x Rear Fan |
| Fan Support (Front) | 120 mm x 3 |
| Liquid Cooling Support (Rear) | 120 mm |
| Liquid Cooling Support (Front) | 240 mm |
| Compatibility (Vga Card Length) | 290 mm |
| Drive Bays (3.5 Inch / 2.5 Inch) | 2 HDD + 3 SSD |
| Compatibility (Cpu Cooler Height) | 160 mm |
