ANT ESPORTS ICE-Flow 240 ARGB 240mm CPU Liquid Cooler (Black)
MPN ANT-ESPORTS-ICE-FLOW-240-ARGB-BLACK · Brand Ant Esports

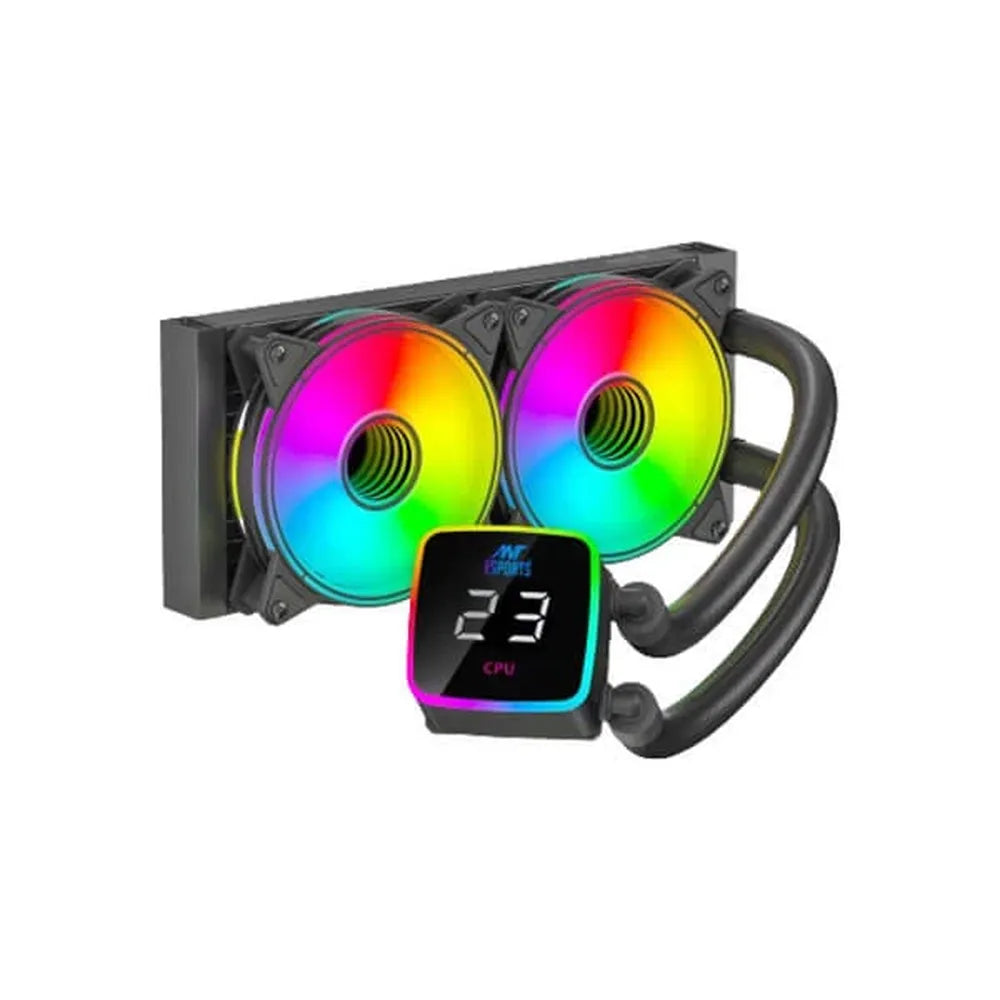

The Ant Esports ICE-Flow 240 ARGB is a 240mm AIO CPU liquid cooler featuring a three-phase pump with built-in temperature display, dual 120mm PWM ARGB fans, braided EPDM tubing, and broad Intel and AMD socket compatibility including LGA1700 and AM5
Inclusive of GST · GST invoice available
Overview

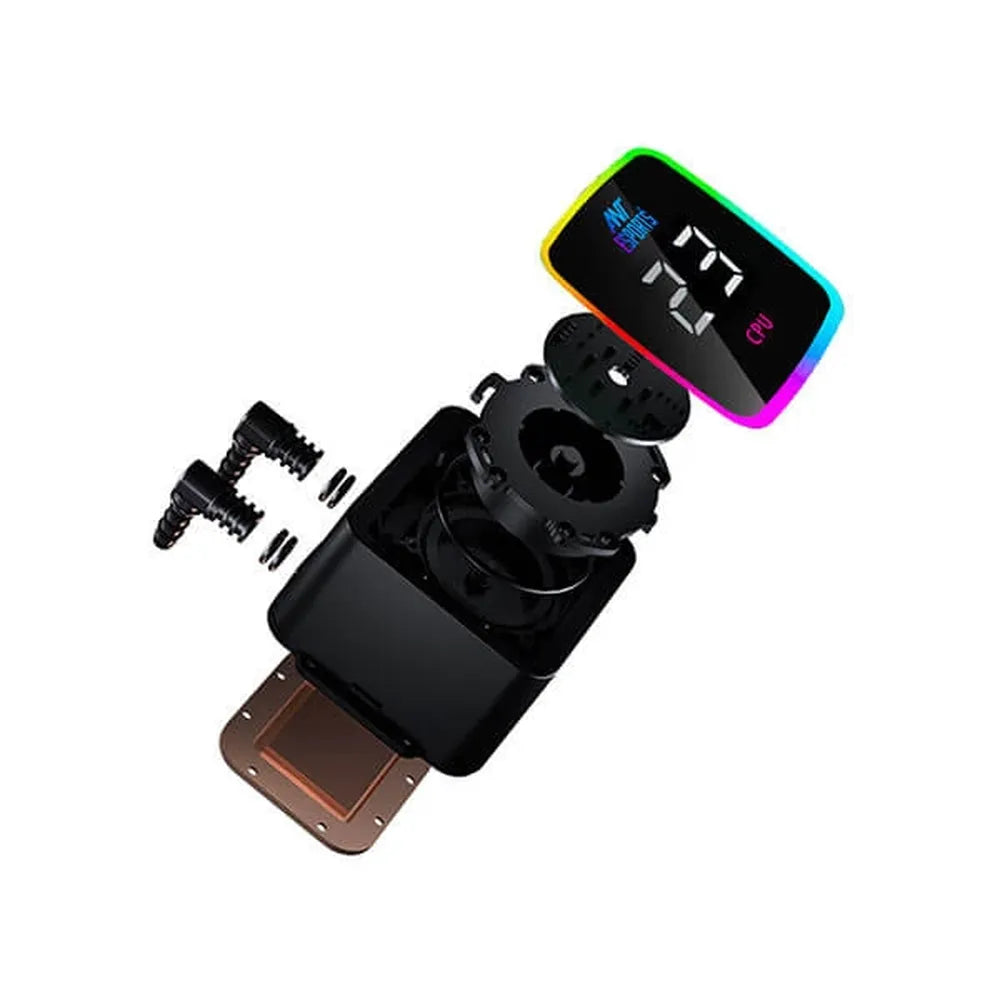

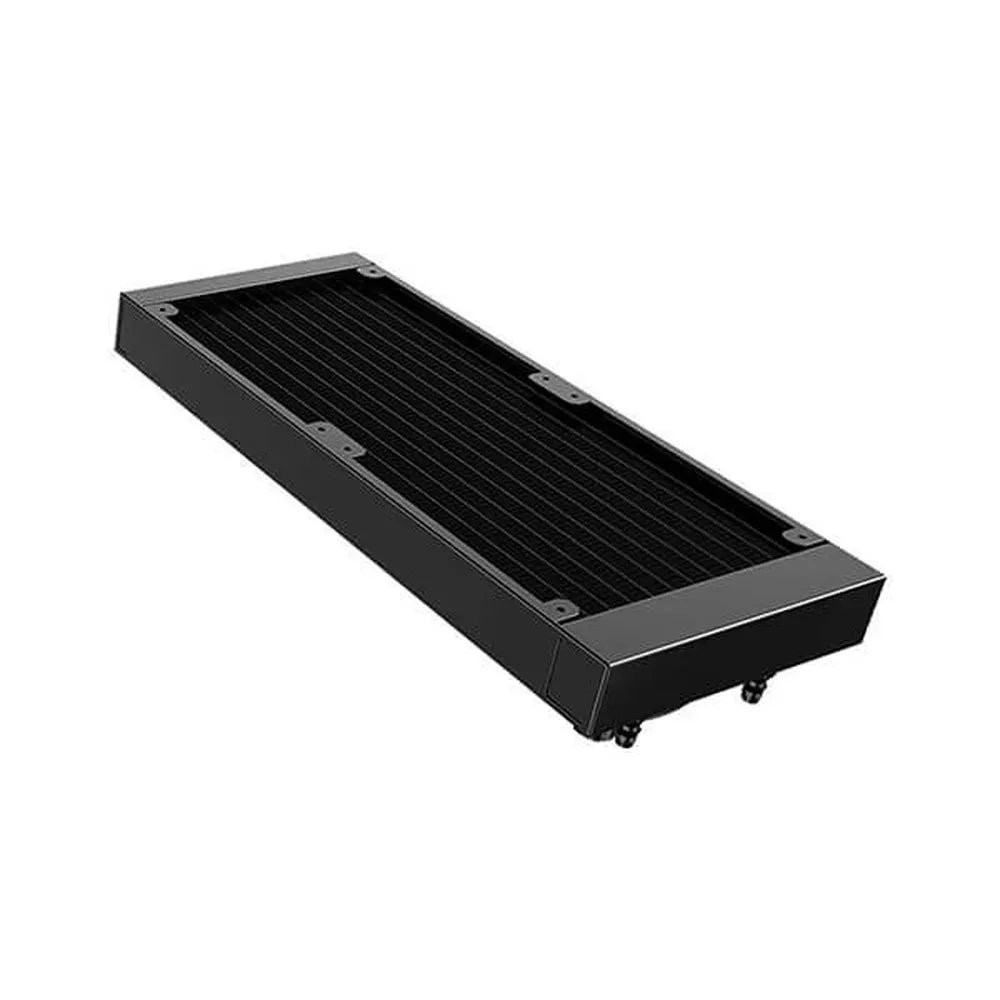

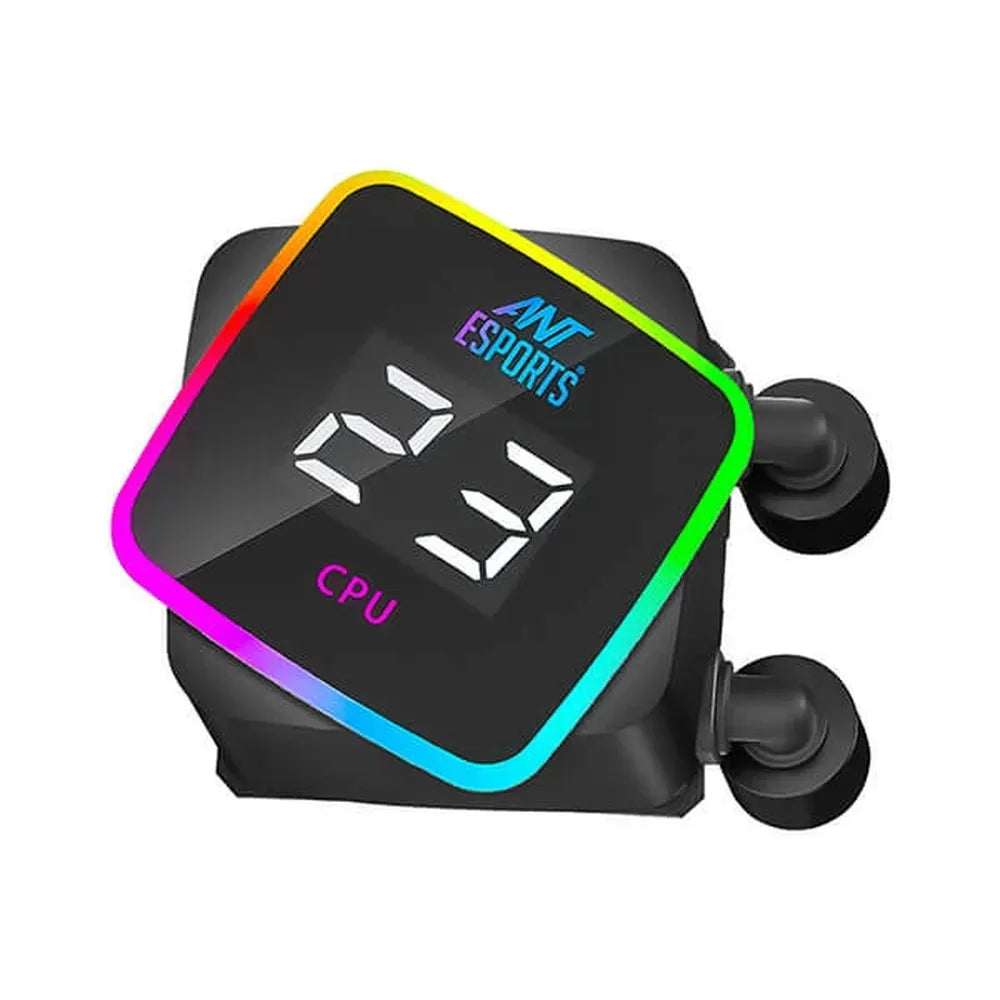

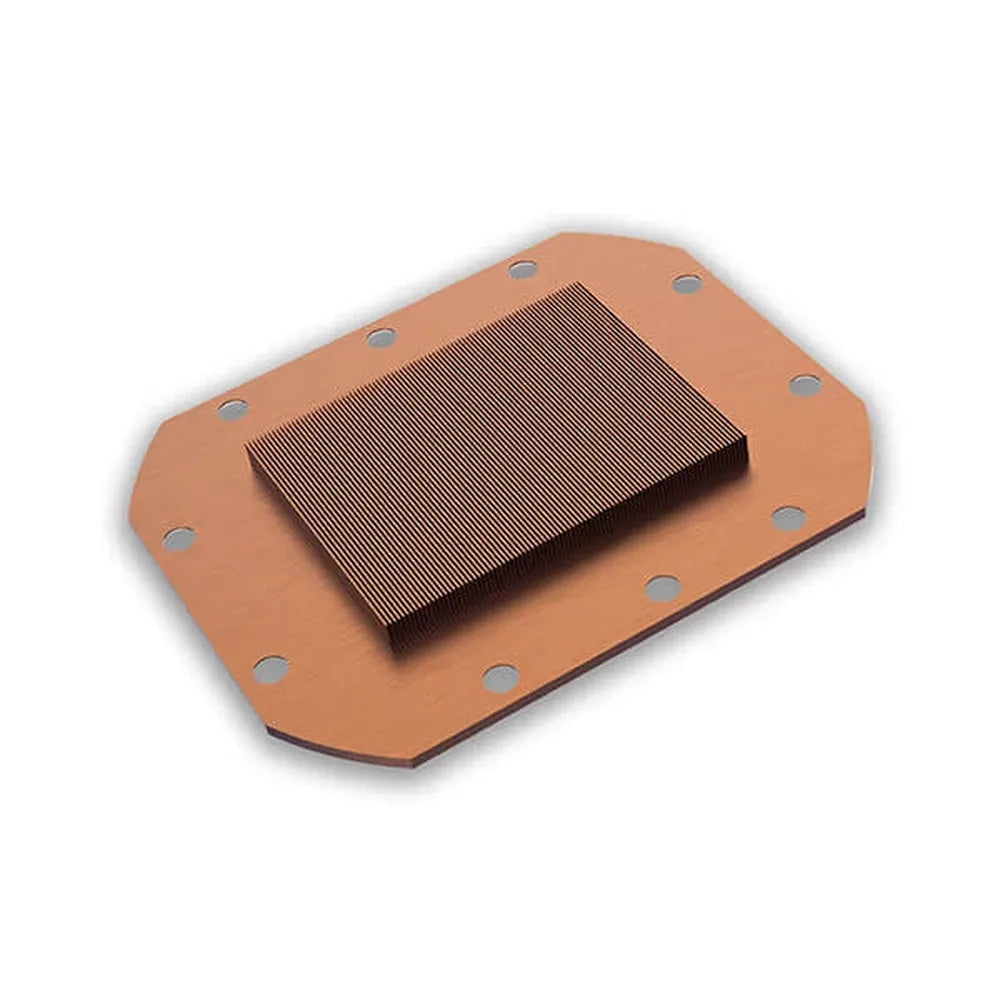

The Ant Esports ICE-Flow 240 ARGB is a 240mm all-in-one CPU liquid cooler designed for gamers and PC builders who want effective thermal management alongside customisable addressable RGB lighting. At the heart of the cooler is an aluminium alloy radiator measuring 277 x 120 x 27 mm, paired with a dual-chamber three-phase pump motor that operates at 2500 RPM (±10%) on DC 12V with a rated power draw of no more than 3.6W. The pump starts reliably at voltages as low as DC 4V, making it easy on your system at power- The pump head features a built-in display that shows real-time CPU temperature, and its rotatable design lets you orient the Ant Esports logo and readout to suit your case layout. The pump block uses a copper base for direct contact with the CPU integrated heat spreader, improving thermal transfer. Coolant travels through 350mm braided EPDM tubes — a material chosen for its flexibility and resistance to permeation — connecting the pump to the radiator and back. Two included 120 x 120 x 25 mm fans are PWM-controlled via 4-pin connectors, spinning between 800 and 1800 RPM (±10%) and moving up to 46.95 CFM of air at a maximum static pressure of 1.87 mm H₂O. Fan noise ranges from 15 to 35 dB(A) depending on load, while the pump itself operates at approximately 25 dB (±10%). Both the pump top and fans carry 3-pin 5V ARGB connectors with daisy-chainable male and female headers, enabling synchronisation with MSI Mystic Light, Asus Aura Sync, Gigabyte RGB Fusion, and other compatible ARGB motherboard utilities. Compatibility spans a broad range of mainstream sockets: Intel LGA115X, LGA1200, LGA1366, LGA1700, LGA2011, and LGA2066, as well as AMD AM4 and AM5. The unit weighs 1720g net (1960g gross) and operates within an ambient temperature range of -10°C to 60°C. Verified Specifications: - Radiator: Aluminium alloy, 277 x 120 x 27 mm - Tube: 350mm, EPDM braided (black) - Pump: Three-phase motor, 2500 RPM ±10%, DC 12V, ≤3.6W, 25 dB ±10% - Pump head dimensions: 67.6 x 82.3 x 55.5 mm - Fans: 2× 120 x 120 x 25 mm, 800–1800 RPM ±10%, 46.95 CFM max, 1.87 mm H₂O max, 15–35 dB(A), hydraulic bearing - Fan connector: 4-pin PWM + ARGB 3-pin 5V (male & female) - ARGB connector: 3-pin 5V (pump and fans) - Socket support: Intel LGA115X/1200/1366/1700/2011/2066 | AMD AM4/AM5 - Operating temperature: -10°C to 60°C - Net weight: 1720g | Gross weight: 1960g - Warranty: 3 years

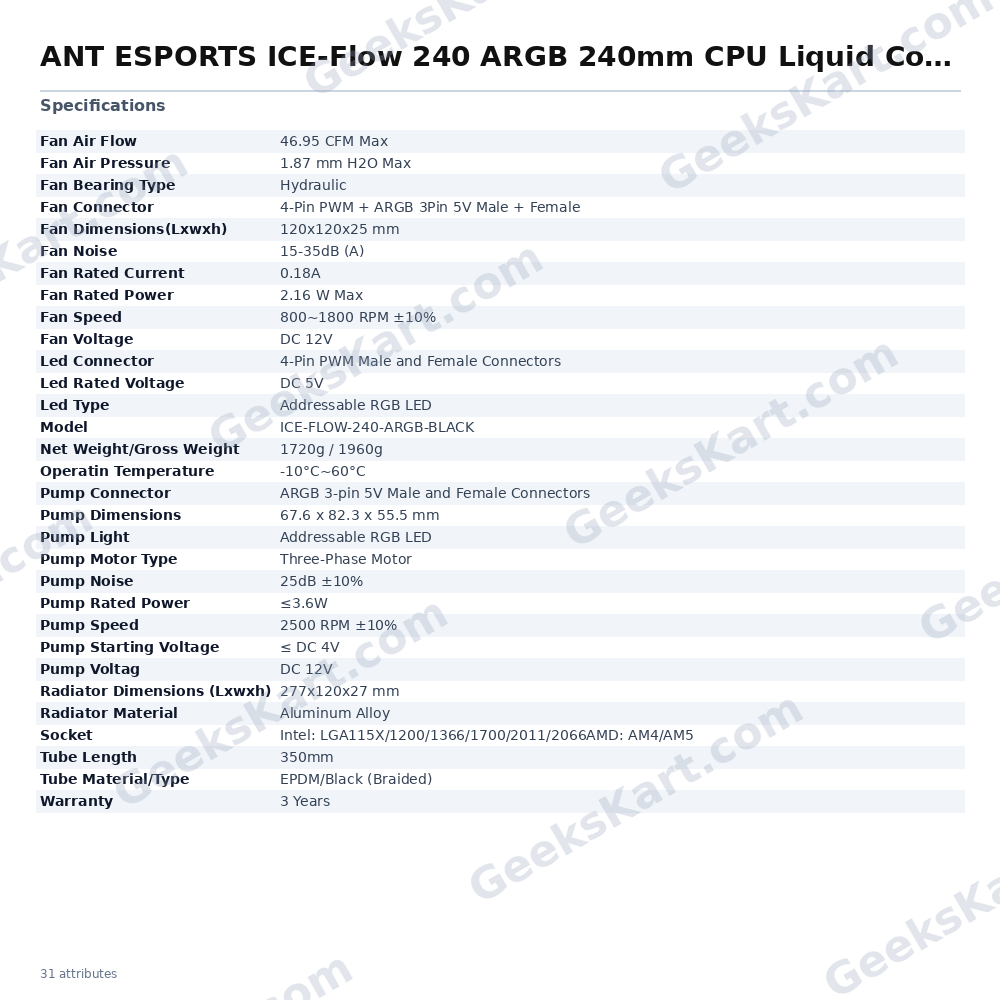

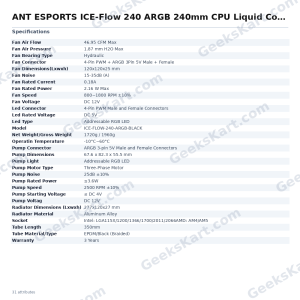

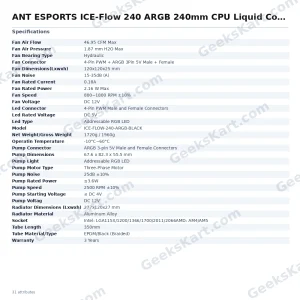

Datasheet
| Warranty | 3 Years |
|---|---|
| Socket | AM5, LGA1200, LGA1366, LGA1700, LGA2011 |
| Model | ICE-FLOW-240-ARGB-BLACK |
| Led Type | Addressable RGB LED |
| Fan Noise | 15-35dB (A) |
| Fan Speed | 800~1800 RPM ±10% |
| Pump Light | Addressable RGB LED |
| Pump Noise | 25dB ±10% |
| Pump Speed | 2500 RPM ±10% |
| Fan Voltage | DC 12V |
| Pump Voltag | DC 12V |
| Tube Length | 350mm |
| Fan Air Flow | 46.95 CFM Max |
| Fan Connector | 4-Pin PWM + ARGB 3Pin 5V Male + Female |
| Led Connector | 4-Pin PWM Male and Female Connectors |
| Pump Connector | ARGB 3-pin 5V Male and Female Connectors |
| Fan Rated Power | 2.16 W Max |
| Pump Dimensions | 67.6 x 82.3 x 55.5 mm |
| Pump Motor Type | Three-Phase Motor |
| Fan Air Pressure | 1.87 mm H2O Max |
| Fan Bearing Type | Hydraulic |
| Pump Rated Power | ≤3.6W |
| Fan Rated Current | 0.18A |
| Led Rated Voltage | DC 5V |
| Radiator Material | Aluminum Alloy |
| Tube Material/Type | EPDM/Black (Braided) |
| Operatin Temperature | -10°C~60°C |
| Fan Dimensions(Lxwxh) | 120x120x25 mm |
| Pump Starting Voltage | ≤ DC 4V |
| Net Weight/Gross Weight | 1720g / 1960g |
| Radiator Dimensions (Lxwxh) | 277x120x27 mm |
