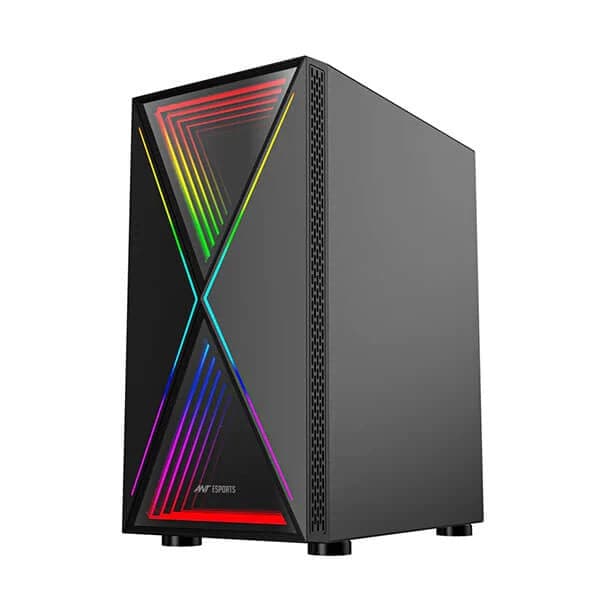

ANT ESPORTS Infinity X ATX Mid Tower Cabinet (Black)
MPN ANT-ESPORTS-INFINITY-X · Brand Ant Esports
The Ant Esports Infinity X is an ATX Mid Tower gaming cabinet in Black featuring an infinity mirror front panel, support for ATX/M-ATX/ITX motherboards, up to 310 mm GPU clearance, 175 mm CPU cooler clearance, and up to six 120 mm fan positions with 240 mm AIO support
Inclusive of GST · GST invoice available
Overview

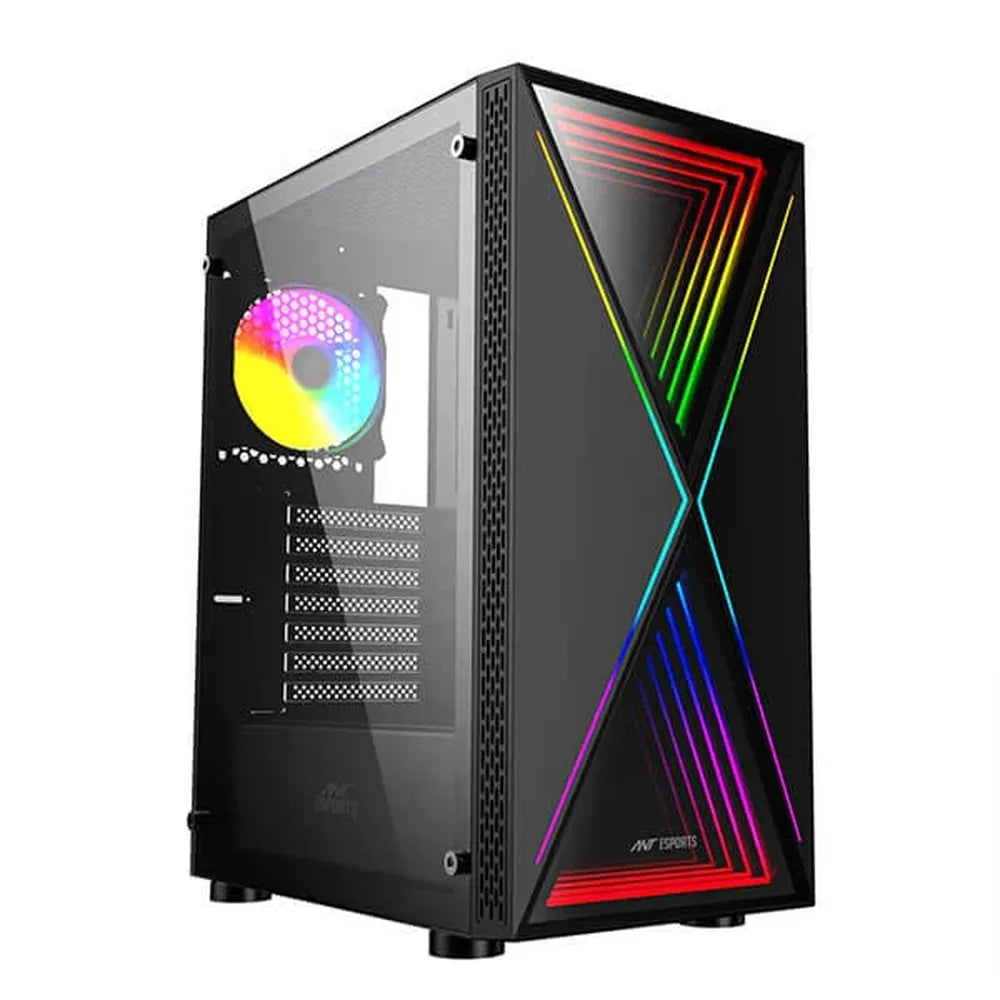

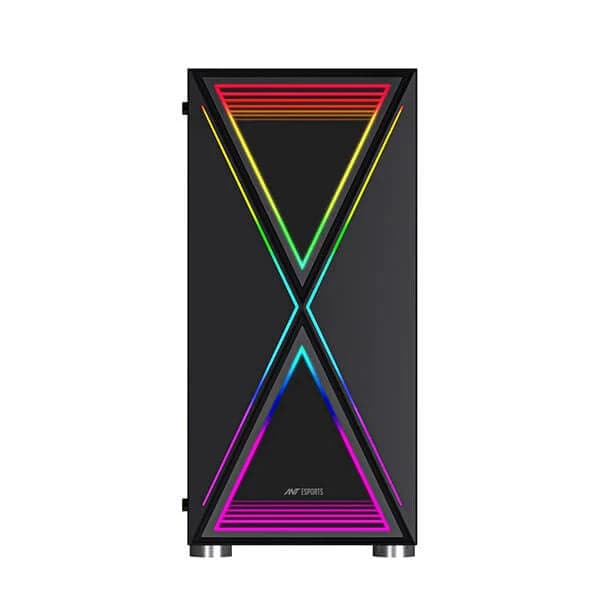

The Ant Esports Infinity X is a mid-tower gaming PC cabinet designed to balance aesthetic appeal with practical airflow and component compatibility. Built for ATX, M-ATX, and ITX motherboards, the chassis measures 330 x 210 x 440 mm (L x W x H), making it a compact yet capable enclosure for a range of gaming and workstation builds. One of the cabinet's most recognisable features is its infinity mirror design on the front panel. The reflective surface creates a depth-of-field visual effect that gives the build a distinctive, eye-catching appearance without relying on active lighting that would need additional wiring or software. Cooling is a key consideration in the Infinity X's layout. The case supports up to three 120 mm fans at the front, two 120 mm fans at the top, and one 120 mm fan at the rear — providing up to six fan mounting positions in total. One front fan comes pre-installed. For liquid cooling enthusiasts, the front accommodates a 240 mm radiator while the rear supports a 120 mm radiator, giving builders the flexibility to use an all-in-one liquid cooler without major modifications. Side panel perforations further aid passive airflow to keep internal temperatures in check. Component clearance figures are clearly defined: GPU cards up to 310 mm in length are supported, and CPU air coolers up to 175 mm in height fit without issue, covering the majority of popular tower coolers on the market. Seven expansion slots allow for multi-GPU or additional PCIe card configurations. Storage is handled by a combination of two 3.5-inch HDD bays and two 2.5-inch SSD bays, supporting mixed storage setups for speed and capacity simultaneously. The front I/O panel provides two USB 2.0 ports and one USB 3.0 port, alongside a 3.5 mm audio output, a microphone input, and a restart button for convenient day-to-day use. The cabinet ships with a 1-year manufacturer warranty. Verifiable Specifications: - Form Factor: ATX Mid Tower - Motherboard Support: ATX, M-ATX, ITX - Chassis Dimensions (L x W x H): 330 x 210 x 440 mm - Colour: Black - Drive Bays: 2 x 3.5" HDD, 2 x 2.5" SSD - Fan Support: Front 3 x 120 mm, Top 2 x 120 mm, Rear 1 x 120 mm - Pre-installed Fan: 1 x Front 120 mm - Liquid Cooling Support: 240 mm (Front), 120 mm (Rear) - Max GPU Length: 310 mm - Max CPU Cooler Height: 175 mm - Expansion Slots: 7 - Front I/O: 2 x USB 2.0, 1 x USB 3.0, 1 x Audio Out, 1 x Mic In, Restart Button - Warranty: 1 Year

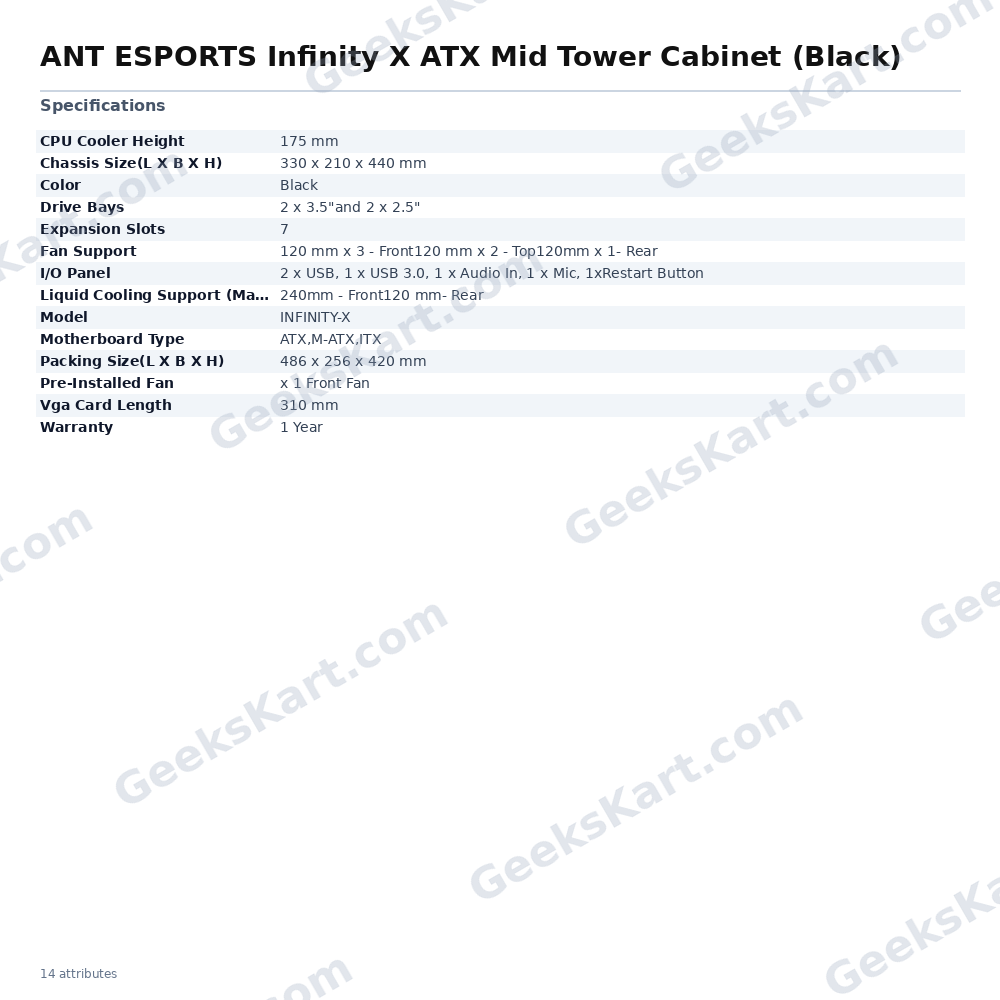

Datasheet
| Warranty | 1 Year |
|---|---|
| color | Black |
| Model | INFINITY-X |

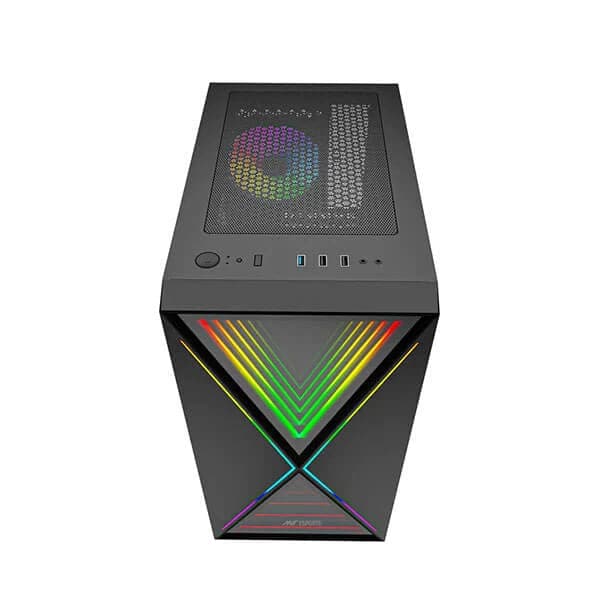

| I/O Panel | 2 x USB, 1 x USB 3.0, 1 x Audio In, 1 x Mic, 1xRestart Button |

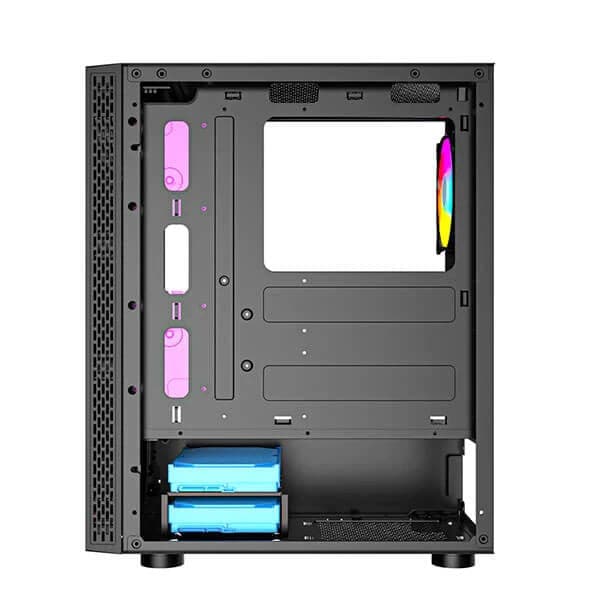

| Drive Bays | 2 x 3.5"and 2 x 2.5" |
| Fan Support | 120 mm x 3 – Front120 mm x 2 – Top120mm x 1- Rear |
| Expansion Slots | 7 |
| Vga Card Length | 310 mm |
| Motherboard Type | ATX,M-ATX,ITX |
| CPU Cooler Height | 175 mm |
| Pre-Installed Fan | x 1 Front Fan |
| Chassis Size(L X B X H) | 330 x 210 x 440 mm |
| Packing Size(L X B X H) | 486 x 256 x 420 mm |
| Liquid Cooling Support (Maximum) | 240mm – Front120 mm- Rear |
