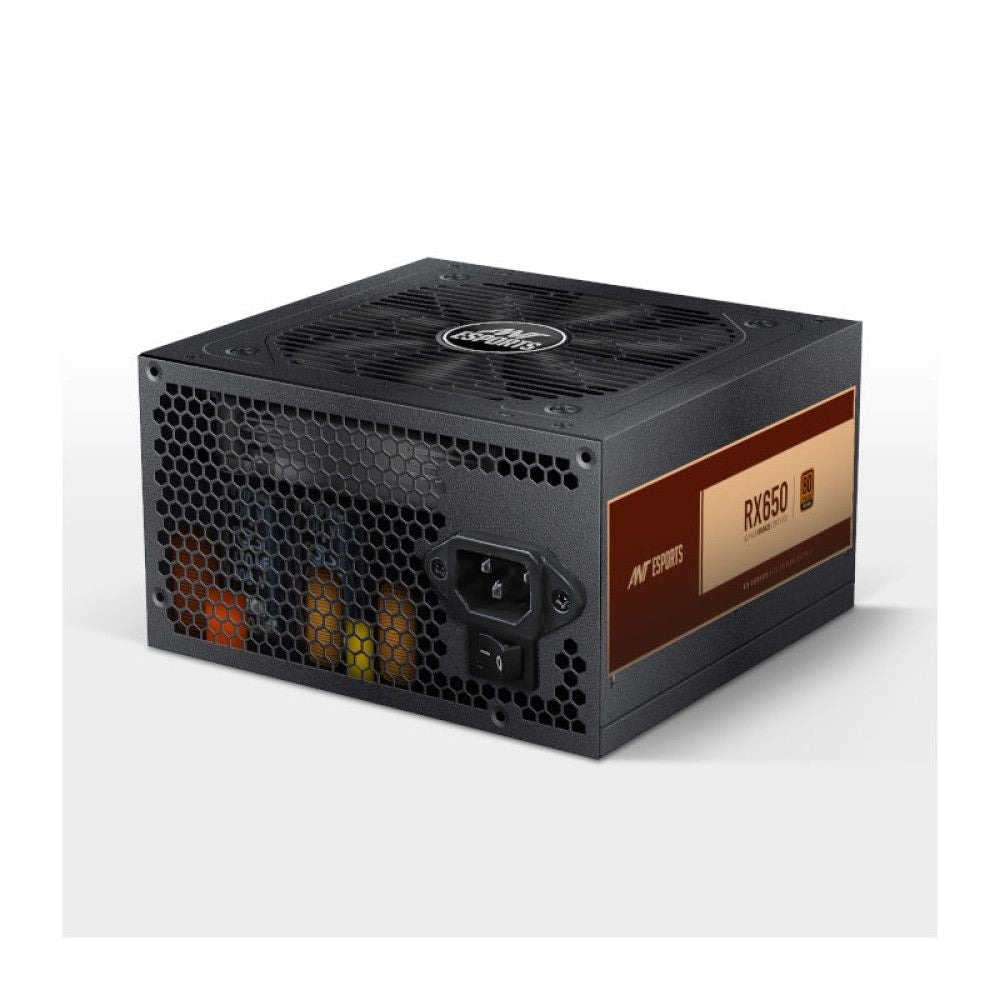

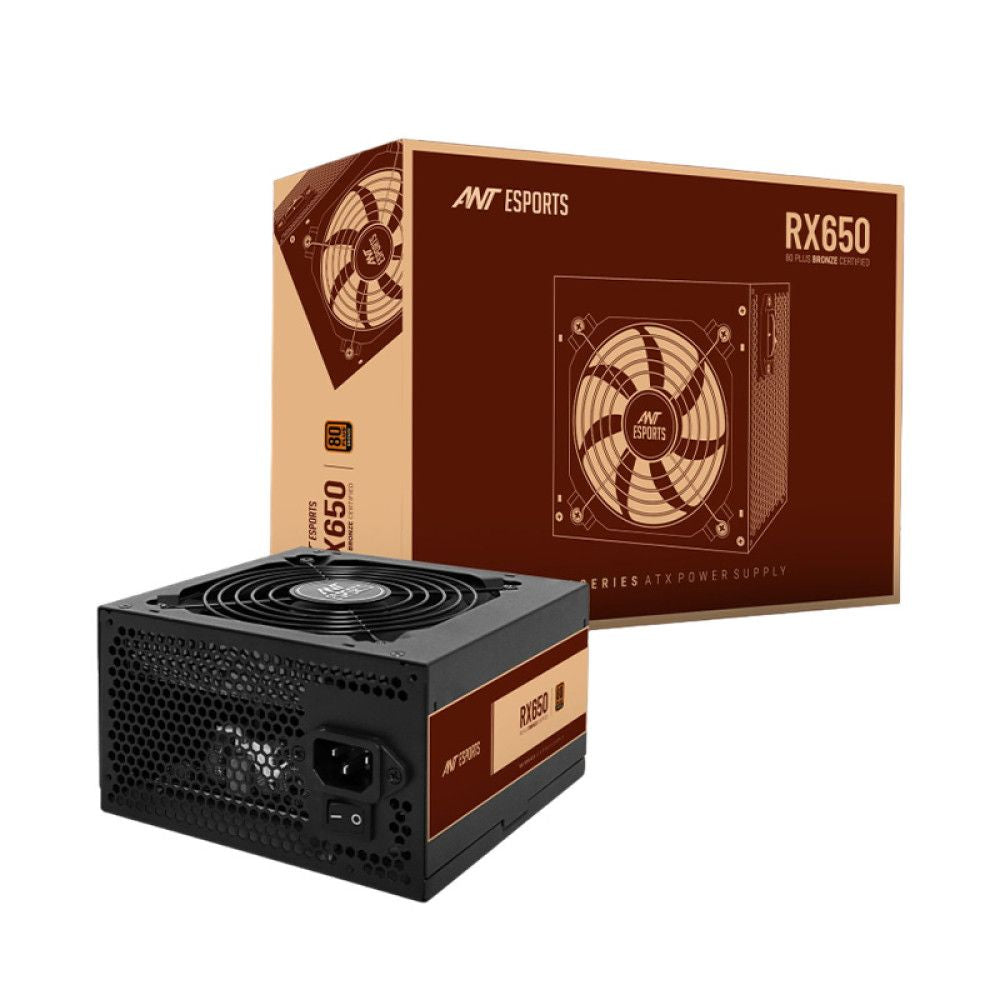

ANT ESPORTS RX650 650W 80 + Bronze ATX 2.0 Non Modular Power Supply

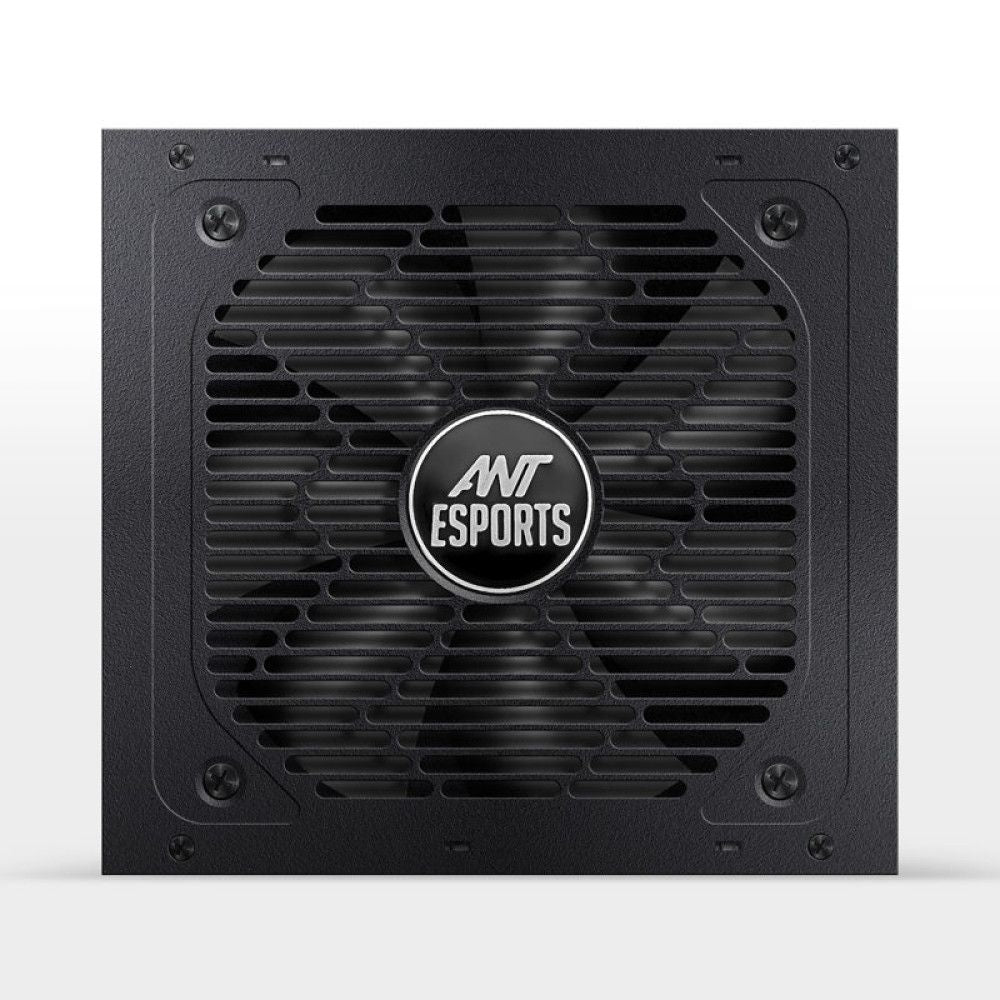

The Ant Esports RX650 is a 650W non-modular ATX power supply unit carrying the 80 Plus Bronze efficiency certification. Designed for mainstream desktop builds that demand reliable power delivery at a budget-conscious price, the RX650 draws on Active Power Factor Correction (Active PFC) to stabilise the AC input draw and reduce stress on your household mains. The unit accepts an AC input voltage of 200–240V at 50–60Hz, making it suited for Indian electrical standards without the need for a manual voltage switch. Power is distributed across a single +12V rail, which means all available wattage is channelled through one unified path — a design approach that eliminates power-sharing ambiguity and keeps voltage delivery consistent under varying loads. The 120mm silent fan manages thermals throughout the operating temperature range of 0°C to 45°C, spinning at a level that keeps audible noise to a minimum even at sustained workloads. Safety is handled by a five-way protection suite: Over Current Protection (OCP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP). These mechanisms are designed to cut power before damage reaches your motherboard, GPU, storage drives, or other connected components during voltage fluctuations or fault conditions. The cable set covers a standard modern PC without requiring adapters: one 20+4-pin motherboard connector, two CPU 4+4-pin connectors (supporting both 4-pin and 8-pin CPU headers), one PCIe 6+2-pin connector for a discrete graphics card, four SATA power connectors, and two Molex connectors for fans or older peripherals. The non-modular design keeps costs low and is well-suited to mid-tower and full-tower cases with adequate cable management routing space. Ant Esports backs the RX650 with a 3-year warranty. Verified Specifications: — Model: RX650 — Output Capacity: 650W — Efficiency Rating: 80 Plus Bronze (up to 80% typically, per source) — AC Input: 200–240V, 50–60Hz, 5A — Power Factor Correction: Active PFC — +12V Rail: Single — Fan: 120mm silent fan — Operating Temperature: 0°C to 45°C — Protection: OCP, UVP, OPP, OTP, SCP — Connectors: 20+4-pin ATX ×1, CPU 4+4-pin ×2, PCIe 6+2-pin ×1, SATA ×4, Molex ×2 — Cable Management: Non-modular — Form Factor: ATX 2.0 — Warranty: 3 years
