ANTEC AX20 Elite FRGB ATX Mid Tower Cabinet ( Black )
MPN ANTEC-AX20-ELITE · Brand ANTEC · Mid tower
Features of ANTEC AX20 Elite FRGB ATX Mid Tower Cabinet ( Black ) Antec Cabinet comes with half-view tempered glass side panel design that allows you to show off your gaming configurations without obstacles. It can support up to 8 x 120 mm fans and provides users with diverse cooling options. Unique Design & Powerful Heat Dissipation: ANTEC AX20 pc cabinet case features a slanted bar air intake design and an exceptionally dense mesh for massive heat dissipation. The half-view tempered glass
Inclusive of GST · GST invoice available
Overview
Features of ANTEC AX20 Elite FRGB ATX Mid Tower Cabinet ( Black )
Antec Cabinet comes with half-view tempered glass side panel design that allows you to show off your gaming configurations without obstacles. It can support up to 8 x 120 mm fans and provides users with diverse cooling options.
Unique Design & Powerful Heat Dissipation:
ANTEC AX20 pc cabinet case features a slanted bar air intake design and an exceptionally dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The ANTEC AX20 Elite FRGB Mid Tower ATX Cabinet supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.
Slanted Bar Air Intake Design:
Featuring dense mesh for massive airflow and efficient dust prevention.

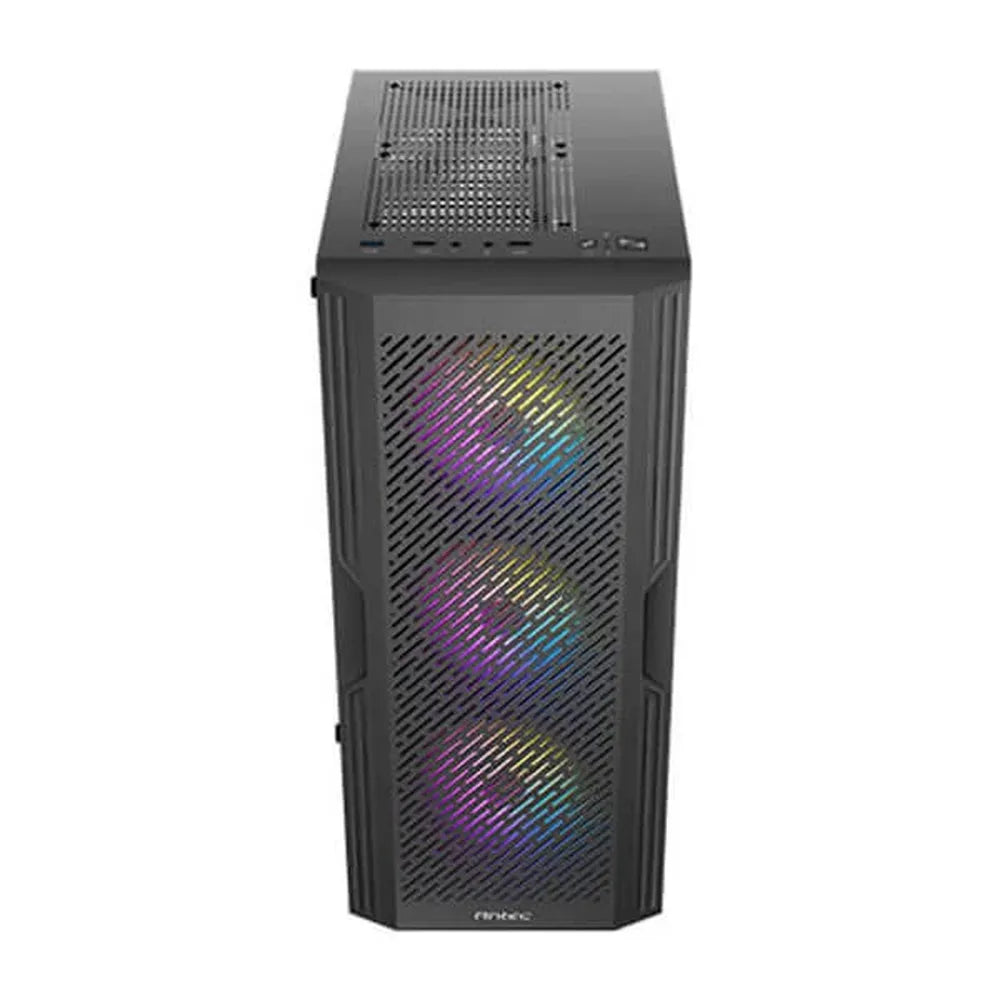

High-Airflow Front Panel:
Massive air intake at the front, top,and bottom. Creating multiple airflow paths.
Specification of ANTEC AX20 Elite FRGB ATX Mid Tower Cabinet ( Black )
| Model: | AX20 Elite |
| Colour: | Black |
| Dimensions:(mm) | 358 x 207 x 451(DWH) |
| Form Factor: | Mid Tower |
| Materials: | Steel+Plastic |
| Mainboard Support: | ATX, Micro-ATX, ITX |
| Front Access & Controls: | Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO |
| Side Panel: | Tempered glass |
| Expansion Slots: | 7 |
| Fan Support | |
| Front: | 3 x 120mm / 2 x 140mm |
| Top: | 2 x 120mm |
| Bottom: | 2 x 120mm |
| Rear: | 1 x 120mm |
| Included Fan(s): | 3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite) |
| Radiator Support (Front) | 120 / 140 / 240 / 280mm |
| Max GPU Length: | ≤ 270mm |
| Max CPU Cooler Height: | ≤ 155mm |
| Max PSU Length: | ≤ 170mm(with HDD) ≤ 295mm(without HDD) |
| Dust Filter: | Front |
| Warranty: | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. ***Images are for representation purposes only |

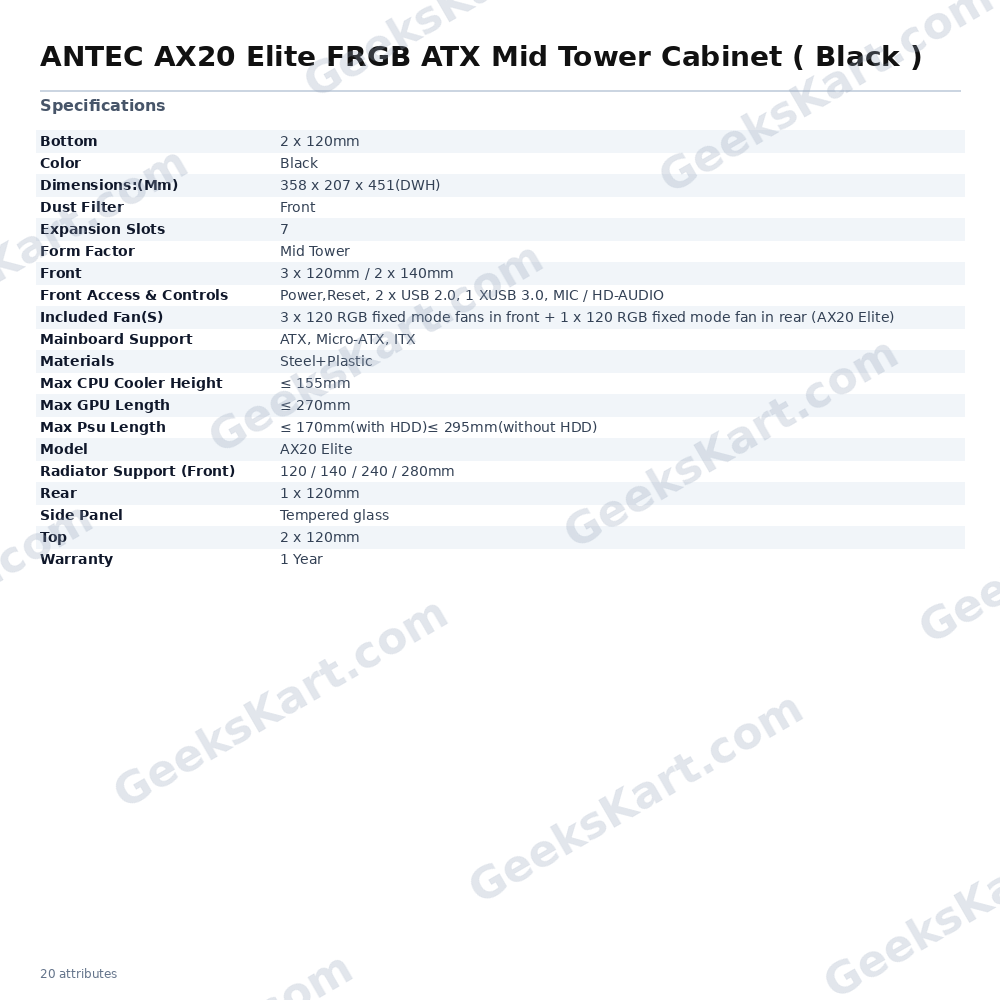

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | Mid tower |
| color | Black |
| Top | 2 x 120mm |
| Rear | 1 x 120mm |
| Front | 3 x 120mm / 2 x 140mm |
| Model | AX20 Elite |
| Bottom | 2 x 120mm |
| Materials | Steel+Plastic |
| Side Panel | Tempered glass |
| Dust Filter | Front |
| Max GPU Length | ≤ 270mm |
| Max Psu Length | ≤ 170mm(with HDD)≤ 295mm(without HDD) |
| Dimensions:(Mm) | 358 x 207 x 451(DWH) |
| Expansion Slots | 7 |
| Included Fan(S) | 3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite) |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Max CPU Cooler Height | ≤ 155mm |
| Front Access & Controls | Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO |
| Radiator Support (Front) | 120 / 140 / 240 / 280mm |
