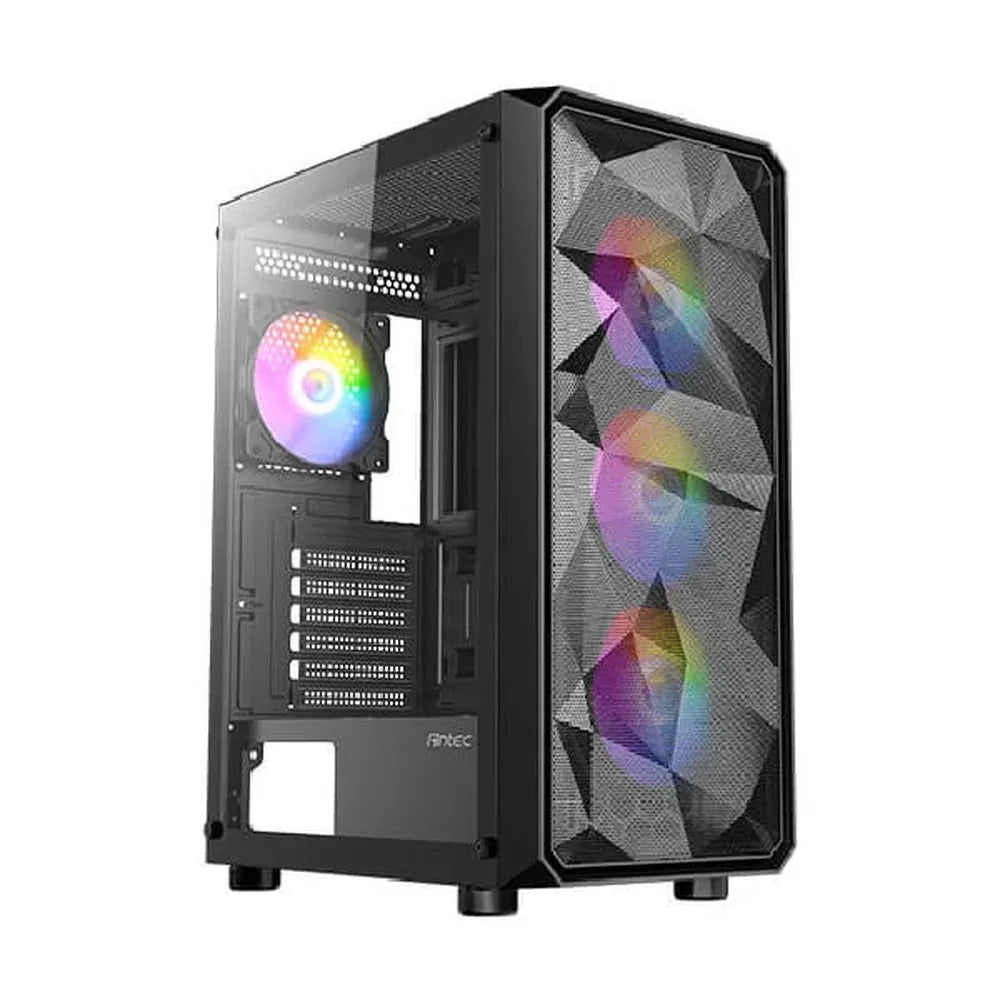

Features of ANTEC AX83 RGB Extreme EATX Mid Tower Cabinet (Black)
- Unique Design & Powerful Heat Dissipation
- Three-dimensional geometric shape mesh panel
- High-Airflow Front Panel
- Pre-Installed 6 x 120mm
fixed mode RGB fans - Neat Build within Reach
- Tempered Glass Side Panel
- Front 360 Radiator Available
- Up to 8 x 120mm Fans Simultaneously
- Powerful Air Cooling Compatibility
UNIQUE DESIGN & POWERFUL HEAT DISSIPATION
Antec Cabinet has a unique design and excellent cooling performance. The large tempered glass side panel allows you to show off your gaming configurations without any obstacles. 8 x 120mm fans can be installed simultaneously.
Three-dimensional geometric shape mesh panel
3D angular metal mesh adopted on the front panel ensures massive airflow and maximum cooling performance, while enhancing dust prevention at the same time
High-Airflow Front Panel
Large-area mesh front panel for massive airflow.
Pre-Installed 6 x 120mm fixed mode RGB fans
Daisy-chained to the power supply.
Neat Build within Reach
24mm space for cable management
ensures your PC build looks neat.
ensures your PC build looks neat.
Tempered Glass Side Panel
ANTEC AX83 EATX Cabinet Showcase your custom water-cooling system and fancy components.

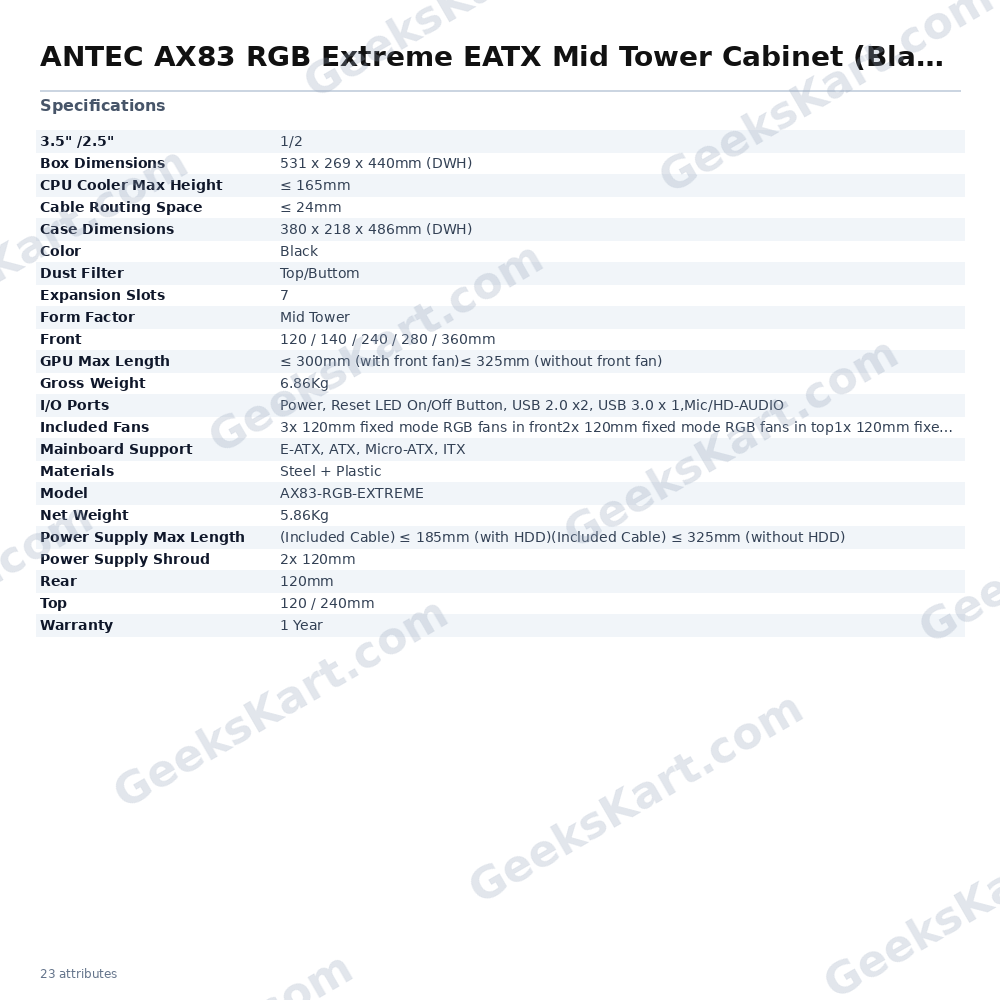

Specifications of ANTEC AX83 RGB Extreme EATX Mid Tower Cabinet (Black)
| Model | AX83-RGB-EXTREME |
| Color | Black |
| Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| I/O Ports | Power, Reset LED On/Off Button, USB 2.0 x2, USB 3.0 x 1,Mic/HD-AUDIO |
| Expansion & Drive Bays | |
| Expansion Slots | 7 |
| 3.5″ /2.5″ | 1/2 |
| Compatibility and Clearances | |
| CPU Cooler Max Height | ≤ 165mm |
| GPU Max Length | ≤ 300mm (with front fan) ≤ 325mm (without front fan) |
| Power Supply Max Length | (Included Cable) ≤ 185mm (with HDD) (Included Cable) ≤ 325mm (without HDD) |
| Cable Routing Space | ≤ 24mm |
| Fan Support | |
| Front | 3x 120mm / 3x 140mm |
| Top | 2x 120mm / 2x 140mm |
| Rear | 1x 120mm |
| Power Supply Shroud | 2x 120mm |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm |
| Top | 120 / 240mm |
| Rear | 120mm |
| Dimensions | |
| Case Dimensions | 380 x 218 x 486mm (DWH) |
| Box Dimensions | 531 x 269 x 440mm (DWH) |
| Net Weight | 5.86Kg |
| Gross Weight | 6.86Kg |
| Included Fans | 3x 120mm fixed mode RGB fans in front 2x 120mm fixed mode RGB fans in top 1x 120mm fixed mode RGB fans in rear |
| Dust Filter | Top/Buttom |
| Warranty | 1 Year |
| Note | *** Image use for reference only *** Features, Price, Specifications are subject to change without notice. |
