Antec C7 ARGB Black E-ATX Mid Tower Case
MPN C7-ARGB-BLACK · Brand ANTEC · ATX, E-ATX, mATX, Mini-ITX
The Antec C7 ARGB Black is an E-ATX mid tower with a 270° panoramic tempered glass design, 4 pre-installed ARGB PWM fans, dual 360mm radiator support, and up to 450mm GPU clearance
Inclusive of GST · GST invoice available
Overview
The Antec C7 ARGB Black is an E-ATX mid tower case built around a panoramic 270-degree tempered glass enclosure that lets you showcase your entire build from the front and sides. The seamless paneling uses a 45-degree beveling technique, while the lower chamber's triangle-pattern mesh vents deliver a futuristic aesthetic grounded in functional airflow design. Airflow is a core strength of the C7 ARGB. The case supports vertical bottom-to-top cooling through a large vent area surrounding the lower chamber, and multi-directional intake is achieved via fine mesh on the top and right panels, along with vents on the front, left, and bottom of the lower chamber. Up to 10 fans can be installed across all mounting positions. Out of the box, four ARGB PWM fans come pre-installed: three 120mm reverse fans mounted on the right side and one 140mm fan at the rear. These fans are already connected and ready to illuminate your system with addressable RGB lighting synced to compatible motherboards. The C7 ARGB supports simultaneous installation of 360mm radiators on both the top and side positions, providing ample cooling headroom for high-TDP processors. The PSU shroud features a removable cover panel to facilitate side radiator installation; note that a side radiator exceeding 52mm thickness limits GPU length to 280mm. With a standard-thickness side AIO, GPUs up to 450mm long are supported, covering current high-end graphics cards. Seven reusable PCI slot covers can be rotated 90 degrees to support vertical GPU mounting (riser cable sold separately). The case also accommodates back-connect motherboards, routing cables behind the board for an uncluttered front chamber. Cable management is aided by a 32mm cable routing space, a removable flip-door cable cover, and four Velcro straps — two behind the motherboard tray and two at the rear. Storage is handled by a right-side flip door accommodating up to two 3.5-inch HDDs or 2.5-inch SSDs and two additional 2.5-inch SSDs, plus a bottom tray for one more 3.5-inch HDD or 2.5-inch SSD. Total drive capacity varies by motherboard form factor. Dust management includes magnetic filters on the front and left panels, plus a full-size pull-out filter at the bottom. Panels are secured via studs, hooks, and magnet-clip systems for tool-free access. — Verified Specifications — Model: C7 ARGB | Color: Black Dimensions: 485 × 241 × 504 mm (D × W × H) Form Factor: Mid Tower Materials: Steel, Plastic, 4mm Tempered Glass Motherboard Support: E-ATX (≤272mm), ATX, M-ATX, ITX Pre-installed Fans: 3 × 120mm ARGB PWM reverse (right side) + 1 × 140mm ARGB PWM (rear) Max Fan Support: 10 Top Radiator: up to 360mm | Side Radiator: up to 360mm | Rear Radiator: up to 140mm Max GPU Length: ≤450mm (≤280mm when side AIO >52mm thick) Max CPU Cooler Height: ≤180mm Max PSU Length (incl. cable): ≤210mm Expansion Slots: 7 (reusable, 90° rotatable) Front I/O: USB 3.0 ×2, Type-C 10Gbps ×1, Headphone/Mic combo jack, Power + LED control button Dust Filters: Front (magnetic), Left (magnetic), Bottom (pull-out) Warranty: 2 Years

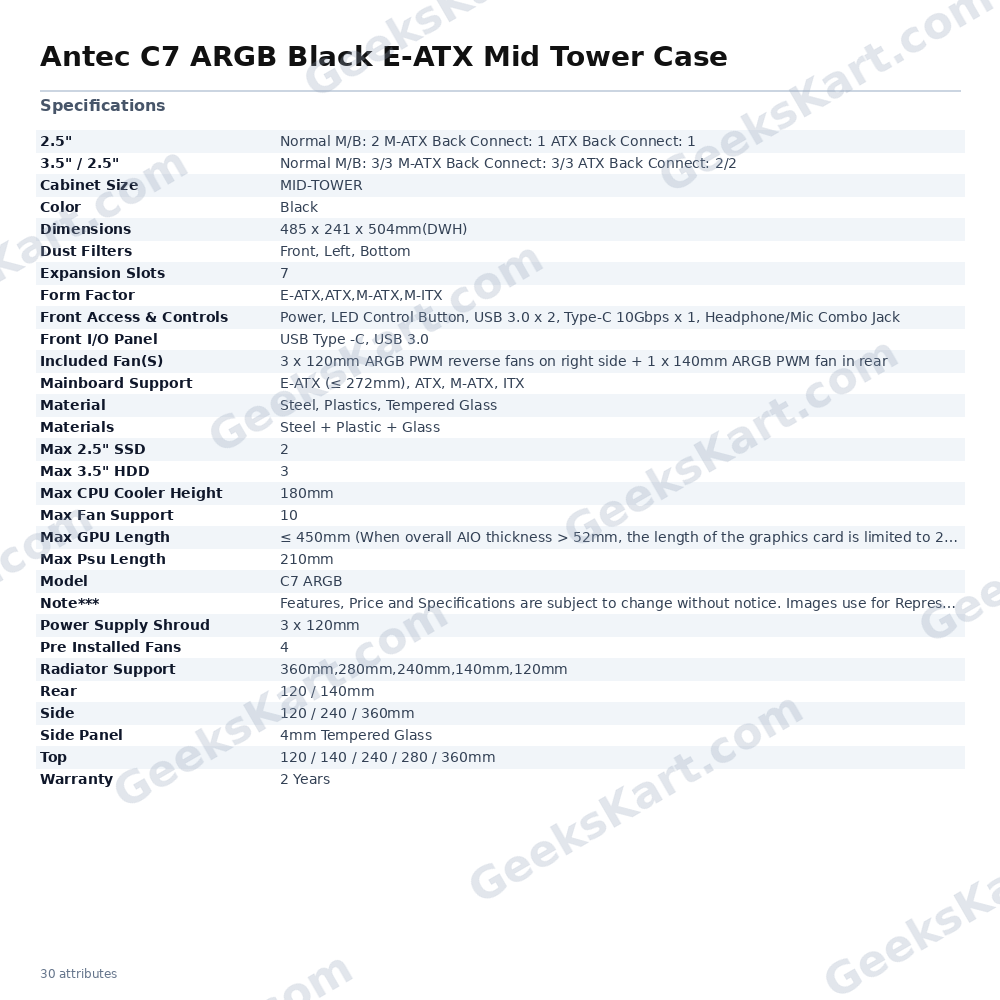

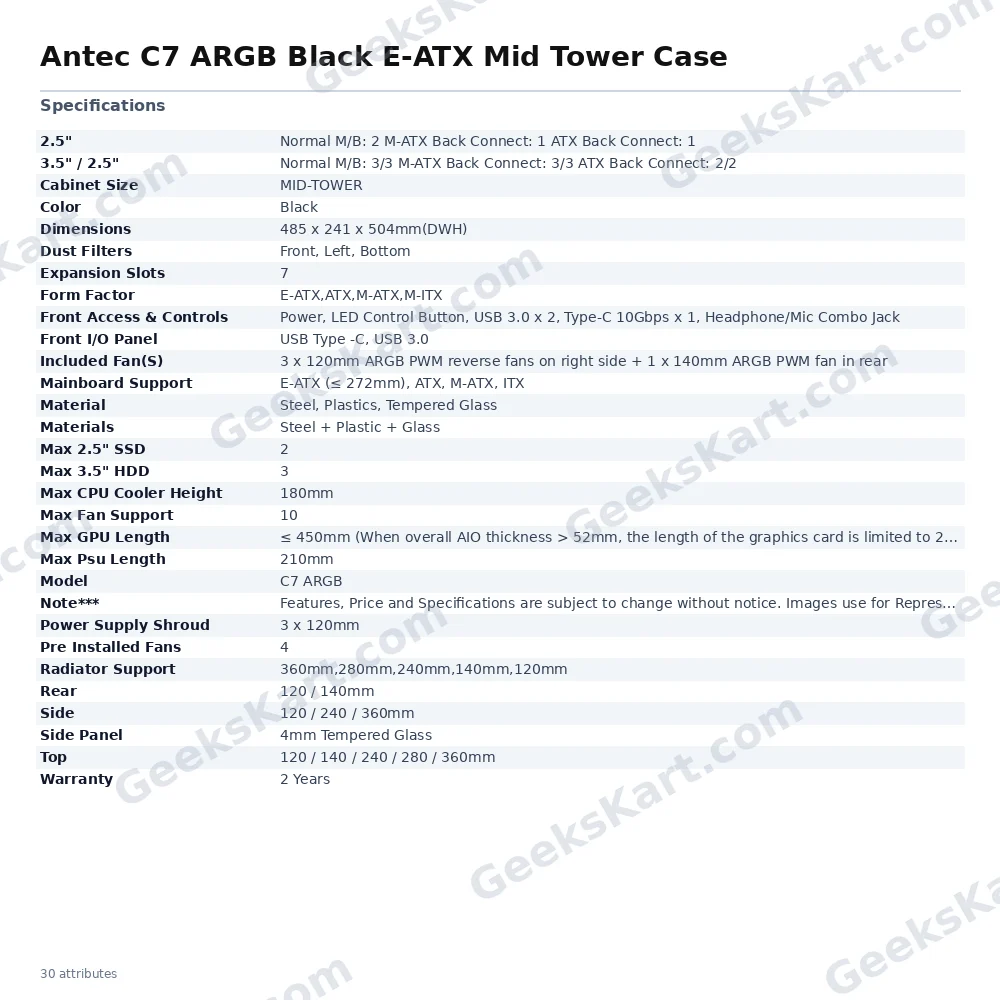

Datasheet
| Warranty | 2 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | Black |
| Top | 120 / 140 / 240 / 280 / 360mm |
| 2.5" | Normal M/B: 2 M-ATX Back Connect: 1 ATX Back Connect: 1 |
| Rear | 120 / 140mm |
| Side | 120 / 240 / 360mm |
| Model | C7 ARGB |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Steel, Plastics, Tempered Glass |
| Materials | Steel + Plastic + Glass |
| Dimensions | 485 x 241 x 504mm(DWH) |
| Side Panel | 4mm Tempered Glass |
| 3.5" / 2.5" | Normal M/B: 3/3 M-ATX Back Connect: 3/3 ATX Back Connect: 2/2 |
| Cabinet Size | MID-TOWER |
| Dust Filters | Front, Left, Bottom |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 3 |
| Max GPU Length | ≤ 450mm (When overall AIO thickness > 52mm, the length of the graphics card is limited to 280mm.) |
| Max Psu Length | 210mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB Type -C, USB 3.0 |
| Included Fan(S) | 3 x 120mm ARGB PWM reverse fans on right side + 1 x 140mm ARGB PWM fan in rear |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Mainboard Support | E-ATX (≤ 272mm), ATX, M-ATX, ITX |
| Pre Installed Fans | 4 |
| Power Supply Shroud | 3 x 120mm |
| Max CPU Cooler Height | 180mm |
| Front Access & Controls | Power, LED Control Button, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack |
