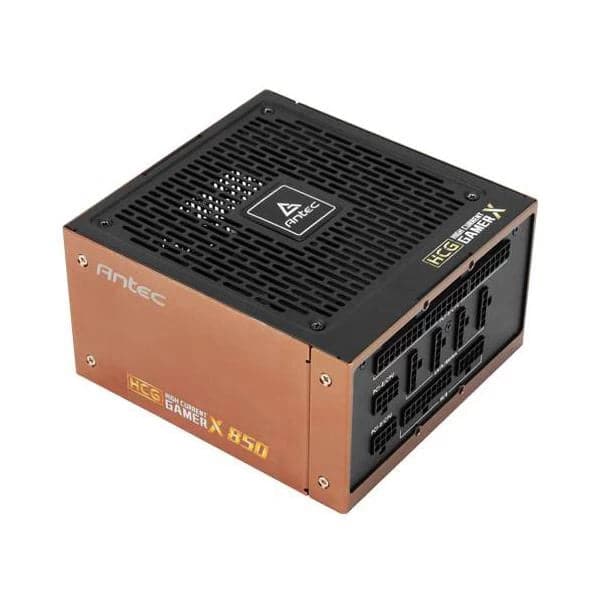

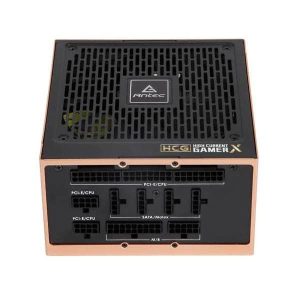

Features of ANTEC HCG850 Extreme
Engineered to meet the power demands of high-end systems, the Antec Power Supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.
- Guaranteed of 850W Power Supply and Continuous Power from Antec
- 100% Modular－Improves airflow and reduces clutter
- 80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
- PhaseWave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

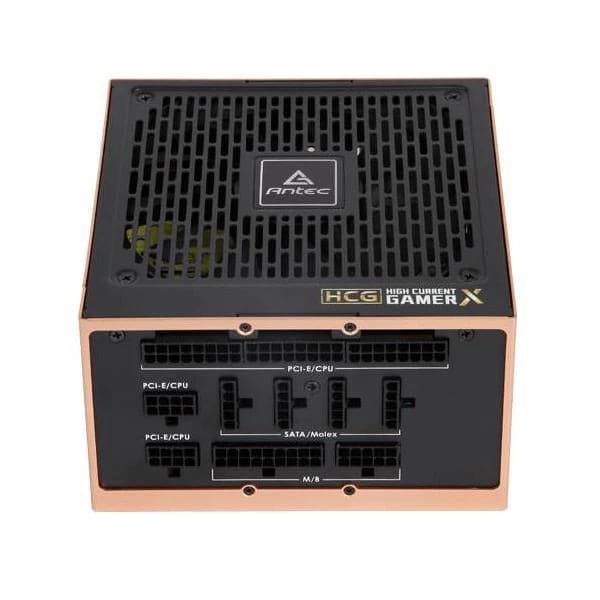

- 16 pin Socket－Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 135mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime

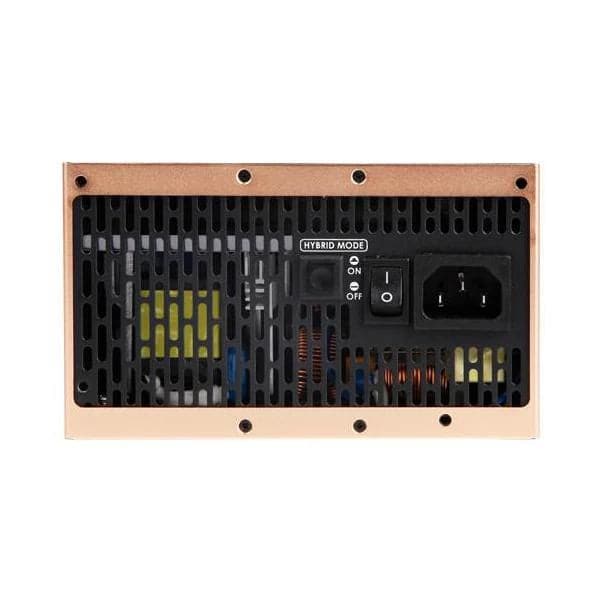

- Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V – Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket – For possible future MBU connectors
- ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
100% Japanese Capacitors:
Using 100% high-performance Japanese capacitors, the HCG Extreme Gold series ensures the tightest DC stability and regulation, for reliability that you and your system can count
PhaseWave™ Design:
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
Server-grade 50°C Temperature Rating:
HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.

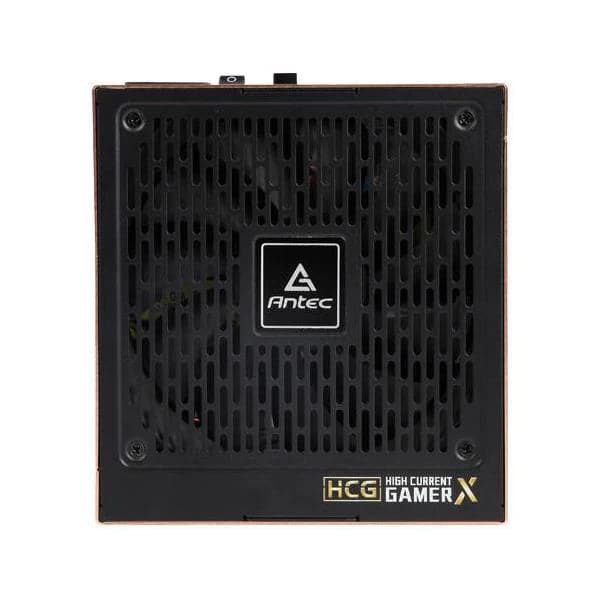

135mm FDB FAN
The whisper-quiet, 135 mm fluid-dynamic bearing(FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.
Get the best 80 Plus Gold pc power supply price from us today!

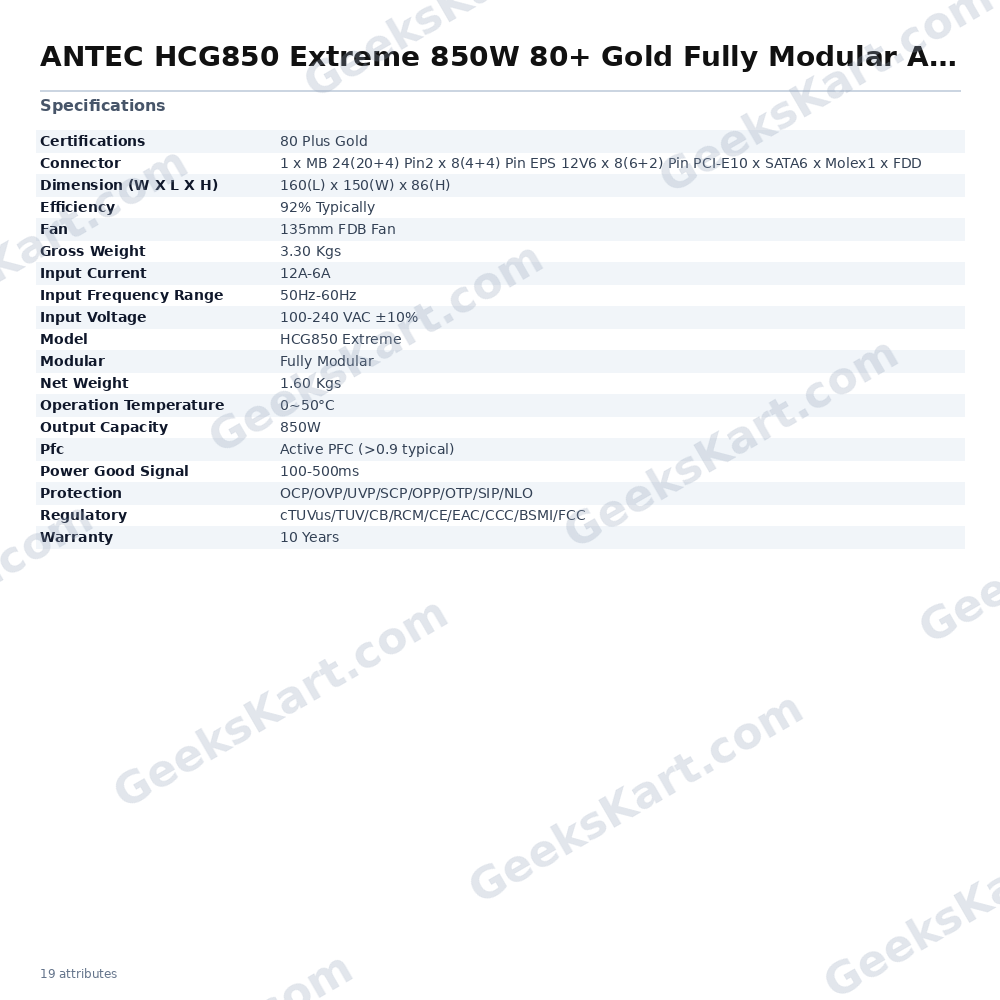

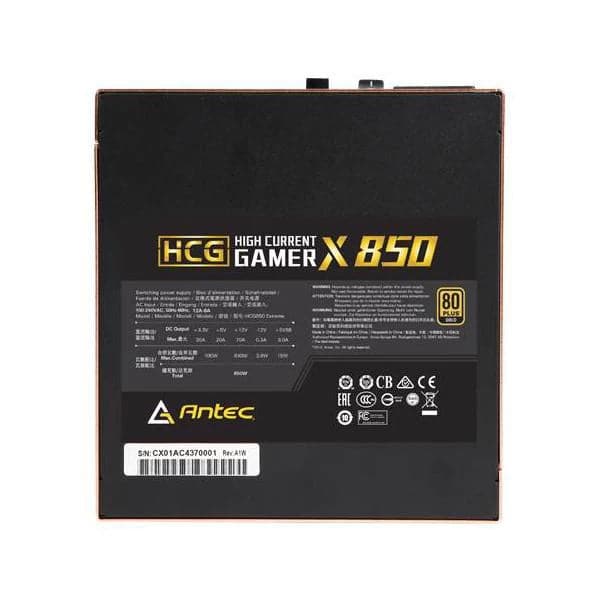

Specifications of ANTEC HCG850 Extreme
| Model | HCG850 Extreme |
| Type | ATX 12V 2.4 |
| Modular | Fully Modular |
| Dimension (W x L x H) | 160(L) x 150(W) x 86(H) |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 12A-6A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 92% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~50°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC |
| Fan | 135mm FDB Fan |
| Certifications | 80 Plus Gold |

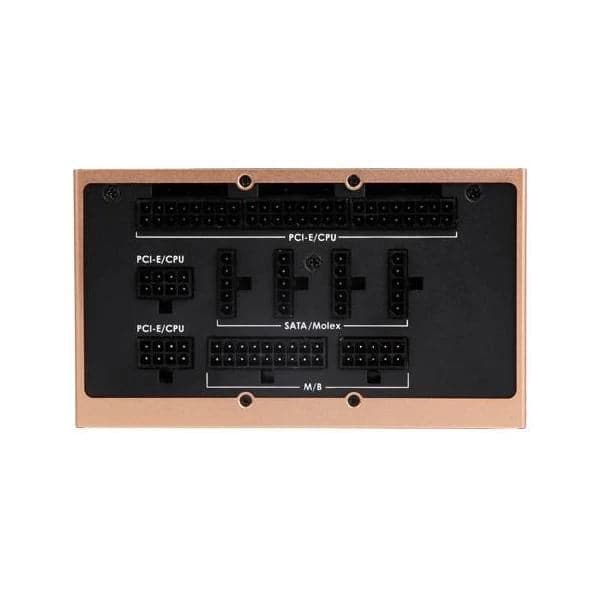

| Connector | 1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 6 x 8(6+2) Pin PCI-E 10 x SATA 6 x Molex 1 x FDD |
| Net Weight | 1.60 Kgs |
| Gross Weight | 3.30 Kgs |
| UPC | 0-761345-11557-5 |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
