ANTEC NE550M 550W 80+ Bronze V2 Fully Modular ATX 2.0 Power Supply
MPN ANTEC-NE550M-V2-PSU · Brand ANTEC
Features of ANTEC NE550M V2 Get economical power today with the NeoECO Modular, Antec Power Supply. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, Japanese capacitors and Universal Input with Active Power Factor Correction, ANTEC NeoECO Modular gives you a cooler, quieter system, all powered by Continuous Power. 550W Continuous Power - Guaranteed 550W Power Supply has Continuous Power from Antec. Japanese Heavy-duty Caps - High-performance Japanese capacitors ensure tightest DC st
Inclusive of GST · GST invoice available
Overview
Features of ANTEC NE550M V2
Get economical power today with the NeoECO Modular, Antec Power Supply. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, Japanese capacitors and Universal Input with Active Power Factor Correction, ANTEC NeoECO Modular gives you a cooler, quieter system, all powered by Continuous Power.
- 550W Continuous Power - Guaranteed 550W Power Supply has Continuous Power from Antec. Japanese Heavy-duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
- 80 PLUS BRONZE certified - Up to 88% efficient, to reduce your electricity bill; Circuit Shield - Full suite of industrial grade protections
- AQ3 - Antec Quality 3 year warranty and lifetime global 24/7 support; Multi PCI-E - 2 PCI-E connectors for multiple GPU support
- 120 mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime
- Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
80 PLUS Bronze
Certified
Up to 88% efficient, to reduce your electricity bill.
Japanese Heavy-duty Caps
Japanese High-performance capacitors ensure tightest DC stability and regulation.

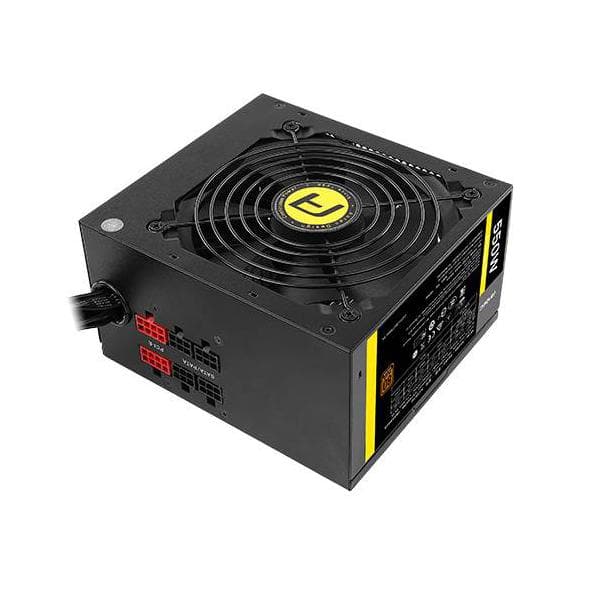

Advanced Hybrid Cable Management
Improves airflow and reduces clutter.

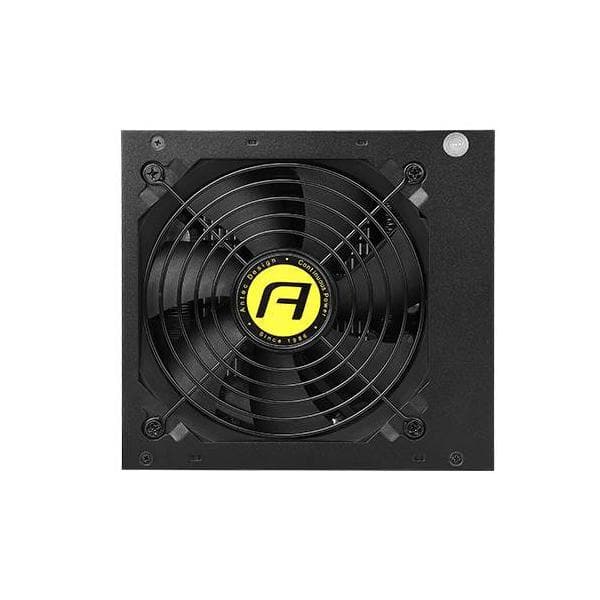

120mm silent Fan
Whisper-quiet high-quality silent fan with long lifetime.
Stealth flat cable
For easier & better cable management.
Get the best 80 Plus Bronze pc power supply price from us today!

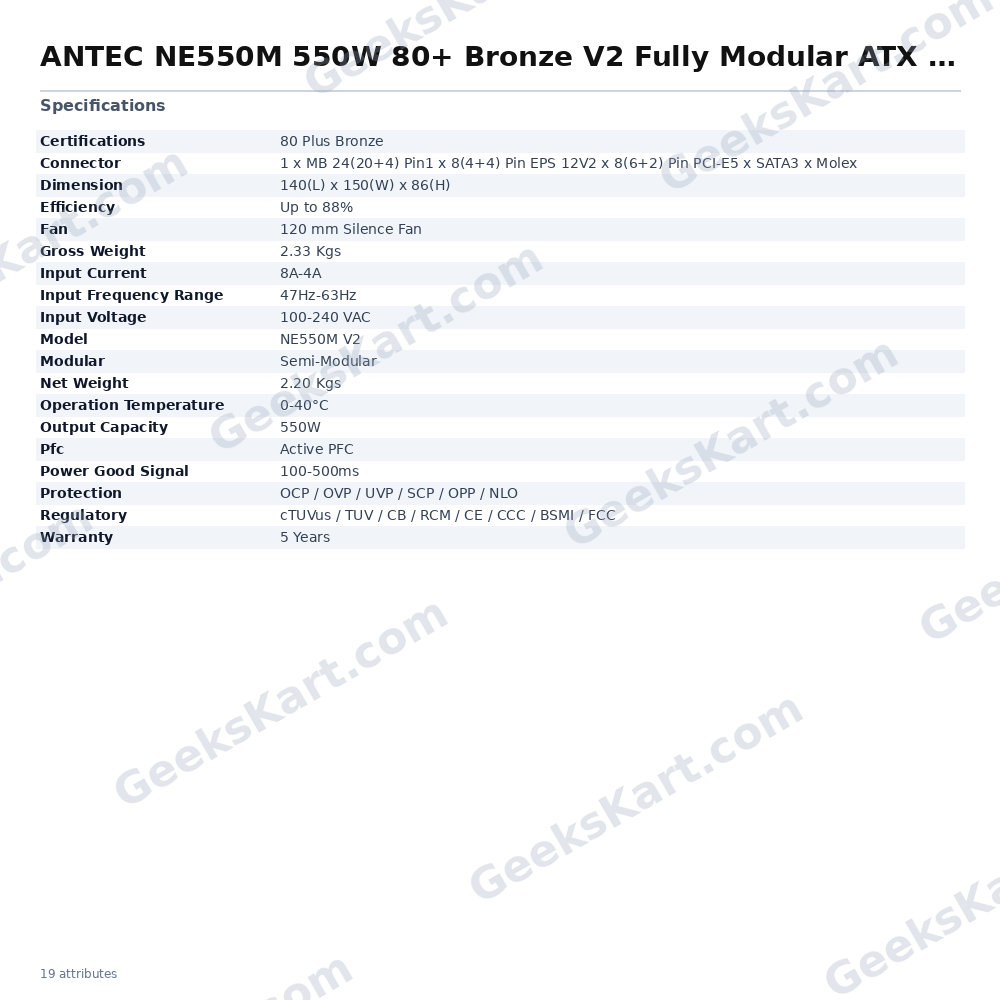

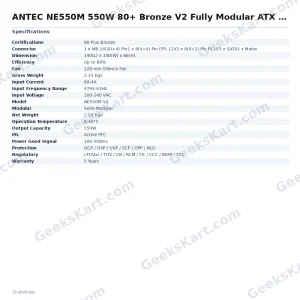

Specifications of ANTEC NE550M V2
| Model | NE550M V2 |
| Type | ATX 12V 2.4 |
| Modular | Semi-Modular |
| Dimension | 140(L) x 150(W) x 86(H) |
| Input Voltage | 100-240 VAC |
| Input Current | 8A-4A |
| Input Frequency Range | 47Hz-63Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up to 88% |
| Protection | OCP / OVP / UVP / SCP / OPP / NLO |
| Output Capacity | 550W |
| Operation Temperature | 0-40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / CCC / BSMI / FCC |
| Fan | 120 mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x MB 24(20+4) Pin 1 x 8(4+4) Pin EPS 12V 2 x 8(6+2) Pin PCI-E 5 x SATA 3 x Molex |
| Net Weight | 2.20 Kgs |
| Gross Weight | 2.33 Kgs |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 5 Years |
|---|---|
| Fan | 120 mm Silence Fan |
| Pfc | Active PFC |
| Model | NE550M V2 |
| Modular | Semi-Modular |
| Connector | 1 x MB 24(20+4) Pin1 x 8(4+4) Pin EPS 12V2 x 8(6+2) Pin PCI-E5 x SATA3 x Molex |
| Dimension | 140(L) x 150(W) x 86(H) |
| Efficiency | Up to 88% |
| Net Weight | 2.20 Kgs |
| Protection | OCP / OVP / UVP / SCP / OPP / NLO |
| Regulatory | cTUVus / TUV / CB / RCM / CE / CCC / BSMI / FCC |
| Gross Weight | 2.33 Kgs |
| Input Current | 8A-4A |
| Input Voltage | 100-240 VAC |
| Certifications | 80 Plus Bronze |
| Output Capacity | 550W |
| Power Good Signal | 100-500ms |
| Input Frequency Range | 47Hz-63Hz |
| Operation Temperature | 0-40°C |
