Features of ANTEC NE850
- 850W Continuous Power – Guaranteed Continuous Power from Antec
- 850W Power Supply Certified – to reduce your electricity bill
- Antec Quality 7-year warranty
- 120mm Silent Fan – High-quality fan with long lifetime
- Zero RPM Manager – An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99% + 12V – Output for maximum CPU & GPU support
- CircuitShield – Full suite of protection management
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count
PhaseWaveTM
LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
7-year Warranty
The new NeoECO Platinum series from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.
120 mm Silent Fan
Features improvement for airflow and excellent durability.
Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Get the best 80 Plus Platinum pc power supply price from us today!
Specifications of ANTEC NE850
| Model | NE850 Platinum |
| Type | ATX 12V 2.4 |
| Dimension | 140(L) x 150(W) x 86(H) |
| Warranty | 7 years |
| Input Voltage | 100-240 VAC |
| Input Current | 10A max |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | 94% Typically |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~45°C |
| Regulatory | UL / TUV / CB / RCM / CE / CCC / FCC / BIS / KC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Platinum |
|

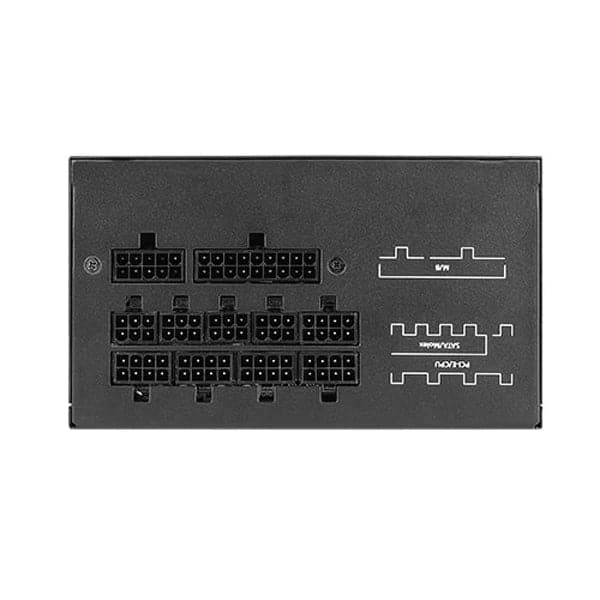

Connector
|
1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 6 x 8(6+2) Pin PCI-E | |
| 12 x SATA | |
| 4 x Molex | |
| 1 x FDD |
