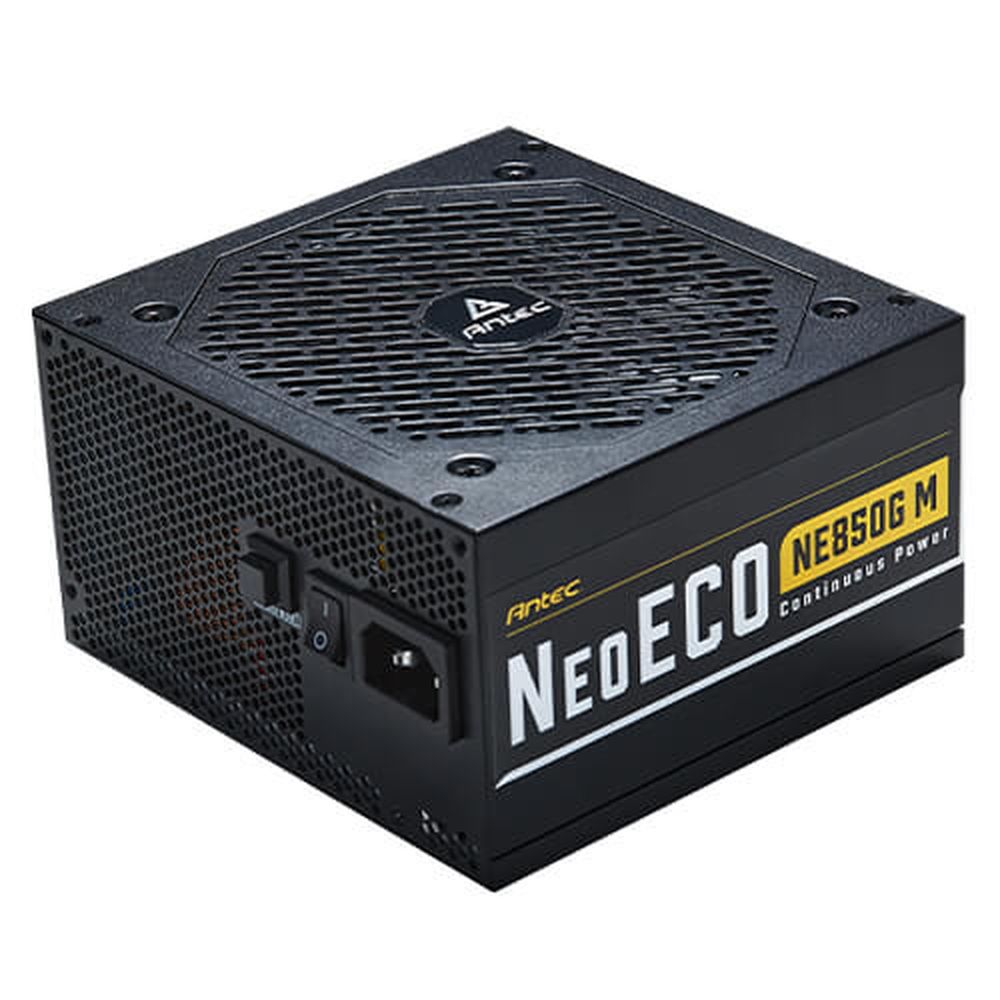

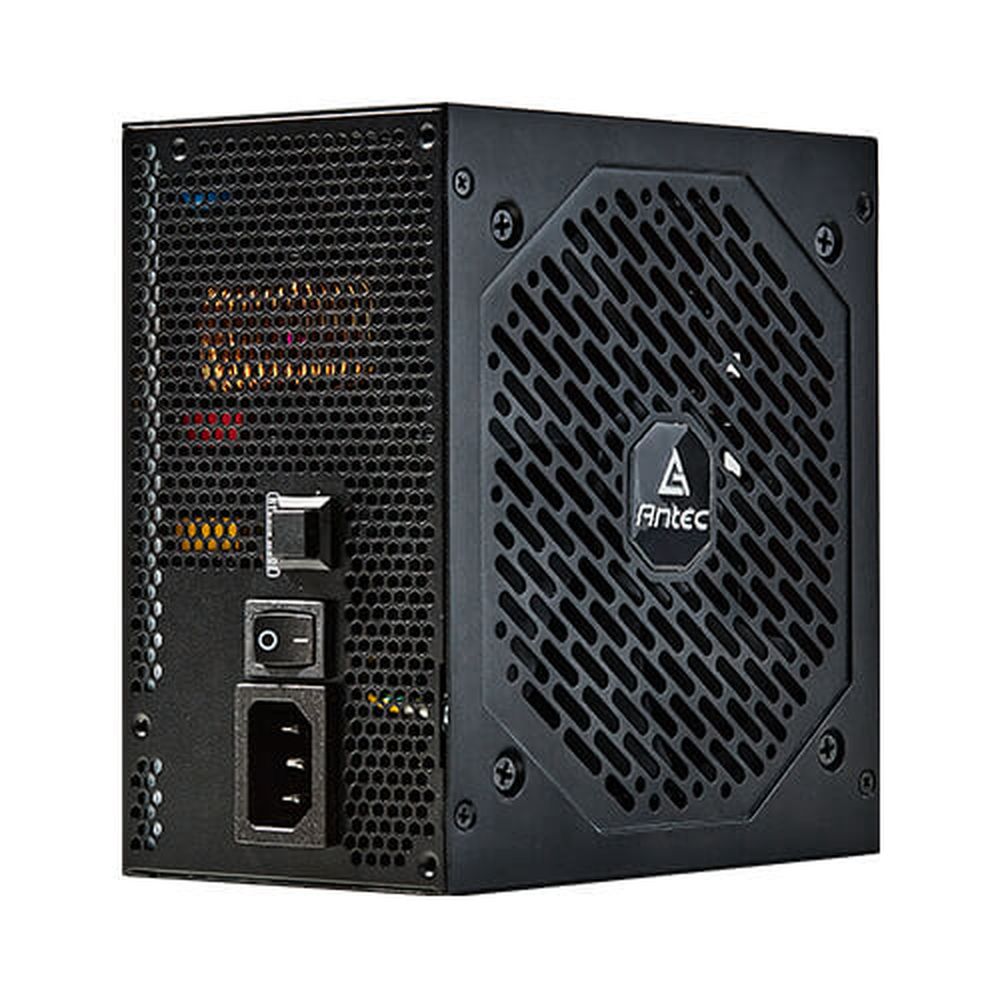

ANTEC NE850G M 850W Black 80 + Gold Fully Modular ATX 2.0 Power Supply

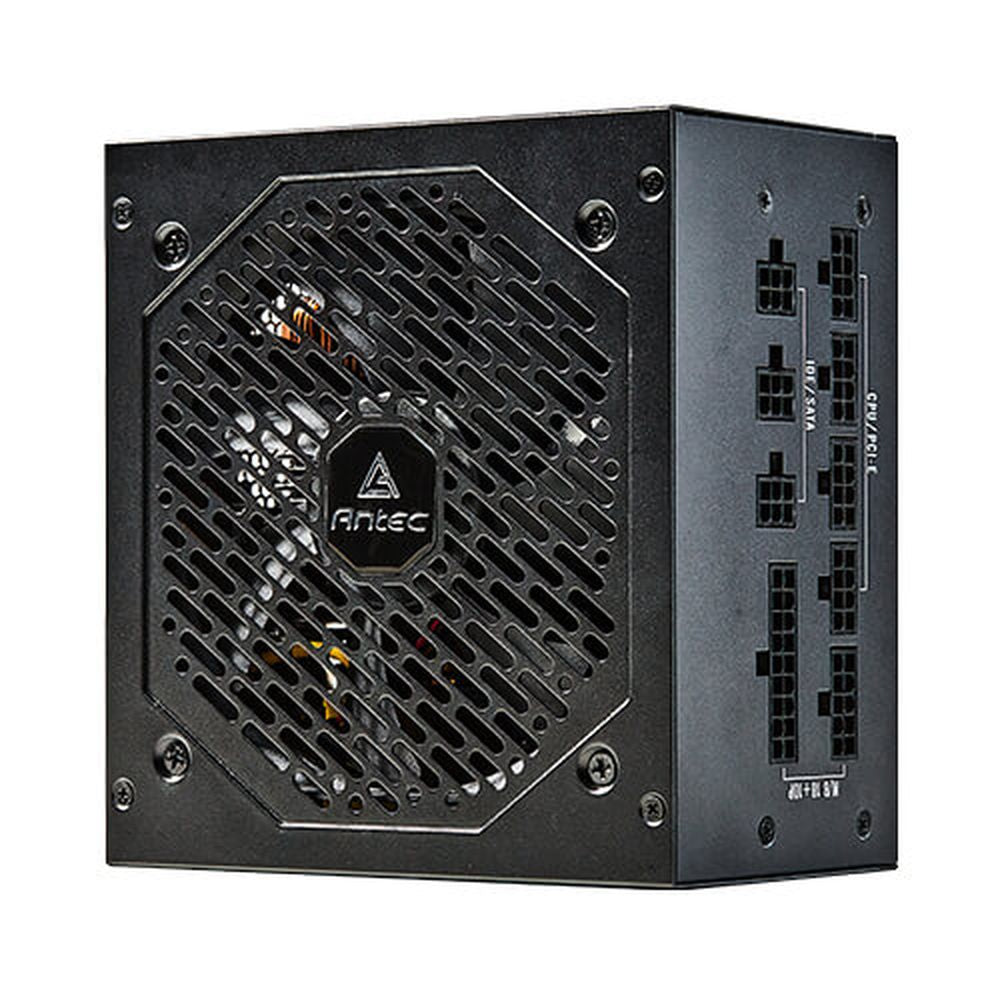

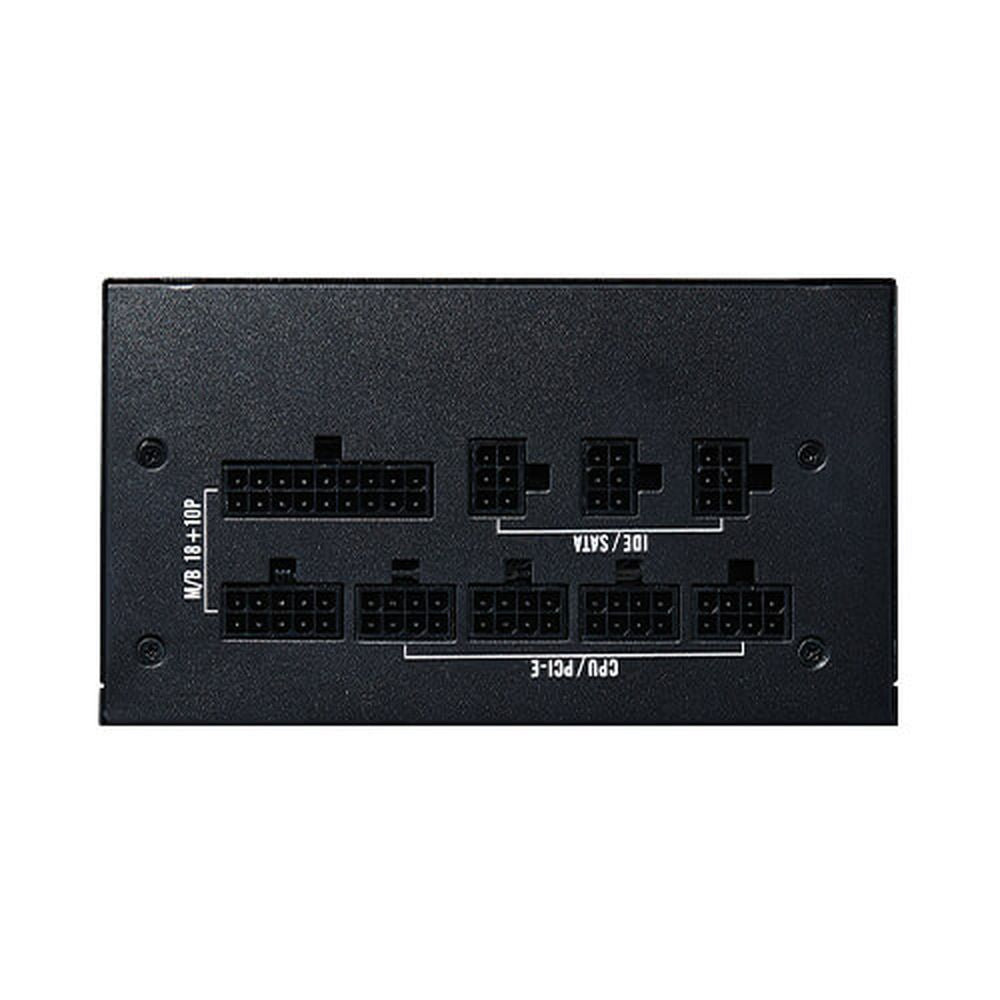

The Antec NE850G M is a 850W fully modular power supply from the NeoECO Gold Modular series, designed for enthusiast PC builders who prioritise clean cable management, reliable power delivery, and quiet operation. It carries an 80 Plus Gold certification and achieves up to 92% energy conversion efficiency, which helps reduce heat output and keeps operating costs lower compared to less efficient units. Cable management is made straightforward by the 100% modular design: every cable — including the 24-pin motherboard connector — detaches completely, so you can route only what your build actually needs. The included connector set covers 1 x 24(20+4)-pin motherboard, 2 x 8(4+4)-pin EPS 12V CPU, 6 x 8(6+2)-pin PCIe, 10 x SATA, 5 x Molex, and 1 x FDD connector, providing ample flexibility for multi-GPU and multi-drive configurations. The PhaseWave LLC + DC-to-DC topology combines a server-class half-bridge LLC resonant design with synchronous rectification to deliver stable, low-ripple power across the 12V rail. Japanese heavy-duty capacitors support tight voltage regulation throughout the operating temperature range of 0 to 40 degrees Celsius. Thermal management relies on a 120mm fluid-dynamic bearing fan governed by Antec’s Zero RPM Manager, which cuts fan speed to zero under light loads for near-silent operation and ramps up only when temperatures demand it. The CircuitShield protection suite covers OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO to guard connected components against common electrical faults. The unit also features a 28(18+10)-pin MBU socket for forward compatibility with future motherboard connector standards, and is rated to the ATX 12V 2.4 specification. It accepts a universal input voltage of 100–240 VAC at 50–60 Hz via Active PFC, and carries certifications including cTUVus, TUV, CB, RCM, CE, CCC, FCC, and KC. Verified Specifications: Model: Antec NE850G M | Form Factor: ATX 12V 2.4 | Output: 850W | Certification: 80 Plus Gold | Efficiency: Up to 92% | Modular: Fully | Fan: 120mm | PFC: Active | Input: 100–240 VAC, 50–60 Hz, 10A MAX | Operating Temp: 0–40°C | Protection: OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO | Dimensions: 150(L) x 140(W) x 86(H) mm | Net Weight: 1.38 kg | Warranty: 7 Years | Regulatory: cTUVus, TUV, CB, RCM, CE, CCC, FCC, KC
