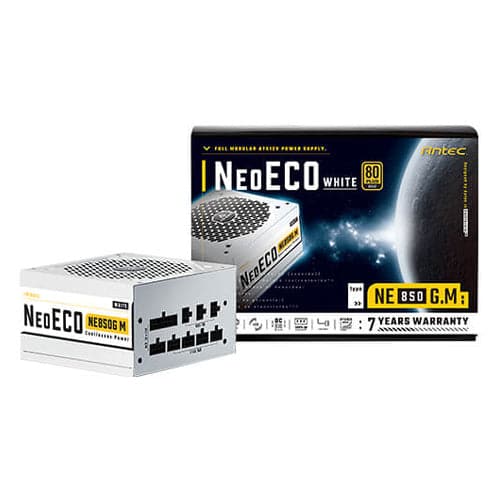

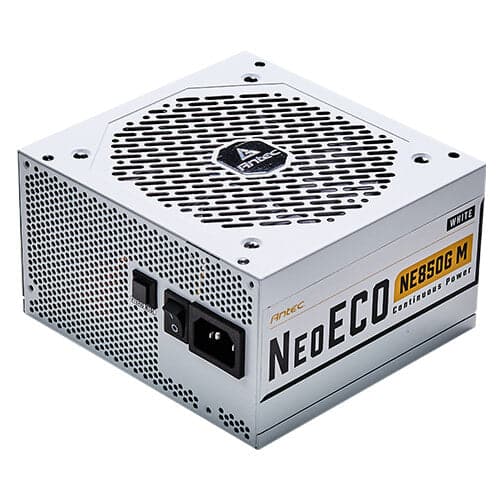

ANTEC NE850G M 850W White 80 + Gold Fully ModularATX 2.0 Power Supply
MPN ANTEC-NE850-M-WHITE · Brand ANTEC
Features of ANTEC NE850G M White 80+ Gold Fully Modular PSU (850 Watt) Antec 850W Power Supply are Guaranteed 850W of Continuous Power from Antec 100% Modular - Improves airflow and reduces clutter 80 PLUS® Gold certified -Reduce your electricity bill PhaseWave™ Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology Antec Quality 7-year warranty Antec Power Supply 120mm Silent Fan - Whisper-quiet high-quality fluid-dynamic bearing fan with long life time Ze
Inclusive of GST · GST invoice available
Overview
Features of ANTEC NE850G M White 80+ Gold Fully Modular PSU (850 Watt)
- Antec 850W Power Supply are Guaranteed 850W of Continuous Power from Antec
- 100% Modular - Improves airflow and reduces clutter
- 80 PLUS® Gold certified -Reduce your electricity bill
- PhaseWave™ Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 7-year warranty

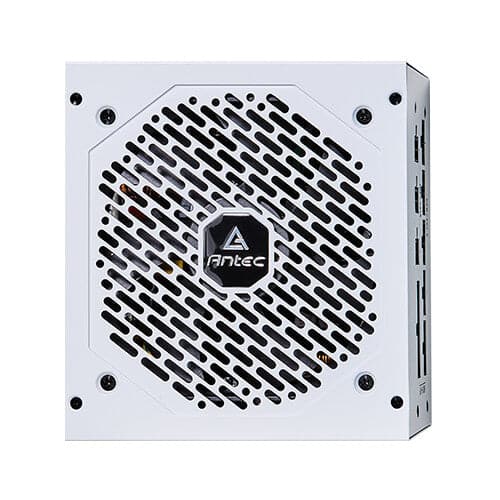

- Antec Power Supply 120mm Silent Fan - Whisper-quiet high-quality fluid-dynamic bearing fan with long life time
- Zero RPM Manager - An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V - Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX 12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count
PhaseWaveTM LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
7-Year Warranty
The new NeoECO Gold Modular series from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.
100% Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Get the best 80 Plus Gold pc power supply price from us today!

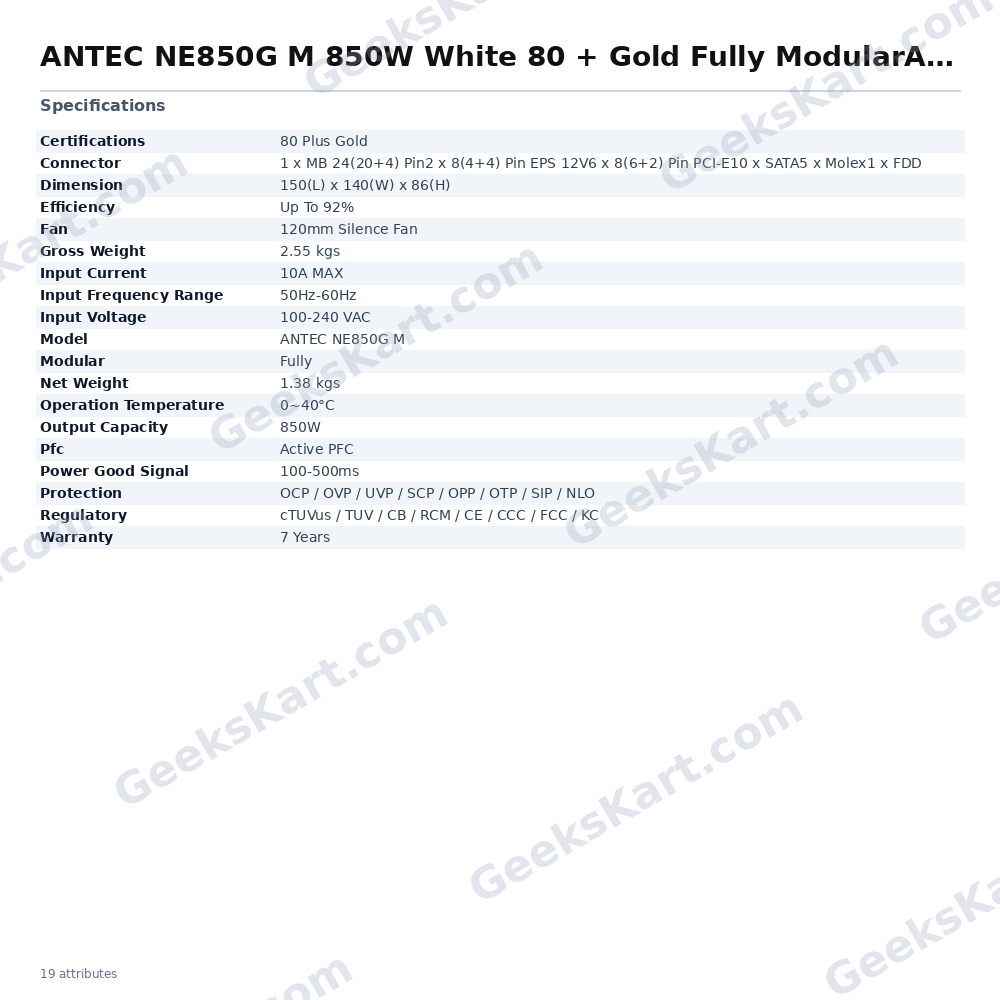

Specifications of ANTEC NE850G M White 80+ Gold Fully Modular Power Supply (850 W)
| MODEL | ANTEC NE850G M |
| Type | ATX 12V 2.4 |
| Modular | Fully |
| Dimension | 150(L) x 140(W) x 86(H) |
| Input Voltage | 100-240 VAC |
| Input Current | 10A MAX |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up To 92% |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Gold |
| Connector | 1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 6 x 8(6+2) Pin PCI-E 10 x SATA 5 x Molex 1 x FDD |
| Net Weight | 1.38 kgs |
| Gross Weight | 2.55 kgs |
| Warranty | 7 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 7 Years |
|---|---|
| Fan | 120mm Silence Fan |
| Pfc | Active PFC |
| Model | ANTEC NE850G M |
| Modular | Fully |
| Connector | 1 x MB 24(20+4) Pin2 x 8(4+4) Pin EPS 12V6 x 8(6+2) Pin PCI-E10 x SATA5 x Molex1 x FDD |
| Dimension | 150(L) x 140(W) x 86(H) |
| Efficiency | Up To 92% |
| Net Weight | 1.38 kgs |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Regulatory | cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC |
| Gross Weight | 2.55 kgs |
| Input Current | 10A MAX |
| Input Voltage | 100-240 VAC |
| Certifications | 80 Plus Gold |
| Output Capacity | 850W |
| Power Good Signal | 100-500ms |
| Input Frequency Range | 50Hz-60Hz |
| Operation Temperature | 0~40°C |
