ANTEC P7 Window ATX Mid Tower Cabinet (Red)
MPN ANTEC-P7-WINDOW-RED · Brand ANTEC · Mid tower
The Antec P7 Window ATX Mid Tower Cabinet (Red) features a transparent acrylic side panel, support for up to a 360mm front radiator, dual USB 3.0 front ports, and accommodates ATX, Micro-ATX, and Mini-ITX motherboards with a 2-year warranty
Inclusive of GST · GST invoice available
Overview

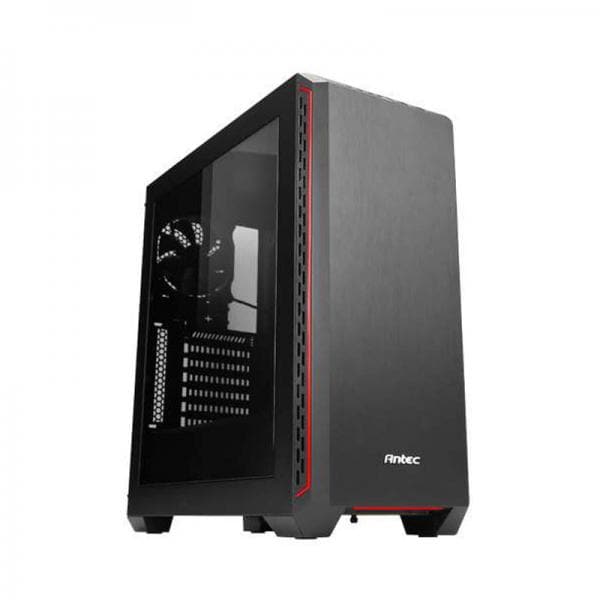

The Antec P7 Window ATX Mid Tower Cabinet in Red is a well-structured mid-tower enclosure designed for builders who want a clean, functional chassis with a transparent acrylic side panel to display their components. The smooth front panel features an embossed Antec logo, side intake vents for airflow, and a detachable design that makes installation and maintenance more straightforward. The front I/O panel provides two USB 3.0 ports, HD audio and microphone jacks, a power button, and a reset button — all within easy reach during everyday use. Inside, the P7 Window supports ATX, Micro-ATX, and Mini-ITX motherboards, giving builders flexibility across a range of platform choices. Storage capacity includes two 3.5"/2.5" convertible bays and two dedicated 2.5" SSD mounting points on the side panel, accommodating a variety of drive configurations. Cable management clearance behind the motherboard tray is up to 20mm. Cooling is a clear priority in this design. One 120mm fan comes pre-installed at the rear, and the front supports up to three 120mm fans or two 140mm fans. For liquid cooling, the front can accommodate a radiator up to 360mm with a maximum combined thickness of 55mm including the fan. The rear supports a radiator up to 120mm. Dust filtration is provided at both the front and bottom of the chassis to help reduce particulate build-up on internal components. The chassis offers generous component clearances: GPU length up to 390mm, CPU cooler height up to 165mm, and PSU length up to 200mm. Seven expansion slots are available for multi-GPU or add-in card configurations. The case is constructed from 0.6mm SGCC steel with plastic accents. Verified Specifications: Dimensions: 445 x 210 x 470mm (D x W x H) | Form Factor: Mid Tower | Motherboard Support: ATX, Micro-ATX, Mini-ITX | Side Panel: Transparent acrylic | Front I/O: 2x USB 3.0, HD Audio/Mic, Power, Reset | Storage: 2x 3.5"/2.5" convertible, 2x 2.5" | Expansion Slots: 7 | Fan Support — Front: 3x120mm or 2x140mm; Rear: 1x120mm | Included Fan: 1x120mm rear | Radiator Support — Front: up to 360mm (≤55mm with fan); Rear: up to 120mm | Max GPU Length: 390mm | Max CPU Height: 165mm | Max PSU Length: 200mm | MB Tray Clearance: 20mm | Dust Filters: Front and Bottom | Net Weight: 5.5 kg | Material: 0.6mm SGCC steel | Warranty: 2 Years

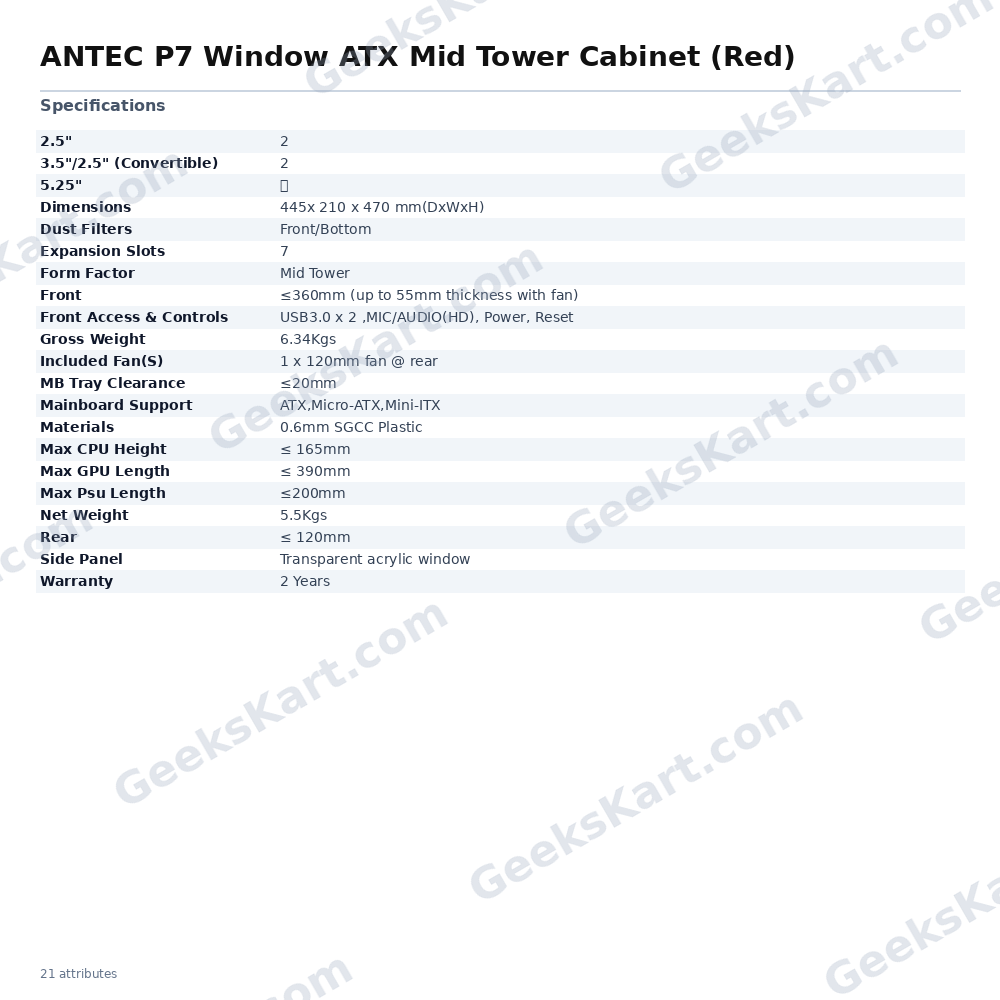

Datasheet
| Warranty | 2 Years |
|---|---|
| Form Factor | Mid tower |
| 2.5" | 2 |
| Rear | ≤ 120mm |
| 5.25" | － |
| Front | ≤360mm (up to 55mm thickness with fan) |
| Materials | 0.6mm SGCC Plastic |
| Dimensions | 445x 210 x 470 mm(DxWxH) |
| Net Weight | 5.5Kgs |

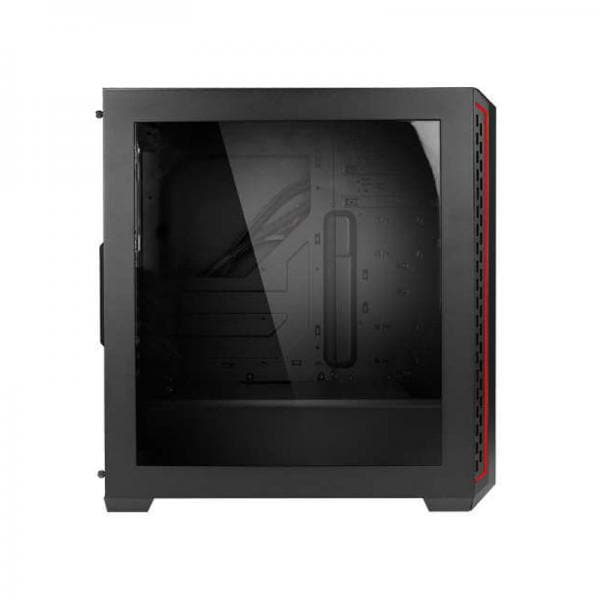

| Side Panel | Transparent acrylic window |
| Dust Filters | Front/Bottom |
| Gross Weight | 6.34Kgs |
| Max CPU Height | ≤ 165mm |
| Max GPU Length | ≤ 390mm |
| Max Psu Length | ≤200mm |
| Expansion Slots | 7 |
| Included Fan(S) | 1 x 120mm fan @ rear |

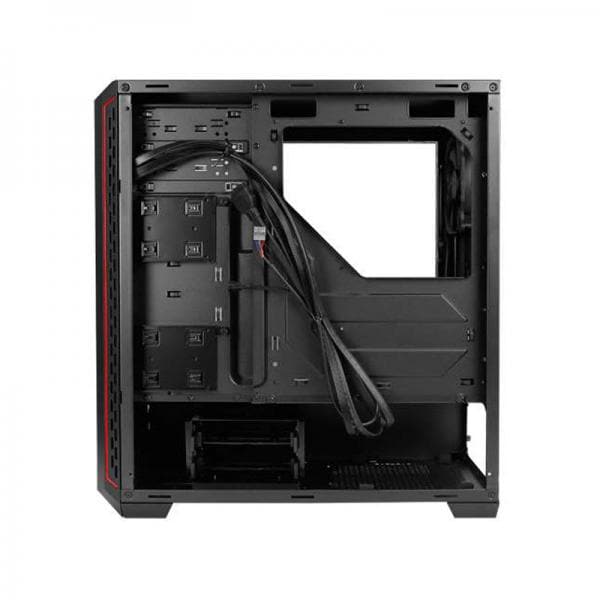

| MB Tray Clearance | ≤20mm |
| Mainboard Support | ATX,Micro-ATX,Mini-ITX |
| 3.5"/2.5" (Convertible) | 2 |
| Front Access & Controls | USB3.0 x 2 ,MIC/AUDIO(HD), Power, Reset |
