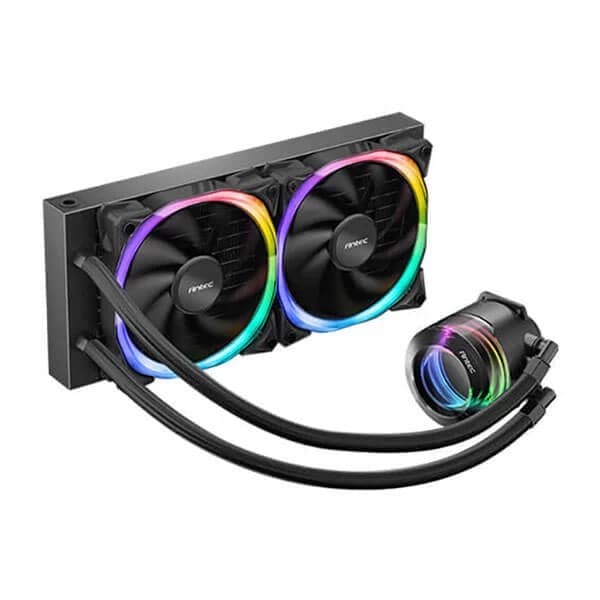

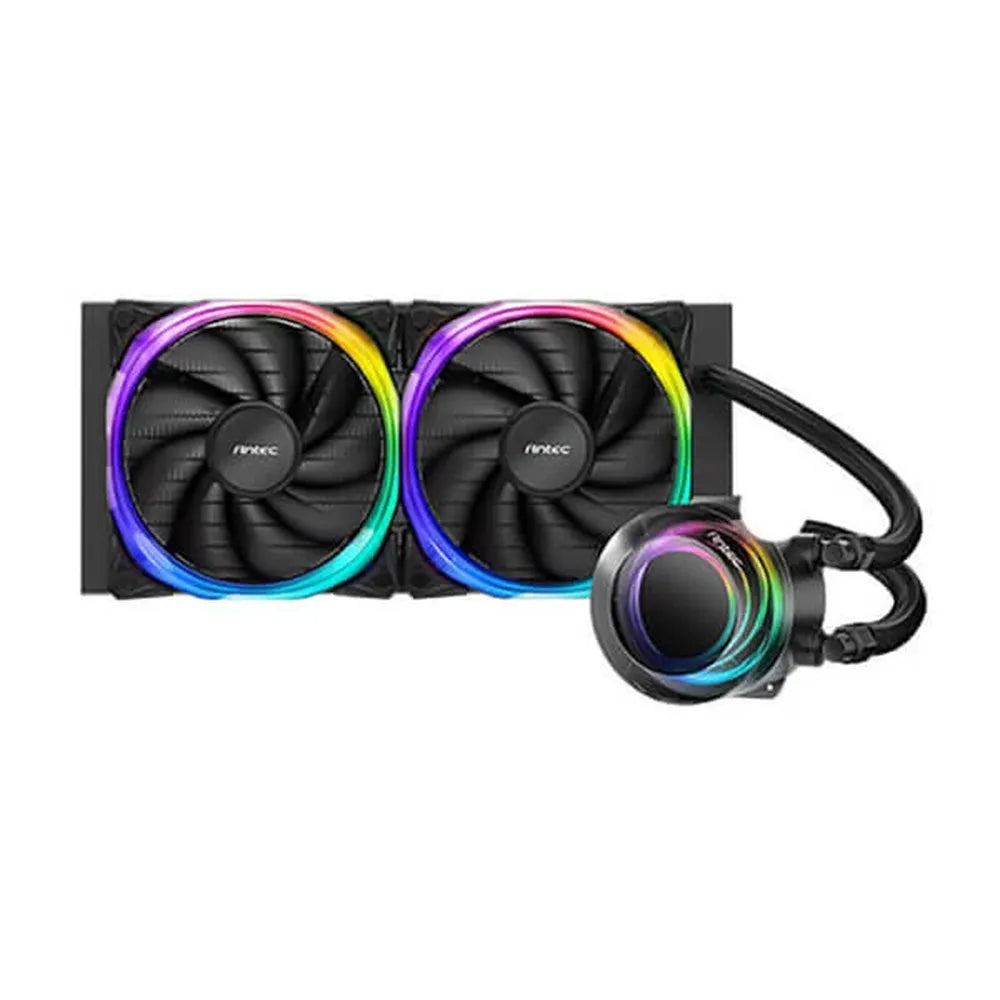

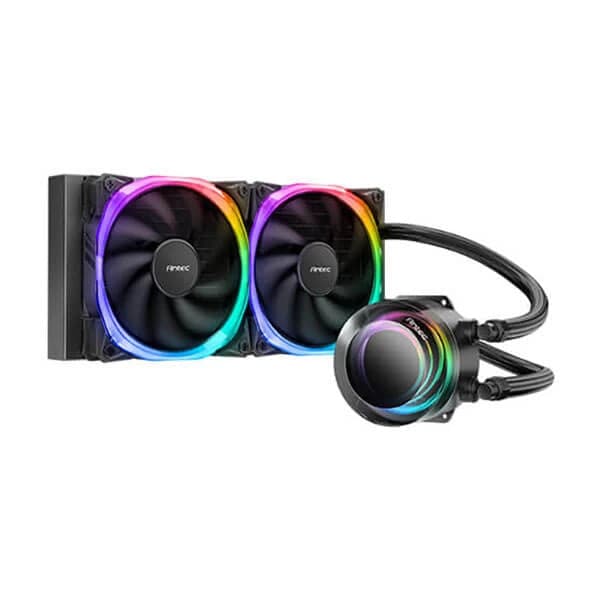

ANTEC Vortex 240 ARGB 240mm CPU Liquid Cooler (Black)
MPN VORTEX-240-ARGB · Brand ANTEC
Features of ANTEX VORTEX 240 ARGB 240mm CPU Liquid Cooler (Black) Suspended Spiral Pump Head Design The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles. Highly Efficient Cooling Pump High Performance Cooling Performance data tested with Vortex 360 on AMD Ryzen 5600x EPDM High-Density Tubing The EPDM high-density tubing is very durable, making less loss of liquid. Superior Fin Density Massive
Inclusive of GST · GST invoice available
Overview
Features of ANTEX VORTEX 240 ARGB 240mm CPU Liquid Cooler (Black)

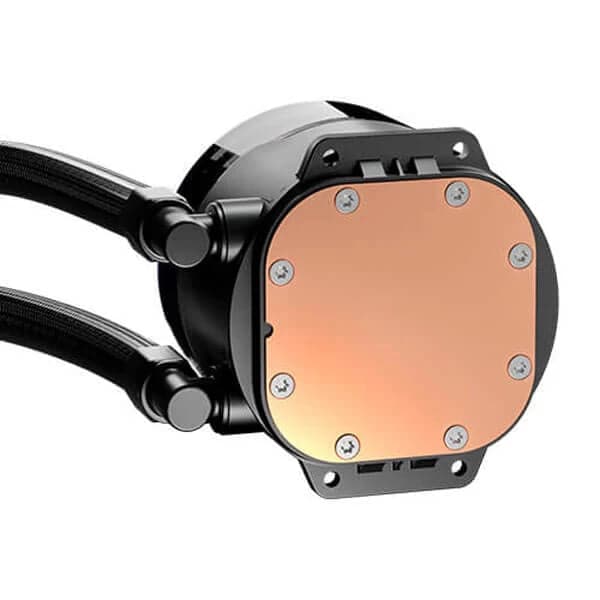

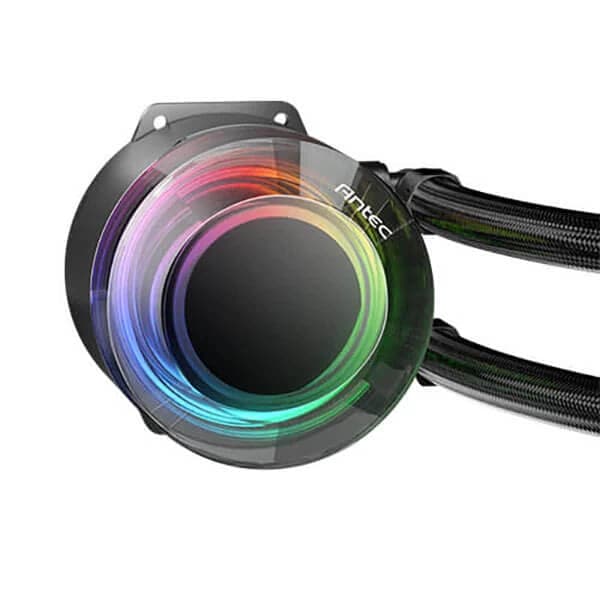

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

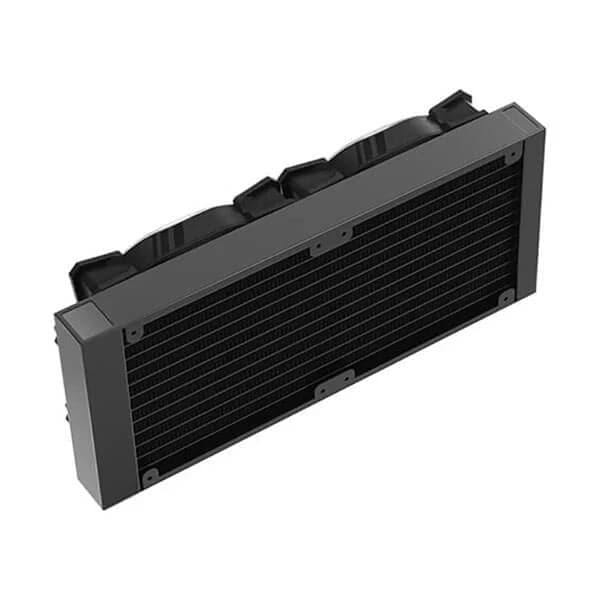

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

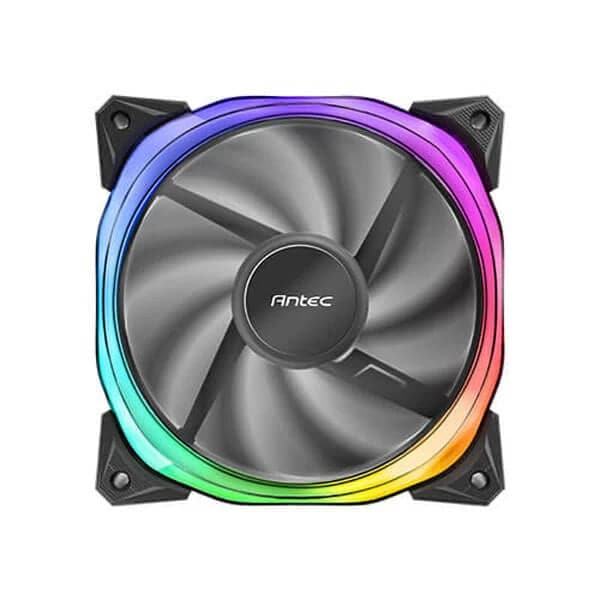

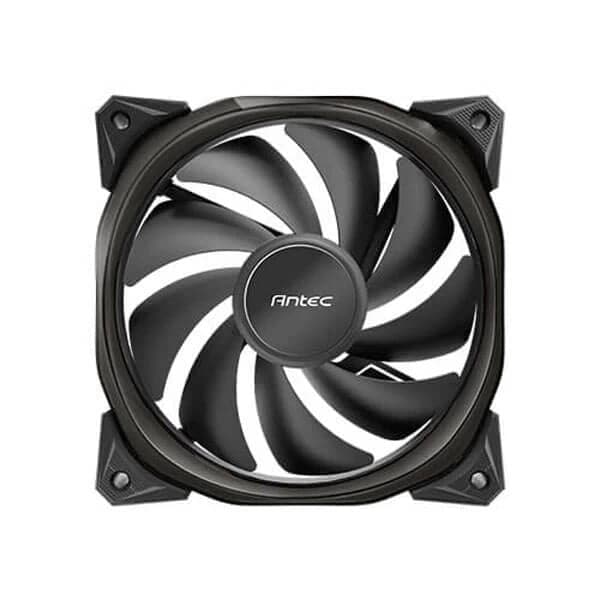

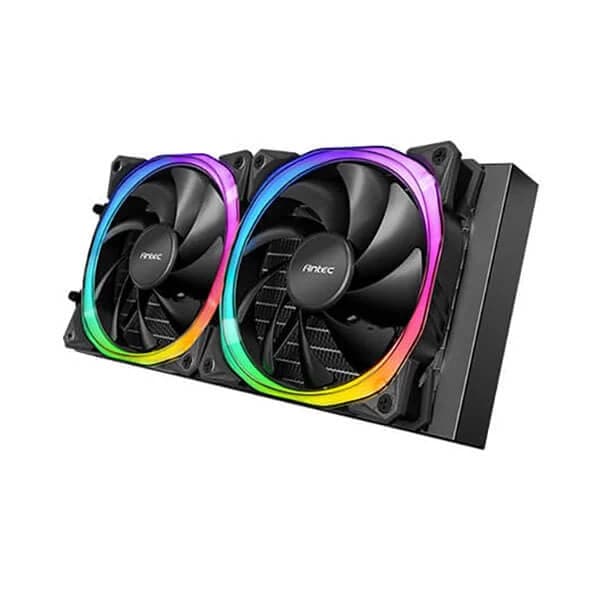

Antec Fusion PWM ARGB Fan
The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
Specifications of ANTEX VORTEX 240 ARGB 240mm CPU Liquid Cooler (Black)
| Model | VORTEX-240 |
| Color | Black |
| Radiator | |
| Radiator Dimensions | 277 x 120 x 27 mm |
| Radiator Material | Aluminum |
| Tdp Number | Vortex240 240W |
| Pump | |
| Dimensions | ￠67 x 48.5 mm |
| Rating Voltage | DC 12 V |
| Minimum Startup Voltage | ≥ 5.0 V |
| Fan Speed | 2800±10% RPM |
| Rated Current | 0.25±20% A |
| Consumed Power | 3.0 W |
| Flow rate | ≥ 1300 mL / min |
| Water Pressure | 1.4M |
| Operation Temperature | -10°C ~ +60°C |
| Noise Level | ≤ 28 dB(A) |
| Lifespan | 40,000 hours |
| Connector | PUMP: 3-pin | LED: 3-pin |
| Fan | |
| Model Name | Fusion 120 ARGB fan (AH12012FM1) |
| Fan Type | PWM Fan |
| Dimensions | 120 x 120 x 25 mm |
| Bearing Type | Hydraulic Bearing |
| LED Type | Addressable RGB |
| Fan Speed | 600±200 ~ 2000±10% RPM |
| Airflow | 57.93 CFM (max.) |
| Air Pressure | 2.11 mmH₂O (max.) |
| Fan Noise Level | 31.24 dB(A) |
| Lifespan | 40,000 hours |
| Connector | FAN: 4-pin PWM | LED: 3-pinRated Voltage |
| Rated Voltage | FAN: DC 12 V | LED: DC 5 V |
| Operation Voltage | FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V |
| Rated Current | FAN: ≤ 0.21 A | LED: ≤ 0.58 A |
| Socket Compatibility CPU | Intel: LGA 115X / 1200 / 1700 / 20XX AMD: AM3/AM4/AM5 |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |

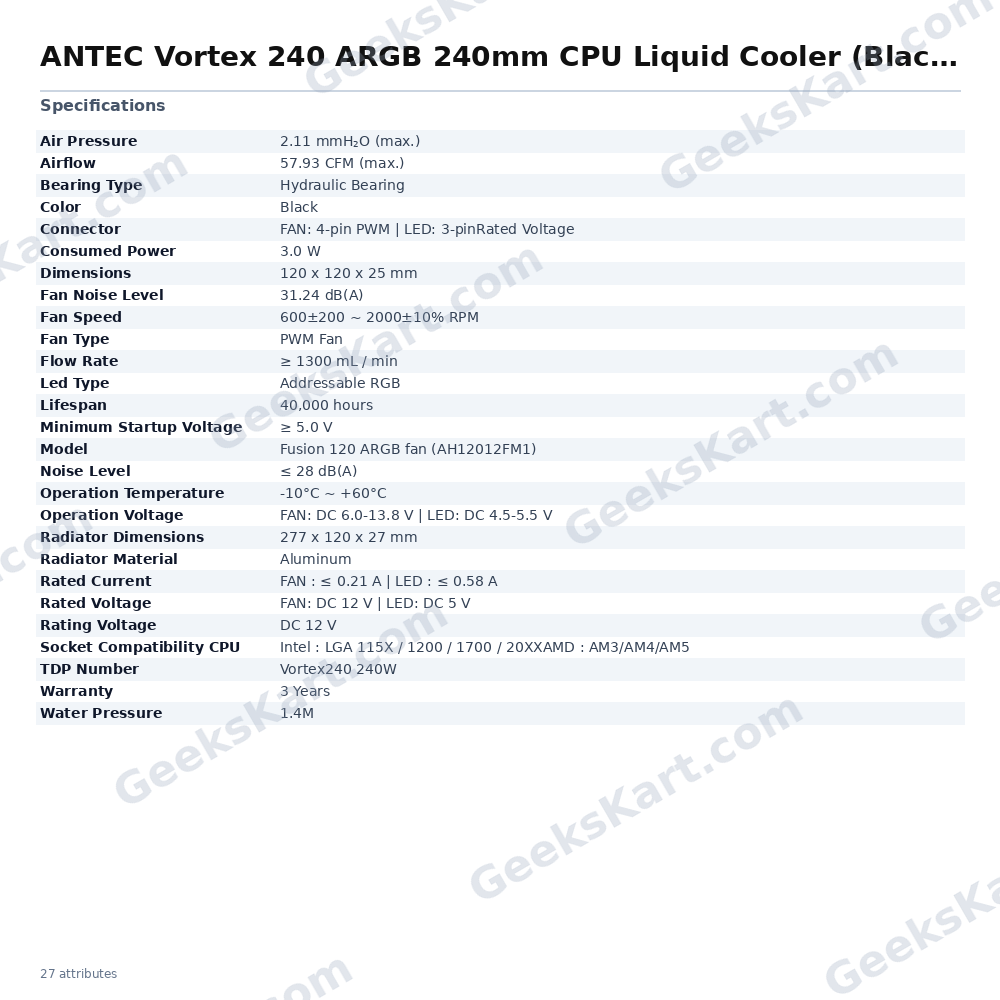

Datasheet
| Warranty | 3 Years |
|---|---|
| color | Black |
| Model | Fusion 120 ARGB fan (AH12012FM1) |
| Airflow | 57.93 CFM (max.) |
| Fan Type | PWM Fan |
| Led Type | Addressable RGB |
| Lifespan | 40,000 hours |
| Connector | FAN: 4-pin PWM, LED: 3-pinRated Voltage |
| Fan Speed | 600±200 ~ 2000±10% RPM |
| Flow Rate | ≥ 1300 mL / min |
| Dimensions | 120 x 120 x 25 mm |
| TDP Number | Vortex240 240W |
| Noise Level | ≤ 28 dB(A) |
| Air Pressure | 2.11 mmH₂O (max.) |
| Bearing Type | Hydraulic Bearing |
| Rated Current | FAN : ≤ 0.21 A, LED : ≤ 0.58 A |
| Rated Voltage | FAN: DC 12 V, LED: DC 5 V |
| Consumed Power | 3.0 W |
| Rating Voltage | DC 12 V |
| Water Pressure | 1.4M |
| Fan Noise Level | 31.24 dB(A) |
| Operation Voltage | FAN: DC 6.0-13.8 V, LED: DC 4.5-5.5 V |
| Radiator Material | Aluminum |
| Radiator Dimensions | 277 x 120 x 27 mm |
| Operation Temperature | -10°C ~ +60°C |
| Minimum Startup Voltage | ≥ 5.0 V |
| Socket Compatibility CPU | Intel : LGA 115X / 1200 / 1700 / 20XXAMD : AM3/AM4/AM5 |
