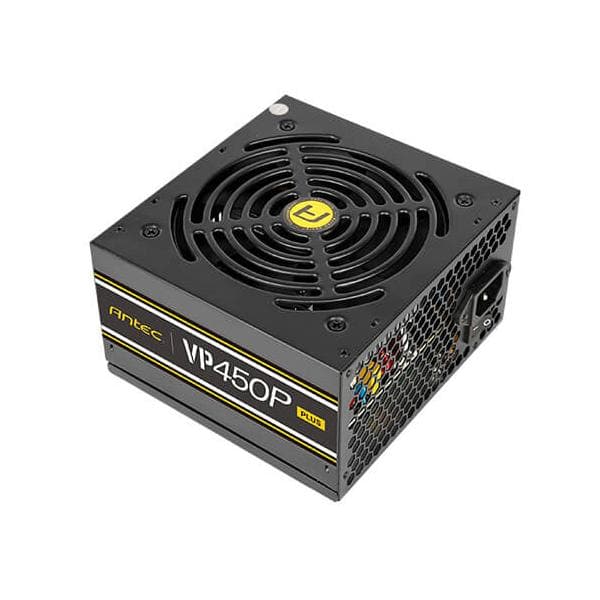

ANTEC VP450P Plus 450W Standard 80+ Non Modular Power Suppl

The Antec VP450P Plus is a 450W non-modular ATX power supply designed for budget-conscious builds that still demand reliable, efficient power delivery. Carrying the 80 PLUS 230V Standard certification, the unit delivers up to 85% typical efficiency, helping to reduce unnecessary energy consumption during everyday operation. At the heart of the VP450P Plus is a single +12V rail topology, which directs available power to where modern CPUs and GPUs need it most, reducing the complexity of load balancing across multiple rails. Active Power Factor Correction (Active PFC, greater than 0.9 typical) further improves efficiency and is compatible with UPS devices and the 200–240 VAC mains supply common across India and South Asia. Cooling is handled by a 120 mm silent fan paired with Antec’s Thermal Manager — a low-voltage fan control system that adjusts fan speed in response to internal temperatures, keeping noise to a minimum during light workloads while ensuring adequate airflow under sustained loads. Protection is provided through Antec’s CircuitShield suite, which covers Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Current Protection (OCP), and No-Load Operation (NLO) protection, safeguarding connected components from common electrical fault conditions. The connector set is comprehensive for an entry-level unit: a 24(20+4)-pin motherboard connector, one 8(4+4)-pin EPS 12V connector for CPU power, two 8(6+2)-pin PCIe connectors supporting dual-GPU configurations, seven SATA power connectors, two Molex connectors, and one FDD connector. The non-modular cable arrangement means all cables are permanently attached, which is standard practice at this price tier. Antec backs the VP450P Plus with a 3-year parts and labour warranty under their AQ3 programme. Verified Specifications: – Model: VP450P PLUS – Output Capacity: 450W – Certification: 80 PLUS 230V Standard – Efficiency: 85% typically – Modular: Non-Modular – Fan: 120mm Silent Fan – PFC: Active PFC (>0.9 typical) – Input Voltage: 200–240 VAC ±10% – Input Current: 5A – Input Frequency: 50–60 Hz – Power Good Signal: 100–500 ms – Protection: OVP / SCP / OCP / NLO – Connectors: 1× MB 24(20+4)-pin, 1× 8(4+4)-pin EPS 12V, 2× 8(6+2)-pin PCIe, 7× SATA, 2× Molex, 1× FDD – Dimensions (D×W×H): 140 × 150 × 86 mm – Net Weight: 1.36 kg – Regulatory: CB / CE – Warranty: 3 Years
