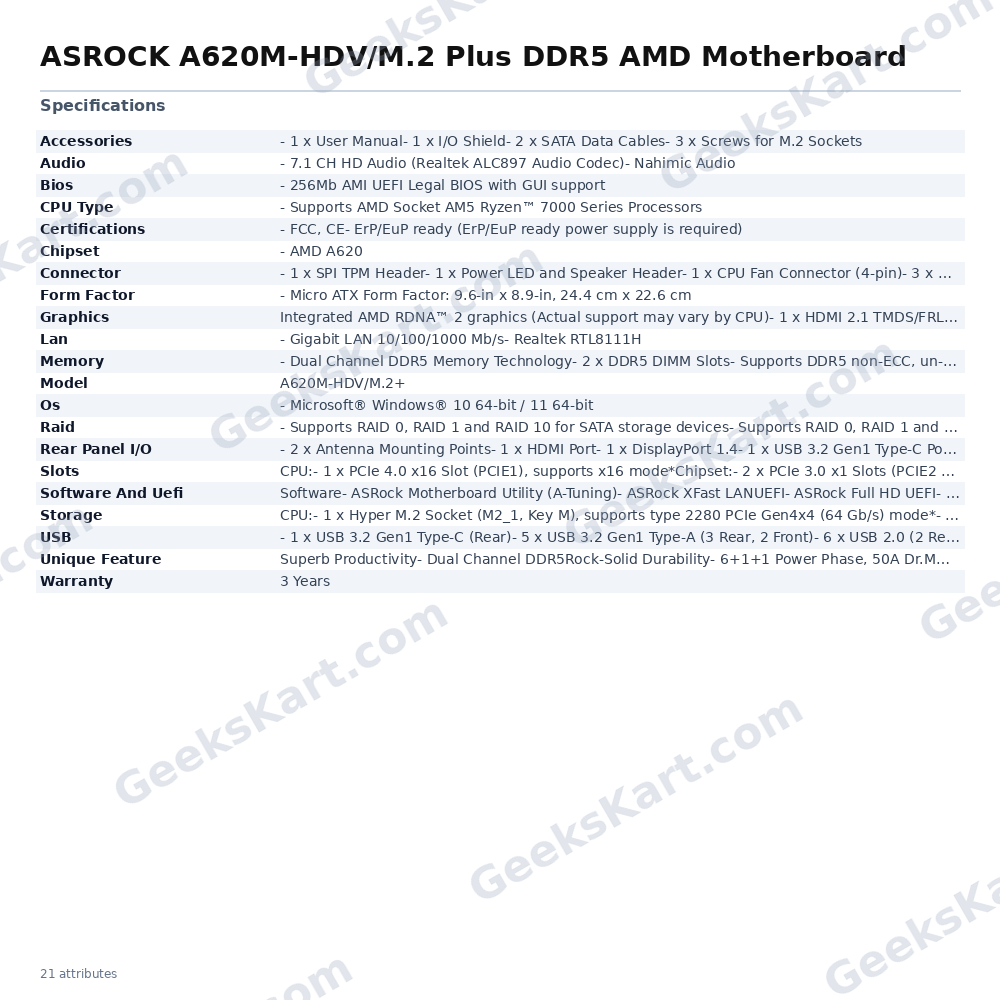

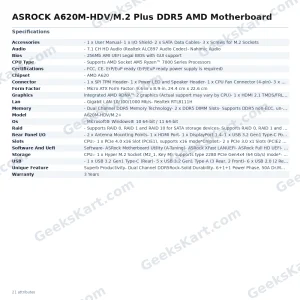

ASROCK A620M-HDV/M.2 Plus DDR5 AMD Motherboard

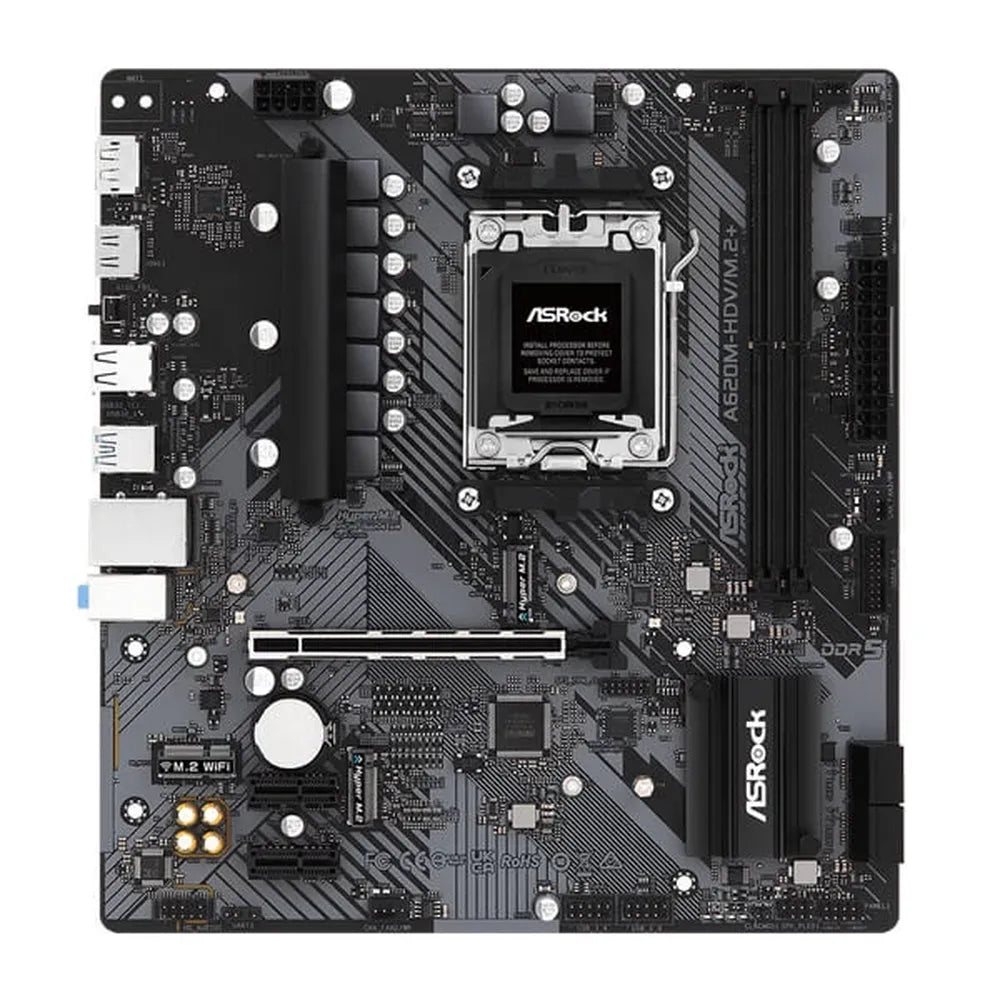

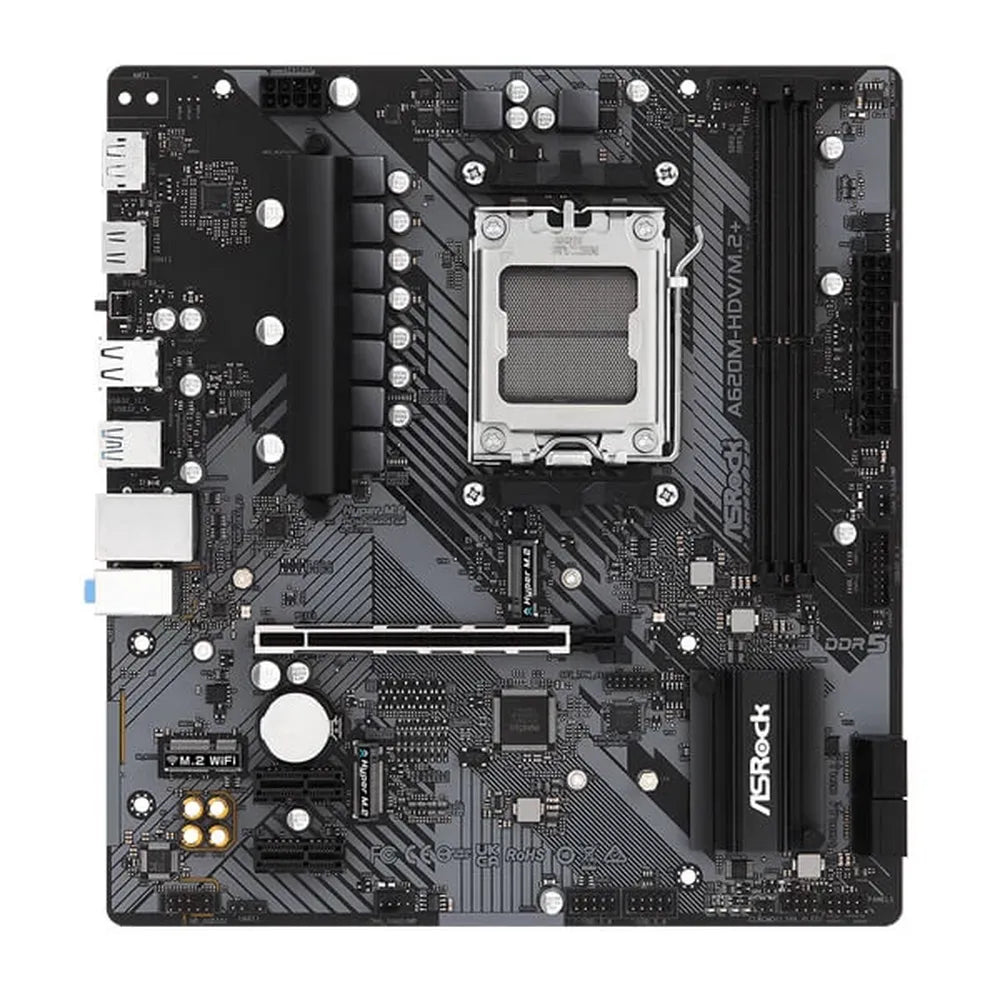

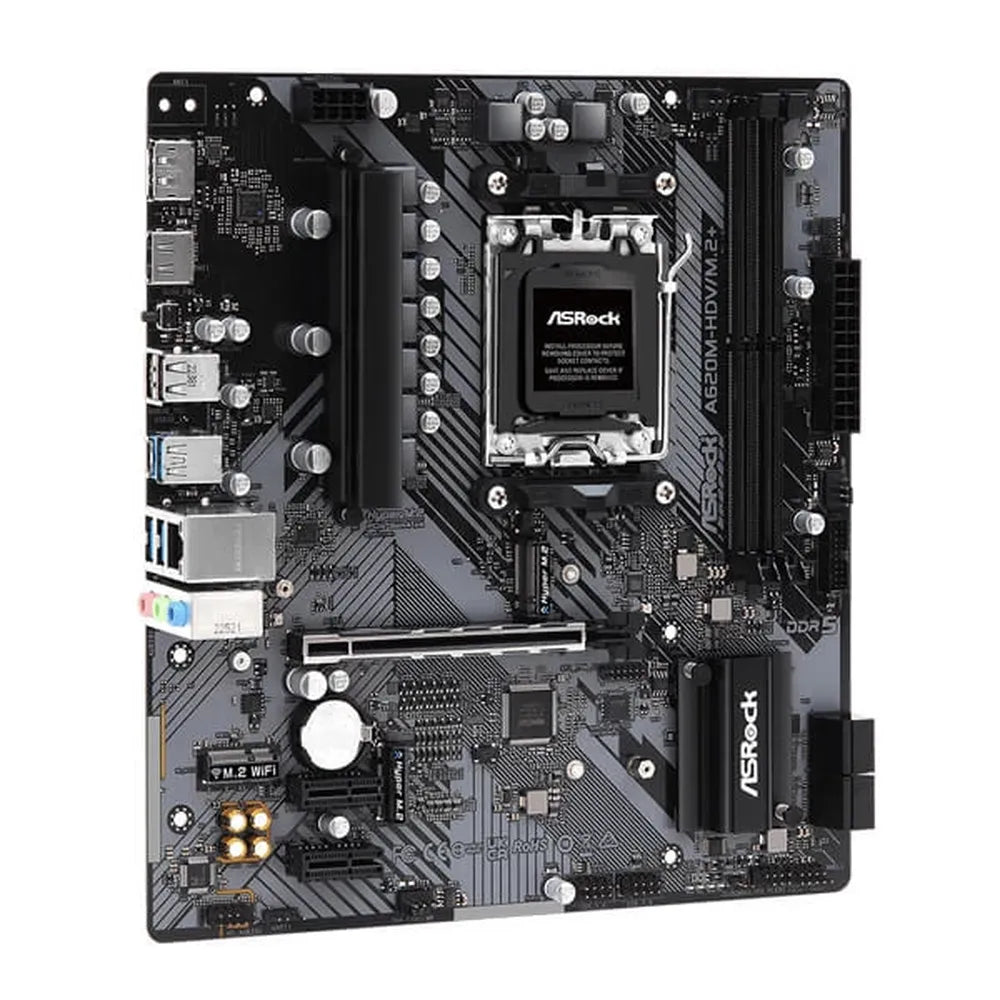

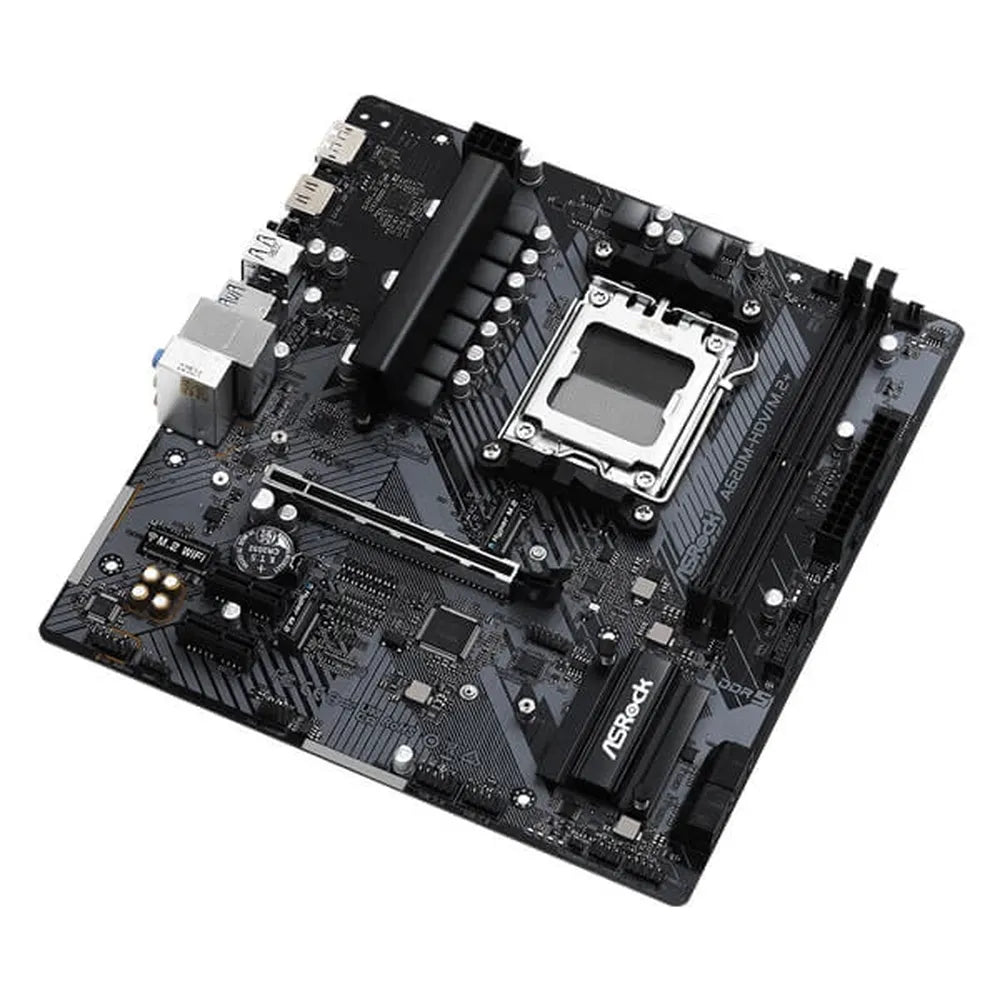

The ASRock A620M-HDV/M.2 Plus is a Micro ATX motherboard built on the AMD A620 chipset, designed to accommodate AMD Socket AM5 Ryzen 7000 Series processors. Its compact 9.6-inch by 8.9-inch (24.4 cm x 22.6 cm) footprint makes it well-suited for space-conscious desktop builds without sacrificing connectivity or storage options. At the heart of its power delivery sits a 6+1+1 phase VRM with 50A Dr.MOS for the CPU VCore rail, providing stable voltage regulation for Ryzen 7000 processors. The 6-layer PCB design contributes to lower signal noise and improved thermal performance across the board. Memory support is handled by two DDR5 DIMM slots running in dual-channel configuration. The board accepts non-ECC, unbuffered DDR5 modules up to 6400+ MHz (OC) and supports both XMP and EXPO memory profiles, with a maximum system memory capacity of 96 GB. Storage flexibility is a strong point. Two Hyper M.2 sockets (M2_1 and M2_2, both Key M) support PCIe Gen4 x4 at up to 64 Gb/s, enabling fast NVMe SSDs. Four SATA3 connectors at 6.0 Gb/s round out the storage options, and the board supports RAID 0, RAID 1, and RAID 10 configurations for both SATA and M.2 NVMe devices. Display output is handled through integrated AMD RDNA 2 graphics (subject to CPU support), with one HDMI 2.1 port capable of up to 4K 120Hz (HDR, HDCP 2.3) and one DisplayPort 1.4 with DSC also supporting up to 4K 120Hz. Audio is powered by a Realtek ALC897 codec delivering 7.1-channel HD audio, complemented by Nahimic Audio software. Expansion slots include one PCIe 4.0 x16 slot for discrete graphics, two PCIe 3.0 x1 slots, and one M.2 Key E slot for an optional Wi-Fi/Bluetooth module (not included). Rear I/O provides one USB 3.2 Gen1 Type-C, three USB 3.2 Gen1 Type-A, two USB 2.0 ports, an RJ-45 Gigabit LAN port (Realtek RTL8111H), HDMI, DisplayPort, and HD audio jacks. A dedicated BIOS Flashback button on the rear panel allows firmware updates without a CPU or RAM installed. Additional software features include ASRock Auto Driver Installer, A-Tuning utility, XFast LAN, and ASRock Instant Flash. The board carries FCC and CE certifications and is ErP/EuP ready. It ships with a user manual, I/O shield, two SATA data cables, and three M.2 mounting screws. Verified Specifications: – Form Factor: Micro ATX (9.6-in x 8.9-in / 24.4 cm x 22.6 cm) – Socket: AMD AM5 – Chipset: AMD A620 – CPU Support: AMD Ryzen 7000 Series – Memory: 2x DDR5 DIMM, up to 96 GB, DDR5 6400+ MHz (OC), XMP/EXPO – M.2 Slots: 2x PCIe Gen4 x4 (Key M); 1x Key E for Wi-Fi – SATA: 4x SATA3 6.0 Gb/s – RAID: 0, 1, 10 (SATA and NVMe) – Display: HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (4K 120Hz) – Audio: Realtek ALC897, 7.1 CH HD, Nahimic Audio – LAN: Realtek RTL8111H Gigabit – USB Rear: 1x USB 3.2 Gen1 Type-C, 3x USB 3.2 Gen1 Type-A, 2x USB 2.0 – VRM: 6+1+1 Phase, 50A Dr.MOS – BIOS: 256 Mb AMI UEFI – OS: Windows 10 / 11 (64-bit) – Warranty: 3 Years
