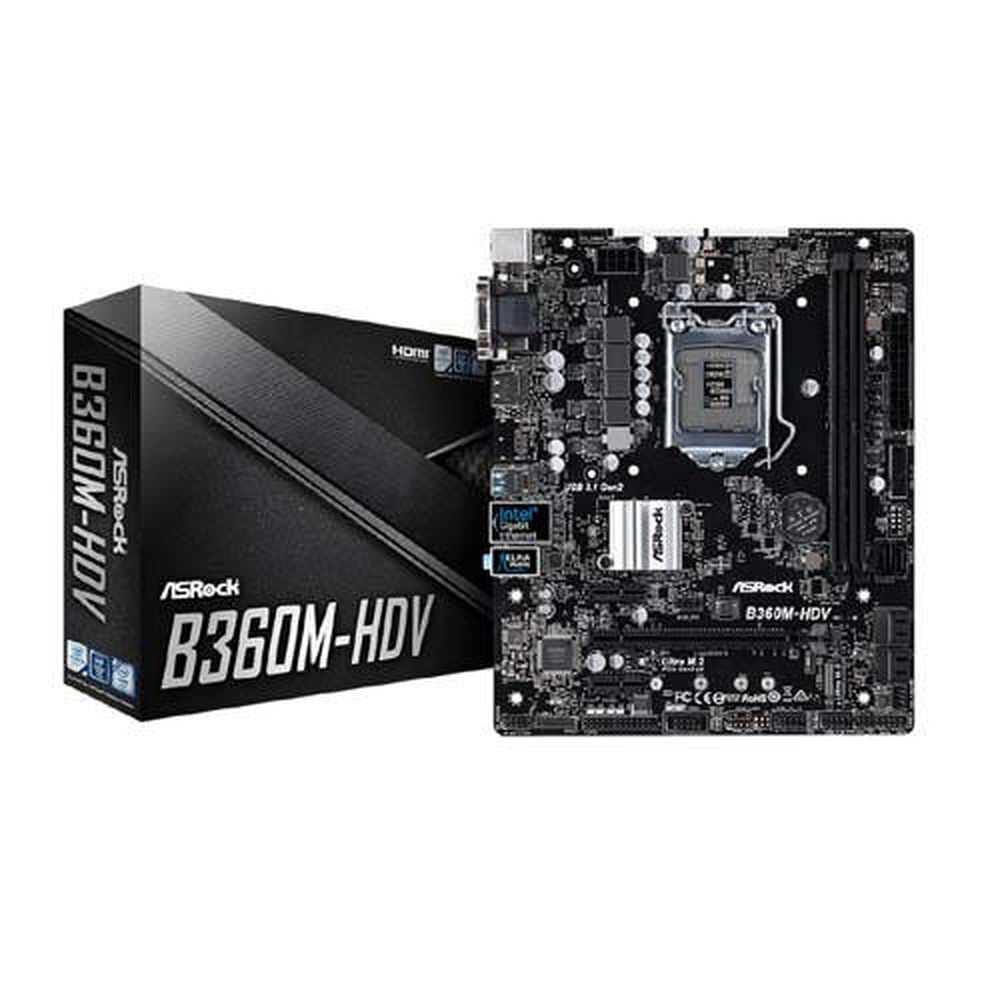

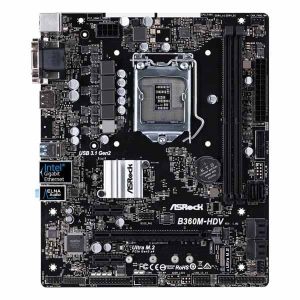

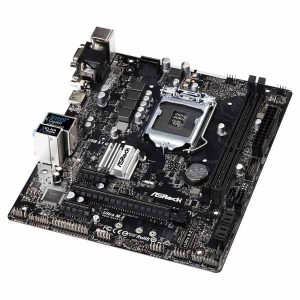

ASROCK B360-HDV DDR4 Intel Motherboard
MPN ASROCK-B360M-HDV · Brand ASROCK · mATX
The ASRock B360M-HDV is a Micro ATX motherboard for 8th Gen Intel Core processors (LGA 1151) featuring triple display outputs including 4K HDMI, USB 3.1 Gen2, M.2 PCIe Gen3 x4, and Realtek ALC887 7.1 CH HD audio with ELNA capacitors
Inclusive of GST · GST invoice available
Overview
The ASRock B360M-HDV is a Micro ATX motherboard built on Intel's B360 chipset, designed to pair with 8th Generation Intel Core processors via the LGA 1151 socket. It supports a thermal envelope of up to 95 W and takes advantage of Intel Turbo Boost 2.0 Technology for responsive everyday computing. Memory is handled by two DDR4 DIMM slots operating in dual-channel mode, supporting speeds of DDR4 2666, 2400, and 2133 (non-ECC, unbuffered), with a maximum capacity of 32 GB. The slots feature Intel Extreme Memory Profile (XMP) 2.0 support and 15-micron gold contacts for long-term connection reliability. Display flexibility is a clear strength of this board. Three rear-panel video outputs — D-Sub, DVI-D, and HDMI — let you connect a range of monitors. The HDMI port supports resolutions up to 4K (4096×2160) at 30 Hz, while D-Sub and DVI-D each handle up to 1920×1200 at 60 Hz. The board drives Intel UHD Graphics with DirectX 12 and hardware-accelerated encode/decode for H.264, HEVC/H.265 (8-bit and 10-bit), VP8, VP9, MPEG-2, and MJPEG. Storage options are generous: six SATA3 6.0 Gb/s connectors with NCQ, AHCI, and hot-plug support, plus one Ultra M.2 socket (M2_1) accommodating 2230/2242/2260/2280 modules at either SATA3 6.0 Gb/s or PCIe Gen3 x4 (up to 32 Gb/s). Connectivity on the rear I/O includes four USB 3.1 Gen2 Type-A ports (10 Gb/s), two USB 2.0 ports, a PS/2 keyboard/mouse port, Gigabit Ethernet (Intel I219V PHY with Wake- LAN and Energy Efficient Ethernet 802.3az), and three HD audio jacks. Internal headers add four more USB 2.0 ports and two USB 3.1 Gen1 ports. Audio is delivered through a Realtek ALC887 codec supporting 7.1-channel HD output, complemented by ELNA audio capacitors that reduce leakage current to approximately 3 µA for a cleaner signal. ASRock Full Spike Protection safeguards USB, audio, and LAN ports from voltage transients. The 128 Mb AMI UEFI BIOS features a Full HD GUI, EZ Mode, My Favorites, Instant Flash, and Internet Flash for easy updates. ASRock's Hybrid Digi Power design and A-Tuning software round out the platform. The board carries FCC and CE certifications and is ErP/EuP ready. Verified Specifications: - Form Factor: Micro ATX, 22.6 cm × 18.8 cm (8.9 in × 7.4 in) - Chipset: Intel B360 - CPU: 8th Gen Intel Core, Socket LGA 1151, up to 95 W TDP - Memory: 2× DDR4 DIMM, max 32 GB, DDR4-2666/2400/2133, dual-channel, XMP 2.0 - Storage: 6× SATA3 (6 Gb/s); 1× Ultra M.2 PCIe Gen3 x4 / SATA3 (2230–2280) - Display: HDMI (4K@30Hz), DVI-D (1920×1200@60Hz), D-Sub (1920×1200@60Hz) - USB (rear): 4× USB 3.1 Gen2 Type-A (10 Gb/s), 2× USB 2.0 - Audio: Realtek ALC887, 7.1 CH HD, ELNA audio caps - LAN: Intel I219V Gigabit Ethernet - BIOS: 128 Mb AMI UEFI - Warranty: 3 Years - Certifications: FCC, CE, ErP/EuP ready

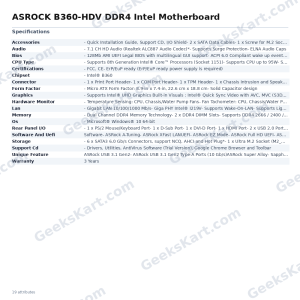

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – Intel® B360 |
| CPU Type | – Supports 8th Generation Intel® CoreTM Processors (Socket 1151)- Supports CPU up to 95W- Supports Intel® Turbo Boost 2.0 Technology |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*- Supports Surge Protection- ELNA Audio Caps |
| Memory | – Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory- Max. capacity of system memory: 32GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Graphics | – Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)- Three graphics output options: D-Sub, DVI-D and HDMI- Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-D and HDMI Ports- Supports 4K Ultra HD (UHD) playback with HDMI Port |
| Connector | – 1 x Print Port Header- 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 1 x Screw for M.2 Socket |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 2 x USB 2.0 Ports (Supports ESD Protection)- 4 x USB 3.1 Gen2 Type-A Ports (10 Gb/s)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock USB 3.1 Gen2- ASRock USB 3.1 Gen2 Type-A Ports (10 Gb/s)ASRock Super Alloy- Sapphire Black PCB- High Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, Chassis/Water Pump Fans- Fan Tachometer: CPU, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, PCH 1.05V |
| Software And Uefi | Software- ASRock A-Tuning- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash |
