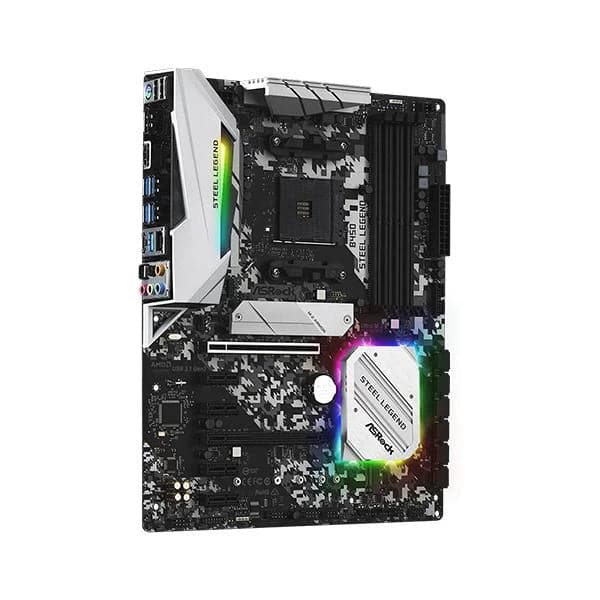

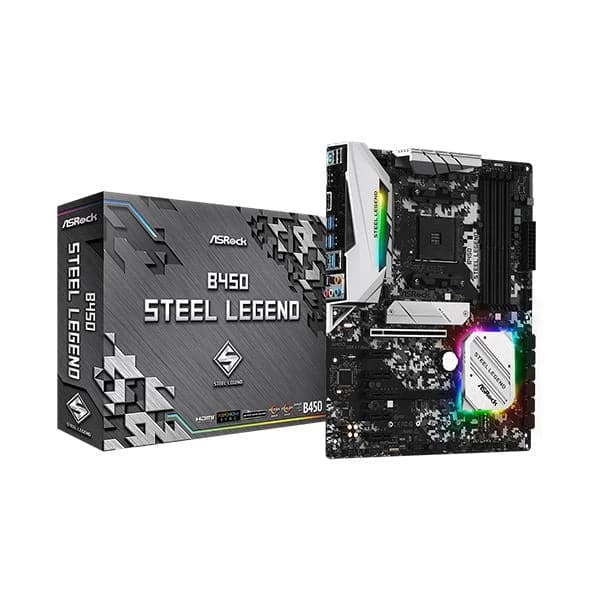

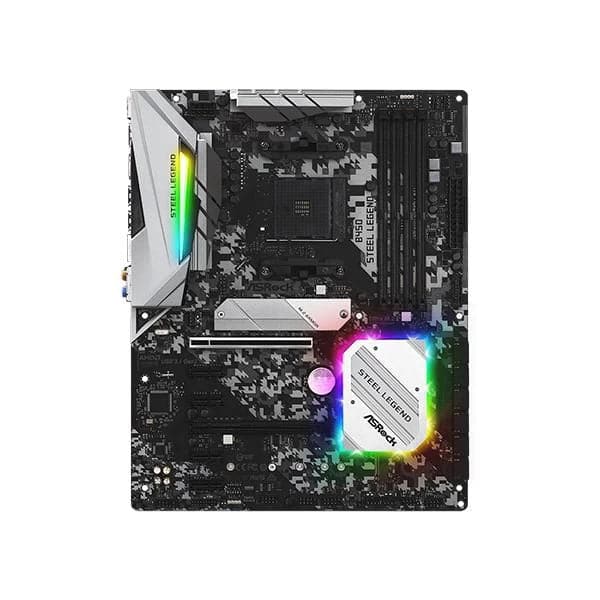

ASROCK B450 Steel Legend DDR4 AMD Motherboard
MPN 450-STEEL-LEGEND · Brand ASROCK · ATX
The ASRock B450 Steel Legend is a full-ATX AM4 motherboard supporting AMD Ryzen 5000 series processors, dual M.2 NVMe slots with heatsinks, USB 3.2 Gen2, and DDR4 up to 128 GB
Inclusive of GST · GST invoice available
Overview
The ASRock B450 Steel Legend is a full-size ATX motherboard (30.5 cm x 24.4 cm) built on the AMD Promontory B450 chipset and designed for the AM4 socket. It supports AMD Ryzen 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series desktop processors, making it a capable platform for builders who want long-term AMD Ryzen compatibility without moving to a newer chipset. For memory, the board provides four DDR4 DIMM slots in a dual-channel configuration with a maximum capacity of 128 GB. Depending on the CPU installed, native speeds reach DDR4 3200, while certain processor families support XMP overclocks up to DDR4 3533+ (OC). All DIMM slots feature 15μ gold contacts for reliable long-term connectivity. Storage options are generous: six SATA3 6 Gb/s ports (four via the chipset supporting RAID 0/1/10, two via ASMedia ASM1061), one Ultra M.2 socket (M2_1) supporting PCIe Gen3 x4 at up to 32 Gb/s for drives up to 2280 form factor, and a second M.2 socket (M2_2) supporting PCIe Gen3 x2 and SATA3, compatible with drives up to 22110 form factor. Both M.2 slots are covered by ASRock's full-coverage M.2 heatsink to aid thermal management. Connectivity on the rear I/O includes one USB 3.2 Gen2 Type-A port (10 Gb/s), one USB 3.2 Gen2 Type-C port (10 Gb/s), four USB 3.2 Gen1 ports, two USB 2.0 ports, one PS/2 port, one RJ-45 Gigabit LAN port (Realtek RTL8111H), HDMI 1.4 and DisplayPort 1.2 video outputs, an optical S/PDIF output, and gold audio jacks supporting 7.1-channel HD audio via the Realtek ALC892/897 codec. Internal headers add two further USB 3.2 Gen1 ports and four USB 2.0 ports. Expansion slots comprise two PCIe 3.0 x16 physical slots (primary running at x16 with Vermeer/Matisse/Pinnacle Ridge CPUs) and four PCIe 2.0 x1 slots, with AMD Quad CrossFireX multi-GPU support. RGB and addressable LED headers, along with ASRock Polychrome SYNC software, support lighting customisation. The board ships with ASRock Super Alloy components: an XXL aluminium alloy heatsink, premium 60 A power choke, and Nichicon 12K capacitors. The UEFI is a 128 Mb AMI implementation with multilingual GUI, Instant Flash, and Easy RAID Installer. A 3-year manufacturer warranty applies. Verified Specifications: - Chipset: AMD B450 - Socket: AM4 - Form Factor: ATX, 30.5 cm x 24.4 cm - Memory: 4x DDR4 DIMM, max 128 GB, DDR4 3533+ (OC) - Storage: 6x SATA3, 1x Ultra M.2 PCIe Gen3 x4 (32 Gb/s), 1x M.2 PCIe Gen3 x2 / SATA3 - USB: 2x USB 3.2 Gen2 (rear, Type-A + Type-C), 6x USB 3.2 Gen1, 4x USB 2.0 - LAN: Realtek RTL8111H Gigabit - Audio: Realtek ALC892/897, 7.1 CH HD - Display: HDMI 1.4, DisplayPort 1.2 - OS Support: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP - Warranty: 3 Years

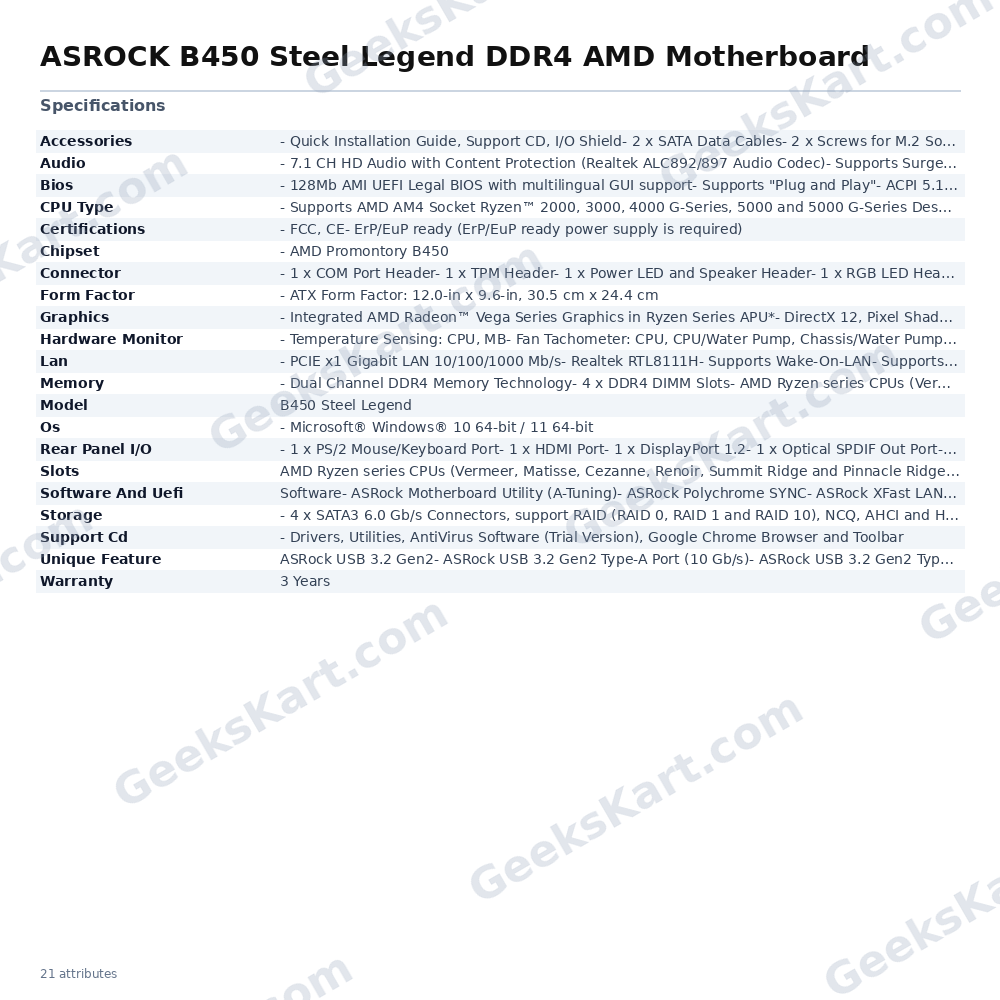

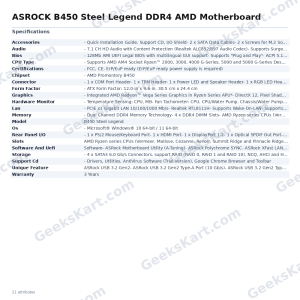

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – AMD Promontory B450 |
| CPU Type | – Supports AMD AM4 Socket RyzenTM 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors- Digi Power design- 6 Power Phase design |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- DRAM Voltage multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)- Supports Surge Protection- PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks |
| Slots | AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)- 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*AMD Ryzen series CPUs (Picasso, Raven Ridge)- 2 x PCI Express 3.0 x16 Slots (PCIE1: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE1 slot will run at x4 mode.)AMD Athlon series CPUs- 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode)*- 4 x PCI Express 2.0 x1 Slots- Supports AMD Quad CrossFireX™ and CrossFireX™** |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15μ Gold Contact in DIMM Slots |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU and Raven Ridge 2)**- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) |
| Graphics | – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports |
| Connector | – 1 x COM Port Header- 1 x TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 1 x Addressable LED Header**- 1 x AMD Fan LED Header***- 1 x CPU Fan Connector (4-pin)****- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket |
| Model | B450 Steel Legend |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 1 x Optical SPDIF Out Port- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel SlotASRock Full Coverage M.2 HeatsinkASRock Ultra M.2 (PCIe Gen3 x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, MB- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID Installer |
