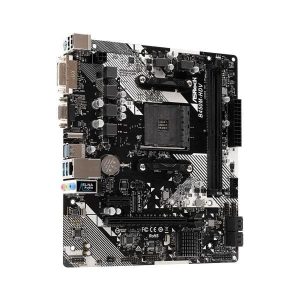

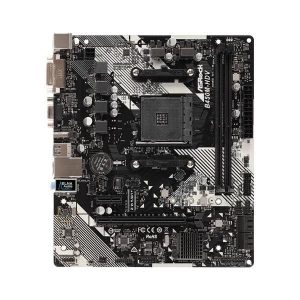

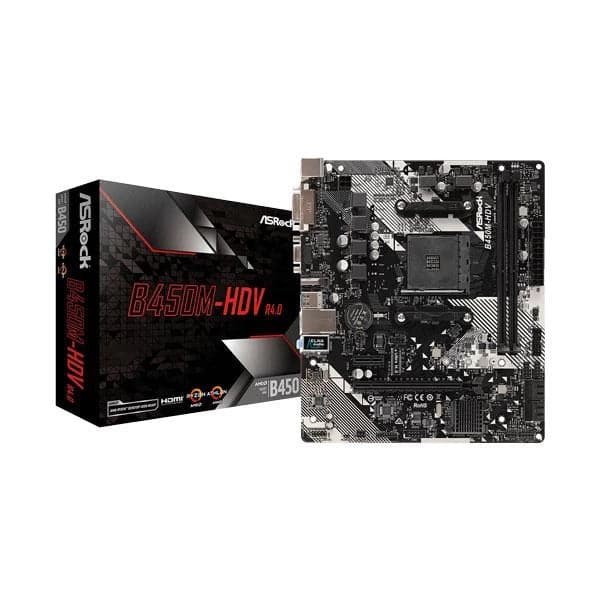

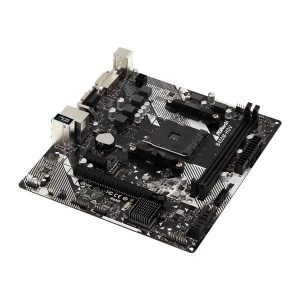

ASROCK B450M-HDV R4.0 DDR4 AMD Motherboard
MPN ASROCK-B450M-HDV · Brand ASROCK · – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm– Solid Capacitor design
The ASRock B450M-HDV R4.0 is a Micro ATX AM4 motherboard featuring the AMD B450 chipset, dual-channel DDR4 support up to 32 GB, triple display output (D-Sub, DVI-D, HDMI), M.2 NVMe storage, and Realtek 7.1 HD audio — a solid foundation for AMD Ryzen and Athlon builds
Inclusive of GST · GST invoice available
Overview
The ASRock B450M-HDV R4.0 is a Micro ATX motherboard built around the AMD B450 chipset (AMD Promontory B450) and AMD AM4 socket, making it compatible with AMD Ryzen CPUs including Summit Ridge, Pinnacle Ridge, Raven Ridge, and select AMD Athlon series processors. Its 6-phase power design supports CPUs with a TDP of up to 105W, offering stable power delivery for everyday and moderately demanding workloads. Memory support covers two DDR4 DIMM slots operating in dual-channel configuration, with a maximum system memory capacity of 32 GB. Supported speeds vary by CPU generation — Pinnacle Ridge and Summit Ridge CPUs support DDR4 3200 (OC), 2933 (OC), 2667, 2400, and 2133 in ECC and non-ECC unbuffered configurations, while Raven Ridge CPUs support non-ECC unbuffered memory at those same speeds. Gold contacts (15μ) in the DIMM slots contribute to connection longevity. For graphics output, the board provides three rear-panel display options — D-Sub (up to 2048×1536 @ 60 Hz), DVI-D (up to 1920×1200 @ 60 Hz), and HDMI (up to 4096×2160 @ 24 Hz or 3840×2160 @ 30 Hz) — enabling triple-monitor configurations when using a Ryzen APU with integrated AMD Radeon Vega graphics. Storage is handled by four SATA3 6.0 Gb/s connectors with RAID 0, RAID 1, and RAID 10 support, plus a single Ultra M.2 socket (M Key, 2242/2260/2280) that accommodates both SATA3 and PCIe Gen3 x4 (up to 32 Gb/s) NVMe modules when paired with Summit Ridge, Raven Ridge, or Pinnacle Ridge CPUs. Audio is delivered by the Realtek ALC887 codec with 7.1-channel HD audio, ELNA audio capacitors, and surge protection. Networking relies on a Realtek RTL8111H Gigabit LAN controller (PCIe x1) supporting Wake- LAN, PXE, Energy Efficient Ethernet 802.3az, and ESD/lightning protection. Rear I/O includes one PS/2 port, one D-Sub, one DVI-D, one HDMI, two USB 2.0 ports, four USB 3.1 Gen1 ports, one RJ-45 LAN port, and HD audio jacks. Internal connectivity adds two USB 2.0 headers (four ports total), one USB 3.1 Gen1 header (two ports), CPU and chassis fan connectors, a TPM header, COM port header, and front-panel audio connector. The 128 Mb AMI UEFI BIOS supports Plug and Play, ACPI 5.1, jumperfree operation, and DRAM voltage adjustment. Verified Specifications: — Form Factor: Micro ATX, 9.0 in × 7.9 in (23.0 cm × 20.1 cm) — Socket: AMD AM4 — Chipset: AMD B450 (Promontory) — Memory: 2× DDR4 DIMM, dual-channel, max 32 GB, up to DDR4-3200 (OC) — Expansion: 1× PCIe 3.0 x16, 1× PCIe 2.0 x1 — Storage: 4× SATA3, 1× Ultra M.2 (PCIe Gen3 x4 / SATA3) — Audio: Realtek ALC887 7.1 CH HD — LAN: Realtek RTL8111H Gigabit — USB (rear): 4× USB 3.1 Gen1, 2× USB 2.0 — Display outputs: D-Sub, DVI-D, HDMI (triple monitor capable with APU) — BIOS: 128 Mb AMI UEFI — Certifications: FCC, CE, ErP/EuP ready

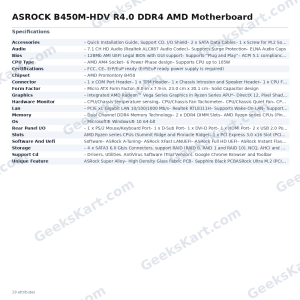

Datasheet
| Chipset | – AMD Promontory B450 |
|---|---|
| CPU Type | – AMD AM4 Socket– 6 Power Phase design– Supports CPU up to 105W |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s– Realtek RTL8111H– Supports Wake-On-LAN– Supports Lightning/ESD Protection– Supports Energy Efficient Ethernet 802.3az– Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with GUI support– Supports “Plug and Play”– ACPI 5.1 compliance wake up events– Supports jumperfree– SMBIOS 2.3 support– DRAM Voltage multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)– Supports Surge Protection– ELNA Audio Caps |
| Slots | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*AMD Ryzen series CPUs (Raven Ridge)– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*AMD Athlon series CPUs– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*– 1 x PCI Express 2.0 x1 Slot*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology– 2 x DDR4 DIMM Slots– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200 (OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200 (OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200 (OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*– Max. capacity of system memory: 32GB*– 15μ Gold Contact in DIMM Slots |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)**Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*– DirectX 12, Pixel Shader 5.0– Shared memory default 2GB. Max Shared memory supports up to 16GB.**– Three graphics output options: D-Sub, DVI-D and HDMI– Supports Triple Monitor– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)– Supports HDCP 1.4 with DVI-D and HDMI Ports– Supports 4K Ultra HD (UHD) playback with HDMI Port*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed |
| Connector | – 1 x COM Port Header– 1 x TPM Header– 1 x Chassis Intrusion and Speaker Header– 1 x CPU Fan Connector (4-pin)*– 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**– 1 x 24 pin ATX Power Connector– 1 x 4 pin 12V Power Connector– 1 x Front Panel Audio Connector– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield– 2 x SATA Data Cables– 1 x Screw for M.2 Socket |
| Certifications | – FCC, CE– ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port– 1 x D-Sub Port– 1 x DVI-D Port– 1 x HDMI Port– 2 x USB 2.0 Ports (Supports ESD Protection)– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)– HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy– High Density Glass Fabric PCB– Sapphire Black PCBASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – CPU/Chassis temperature sensing– CPU/Chassis Fan Tachometer– CPU/Chassis Quiet Fan– CPU/Chassis Fan multi-speed control– CASE OPEN detection– Voltage monitoring: 12V, 5V, 3.3V, Vcore |
| Software And Uefi | Software– ASRock A-Tuning– ASRock XFast LANUEFI– ASRock Full HD UEFI– ASRock Instant Flash– ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop |
| Form Factor | – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm– Solid Capacitor design |
