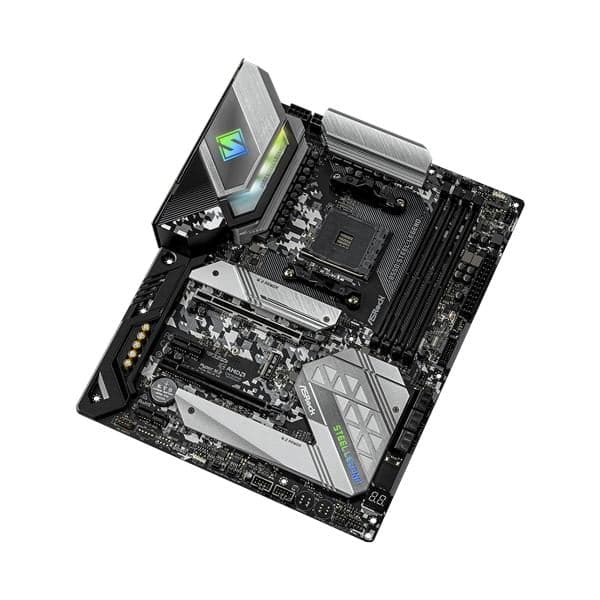

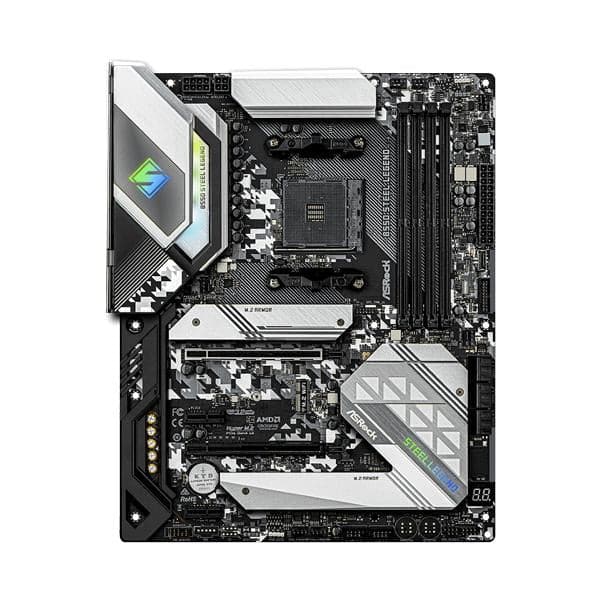

The ASRock B550 Steel Legend is an ATX-form-factor motherboard built on the AMD B550 chipset and designed for AMD AM4 socket processors, including 3rd Gen Ryzen (Matisse) and compatible future Ryzen CPUs. It is not compatible with Ryzen 5 3400G or Ryzen 3 3200G. Its 14-phase Digi Power design uses 50A Dr.MOS integrated power stages alongside Premium 60A power chokes and Nichicon 12K Black Caps — Japan-made conductive polymer capacitors — to deliver stable voltage under sustained workloads. Four DDR4 DIMM slots support dual-channel memory up to 128 GB, with XMP profiles and overclocked speeds reaching DDR4-4733 (OC). The primary PCIe x16 slot (PCIE1) runs at Gen 4 x16 with Matisse-class CPUs and features ASRock’s reinforced Steel Slot construction. A second x16-length slot operates at Gen 3 x4, and two PCIe 3.0 x1 slots round out expansion. AMD CrossFireX multi-GPU configurations are supported. Storage is equally capable: a Hyper M.2 socket (M2_1) handles PCIe Gen 4 x4 NVMe drives at up to 64 Gb/s, while a second M.2 socket (M2_2) supports PCIe Gen 3 x2 or SATA3 modules. Note that M2_2 shares lanes with SATA3 ports 5 and 6 — enabling one disables the other. Six SATA3 6 Gb/s connectors support RAID 0, 1, and 10 with NCQ, AHCI, and hot-plug capability. Networking centres on a Dragon RTL8125BG 2.5 Gigabit LAN controller (10/100/1000/2500 Mb/s) with Wake- LAN, Energy Efficient Ethernet 802.3az, and ESD protection. A Key E M.2 slot (type 2230) accommodates an optional 802.11ac Wi-Fi/Bluetooth module. Audio is handled by a Realtek ALC1220 codec delivering 7.1-channel HD audio with a 120 dB SNR DAC, an NE5532 headset amplifier supporting up to 600-ohm loads, PCB-isolated audio layers, and Nahimic Audio software. Rear I/O includes HDMI 2.1 (up to 4K@60 Hz) and DisplayPort 1.4 (up to 5K@120 Hz) for APU-based display output. USB connectivity spans USB 3.2 Gen 2 Type-A and Type-C ports on the rear panel (10 Gb/s each), two USB 3.2 Gen 1 rear ports, four USB 2.0 rear ports, and front-panel headers for two Gen 1 ports plus one Gen 1 Type-C. Polychrome RGB sync is supported via two 12 V RGB headers and two 5 V addressable LED headers. The board ships in ATX format (305 mm × 244 mm) with a 2 oz copper PCB and carries FCC, CE, and ErP/EuP certifications. A 3-year warranty is included. Verified Specifications: • Socket: AMD AM4 | Chipset: AMD B550 • Form Factor: ATX, 12.0 in × 9.6 in (305 mm × 244 mm) • Memory: 4 × DDR4 DIMM, dual-channel, max 128 GB, DDR4-4733 (OC) • PCIe: 1 × Gen 4 x16, 1 × Gen 3 x4 (x16 slot), 2 × Gen 3 x1 • Storage: 1 × Hyper M.2 PCIe Gen 4 x4, 1 × M.2 PCIe Gen 3 x2/SATA3, 6 × SATA3 • LAN: Realtek Dragon RTL8125BG 2.5 GbE • Audio: Realtek ALC1220, 7.1 CH, 120 dB SNR • USB (rear): 1 × Gen 2 Type-A, 1 × Gen 2 Type-C, 2 × Gen 1, 4 × USB 2.0 • Display: HDMI 2.1 (4K@60 Hz), DisplayPort 1.4 (5K@120 Hz) • Power: 14-phase, 50A Dr.MOS, 60A power choke • Warranty: 3 years
GIGABYTE Z890 AORUS Elite Wifi 7 DDR5 Intel Motherboard
₹31,875.00
MSI B550M Pro-VDH Wifi DDR4 AMD Motherboard
₹10,605.00
ASROCK B550 Steel Legend DDR4 AMD Motherboard
₹15,695.00
The ASRock B550 Steel Legend is an ATX DDR4 motherboard for AMD AM4 Ryzen processors, featuring PCIe 4.0, a 14-phase 50A Dr.MOS power design, Realtek 2.5G Dragon LAN, dual M.2 slots, and Realtek ALC1220 7.1-channel HD audio
Out of stock

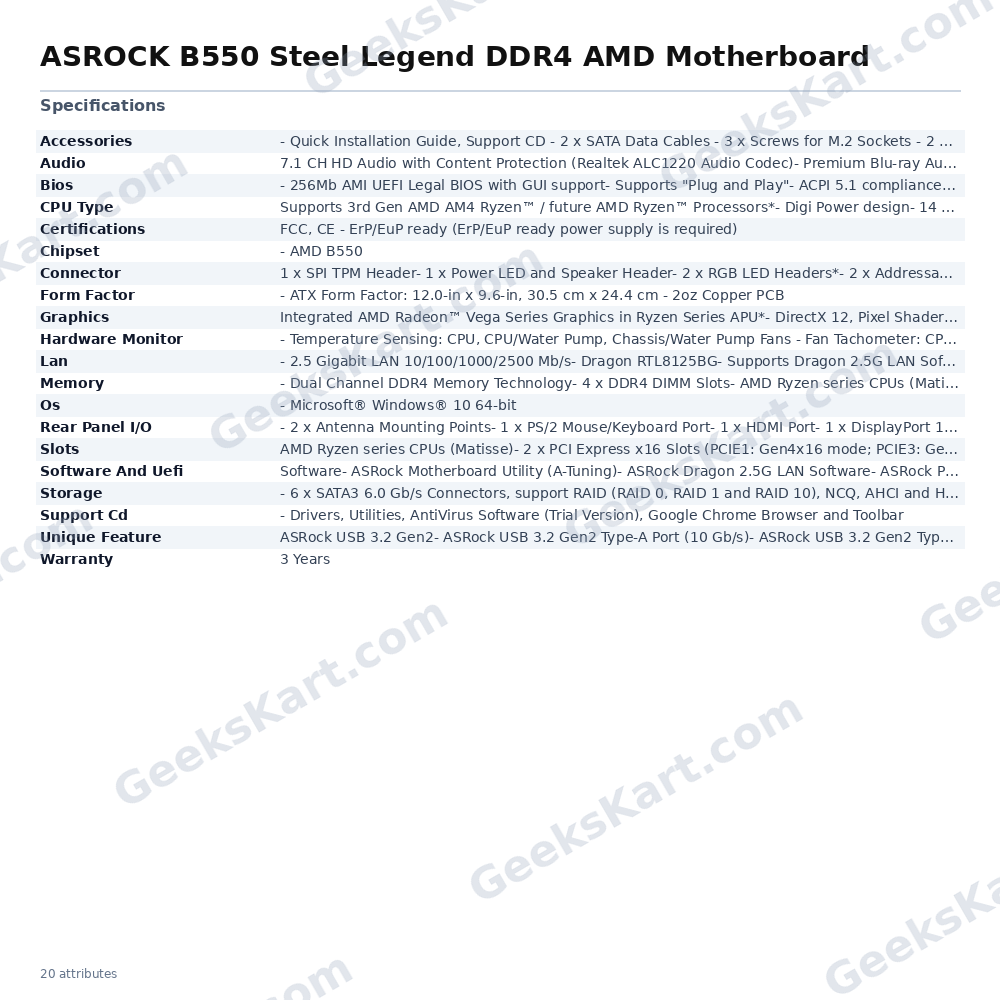

Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – AMD B550 |
| CPU Type | Supports 3rd Gen AMD AM4 RyzenTM / future AMD RyzenTM Processors*- Digi Power design- 14 Power Phase design*Not compatible with AMD RyzenTM 5 3400G and RyzenTM 3 3200G |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- 120dB SNR DAC with Differential Amplifier- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic Audio |
| Slots | AMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*AMD Ryzen series APUs- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*- 2 x PCI Express 3.0 x1 Slots- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module- 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15μ Gold Contact in DIMM Slots**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)***M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.**Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz- Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports- Supports Microsoft® PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed |
| Connector | 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)- 1 x Dr. Debug with LED*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Certifications | FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |

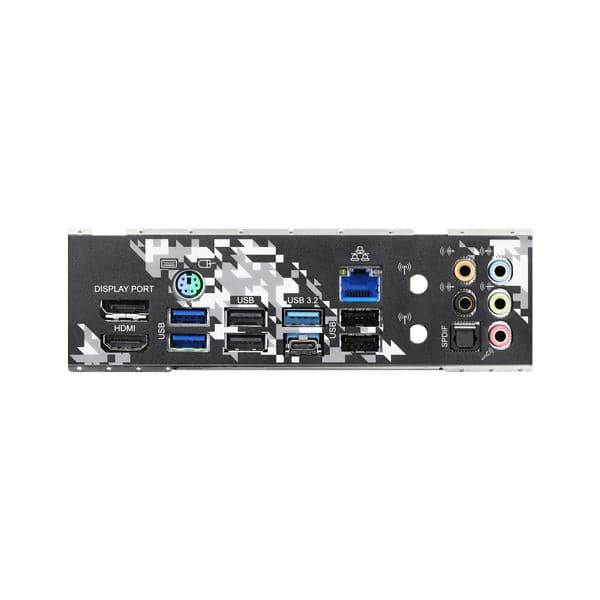

| Rear Panel I/O | – 2 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 4 x USB 2.0 Ports (Supports ESD Protection)*- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB_34 ports.ACPI wake-up function is not supported on USB_34 ports |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCB2.5G LANASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8V |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock Full HD UEFI- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
