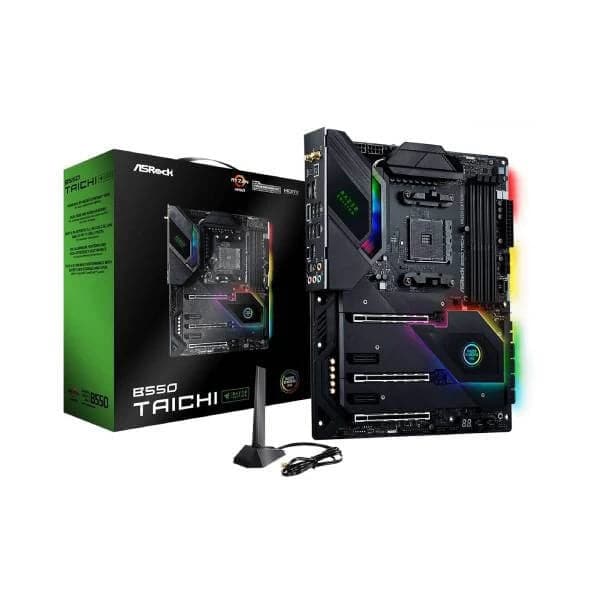

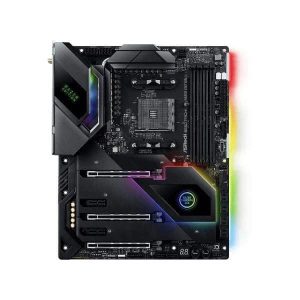

ASROCK B550 Taichi Razer Edition DDR4 AMD Motherboard
MPN ASROCK-B550-TAICHI-RAZER · Brand ASROCK · ATX
The ASRock B550 Taichi Razer Edition is an AMD AM4 ATX motherboard featuring a 16-phase digital VRM, PCIe Gen4 M.2, Killer Wi-Fi 6 (AX1650x), Killer 2.5G LAN, Realtek ALC1220 7.1-channel audio with Nahimic, and Razer Chroma RGB lighting support
Inclusive of GST · GST invoice available
Overview
The ASRock B550 Taichi Razer Edition is a full-sized ATX motherboard built on the AMD B550 chipset, designed for AMD AM4 socket processors including Ryzen 3000, 4000 G-Series, and 5000 Series desktop CPUs (note: not compatible with Ryzen 5 3400G or Ryzen 3 3200G). The board measures 12.0 in × 9.6 in (30.5 cm × 24.4 cm) and features a matte black PCB with a 2 oz copper layer and high-density glass fabric construction for improved signal integrity. At the heart of the power delivery is a 16-phase digital VRM using Dr.MOS stages rated at 50A each, backed by 60A premium power chokes and Nichicon 12K Black polymer capacitors sourced from Japan. This robust VRM design supports stable overclocking headroom for Ryzen 5000 series processors. The board carries four DDR4 DIMM slots in dual-channel configuration supporting up to 128 GB of system memory. Memory speeds up to DDR4 5200+ (OC) are listed in the specifications, with native support for XMP profiles. Storage connectivity includes two M.2 sockets — the Hyper M.2 (M2_1) supports PCIe Gen4 x4 at up to 64 Gb/s with Vermeer and Matisse CPUs, and the Ultra M.2 (M2_2) supports PCIe Gen3 x4 (32 Gb/s) or SATA3. Eight SATA3 6.0 Gb/s ports are provided, with four supporting RAID 0/1/10 via the native B550 controller and four via an ASMedia ASM1061 controller. Expansion slots include three PCIe x16 slots (PCIe Gen4 x16 single, Gen4 x8/x8 dual, or Gen4 x8/x8/Gen3 x4 triple with Vermeer/Matisse CPUs) and two PCIe 3.0 x1 slots, supporting AMD 3-Way CrossFireX configurations. Networking is handled by a Killer E3100X 2.5G LAN controller (10/100/1000/2500 Mb/s) paired with a Killer AX1650x Wi-Fi 6 (802.11ax, up to 2.4 Gbps) module with Bluetooth 5.1 and MU-MIMO support. Killer DoubleShot Pro allows simultaneous use of wired and wireless connections for prioritised traffic routing. Audio is delivered through a Realtek ALC1220 7.1-channel HD audio codec with a NE5532 headset amplifier supporting impedances up to 600 Ohm, PCB isolate shielding, individual PCB layers per audio channel, and Nahimic Audio software enhancement. Rear I/O includes 1× USB 3.2 Gen2 Type-A, 1× USB 3.2 Gen2 Type-C, 4× USB 3.2 Gen1 Type-A, 2× USB 2.0, HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (5K@120Hz), optical S/PDIF output, and gold-plated audio jacks. RGB lighting is managed through Razer Synapse 3 software, with two ARGB headers and two standard RGB headers onboard. The board carries a 3-year warranty and holds FCC and CE certifications. Verified Specifications: - Chipset: AMD B550 - Socket: AMD AM4 - CPU Support: Ryzen 3000 / 4000 G-Series / 5000 Series (excl. Ryzen 5 3400G, Ryzen 3 3200G) - Memory: 4× DDR4 DIMM, Dual Channel, max 128 GB, up to DDR4 5200+ (OC) - M.2: 1× PCIe Gen4 x4 (Hyper M.2), 1× PCIe Gen3 x4/SATA3 (Ultra M.2) - SATA3: 8 ports (4 native + 4 via ASMedia ASM1061) - LAN: Killer E3100X 2.5 Gb/s - Wi-Fi: Killer AX1650x 802.11ax (Wi-Fi 6), BT 5.1 - Audio: Realtek ALC1220, 7.1 CH, Nahimic Audio - USB (Rear): 1× Gen2 Type-A, 1× Gen2 Type-C, 4× Gen1, 2× USB 2.0 - Display Out: HDMI 2.1, DisplayPort 1.4 - Form Factor: ATX, 30.5 cm × 24.4 cm - Warranty: 3 Years

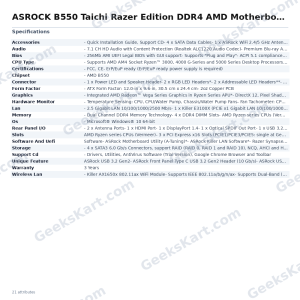

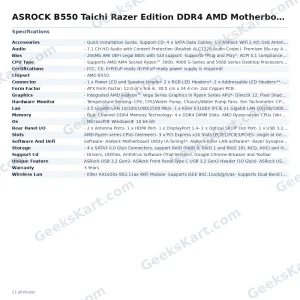

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – AMD B550 |
| CPU Type | – Supports AMD AM4 Socket RyzenTM 3000, 4000 G-Series and 5000 Series Desktop Processors*- Digi Power design- 16 Power Phase design*Not compatible with AMD RyzenTM 5 3400G and RyzenTM 3 3200G |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- 1 x Killer E3100X (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)- Supports Killer LAN Software- Supports Killer DoubleShot™ Pro- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic Audio |
| Slots | AMD Ryzen series CPUs (Vermeer)- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*AMD Ryzen series CPUs (Matisse)- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*AMD Ryzen series APUs (Renoir)- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5))*- 2 x PCI Express 3.0 x1 Slots- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)- 15μ Gold Contact in VGA PCIe Slot (PCIE1)*If PCIE2 or PCIE4 is occupied, PCIE5 will downgrade to x2 mode.Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Vermeer) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15μ Gold Contact in DIMM Slots*Please refer to below table for AMD non-XMP memory frequency support. For more details, please refer to the QVL on ASRock's website.SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug- 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120×2880)@120Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports- Supports Microsoft® PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed |
| Connector | – 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED- 1 x Clear CMOS Button*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD- 4 x SATA Data Cables- 1 x ASRock WiFi 2.4/5 GHz Antenna- 1 x ASRock Screwdriver- 2 x Screws for M.2 Sockets- 2 x Standoffs for M.2 Sockets |
| Wireless Lan | – Killer AX1650x 802.11ax WiFi Module- Supports IEEE 802.11a/b/g/n/ax- Supports Dual-Band (2.4/5 GHz)- Supports Killer WiFi6 802.11ax (2.4Gbps)- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.1 + High speed class II- Supports MU-MIMO- Supports Killer LAN Software- Supports Killer DoubleShot™ Pro |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- 1 x Clear CMOS Button- 1 x BIOS Flashback Button- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB3_1_2 ports.ACPI wake-up function is not supported on USB3_1_2 ports |
| Unique Feature | ASRock USB 3.2 Gen2- ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- 50A Dr.MOS- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBKiller 2.5G LANKiller 802.11ax WiFiKiller DoubleShot™ ProASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)*- ASRock Killer LAN Software*- Razer Synapse 3**UEFI- ASRock Full HD UEFI- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
