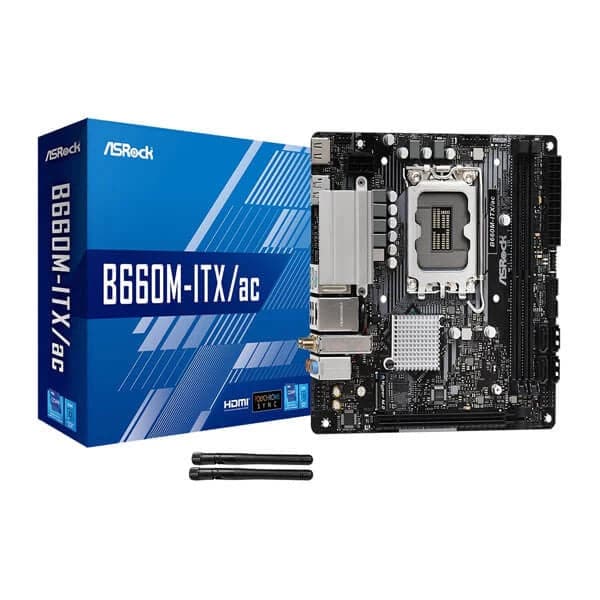

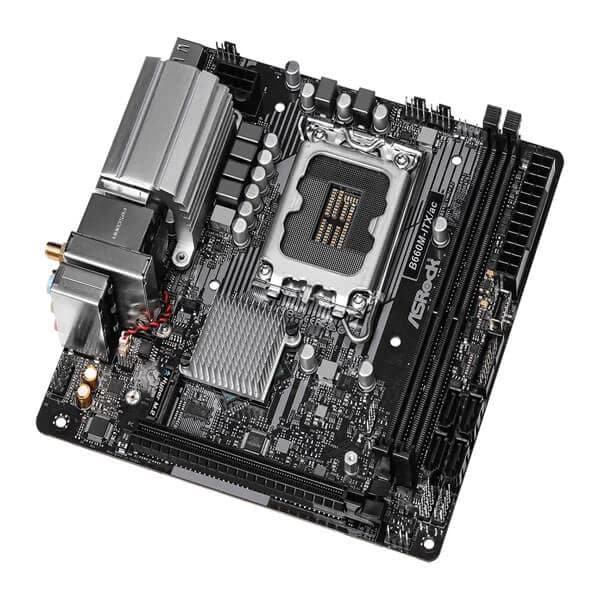

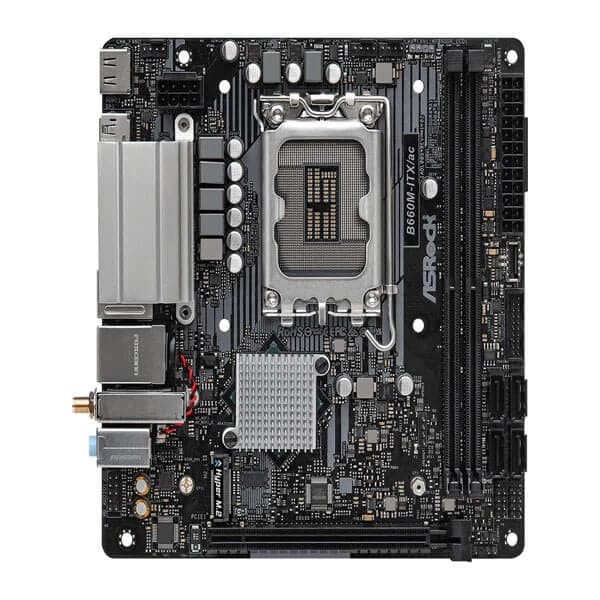

ASROCK B660M ITX/AC Wifi DDR4 Intel Motherboard
MPN ASROCK-B660M-ITX-AC · Brand ASROCK · Mini-ITX
The ASRock B660M ITX/AC is a Mini-ITX Intel B660 motherboard supporting 12th and 13th Gen LGA1700 processors, dual-channel DDR4 up to 64 GB, PCIe 4.0 x16, Hyper M.2 Gen4, HDMI 2.1, DisplayPort 1.4, and built-in 802.11ac Wi-Fi with Bluetooth
Inclusive of GST · GST invoice available
Overview
The ASRock B660M ITX/AC is a Mini-ITX form-factor motherboard built on Intel's B660 chipset and designed for 12th and 13th Generation Intel Core processors using the LGA1700 socket. At just 17.0 cm x 17.0 cm (6.7-in x 6.7-in), it delivers a surprisingly complete feature set into one of the smallest standard PC form factors available, making it a practical foundation for compact desktop builds, home-office systems, and space-constrained workstations. Power delivery is handled by a 6-phase Dr.MOS design rated at 50A per phase, supporting Intel Hybrid Technology and Intel Turbo Boost Max 3.0 Technology. Two DDR4 DIMM slots accept up to 64 GB of dual-channel non-ECC unbuffered memory with XMP 2.0 support and overclocked speeds up to DDR4 5000 MHz (OC). Storage options are generous for the platform: a CPU-connected Hyper M.2 slot (Key M, type 2280) runs at PCIe Gen4 x4 (up to 64 Gb/s) or SATA3 6.0 Gb/s, while four additional SATA3 6.0 Gb/s connectors on the chipset support RAID 0, 1, 5, and 10 configurations. The single PCIe 4.0 x16 slot handles discrete GPU installations. Display output is provided through an HDMI 2.1 port (up to 4K/60Hz) and a DisplayPort 1.4 port (up to 8K/60Hz compressed via DSC), both driven by the integrated Intel Xe Graphics (Gen 12) architecture when a compatible CPU is installed. Audio is managed by a Realtek ALC897 codec delivering 7.1-channel HD audio with surge protection. Connectivity highlights include an Intel I219V Gigabit LAN controller with Wake- LAN and ESD protection, plus an onboard 802.11ac (Wi-Fi 5) dual-band module supporting IEEE 802.11a/b/g/n/ac frequencies (2.4 GHz and 5 GHz) at up to 433 Mbps, paired with Bluetooth. Two external antenna ports are included on the rear I/O panel. USB ports span USB 3.2 Gen1 (two rear, two front-panel header, one front Type-C header) and USB 2.0 (two rear, two front-panel header), all with ESD protection. The rear panel also provides a PS/2 keyboard/mouse port, RJ-45 LAN port, and HD audio jacks. An addressable LED header enables ARGB lighting via ASRock Polychrome SYNC software. The board ships with ASRock's 128 Mb AMI UEFI BIOS (multilingual GUI, ACPI 6.0, SMBIOS 2.7), A-Tuning software, XFast LAN, and Full Spike Protection across all USB, audio, and LAN ports. In the box: I/O shield, two SATA data cables, two 2.4/5 GHz Wi-Fi antennas, one M.2 mounting screw, support CD, and quick installation guide. The board carries FCC and CE certifications and is ErP/EuP ready. ASRock provides a 3-year warranty. Verified Specifications: - Form Factor: Mini-ITX, 17.0 cm x 17.0 cm - Chipset: Intel B660 - CPU Socket: LGA1700 (12th & 13th Gen Intel Core) - Memory: 2x DDR4 DIMM, max 64 GB, up to DDR4 5000 (OC), XMP 2.0 - GPU Slot: 1x PCIe 4.0 x16 - Storage: 1x Hyper M.2 (PCIe Gen4 x4 / SATA3), 4x SATA3 6.0 Gb/s - Display: HDMI 2.1 (4K/60Hz), DisplayPort 1.4 (8K/60Hz DSC) - Audio: Realtek ALC897, 7.1-channel HD - LAN: Intel I219V Gigabit (10/100/1000 Mb/s) - Wi-Fi: 802.11ac dual-band (2.4/5 GHz), up to 433 Mbps + Bluetooth - USB: 2x USB 3.2 Gen1 rear, 2x USB 2.0 rear, front-panel headers for 2x USB 3.2 Gen1, 2x USB 2.0, 1x USB 3.2 Gen1 Type-C - RAID: 0, 1, 5, 10 (SATA) - OS Support: Windows 10 64-bit / Windows 11 64-bit - Warranty: 3 Years

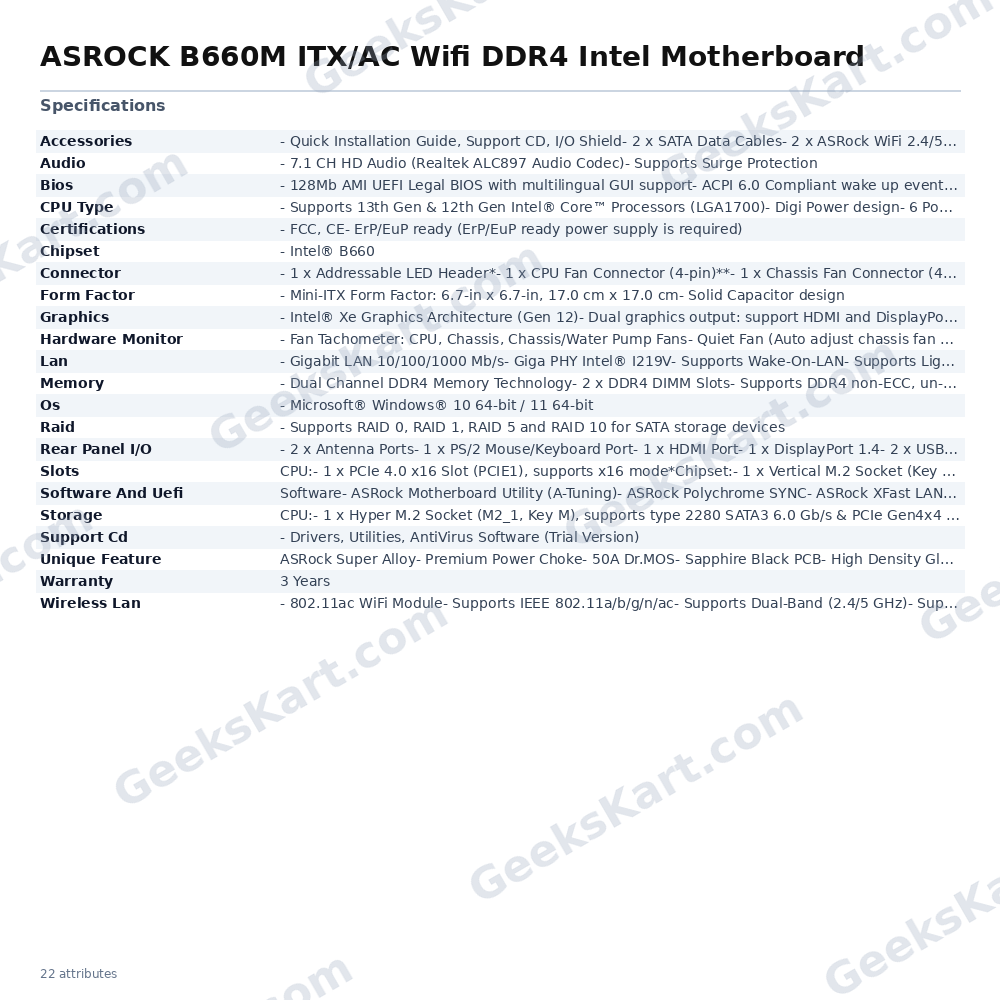

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | – Intel® B660 |
| CPU Type | – Supports 13th Gen & 12th Gen Intel® CoreTM Processors (LGA1700)- Digi Power design- 6 Power Phase design- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports UEFI PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Supports Surge Protection |
| Slots | CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| Memory | – Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB- Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Storage | CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*Chipset:- 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12)- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Connector | – 1 x Addressable LED Header*- 1 x CPU Fan Connector (4-pin)**- 1 x Chassis Fan Connector (4-pin)***- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5 GHz Antennas- 1 x Screw for M.2 Socket |
| Wireless Lan | – 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth + High speed class II |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

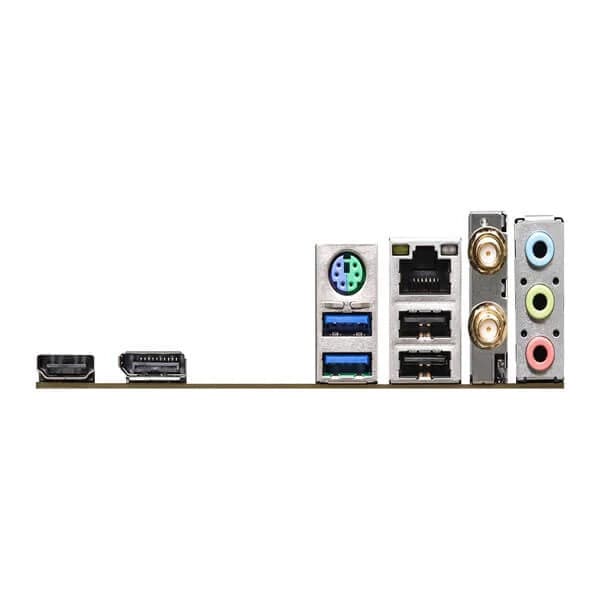

| Rear Panel I/O | – 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy- Premium Power Choke- 50A Dr.MOS- Sapphire Black PCB- High Density Glass Fabric PCB802.11ac WiFiASRock Hyper M.2 (PCIe Gen4x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans- Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installe |
