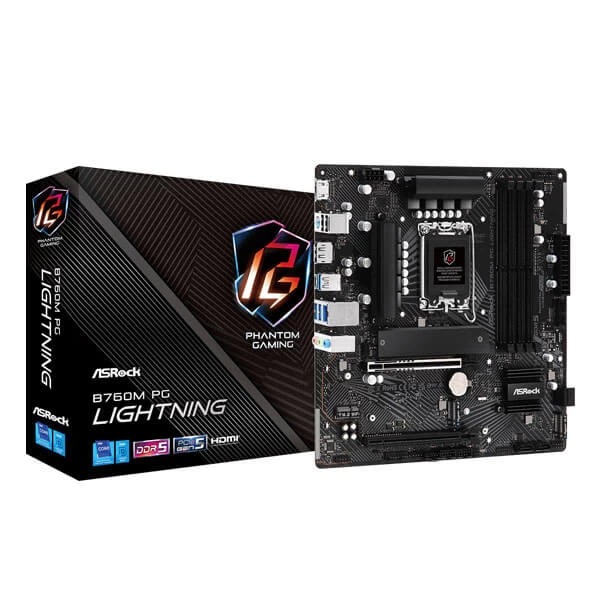

ASRock B760M PG Lightning Motherboard – Intel LGA1700, DDR5 & PCIe 5.0
MPN B760M-PG-LIGHTNING · Brand AsRock
ASRock B760M PG Lightning is a Micro-ATX LGA1700 motherboard supporting Intel 12th–14th Gen processors, DDR5 up to 7200MHz OC, PCIe 5.0 x16, and three PCIe Gen4 M.2 slots
Inclusive of GST · GST invoice available
Overview

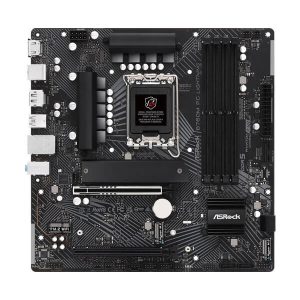

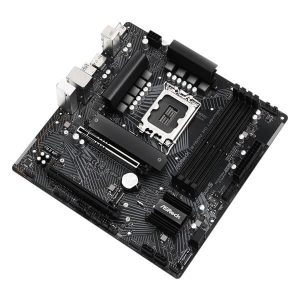

The ASRock B760M PG Lightning is a Micro-ATX motherboard built on Intel's B760 chipset for the LGA1700 socket, offering broad compatibility with Intel 12th Generation (Alder Lake), 13th Generation (Raptor Lake), and 14th Generation (Raptor Lake Refresh) Core processors. It is designed for builders who want a capable, feature-rich foundation without stepping up to a premium Z-series board. On the memory side, the board carries four DDR5 DIMM slots with support for frequencies up to DDR5 7200MHz in overclocked mode, giving enthusiasts headroom for fast RAM kits that pair well with modern processors. For expansion, a full-length PCIe 5.0 x16 slot handles the primary graphics card, while a second PCIe 3.0 x16 slot covers additional cards or riser accessories. A dedicated M.2 Key-E slot is included for optional Wi-Fi module installation. Storage is well catered for with three Hyper M.2 slots all running at PCIe Gen 4 x4 speeds, alongside four SATA3 ports for traditional drives. The power delivery system uses a 7+1+1 phase configuration with Dr.MOS components covering both VCore and GT (integrated graphics) rails, providing stable power to demanding processors under sustained workloads. Display output options on the rear I/O include HDMI and DisplayPort, supporting Intel processors with integrated graphics. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD audio, enhanced by Nahimic Audio software. Connectivity on the rear panel includes one USB 3.2 Gen1 Type-C port, three USB 3.2 Gen1 Type-A ports, and two USB 2.0 ports, with additional front-panel headers providing two USB 3.2 Gen1 Type-A and four USB 2.0 connections. — Verified Specifications — • Socket: LGA1700 • Chipset: Intel B760 • Form Factor: Micro-ATX • CPU Support: Intel 12th, 13th, and 14th Gen Core processors • Memory: 4× DDR5 DIMM, up to DDR5 7200MHz (OC) • PCIe Slots: 1× PCIe 5.0 x16, 1× PCIe 3.0 x16 • M.2 Slots: 3× Hyper M.2 (PCIe Gen4 x4) + 1× M.2 Key-E (Wi-Fi) • Storage: 4× SATA3 • Power Phases: 7+1+1 Dr.MOS • Audio: Realtek ALC897 7.1 CH HD with Nahimic Audio • Display Out: HDMI, DisplayPort • Rear USB: 1× USB 3.2 Gen1 Type-C, 3× USB 3.2 Gen1 Type-A, 2× USB 2.0 • Front USB Headers: 2× USB 3.2 Gen1 Type-A, 4× USB 2.0
