ASROCK B760M PG Lightning Wifi DDR5 Intel Motherboard
MPN ASROCK-B760M-PG-LIGHTNING · Brand ASROCK · mATX
The ASRock B760M PG Lightning WiFi DDR5 is a Micro ATX motherboard for Intel LGA1700 (12th–14th Gen) processors, featuring a 7+1+1 phase Dr.MOS power design, PCIe 5.0 x16, three M.2 Gen4 slots, DDR5 support up to 7200 MHz OC, and 2.5G LAN in a 244 mm x 244 mm form factor
Inclusive of GST · GST invoice available

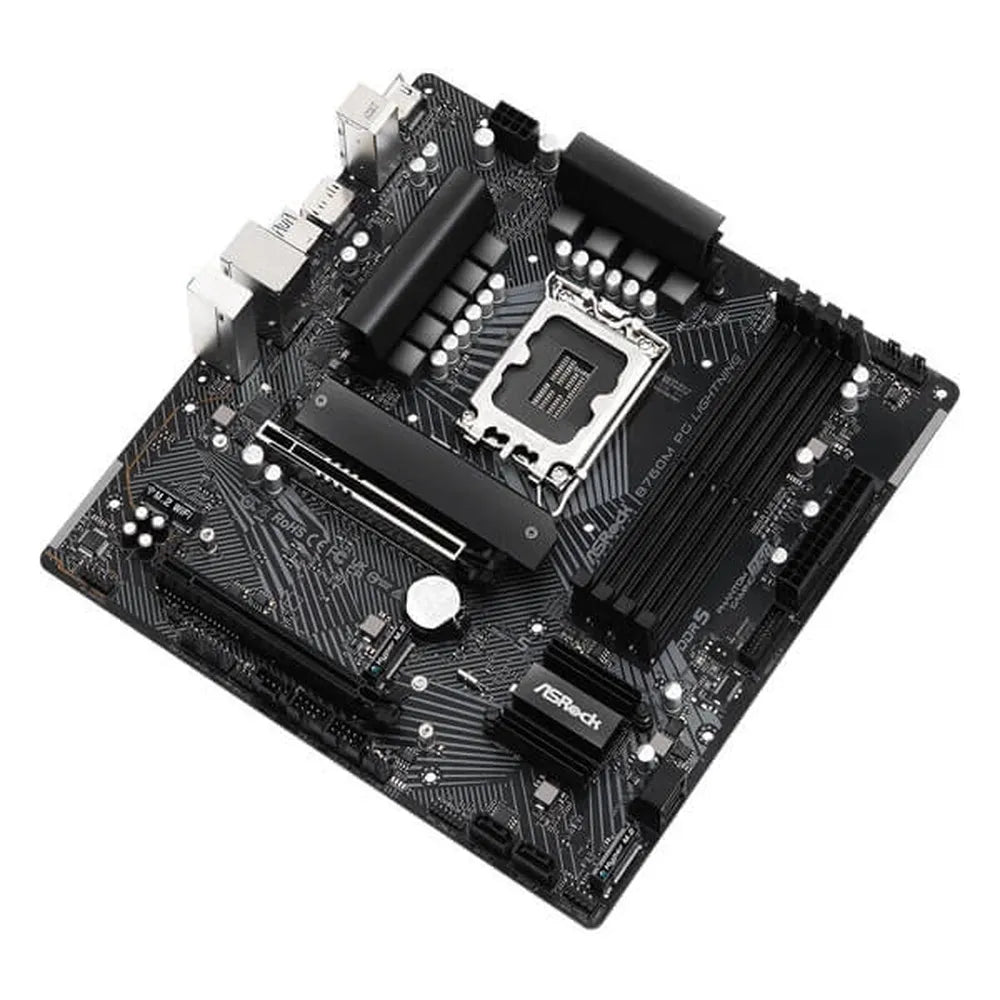

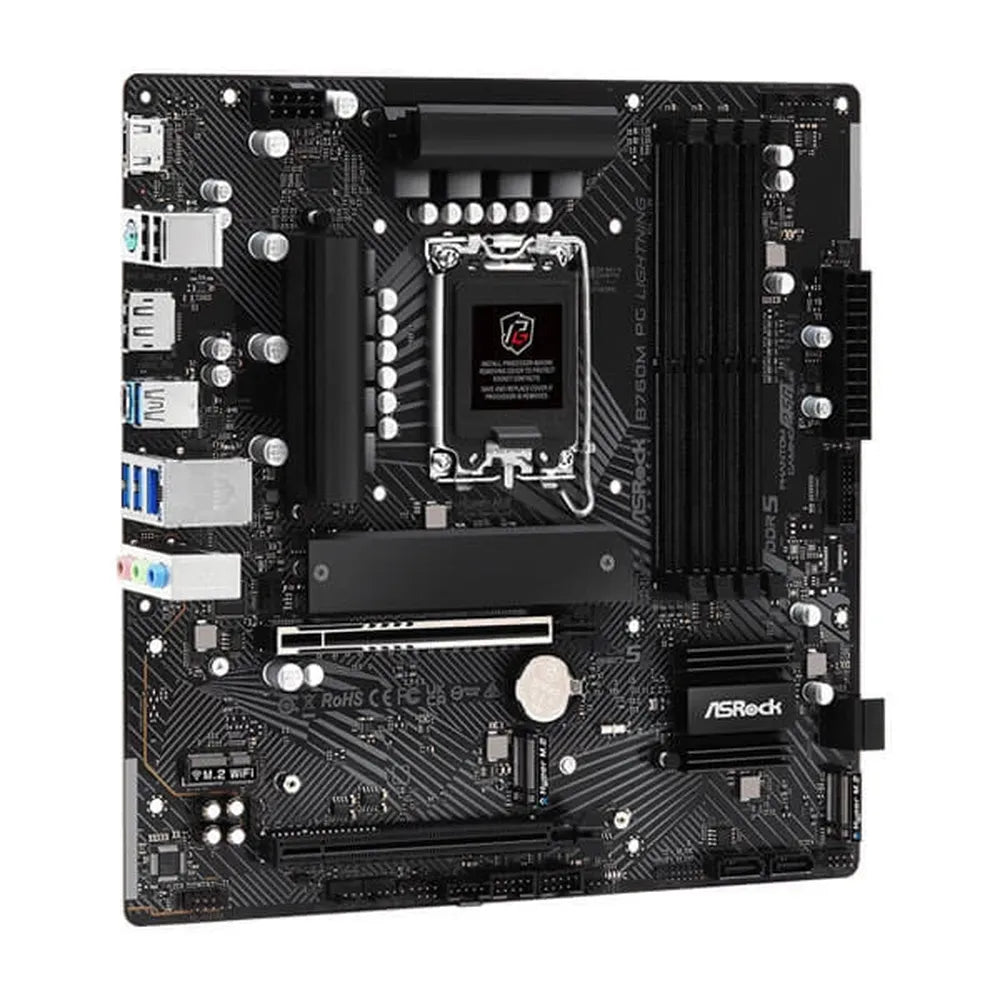

Overview
The ASRock B760M PG Lightning WiFi DDR5 is a Micro ATX motherboard built on Intel's B760 chipset, designed to support 12th, 13th, and 14th Generation Intel Core processors using the LGA1700 socket. It strikes a balance between feature density and platform cost, making it a practical choice for compact gaming and productivity builds that demand modern DDR5 performance without stepping up to a full ATX board. The power delivery subsystem uses a 7+1+1 phase configuration with 50A Dr.MOS components covering VCore and GT power rails, providing stable current delivery during extended workloads. Four DDR5 DIMM slots support dual-channel operation with speeds up to DDR5-7200 MHz in overclocked mode and a maximum installed capacity of 192 GB. Intel XMP 3.0 profiles are supported for straightforward memory tuning via UEFI. Expansion is handled by a PCIe 5.0 x16 slot connected directly to the CPU for the primary graphics card, supplemented by a chipset-connected PCIe 3.0 x16 slot operating at x4 bandwidth. Three Hyper M.2 sockets (M2_1, M2_2, M2_3) all run at PCIe Gen 4 x4 speeds delivering up to 64 Gb/s per slot, and four SATA3 6 Gb/s ports accommodate traditional drives. RAID 0, 1, 5, and 10 configurations are available across SATA devices. Display output on the rear panel includes one HDMI 2.1 port supporting up to 4K at 60 Hz and one DisplayPort 1.4 port supporting up to 8K at 60 Hz or 5K at 120 Hz via DSC compression, both compatible with HDCP 2.3. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD output alongside Nahimic Audio software. Wired networking uses a Realtek Dragon RTL8125BG controller providing 2.5 Gigabit LAN with Phantom Gaming LAN bandwidth management software. A dedicated M.2 Key E socket supports 2230 WiFi/BT modules including Intel CNVio/CNVio2 for integrated wireless connectivity, with two antenna mounting points on the rear panel. USB connectivity includes one USB 3.2 Gen1 Type-C and three USB 3.2 Gen1 Type-A ports on the rear, plus two front-panel USB 3.2 Gen1 Type-A headers and six USB 2.0 ports split between rear and front headers. A Thunderbolt AIC 5-pin connector is present for optional ASRock Thunderbolt 4 add-in cards. Fan control is managed through six 4-pin headers with Smart Fan Speed Control via ASRock's Fan-Tastic Tuning utility, supporting both PWM and DC fan modes. The board ships with a 128 Mb AMI UEFI BIOS with graphical interface, ASRock Instant Flash, and Auto Driver Installer. Verifiable Specifications: Chipset: Intel B760 | Socket: LGA1700 | Form Factor: Micro ATX, 244 mm x 244 mm | Memory: 4x DDR5 DIMM, up to DDR5-7200 (OC), max 192 GB, XMP 3.0 | PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 3.0 x16 at x4 (chipset) | Storage: 3x Hyper M.2 PCIe Gen4 x4, 4x SATA3 6 Gb/s | RAID: 0/1/5/10 (SATA) | LAN: 2.5 GbE Realtek RTL8125BG | Audio: Realtek ALC897, 7.1 CH HD | Display: 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz) | USB Rear: 1x USB 3.2 Gen1 Type-C, 3x USB 3.2 Gen1 Type-A, 2x USB 2.0 | BIOS: 128 Mb AMI UEFI | OS: Windows 10/11 64-bit | Certifications: FCC, CE, ErP/EuP | Warranty: 3 Years

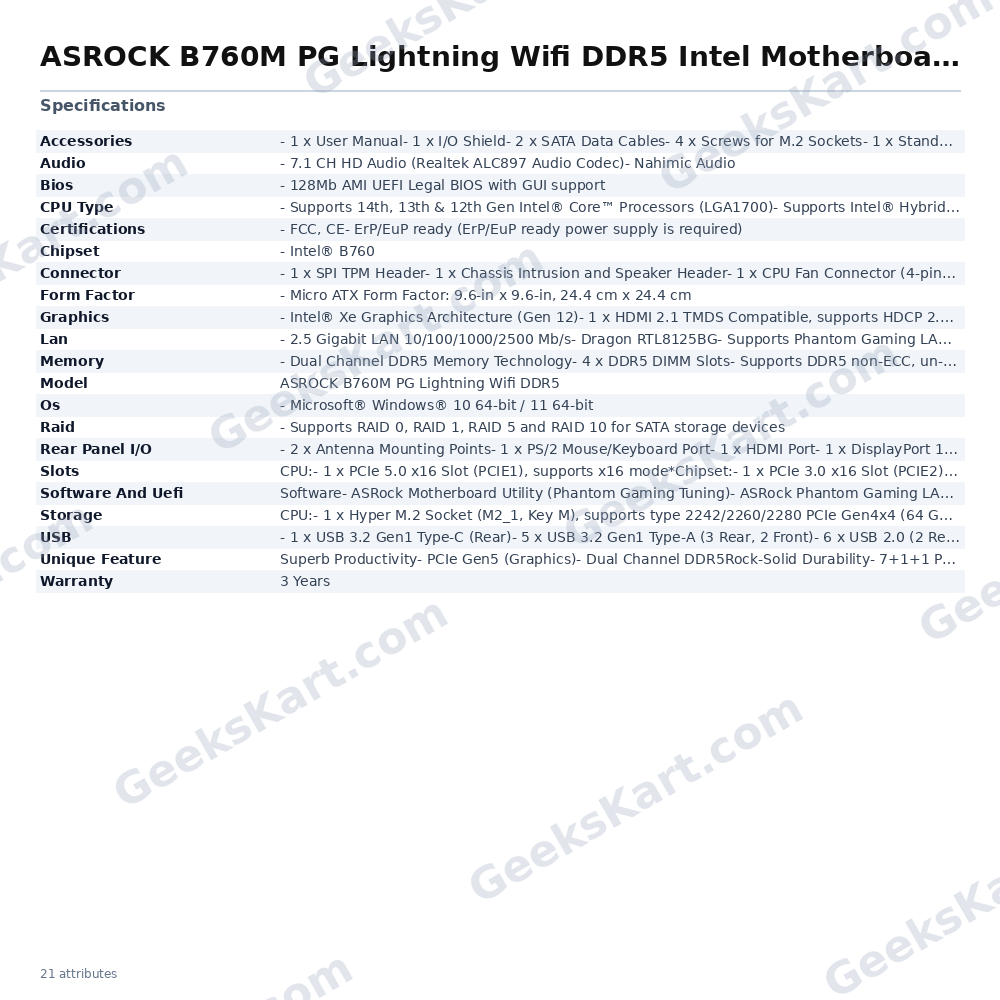

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – Intel® B760 |
| CPU Type | |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Phantom Gaming LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control |
| USB | – 1 x USB 3.2 Gen1 Type-C (Rear)- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front) |
| Bios | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio |
| Slots | CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)- Supports AMD CrossFire™ |
| Memory | – Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*- Max. capacity of system memory: 192GB- Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Storage | CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Connector | – 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Model | ASROCK B760M PG Lightning Wifi DDR5 |
| Accessories | – 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 4 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

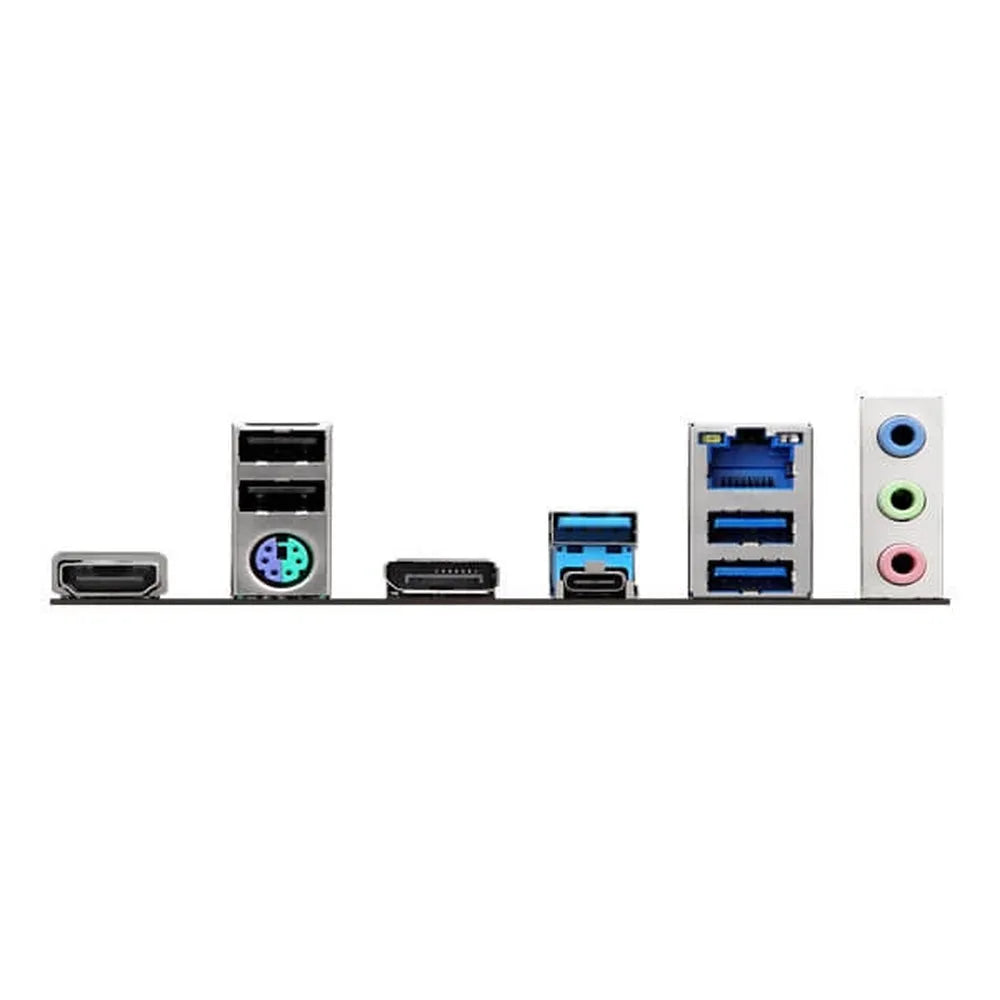

| Rear Panel I/O | – 2 x Antenna Mounting Points- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | Superb Productivity- PCIe Gen5 (Graphics)- Dual Channel DDR5Rock-Solid Durability- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GTUltrafast Connectivity- 2.5G LAN EZ Update- ASRock Auto Driver InstallerEZ Troubleshooter |
| Software And Uefi | Software- ASRock Motherboard Utility (Phantom Gaming Tuning)- ASRock Phantom Gaming LAN Software*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer |
