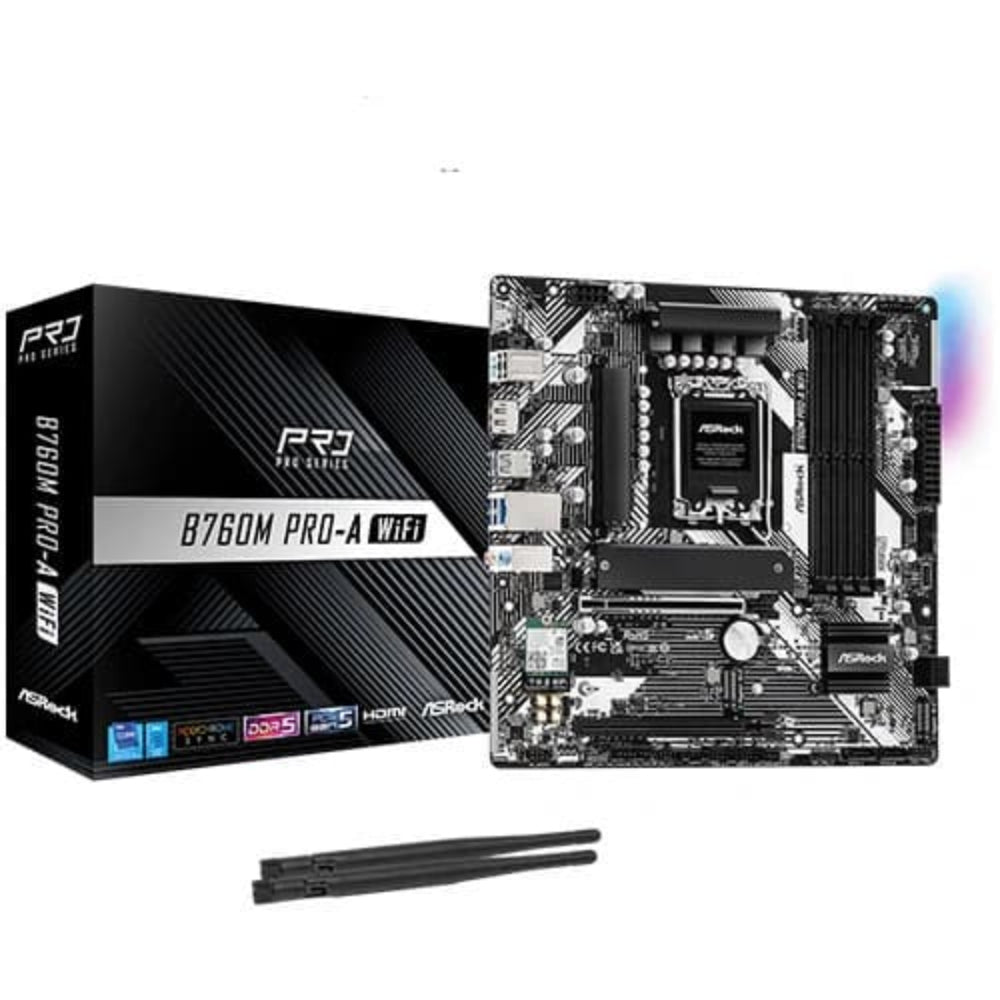

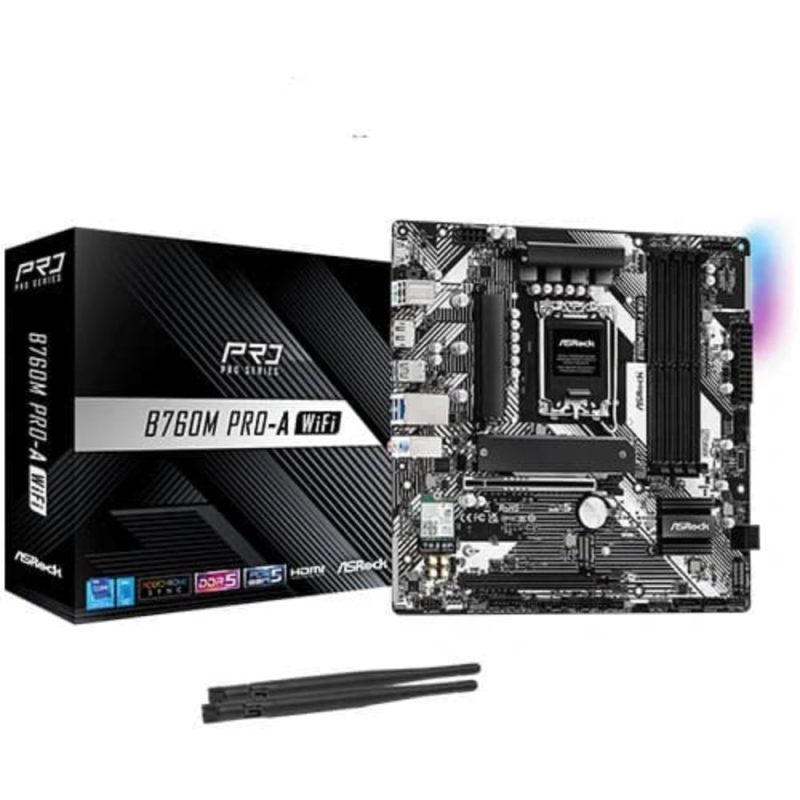

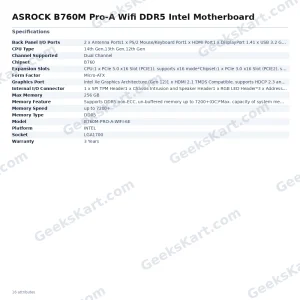

ASROCK B760M Pro-A Wifi DDR5 Intel Motherboard

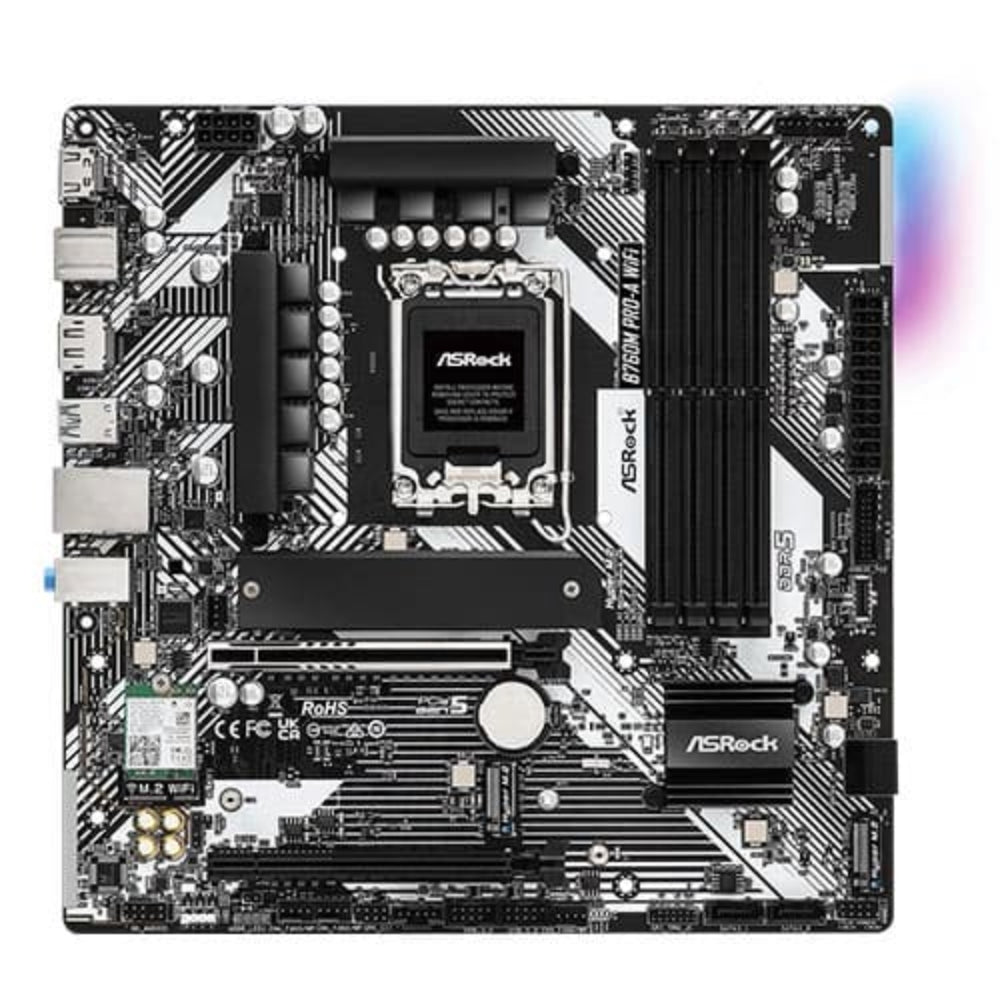

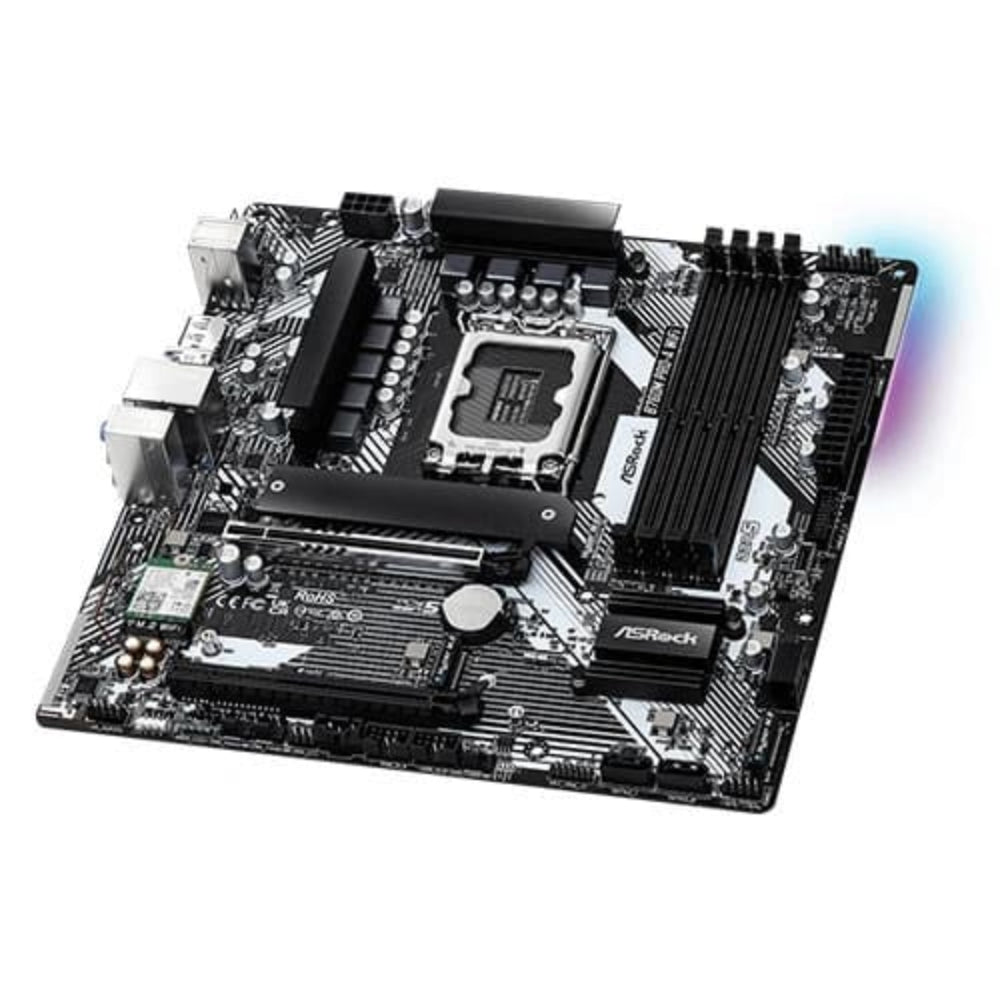

The ASRock B760M Pro-A WiFi DDR5 is a Micro-ATX motherboard built on Intel’s B760 chipset with an LGA1700 socket, offering broad compatibility with 12th, 13th, and 14th Generation Intel Core processors. It is designed to deliver a strong feature set for system builders who want modern connectivity, stable power delivery, and future-ready expansion in a compact form factor. Power delivery is handled by a 7+1+1 phase design using Dr.MOS integrated power stages for the VCore and GT domains. This topology enables efficient and stable current delivery to the CPU under sustained workloads. The board uses a 6-layer PCB, which helps maintain signal integrity and thermal performance, particularly during memory overclocking. Four DDR5 DIMM slots support dual-channel operation with non-ECC unbuffered memory up to 256 GB, and speeds up to DDR5-7200+ in overclocked mode via Intel XMP 3.0 profiles. An onboard DDR5 protection circuit reduces the risk of module damage during installation or removal. For expansion, there is one CPU-connected PCIe 5.0 x16 slot and one chipset-connected PCIe 3.0 x16 slot (operating at x4 mode). Three Hyper M.2 slots (PCIe Gen4 x4) provide fast NVMe storage options, complemented by four SATA3 ports for conventional drives. Wireless connectivity is provided by Intel Killer WiFi 6E (802.11ax), covering 2.4 GHz, 5 GHz, and 6 GHz bands alongside Bluetooth. Wired networking uses a Dragon 2.5 Gb/s LAN controller. The rear panel includes an HDMI 2.1 port (up to 4K 60Hz) and a DisplayPort 1.4 output (up to 8K 60Hz with DSC compression) for integrated graphics use. USB connectivity spans 2 USB 3.2 Gen1 Type-C ports (1 rear, 1 front header), 5 USB 3.2 Gen1 Type-A ports (3 rear, 2 front), and 6 USB 2.0 ports (2 rear, 4 front). Audio is handled by a Realtek ALC897 codec delivering 7.1-channel HD audio. RGB customisation is supported via one RGB header and three addressable RGB headers, compatible with ASRock Polychrome RGB Sync. Verified Specifications: – Chipset: Intel B760 – Socket: LGA1700 – CPU Compatibility: 12th / 13th / 14th Gen Intel Core – Form Factor: Micro-ATX – Memory: 4x DDR5 DIMM, Dual Channel, up to 256 GB, up to DDR5-7200+ (OC), XMP 3.0 – PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 3.0 x16 (Chipset, x4 mode) – Storage: 3x M.2 (PCIe Gen4 x4), 4x SATA3 – Display Output: 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (8K 60Hz DSC) – Audio: Realtek ALC897 7.1 CH HD – LAN: Dragon 2.5 Gb/s – WiFi: Intel Killer WiFi 6E 802.11ax + Bluetooth – USB (Rear): 1x USB 3.2 Gen1 Type-C, 3x USB 3.2 Gen1 Type-A, 2x USB 2.0 – Power Phase: 7+1+1 Dr.MOS – Warranty: 3 Years
