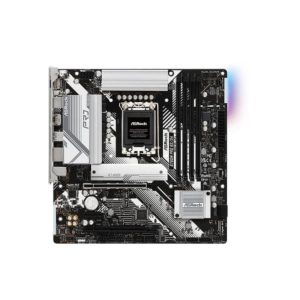

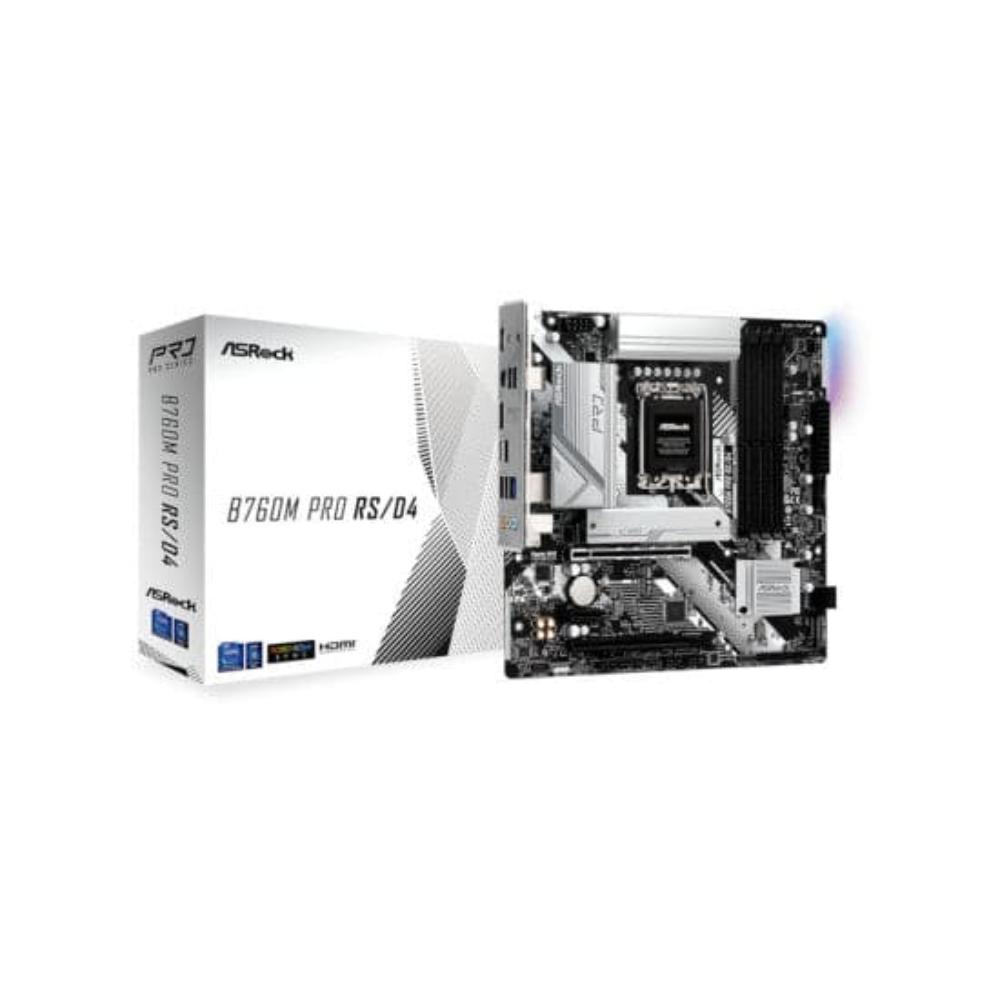

ASROCK B760M Pro RS/D4 Intel Motherboard

The ASRock B760M Pro RS/D4 is a Micro ATX motherboard built on the Intel B760 chipset, designed to support 12th and 13th Generation Intel Core processors using the LGA1700 socket. Its compact 9.6-inch × 9.6-inch (24.4 cm × 24.4 cm) form factor makes it a practical choice for space-conscious builds without sacrificing connectivity or expansion options. The power delivery system features a 7+1+1 phase configuration with 50A Dr.MOS integrated power stages handling the VCore and GT rails. This design provides efficient current delivery and improved thermal performance compared to traditional discrete MOSFET implementations. For memory, the board offers four DDR4 DIMM slots supporting dual-channel operation. Speeds reach up to 3200 MHz natively and up to 5333+ MHz in overclocked configurations under the 1DPC 1R arrangement. Maximum system memory capacity is 128 GB, and the board supports Intel XMP 2.0 profiles. Storage is well covered with two Hyper M.2 sockets — both supporting PCIe Gen4 x4 (up to 64 Gb/s) — alongside four SATA3 6.0 Gb/s connectors. RAID 0, 1, 5, and 10 configurations are supported for SATA devices, and Intel VMD is also available. The graphics output section includes one HDMI 2.1 port capable of up to 4K 60Hz and one DisplayPort 1.4 (with DSC compression) supporting up to 8K 60Hz, both requiring a CPU with integrated graphics. Networking is handled by a Realtek Dragon RTL8125BG controller delivering 2.5 Gigabit LAN (10/100/1000/2500 Mb/s) with ASRock's Dragon LAN software for bandwidth management and priority control. A Key E M.2 socket accommodates an optional Wi-Fi/BT PCIe module or Intel CNVio2 card. Audio is delivered via the Realtek ALC897 7.1-channel HD Audio codec with Nahimic Audio software integration. USB connectivity totals 13 ports: 2× USB 3.2 Gen1 Type-C, 5× USB 3.2 Gen1 Type-A, and 6× USB 2.0 across front and rear positions, all with ESD protection. Additional headers include one RGB LED header, three addressable RGB headers, six fan/pump connectors with Smart Fan Speed Control, an SPI TPM header, and a Thunderbolt AIC connector (5-pin) compatible with ASRock Thunderbolt 4 AIC cards. The BIOS is a 128Mb AMI UEFI with Full HD GUI support. The board carries FCC and CE certifications and ships with a 3-year manufacturer warranty. Verified Specifications: - Socket: LGA1700 | Chipset: Intel B760 - CPU Support: 12th & 13th Gen Intel Core - Form Factor: Micro ATX, 244 mm × 244 mm - Memory: 4× DDR4 DIMM, dual-channel, max 128 GB, up to 5333+ MHz (OC), XMP 2.0 - Expansion: 1× PCIe 4.0 x16 (CPU), 1× PCIe 4.0 x16 (chipset, x4 mode), 1× PCIe 4.0 x1 - Storage: 2× M.2 PCIe Gen4×4, 4× SATA3 6 Gb/s, RAID 0/1/5/10 - Display: 1× HDMI 2.1 (4K 60Hz), 1× DisplayPort 1.4 (8K 60Hz compressed) - LAN: Realtek RTL8125BG 2.5 GbE - Audio: Realtek ALC897, 7.1 CH HD - USB: 2× Gen1 Type-C, 5× Gen1 Type-A, 6× USB 2.0 - BIOS: 128Mb AMI UEFI - OS: Windows 10 / 11 64-bit - Warranty: 3 Years
