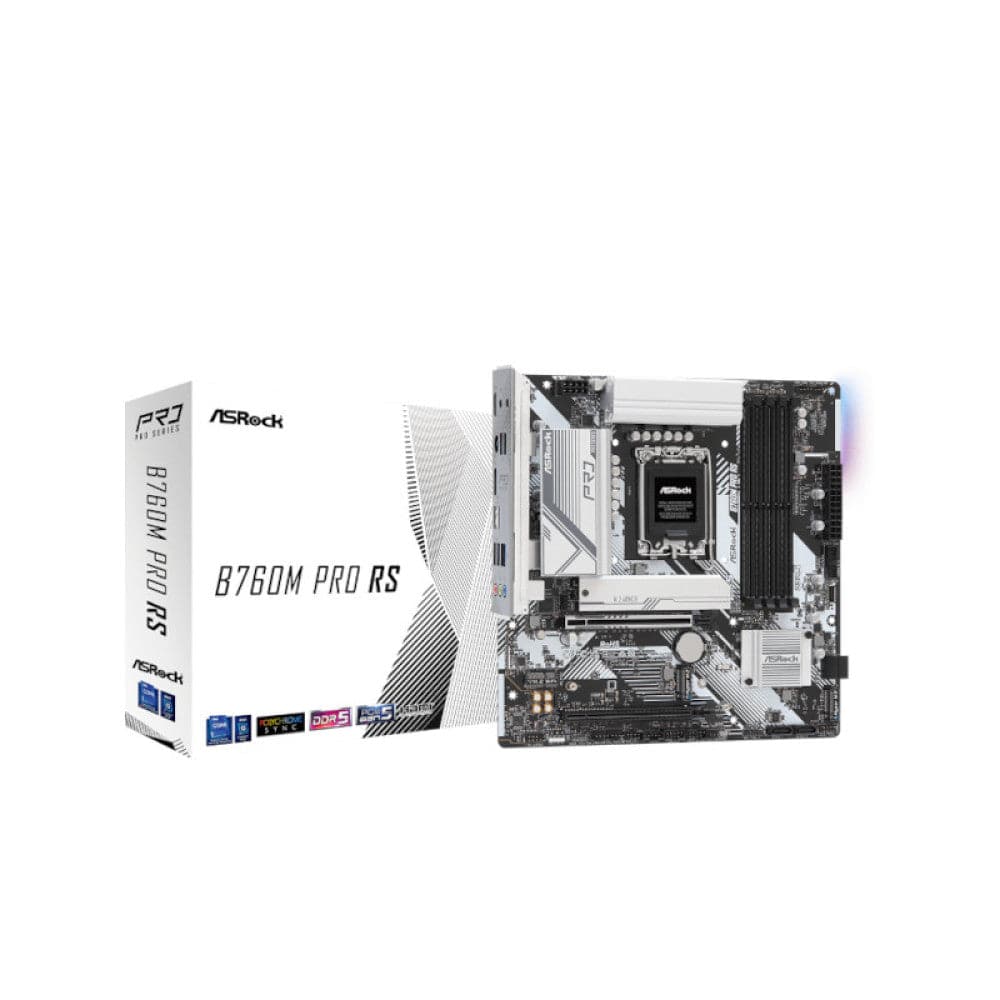

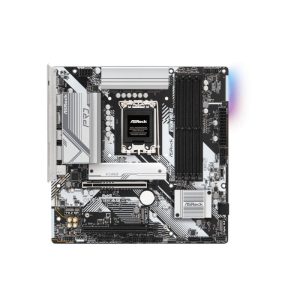

ASROCK B760M Pro RS DDR5 Intel Motherboard

The ASRock B760M Pro RS DDR5 is a Micro ATX motherboard designed around Intel's B760 chipset and the LGA1700 socket, offering compatibility with 12th, 13th, and 14th Generation Intel Core processors. At 9.6 x 9.6 inches (24.4 x 24.4 cm), it fits standard Micro ATX chassis while packing a feature set typically associated with larger boards. Memory support is handled by four DDR5 DIMM slots capable of dual-channel operation, accepting non-ECC unbuffered modules up to a maximum system capacity of 192 GB. Native speeds start at 4800 MHz (1DPC 1R), with XMP 3.0 and EXPO profiles enabling overclocked operation up to 7200+ MHz under 1DPC 1R configuration. The board is also equipped with a DDR5 protection circuit that reduces the risk of memory damage during improper removal or installation. Expansion is anchored by a PCIe 5.0 x16 slot connected directly to the CPU, delivering up to 128 GB/s of bandwidth for current and next-generation discrete graphics cards. A second PCIe 3.0 x16 slot (operating at x4 mode) is supplied by the chipset. Storage options include three Hyper M.2 sockets all running PCIe Gen4 x4 at up to 64 Gb/s, plus four SATA3 6 Gb/s ports. RAID 0, 1, 5, and 10 are supported for SATA devices. Networking is handled by a Realtek Dragon RTL8125BG 2.5 Gigabit LAN controller, supporting 10/100/1000/2500 Mb/s speeds alongside ASRock's Dragon LAN software for traffic prioritisation. Wireless connectivity requires an optional M.2 Key E Wi-Fi module (Intel CNVio/CNVio2 compatible). Display outputs include one HDMI 2.1 port (up to 4K 60Hz) and one DisplayPort 1.4 with DSC (up to 8K 60Hz), both requiring a processor with integrated graphics. Audio is delivered via a Realtek ALC897 codec with 7.1-channel HD output and Nahimic Audio software. USB connectivity totals 13 ports: two USB 3.2 Gen1 Type-C (one rear, one front header), five USB 3.2 Gen1 Type-A (three rear, two front), and six USB 2.0 (two rear, four front via headers). All ports carry ESD protection. Power delivery uses a 7+1+1 phase design with 50A Dr.MOS for VCore and GT rails. Fan headers include one CPU fan, one CPU/water pump fan, and four chassis/water pump fan connectors, all 4-pin and smart-speed controlled. Verified Specifications: - Socket: LGA1700 | Chipset: Intel B760 - Form Factor: Micro ATX, 24.4 x 24.4 cm - Memory: 4x DDR5 DIMM, dual-channel, max 192 GB, up to DDR5-7200 (OC), XMP 3.0 - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 3.0 x16 at x4 (chipset) - Storage: 3x M.2 PCIe Gen4 x4, 4x SATA3 6 Gb/s; RAID 0/1/5/10 - LAN: 2.5G Realtek Dragon RTL8125BG - Audio: Realtek ALC897, 7.1 CH HD, Nahimic Audio - Display: HDMI 2.1 (4K 60Hz), DisplayPort 1.4 (8K 60Hz) - USB: 2x USB 3.2 Gen1 Type-C, 5x USB 3.2 Gen1 Type-A, 6x USB 2.0 - BIOS: 128Mb AMI UEFI with GUI - OS: Windows 10 / 11 64-bit - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years - In the box: User manual, 2x SATA cables, 4x M.2 screws, 1x M.2 standoff
