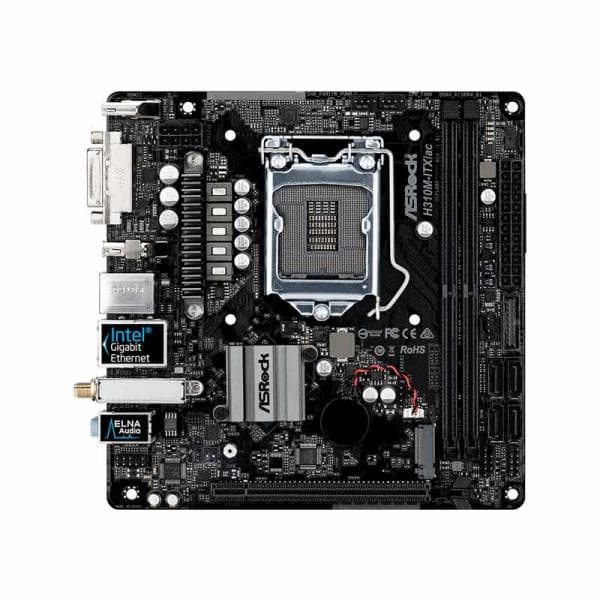

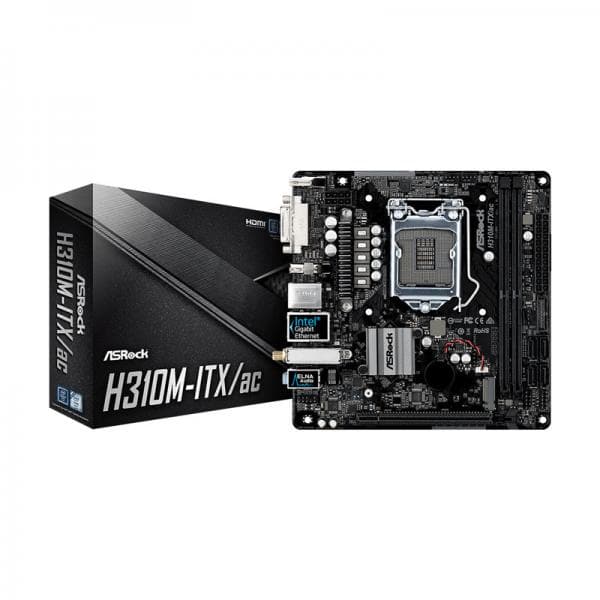

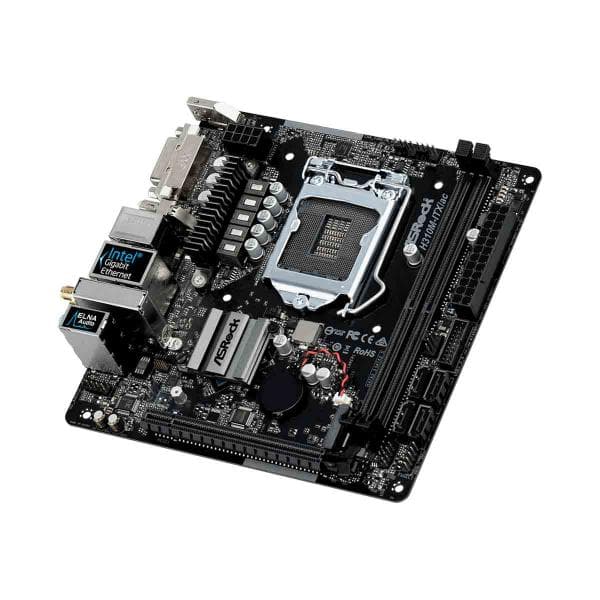

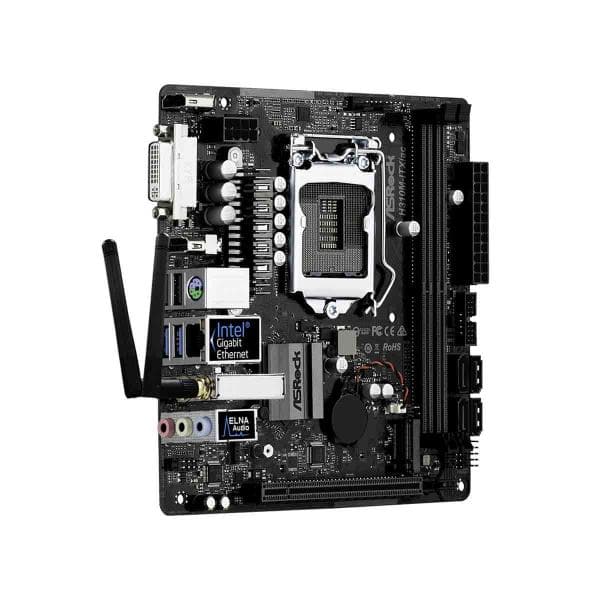

ASROCK H310M-ITX/Ac DDR4 Intel Motherboard
MPN ASROCK-H310M-ITX-AC-MOTHERBOARD · Brand ASROCK · Mini-ITX
The ASRock H310M-ITX/ac is a compact Mini-ITX motherboard with Intel H310 chipset, LGA 1151 socket for 8th Gen Intel CPUs, dual-channel DDR4-2666, built-in 802.11ac Wi-Fi, Bluetooth 4.2, and triple display output — ideal for space-efficient builds
Inclusive of GST · GST invoice available
Overview
The ASRock H310M-ITX/ac is a Mini-ITX form factor motherboard built on the Intel H310 chipset, designed for compact desktop and HTPC builds that demand reliable performance in a small footprint. Measuring just 17.0 cm x 17.0 cm (6.7 in x 6.7 in), this board fits standard Mini-ITX chassis while delivering a feature set that punches well above its size. At its core, the H310M-ITX/ac supports 8th Generation Intel Core processors via the LGA 1151 socket, with a 5-phase Digi Power design and support for CPUs up to 95W TDP. Intel Turbo Boost 2.0 Technology is also supported, allowing compatible processors to dynamically increase clock speeds when headroom permits. Memory support spans dual-channel DDR4 across two DIMM slots, accommodating DDR4-2666, DDR4-2400, and DDR4-2133 unbuffered non-ECC modules, with a maximum system memory capacity of 32 GB. Intel XMP 2.0 profiles are supported for compatible kits, and DIMM slots feature 15µ gold contacts for long-term connection reliability. Connectivity is a standout for this form factor. An integrated Intel 802.11ac Wi-Fi module delivers dual-band wireless (2.4 GHz and 5 GHz) with speeds up to 433 Mbps, alongside Bluetooth 4.2/3.0 support. Wired networking is handled by a Gigabit Intel I219V LAN controller with Wake- LAN and Energy Efficient Ethernet 802.3az. The rear I/O includes three video outputs — DVI-I, HDMI (up to 4K@30Hz), and DisplayPort 1.2 (up to 4K@60Hz) — supporting up to two displays simultaneously via Intel UHD Graphics. Storage options include four SATA3 6 Gb/s connectors with NCQ, AHCI, and hot-plug support, plus one M.2 socket (Key M, 2280) capable of SATA3 or PCIe Gen2 x4 NVMe drives. Audio is handled by a Realtek ALC887 codec offering 7.1-channel HD output with ELNA audio capacitors and surge protection. ASRock's Full Spike Protection covers all USB, audio, and LAN ports. The board ships with a 128 Mb AMI UEFI BIOS featuring a full HD GUI, ASRock Instant Flash, and Internet Flash update capability. Verified Specifications: - Form Factor: Mini-ITX, 17.0 cm x 17.0 cm - Chipset: Intel H310 - Socket: LGA 1151 (8th Gen Intel Core) - Memory: 2 x DDR4 DIMM, max 32 GB, DDR4-2666/2400/2133, XMP 2.0 - Storage: 4 x SATA3 6 Gb/s + 1 x M.2 (SATA3 / PCIe Gen2 x4) - Expansion: 1 x PCIe 3.0 x16 - Wi-Fi: Intel 802.11ac, dual-band, up to 433 Mbps - Bluetooth: 4.2 / 3.0 - LAN: Intel I219V Gigabit - Video Output: DVI-I, HDMI, DisplayPort 1.2 (up to 2 simultaneous displays) - Audio: Realtek ALC887, 7.1 CH HD - USB (Rear): 2 x USB 3.1 Gen1, 2 x USB 2.0 - Certifications: FCC, CE, ErP/EuP ready - Warranty: 3 Years

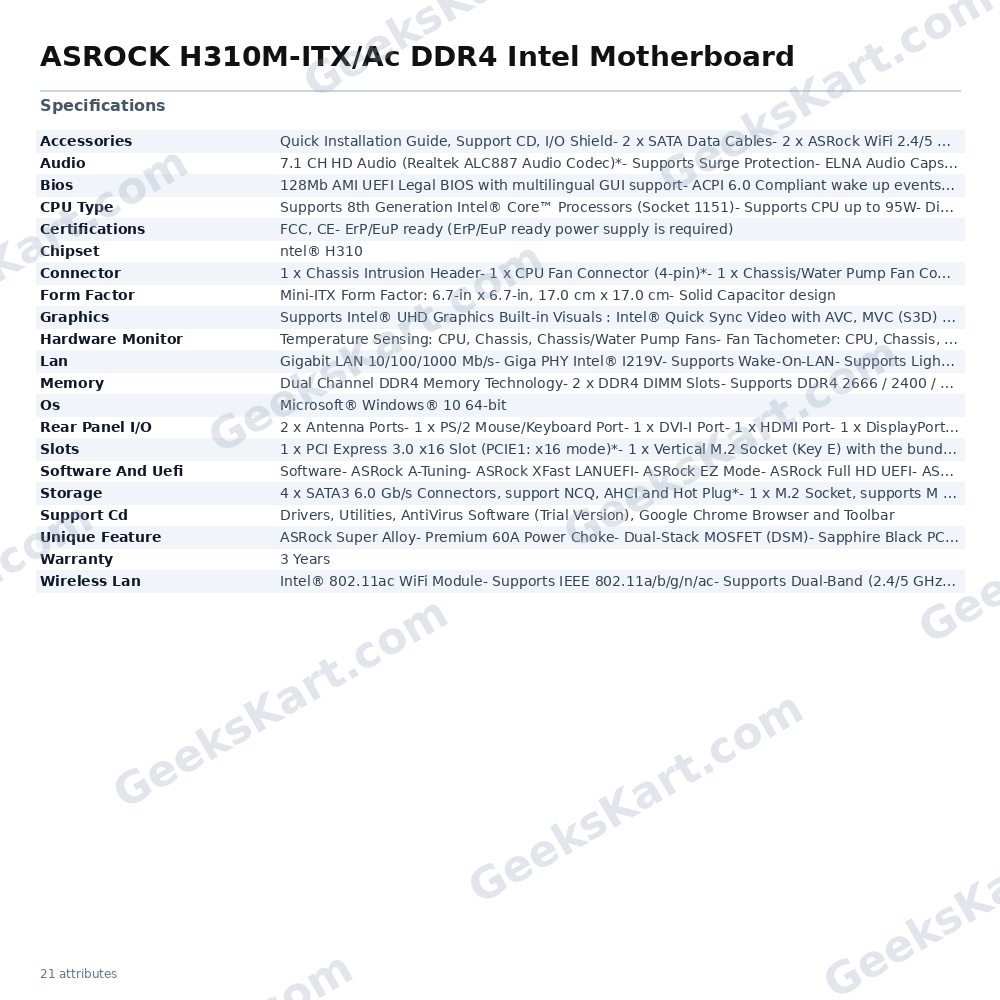

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | ntel® H310 |
| CPU Type | Supports 8th Generation Intel® CoreTM Processors (Socket 1151)- Supports CPU up to 95W- Digi Power design- 5 Power Phase design- Supports Intel® Turbo Boost 2.0 Technology |
| Os | Microsoft® Windows® 10 64-bit |
| Lan | Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*- Supports Surge Protection- ELNA Audio Caps*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver |
| Slots | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)*Supports NVMe SSD as boot disks |
| Memory | Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 32GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*- 1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)***If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.**Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics- DirectX 12- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)- Three graphics output options: DVI-I, HDMI and DisplayPort 1.2**- Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz- Supports DVI-I with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-I, HDMI and DisplayPort 1.2 Ports- Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Supports up to 2 displays simultaneously |
| Connector | 1 x Chassis Intrusion Header- 1 x CPU Fan Connector (4-pin)*- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5 GHz Antennas- 1 x Screw for M.2 Socket |
| Wireless Lan | Intel® 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth 4.2 / 3.0 High speed class II |
| Certifications | FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |

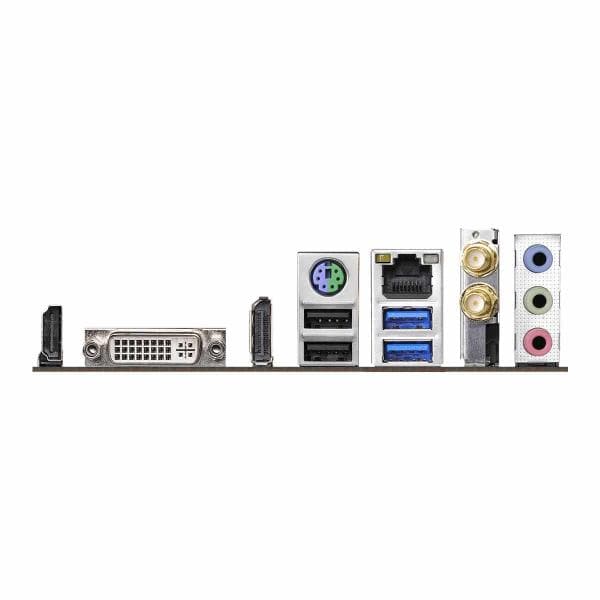

| Rear Panel I/O | 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x DVI-I Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 2 x USB 2.0 Ports (Supports ESD Protection)- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy- Premium 60A Power Choke- Dual-Stack MOSFET (DSM)- Sapphire Black PCB- High Density Glass Fabric PCBIntel® 802.11ac WiFiASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore |
| Software And Uefi | Software- ASRock A-Tuning- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash*These utilities can be downloaded from ASRock Live Update & APP Shop |
