ASRock H370M-HDV Motherboard
MPN H370M-HDV · Brand ASROCK · mATX
The ASRock H370M-HDV is a Micro-ATX Intel motherboard for LGA1151 8th and 9th Gen processors, featuring dual-channel DDR4 up to 2666MHz, triple display output (D-Sub, DVI-D, HDMI 1.4), four SATA3 ports with RAID support, and a 3-year warranty
Inclusive of GST · GST invoice available
Overview
The ASRock H370M-HDV is a Micro-ATX form factor motherboard built on Intel's H370 chipset, designed for LGA1151 socket processors. It supports both 8th and 9th Generation Intel Core processors with a TDP ceiling of 95W, and includes Intel Turbo Boost 2.0 Technology support via its 4 Power Phase design. This makes it a practical choice for home or office builds centred on Intel's Coffee Lake and Coffee Lake Refresh platforms. Memory support spans two DDR4 DIMM slots in dual-channel configuration, accommodating speeds of DDR4 2133, 2400, and up to 2666 MHz with non-ECC, unbuffered modules, and a maximum total capacity of 64GB. Intel Extreme Memory Profile (XMP) 2.0 is supported for compatible kits. The DIMM slots feature 15μ gold contacts for long-term reliability. For display connectivity, the board provides three output options on the rear panel — D-Sub, DVI-D, and HDMI 1.4 — enabling triple-monitor configurations when using Intel UHD Graphics. The HDMI 1.4 port supports up to 4096×2160 resolution at 30Hz, while D-Sub and DVI-D each support up to 1920×1200 at 60Hz. HDCP 2.2 is supported on both DVI-D and HDMI ports. Storage is handled by four SATA3 6.0 Gb/s connectors with support for RAID 0, 1, 5, and 10 via Intel Rapid Storage Technology 15, along with AHCI, NCQ, and Hot Plug. Expansion slots include one PCIe 3.0 x16 and one PCIe 3.0 x1. Audio is delivered through a Realtek 887/897 codec with 7.1-channel HD output and surge protection on the audio circuit. Connectivity includes a Realtek RTL8111H Gigabit LAN controller (10/100/1000 Mb/s) with Wake- LAN, Energy Efficient Ethernet 802.3az, and PXE support. USB ports total ten: four USB 3.2 Gen1 (two front headers, two rear) and six USB 2.0 (two front headers, four rear), all with ESD protection. The BIOS is a 128Mb AMI UEFI implementation with multilingual GUI, Instant Flash, Internet Flash, and ACPI 6.0 compliance. Verified Specifications: - Form Factor: Micro-ATX (7.5-in × 7.4-in / 19.1 cm × 18.8 cm) - Socket: LGA1151 - Chipset: Intel H370 - CPU Support: 8th & 9th Gen Intel Core (up to 95W TDP) - Memory: 2× DDR4 DIMM, max 64GB, DDR4 2133/2400/2666 non-ECC, XMP 2.0 - Storage: 4× SATA3 6.0 Gb/s, RAID 0/1/5/10 - Expansion: 1× PCIe 3.0 x16, 1× PCIe 3.0 x1 - Display Outputs: D-Sub (1920×1200@60Hz), DVI-D (1920×1200@60Hz), HDMI 1.4 (4096×2160@30Hz) - Audio: Realtek 887/897, 7.1 CH HD - LAN: Realtek RTL8111H Gigabit - USB: 4× USB 3.2 Gen1 + 6× USB 2.0 - OS Support: Windows 10 / 11 64-bit - Certifications: FCC, CE, ErP/EuP - Warranty: 3 Years

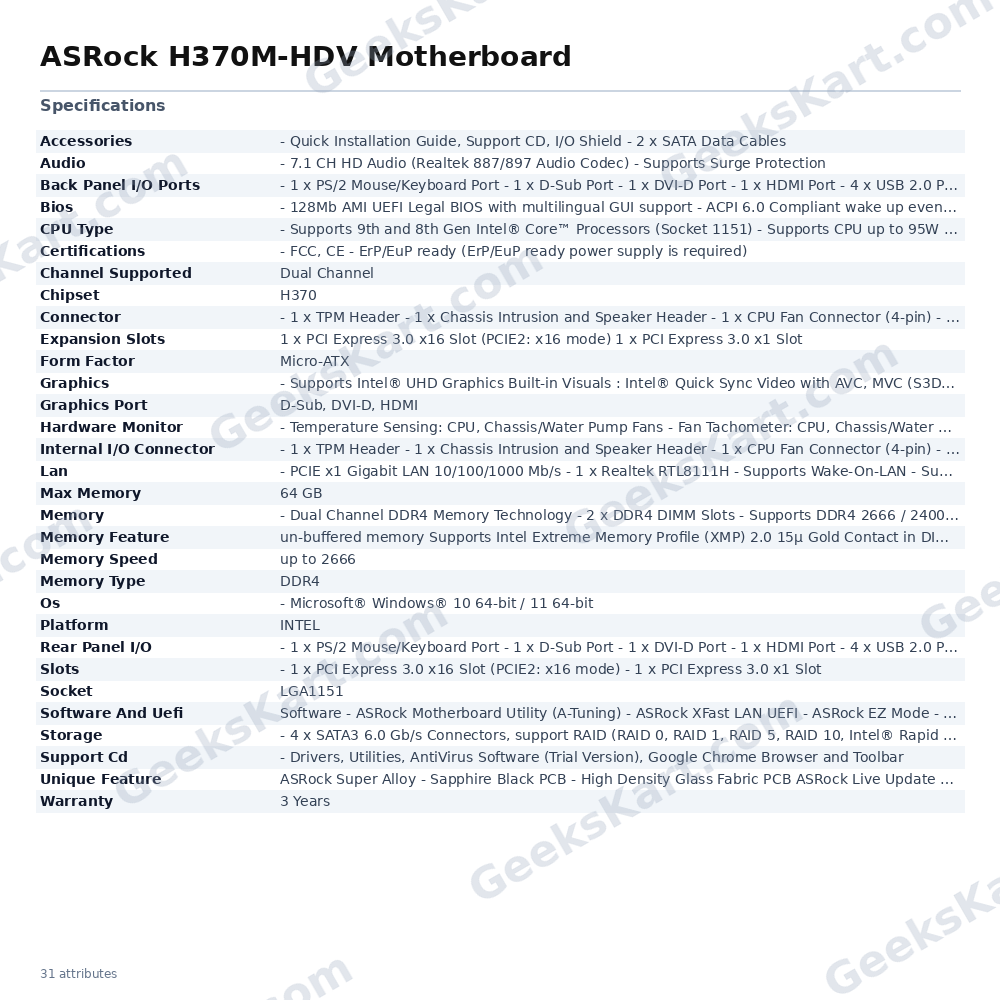

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H370 |
| Socket | LGA1151 |
| CPU Type | – Supports 9th and 8th Gen Intel® CoreTM Processors (Socket 1151) – Supports CPU up to 95W – 4 Power Phase design – Supports Intel® Turbo Boost 2.0 Technology |
| Max Memory | 64 GB |
| Memory Speed | up to 2666 |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – 1 x Realtek RTL8111H – Supports Wake-On-LAN – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – DRAM, PCH 1.05V Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek 887/897 Audio Codec) – Supports Surge Protection |
| Slots | – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) – 1 x PCI Express 3.0 x1 Slot |
| Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug |
| Graphics | – Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics – DirectX 12 – HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 – Three graphics output options: D-Sub, DVI-D and HDMI – Supports Triple Monitor – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) – Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
| Platform | INTEL |
| Connector | – 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables |
| Graphics Port | D-Sub, DVI-D, HDMI |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Memory Feature | un-buffered memory Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots |
| Rear Panel I/O | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Live Update & APP Shop |
| Expansion Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot |
| Hardware Monitor | – Temperature Sensing: CPU, Chassis/Water Pump Fans – Fan Tachometer: CPU, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Channel Supported | Dual Channel |
| Software And Uefi | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Easy RAID Installer |
| Back Panel I/O Ports | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | – 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
