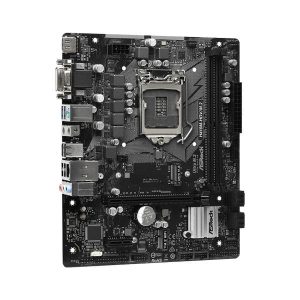

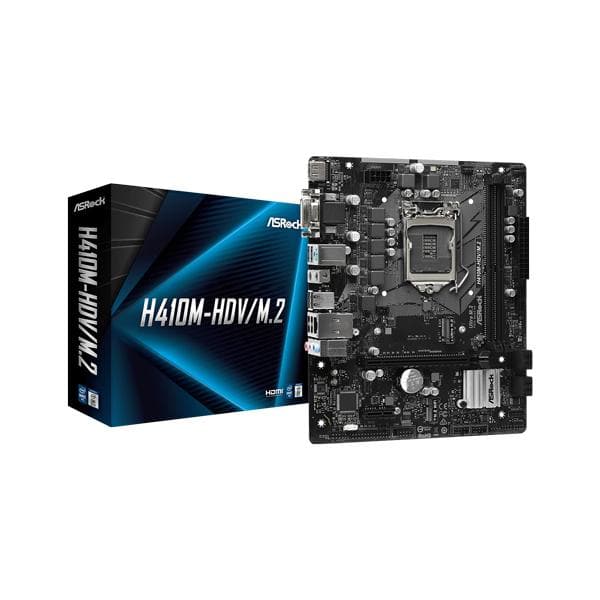

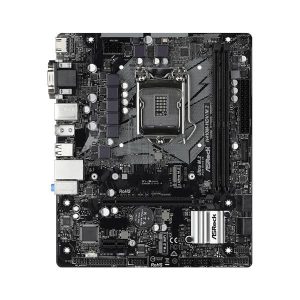

ASROCK H410M-HDV M.2 DDR4 Intel Motherboard
MPN ASROCK-H410M-HDV-M.2 · Brand ASROCK · mATX
The ASRock H410M-HDV M.2 is a Micro ATX motherboard for 10th Gen Intel LGA 1200 CPUs, featuring DDR4-2933, an Ultra M.2 NVMe slot, triple display outputs (HDMI/DVI-D/D-Sub), and Intel Gigabit LAN
Inclusive of GST · GST invoice available
Overview
The ASRock H410M-HDV M.2 is a Micro ATX motherboard built on Intel's H410 chipset, designed to pair with 10th Generation Intel Core processors via the LGA 1200 socket. It is a practical foundation for budget-conscious desktop builds, small-form office systems, or entry-level workstations that need reliable everyday performance without the overhead of a premium platform. The board carries two DDR4 DIMM slots supporting dual-channel memory at speeds up to DDR4 2933 MHz (with Core i9/i7 CPUs) or DDR4 2666 MHz (with Core i5/i3, Pentium, and Celeron processors), with a maximum system memory capacity of 64 GB. Intel XMP 2.0 profiles are supported, and the slots feature 15μ gold contacts for long-term connection integrity. For storage, the H410M-HDV M.2 provides four SATA3 6.0 Gb/s ports alongside one Ultra M.2 socket (M2_1, Key M, 2260/2280) capable of running both SATA3 and PCIe Gen3 x4 (up to 32 Gb/s) NVMe drives as boot disks. Note that if a SATA-type M.2 device occupies M2_1, the SATA3_0 port is disabled. Display connectivity is handled by three rear outputs — HDMI 1.4 (up to 4K/30Hz), DVI-D (up to 1920×1200 @ 60Hz), and D-Sub (up to 1920×1200 @ 60Hz) — with simultaneous dual-display support. Audio is delivered by a Realtek ALC887 codec offering 7.1-channel HD output with surge protection. Networking uses an Intel I219V Gigabit LAN controller (10/100/1000 Mb/s) with Wake- LAN, PXE boot, Energy Efficient Ethernet 802.3az, and lightning/ESD protection. USB connectivity includes four USB 2.0 and two USB 3.2 Gen1 ports on the rear panel, plus internal headers for an additional four USB 2.0 and two USB 3.2 Gen1 ports. An M.2 Key E slot supports optional Wi-Fi/Bluetooth type 2230 modules. ASRock's Super Alloy construction includes a premium 50A power choke, solid capacitors, a High Density Glass Fabric PCB, and a Sapphire Black PCB finish. The 7-phase digital power design supports Intel Turbo Boost Max 3.0 Technology. Full Spike Protection covers all USB, audio, and LAN ports. The board ships with ASRock's AMI UEFI BIOS (128 Mb, multilingual GUI), A-Tuning software, XFast LAN, and the Instant Flash/Internet Flash utilities. Verified Specifications: - Form Factor: Micro ATX, 22.6 cm × 18.8 cm (8.9-in × 7.4-in) - Chipset: Intel H410 - CPU Socket: LGA 1200 (10th Gen Intel Core only) - Memory: 2× DDR4 DIMM, max 64 GB, DDR4-2933/2666/2400/2133, XMP 2.0 - Storage: 4× SATA3 6.0 Gb/s; 1× Ultra M.2 PCIe Gen3 x4 / SATA3 (2260/2280) - Expansion: 1× PCIe 3.0 x16, 1× PCIe 3.0 x1, 1× M.2 Key E (WiFi, type 2230) - Display: HDMI 1.4 (4096×2160 @30Hz), DVI-D (1920×1200 @60Hz), D-Sub (1920×1200 @60Hz) - Audio: Realtek ALC887, 7.1 CH HD - LAN: Intel I219V Gigabit - Rear USB: 4× USB 2.0, 2× USB 3.2 Gen1 - BIOS: 128 Mb AMI UEFI - Certifications: FCC, CE; ErP/EuP ready - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | – Intel® H410 |
| CPU Type | – Supports 10th Gen Intel® Core™ Processors (Socket 1200)- Digi Power design- 7 Power Phase design- Supports Intel® Turbo Boost Max 3.0 Technology |
| Os | – Microsoft® Windows® 10 64-bit |
| Lan | – Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE |
| Bios | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment |
| Audio | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)- Supports Surge Protection |
| Slots | – 1 x PCI Express 3.0 x16 Slot*- 1 x PCI Express 3.0 x1 Slot- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15μ Gold Contact in DIMM Slots*Please refer to Memory Support List on ASRock's website for more information.Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***Supports NVMe SSD as boot disksSupports ASRock U.2 Kit |
| Graphics | – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc- Three graphics output options: D-Sub, DVI-D and HDMI***- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz- Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows® OS.***Supports up to 2 displays simultaneously |
| Connector | – 1 x Print Port Header- 1 x COM Port Header- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use |
| Support Cd | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Rear Panel I/O | – 1 x Antenna Bracket- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 4 x USB 2.0 Ports (Supports ESD Protection)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Unique Feature | ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
| Hardware Monitor | – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash |
